Небольшая печатная потайная электронная плата hdi pcb по низкой

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	0.85 $*	0.32 $*
Aug-17-2025	0.1 $*	0.90 $*
Jul-17-2025	0.92 $*	0.42 $*
Jun-17-2025	0.83 $*	0.49 $*
May-17-2025	0.18 $*	0.18 $*
Apr-17-2025	0.97 $*	0.27 $*
Mar-17-2025	0.48 $*	0.66 $*
Feb-17-2025	0.98 $*	0.45 $*
Jan-17-2025	0.34 $*	0.62 $*

Месяц

Минимальная цена

Макс. стоимость

Sep-17-2025

0.85 $*

0.32 $*

Aug-17-2025

0.1 $*

0.90 $*

Jul-17-2025

0.92 $*

0.42 $*

Jun-17-2025

0.83 $*

0.49 $*

May-17-2025

0.18 $*

Apr-17-2025

0.97 $*

0.27 $*

Mar-17-2025

0.48 $*

0.66 $*

Feb-17-2025

0.98 $*

0.45 $*

Jan-17-2025

0.34 $*

0.62 $*

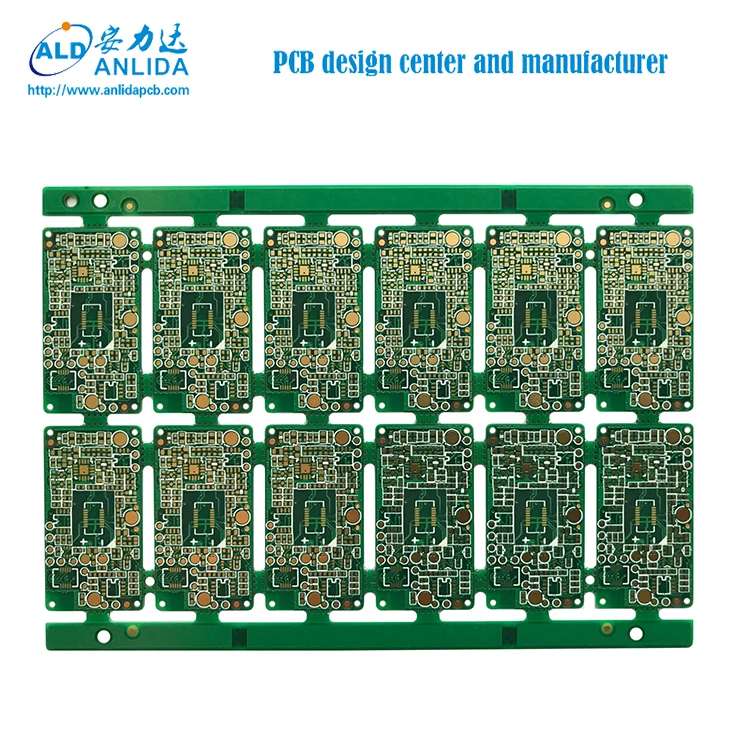

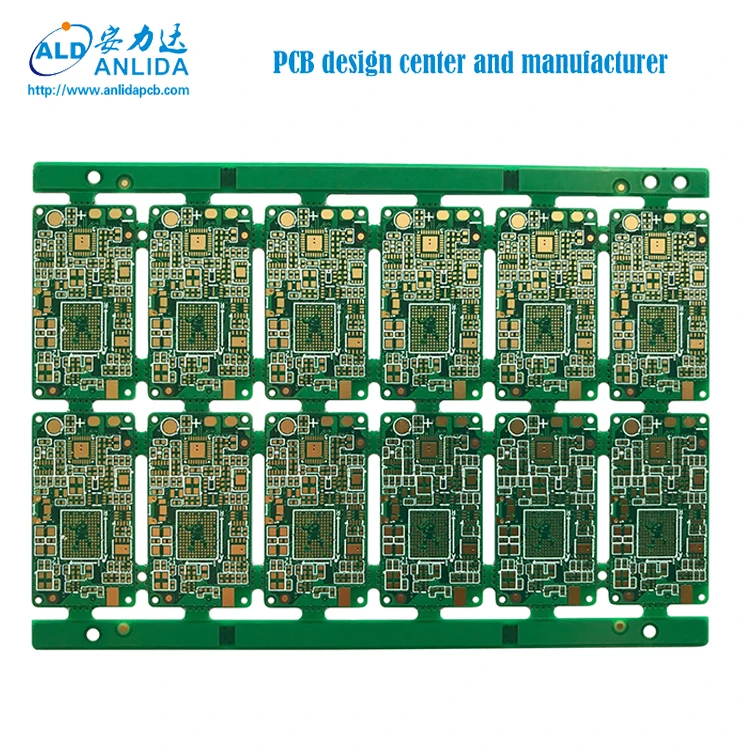

low price small printed blind and buried hdi pcb electronic board

PCB-Throughput:

Printed Circuit Board Production:

NO.	Item	Prototype	Mass Production
1	Layer Count	1-30 Layers	1-20 Layers
2	Max Panel Size	≤1000X1000mm	≤700X700mm
3	Base Material Type	FR4,High Tg FR4, Rogers,Halogen Free	FR4,High Tg FR4, Rogers,Halogen Free
4	Max Board Thickness	≤10 mm	≤10 mm
5	Min Board Thickness	2L≥0.2mm,4L≥ 0.3mm 6L≥0.4mm,8L≥0.6mm 10L≥0.65mm,12L≥0.8mm	2L≥0.2mm,4L≥ 0.3mm 6L≥0.4mm,8L≥0.6mm 10L≥0.65mm,12L≥0.8mm
6	Min Line Width	≥ 0.05mm(2mil)	≥ 0.064mm(2.5mil)
7	Min Line Space	≥ 0.064mm(2.5mil)	≥0.075mm(3mil)
8	Min Through hole	0.15mm(6mil)	0.15mm(6mil)
9	Min Blind hole	0.1mm(4mil)	0.1mm(4mil)
10	Min Buried Hole	0.2mm(8mil)	0.2mm(8mil)
11	Min Plated Hole Thickness	20µm(0.8mil)	20µm(0.8mil)
12	Surface coating	HASL,ENIG, OSP,ENIG+OSP,Plating Ni/Au/Ag	HASL,ENIG, OSP,ENIG+OSP,Plating Ni/Au/Ag
13	Solder Mask color	Green,Blue,Black,White,Yellow,Red	Green,Blue,Black,White,Yellow,Red
14	Silkscreen color	White,Black,Yellow,Red,	White,Black,Yellow,Red,
15	Thick Copper	6oz/210µm	4oz/140µm
16	MIN S/M Pitch	0.1mm(4mil)	0.1mm(4mil)
17	PTH Dia Tolerance	±0.076mm(±3mil)	±0.076mm(±3mil)
18	NPTH Dia Tolerance	±0.05mm(±2mil)	±0.05mm(±2mil)
19	Hole Position Deviation	±0.05mm(±2mil)	±0.05mm(±2mil)
20	Outline Tolerance	±0.15mm (±6mil)	±0.15mm (±6mil)
21	Controlled Impedance	+/-5%	+/-10%
22	WARP and TWIST	≤0.75%	≤0.75%
23	Flammability Class	94V-0	94V-0
24	Solderability test	255℃+/-5℃	255℃+/-5℃
25	Thermal stress	288+5℃,10Sec	288+5℃,10Sec
26	Test Voltage	50-330V	50-330V
27	Adhesion Test	NO PEELING	NO PEELING
28	Other Inspection item	IPC-6012 / A-600H	IPC-6012 / A-600H
