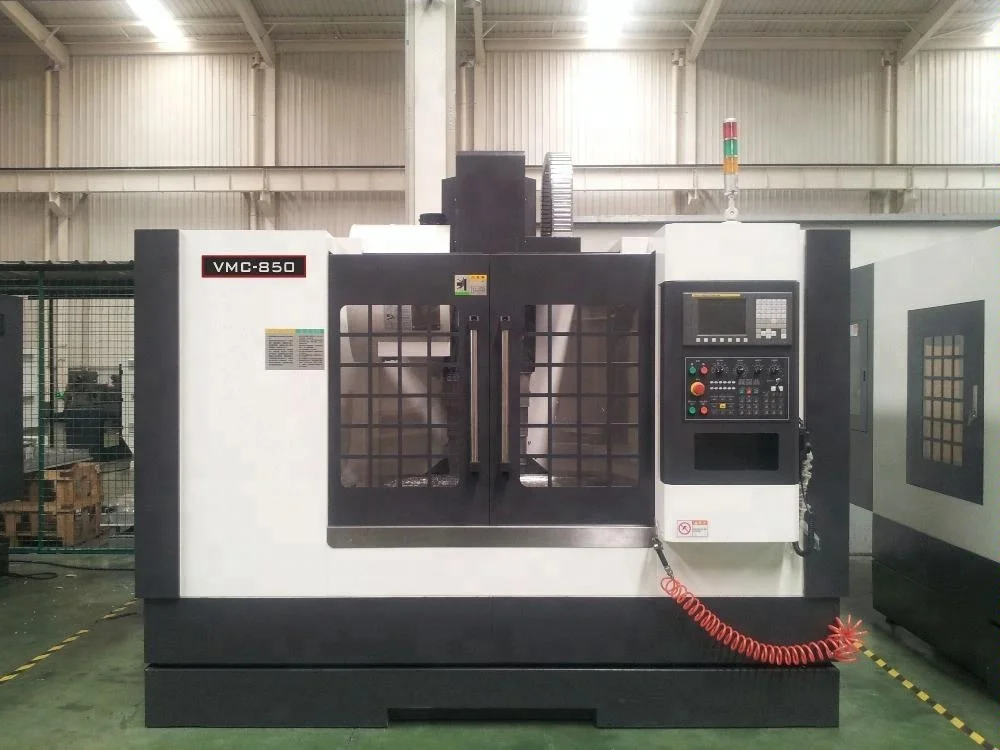

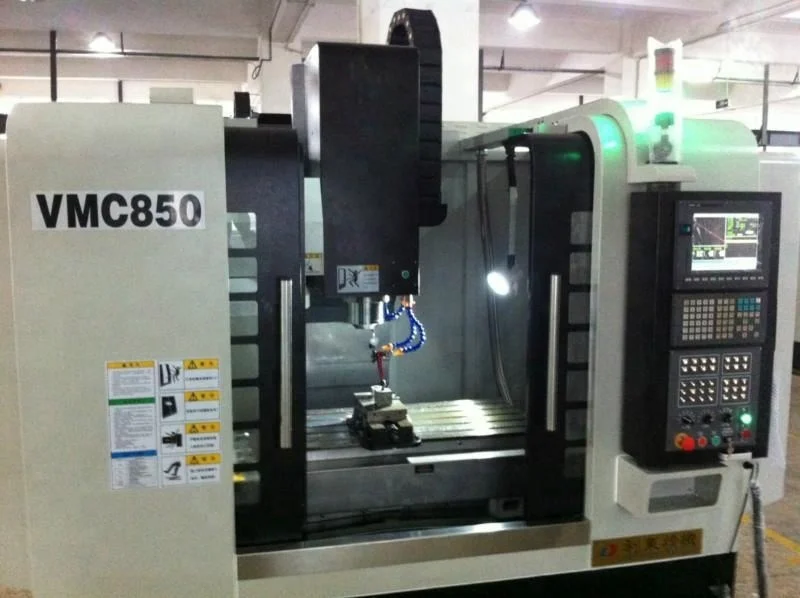

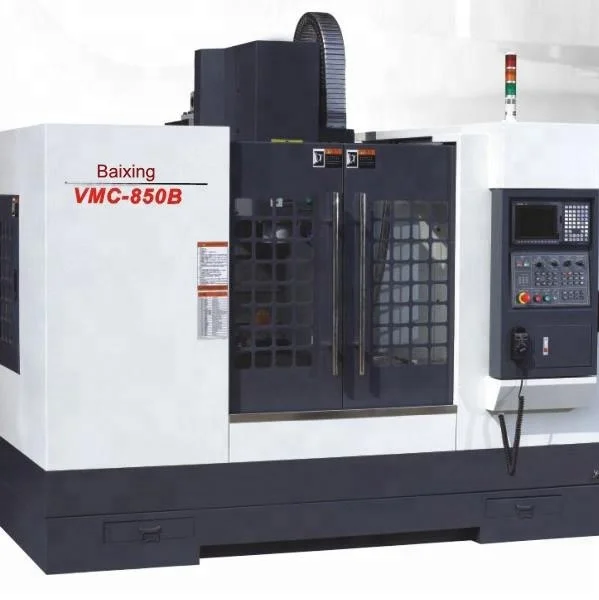

3 оси 4-осевой 5-осевой фрезерный станок ЧУП вертикальный обрабатывающий центр с ЧПУ для

Modle

850

Stroke ( X Axle) (mm)

800

Stroke ( Y Axle)(mm)

500

Stroke ( Z Axle)(mm)

500

Diatance between working table and Main spindle(mm)

180-680

Distance beween spindle and Verical Guideway(mm)

550

640

640

Working table size(mm)

1050×520

1300×600

1500×600

Max. load on table(kg)

600

1000

1000

Slot on working table(No.-size*diatance)(mm)

3-18*150

5-18*120

5-18*120

Spindle Taper hole on main axle(model/size)

BT40/150

BT40/150

BT40/150

BT50/155

Spindle speed(r/min)

60-8000

60-8000

60-8000/6000

Spindle motor power (kw)

5.5-7.5

7.5-11

7.5-11

Axis motor power on x/y/z(kw)

2

3

3.5

Max. travel speed on axle X(mm/min)

8000

8000

8000

Max. travel speed on axle Y(mm/min)

8000

8000

8000

Max. travel speed on axle Z(mm/min)

8000

8000

8000

Max.cutting feed rate(mm/min)

6000

6000

6000

Tool handle

BT40

BT40/BT50

BT40/BT50

CNC system

MITSUBISHI/FANUC/SIEMENS

Positioning Accuracy (mm)

0.01/500

0.01/500

0.16/500

Repeatability Accuracy(mm)

0.005

0.005

0.006

Weight(kg)

4500

7500

8000

Air pressure(kg/cm2)

6

6

6

Power(kw)

20

25

30

Dimension(mm)

2600×2400×2500

3300×2700×2800

3700×2700×2800
