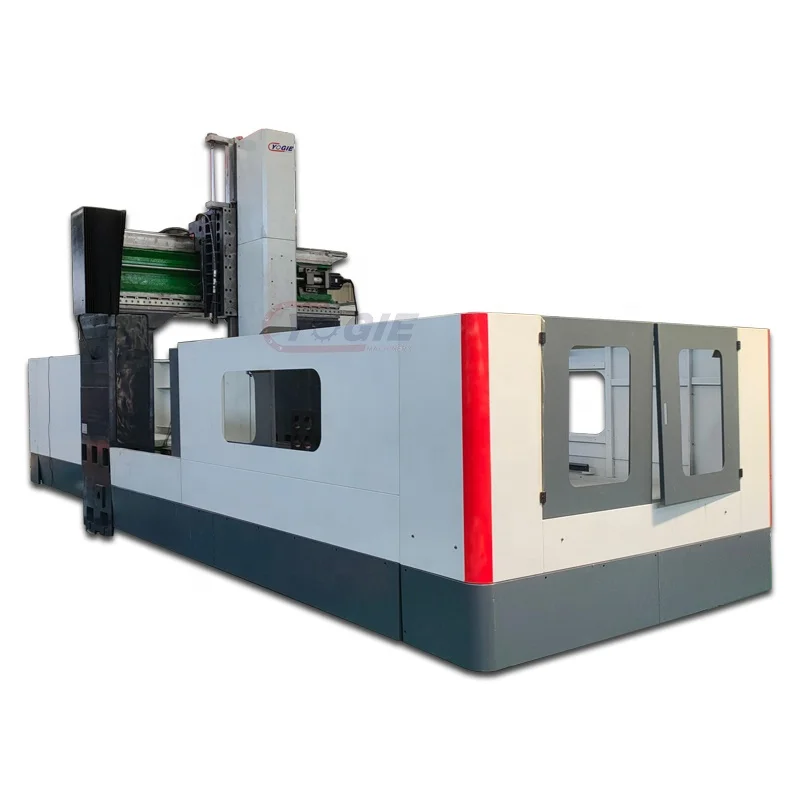

Luoyang yogie 4 оси портальный фрезерный станок с ЧПУ сверлильный

Luoyang yogie 4 оси портальный фрезерный станок с ЧПУ сверлильный

Категория: >>>
Поставщик: Luoyang,Yujie,Industry,&,Trade,Co.,Ltd.

Цена:12 357,00 $ - 51 282,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-16-2025	15693.10 $*	16007.19 $*
Jul-16-2025	12728.28 $*	12983.11 $*
Jun-16-2025	15446.72 $*	15755.79 $*
May-16-2025	15323.57 $*	15629.39 $*
Apr-16-2025	12233.1 $*	12478.76 $*
Mar-16-2025	15076.56 $*	15378.13 $*
Feb-16-2025	14952.21 $*	15251.63 $*
Jan-16-2025	14828.77 $*	15125.62 $*

Характеристики

Performance			YJGM-2217	YJGM-3018	YJGM-4022	YJGM-6035
Travel
Work table travel(X/Y/Z)	mm	2200/1700/1000	3000/1800/1000	4000/2200/1000	6000/3500/1200
Distance from spindle surface to worktable	mm	0-1200	0-1200	0-1400	0-1600
Rail way	Two linear guide rail, one hardened rail
Work table
Table size	mm	2200x1300	3000x1500	4000x1800	6000x2500
The maximum load capacity of the workbench	T	5	7	12	20
Splindle
The spindle taper(model sleeve diameter)	mm	BT50/155	BT50/155	BT50/190	BT50/190
The spindle motor power	kw	18	22	26	30
Splindle speed	rpm	6000	6000	6000	6000
Accuracy
Position Precision	mm	0.01/1000	0.01/1000	0.01/1000	0.01/1000
Repeated position precision	mm	±0.01	±0.01	±0.01	±0.01
Size
Net weight	T	23	30	40	75

Product Features:

1. High rigidity and long-term accuracy retention, high precision and high dynamic response.
2. High precision and dynamic response.
3. High efficiency
4. Large processing range
5. Customize service according to customer special requirements.

Ram (Patent structure)

Using the best rectangular lead rail, it has stable structure and strong rigidity!

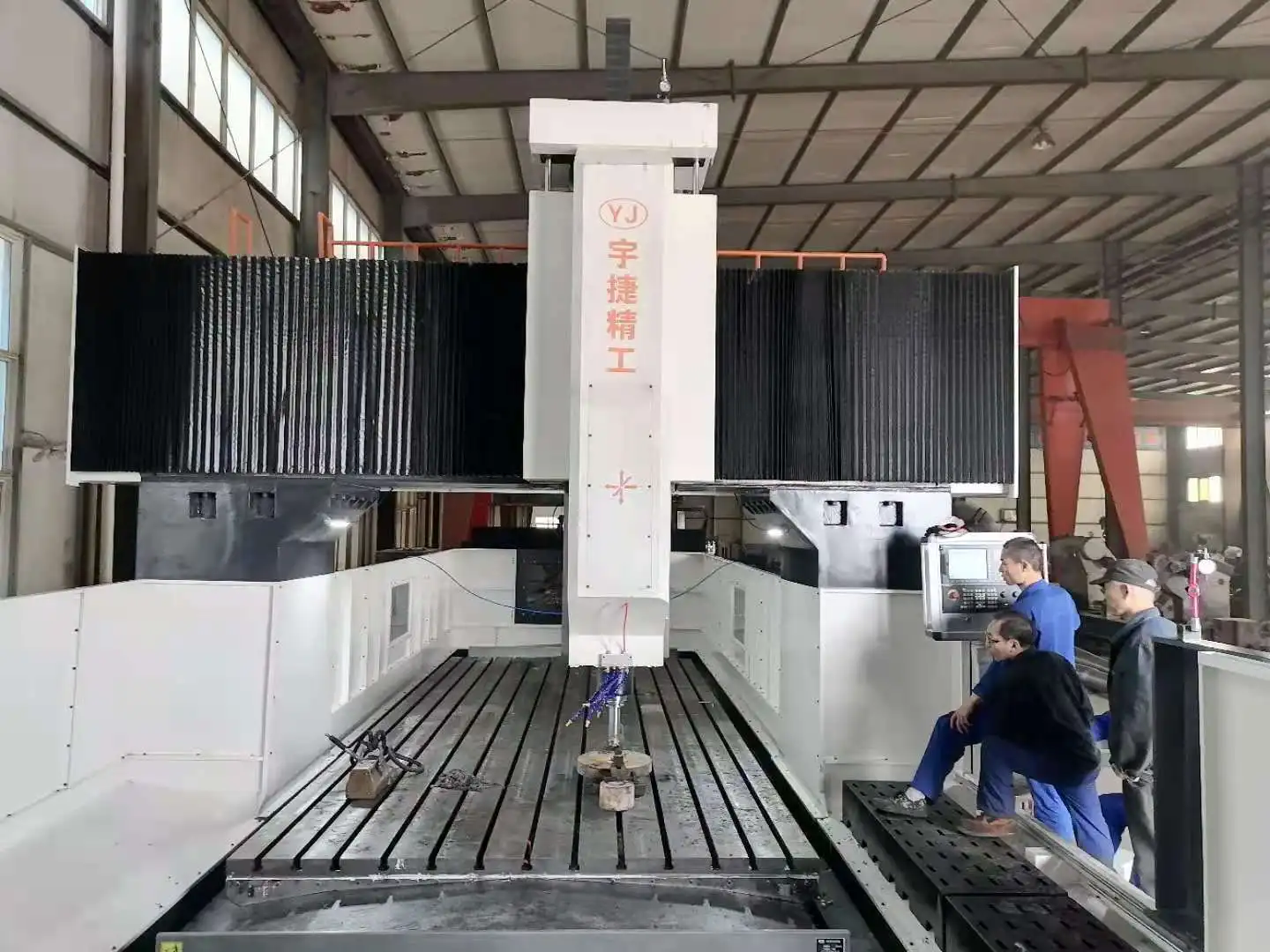

Beam (Patent structure)

"Door" casting design ensures rigidity and stability.

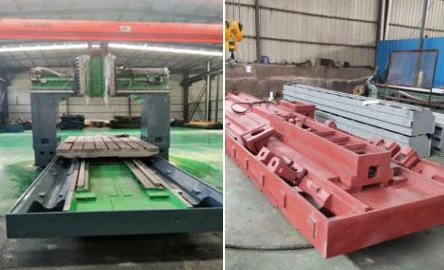

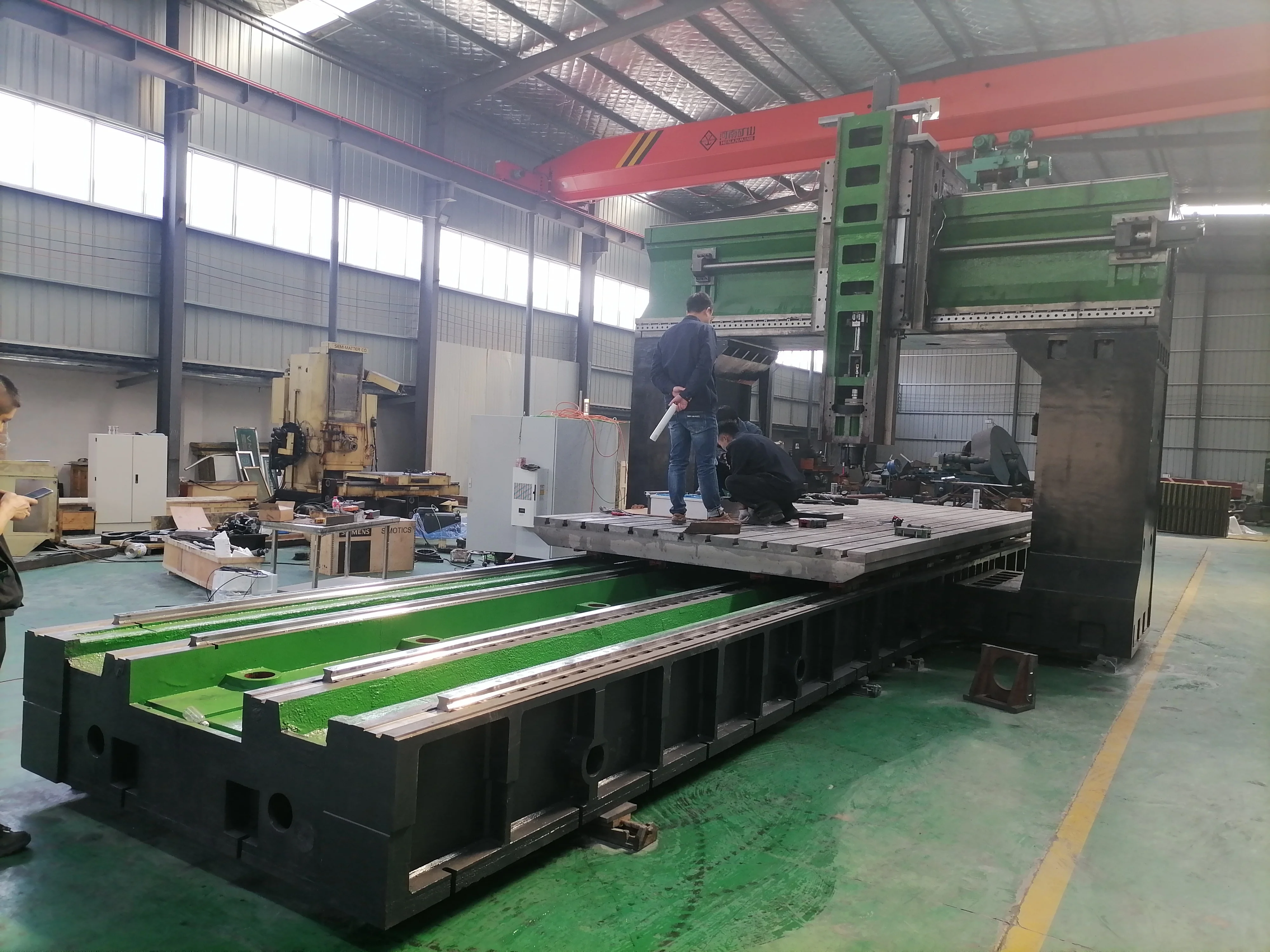

Bed Frame

Using the overall ship structure, and double wall is integrated with the ribs, it ensure rock- solid foundation for maximum load seismic resistance.

CNC System

Siemens system, KND, Frank and Mitsubishi system can be selected according to customer requirements.

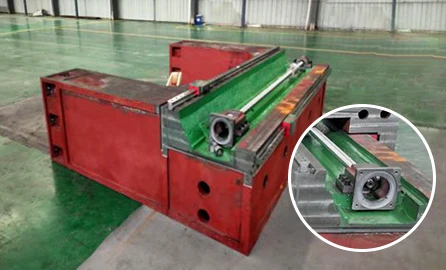

Screw And Rail Way
Taiwan brand screw and rail way and Japanese brand bearing to guarantee the rigidity and precision of machine.

Option

Customer can choose the fourth axle, side milling head, Spindle central water discharge and tool changer according to machining requirements.

Q1: Are you factory or Trade company？
A1: We are factory. Our factory have more than 20 years experience in production various CNC machine.We provide final solution for machining manufacturing industry.

Q2: How to choose the suitable machine？
A2: Tell us your max workpiece size(such as max length,max width, max height and weight) and photo. We can recommend the suitable machine for you.

Q3: Can you supply customized service?
A3: We can customized according to customer’s special requirements.

Q4: How to intall and operate of the machine?
A4: Enough photoes, video and operation manual will be supplied.It will show how to operate the machine. Our engineers also provide online technical support

Q5: What is the payment item?
A5: 50% T/T in advance , 50% balance will be paid before machine leave the seller’s factory.
