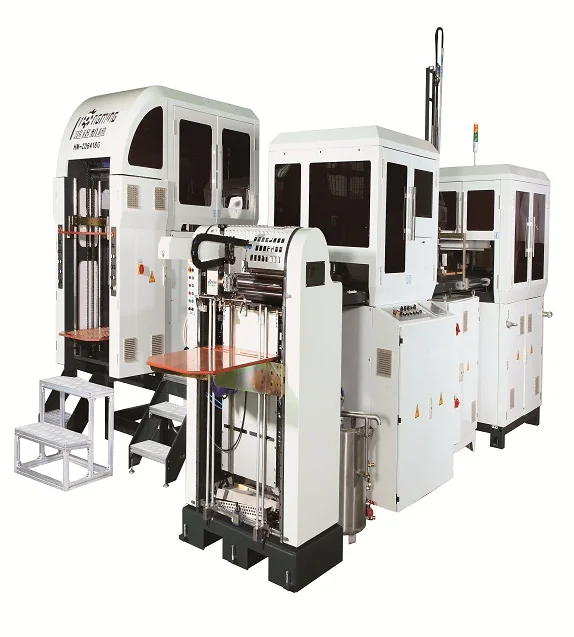

HM-ZD6418G многофункциональная подарочная коробка упаковочная машина для изготовления бумаги производятся в Китае

Описание и отзывы

Трекер стоимости

Характеристики





Guangdong Hongming Intelligent Joint Stock Co.,Ltd(Formerly Dongguan Hongming Machiennery Co.,Ltd) is the leading professional manufacturer who makes automatic rigid box making machines and hardcover books making machines in China.

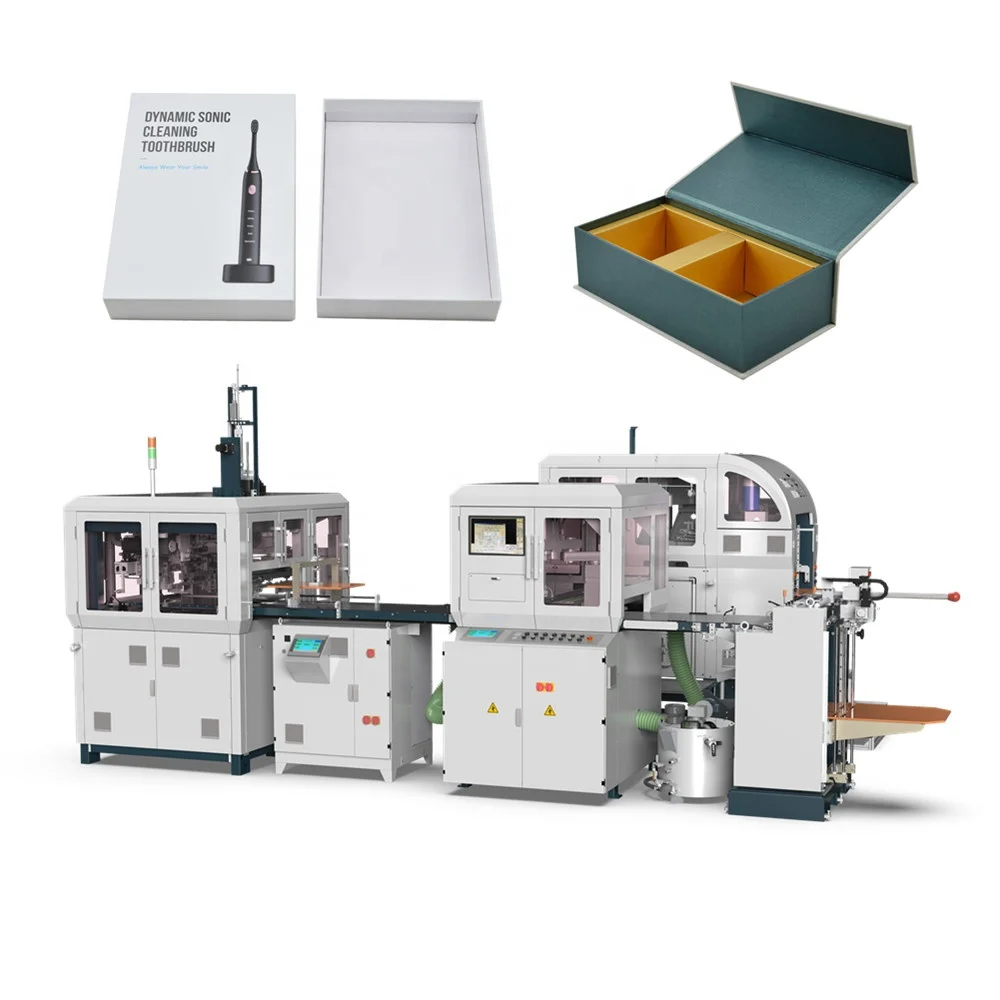

Our main machines include the automatic rigid box machines,the semi-auto rigid box making machines,and the hardcover books making machines. these machines are widely used to make cell phone boxes ,cosmetic boxes ,wine boxes,shoe boxes,chocolate boxes,etc.





Features and funtion:



1.Suit to all kinds of rigid box in mass production



2.Computer control for auto mould changing(optional)



3.Auto error stop and display

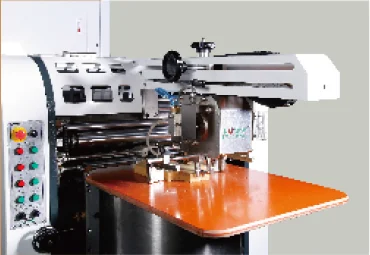

4.Automatically feed paper and greybeard



5.24-hours control for glue pre-heating



6.Wrapper can input 300 product formula



7.Automatically cut and heat tape to paste the greyboard box's quad stayer (four corners), with independent man-machine contorl



8.Adopt servo and PLC control

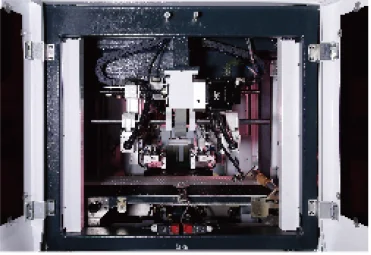

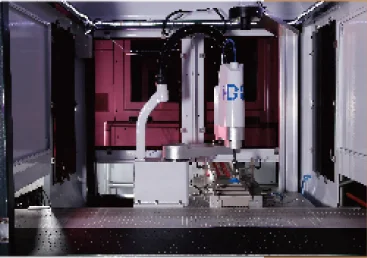

9.Spotter by camera tracing system and SCARA(Selective Compliance Assembly Robot Arm) (spotting inaccuracy±0.05mm)

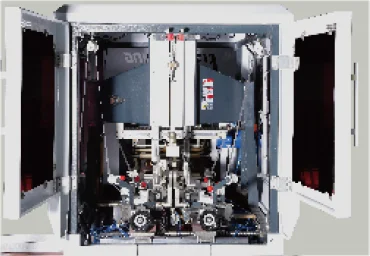

10.Wrpper can automatically and continually lift box,warp paper ,fold corner edge,fold in and form box



11.Autonatic control system for glue viscosity(optional)



12.Remodel the taping m/c into Board assembling m/c (optional)



13.Suit to long paper ear box production.



14.Unique innovate glue application suit to both hot glue and cold glue.



15.Suit to groove paper production









GreyboarSize D=Length,C=Width	C(Max.)	580mm
	C(Min.)	74mm
	D(Max.)	820mm
	D(Min.)	124mm
	Thickness T	1-3mm
Paper Size B=Length,A=Width	A(Max.)	610mm
	A(Min.)	95mm
	B(Max.)	850mm
	B(Min.)	180mm
	Thickness	80-160mm
Finished Box Size  L=Lendth  W=Width H=Heigth	L(Max.)	600mm
	L(Min.)	100mm
	W(Max.)	400mm
	W(Min.)	50mm
	H(Max.)	12mm
Paper Corner Edge	E(Max.|)	125mm
	E(Min.)	10mm
	Folding-in Size R	15-100mm
Paper Pile Height Max.	750mm
Greyboard Pile Height Max.	850mm
Glue Tank Volume	40L
Air Supply	460L/min,0.8MPa
Speed	≤30pcs/min
Power/Voltage	26KW/AC380V
Net Weight	6500kg
Machine Dimension	6800*4500*3300













Note:



1.The finished Box Max. sizes are determined by paper size

A(Min.)<W+2H+2T+2R<A(Max.); B(Min.)<L+2H+2T+2R<B(Max.)



2.Either the Max. Sizes or the Min. Sizes can not be fulfilled on the same box.



3.The production speed of the rigid box machine is determined by the box size ,paper and greyboard materials.



4.Seller doesn't provide air compressor.(8atm=0.808MPa,7.5KW compressor is needed)



5.Item 5,item 6 and item 8 are optional device for HM-ZD 6418G
