Высококачественный ветротурбинный генератор Угольная щетка скользящее кольцо 3 цепи 30 А
- Категория: Electrical Contacts and Contact Materials >>>
- Поставщик: Shenzhen,Jarch,Electromechanical,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 119.62 $* | 125.46 $* |
| Aug-19-2025 | 118.83 $* | 124.63 $* |
| Jul-19-2025 | 99.70 $* | 104.57 $* |
| Jun-19-2025 | 116.69 $* | 122.21 $* |
| May-19-2025 | 101.88 $* | 106.19 $* |
| Apr-19-2025 | 114.70 $* | 120.80 $* |
| Mar-19-2025 | 113.90 $* | 119.98 $* |
| Feb-19-2025 | 112.27 $* | 118.97 $* |
| Jan-19-2025 | 111.33 $* | 117.90 $* |
Характеристики

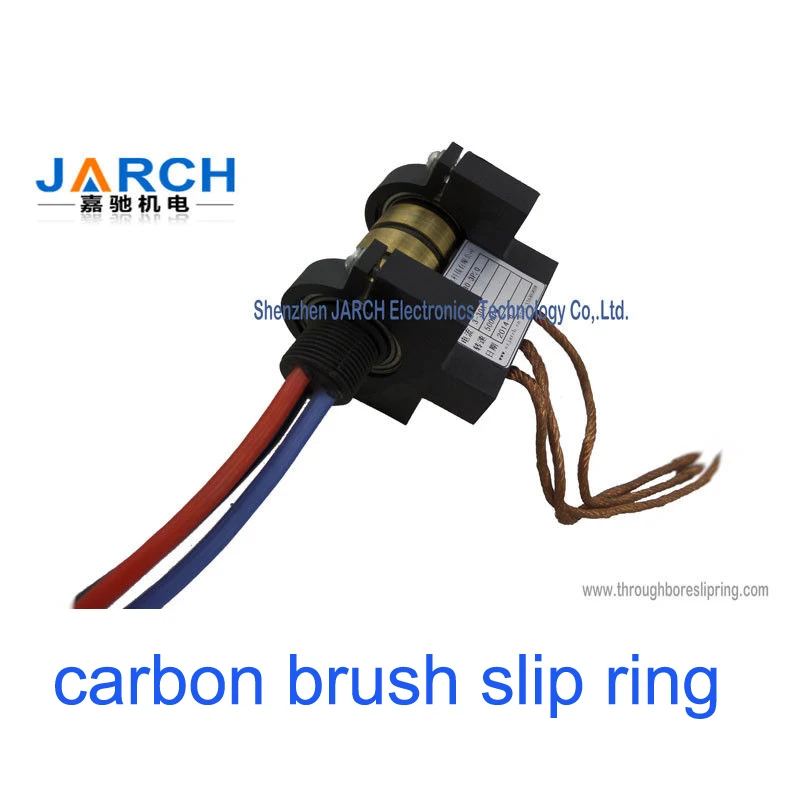

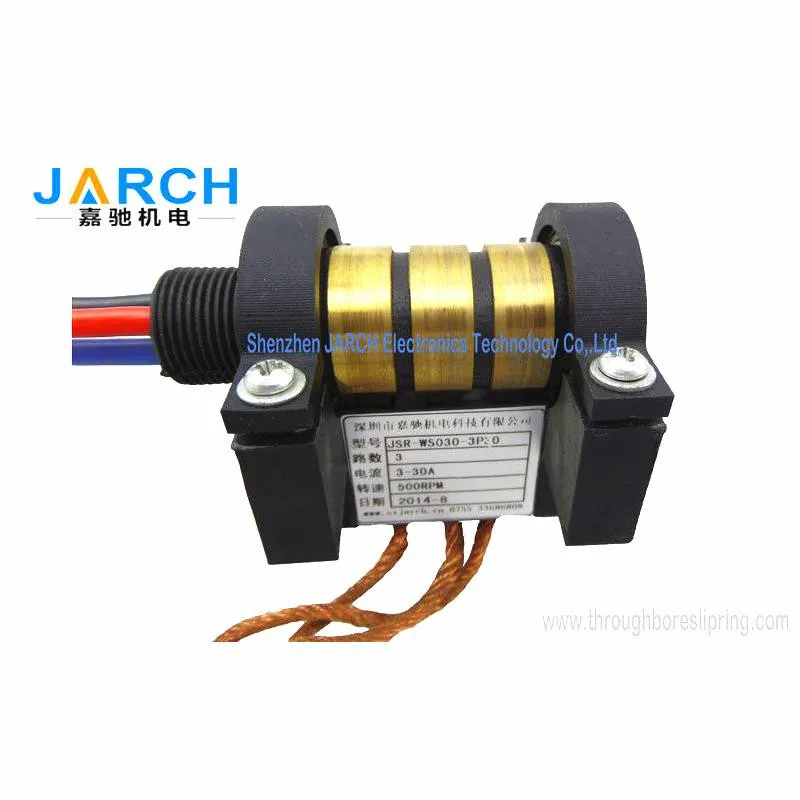

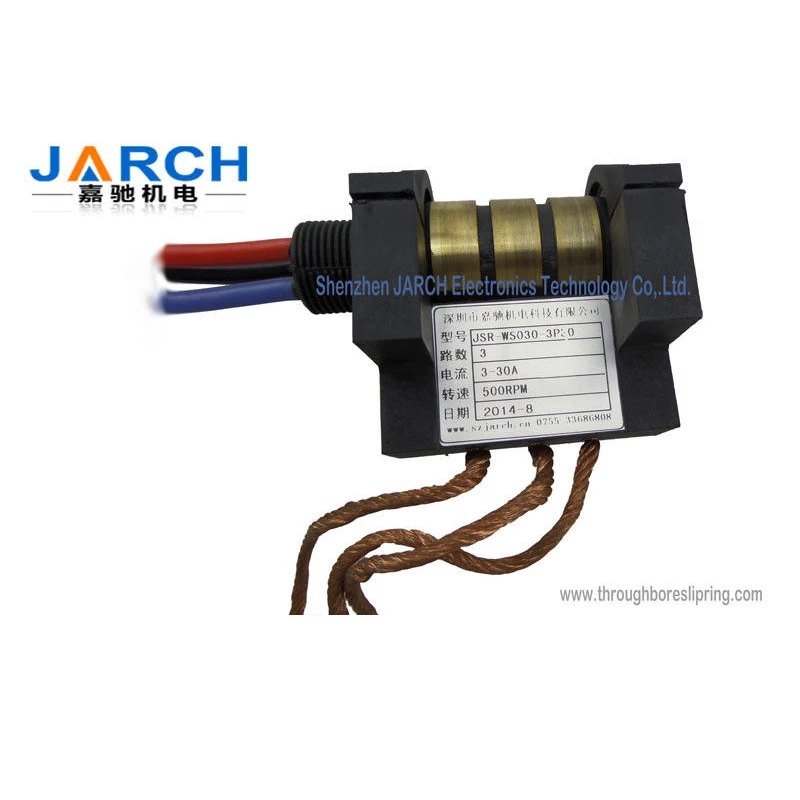

High quality wind turbine generator carbon brush slip ring 3 circuits 30A per circuits
Product Description
JARCH WS Series through bore slip rings are ideally suited for electric slip ring applications where signals and power need to be transferred, and a through hole is required to pass either a shaft or other feed through.
The WS030 uses JARCH's Carbonr brush technology which offers several advantages over conventional slip ring contacts , low contact force and low contact wear. It provides an economical, readily available solution when a compact through-bore configuration is required.
Benefits:
· Unique signal handling performance with minimal electrical circuit noise
· Tight packaging to fit in the most demanding space constraints
· Fully compatible with both analog and TTL control level signals
· Precision ball bearings for long life
· Rugged anodized aluminum construction
· Available with Ethernet
· Rapid delivery
Dimensions:
Specifications:
Rings | 3 | Current | 30A |
Voltage | mV~380 VDC/VAC | Max speed | 500RPM |
Through bore size | --- | Overall diameter | -- |
Housing Material | Aluminium Alloy | Torque | 0.05N.m;+0.03N.m/6rings |
Working life | 50million | Contact material | Precious Metal:Gold-Gold |
Electrical noise | <5 mΩ | Contact Resistance | <2mΩ |
Dielectric strength | 1000VDC@50Hz | Lead Wire | UL Teflon® Awg26,Awg22,Awg16 |
Insulation resistance | 500MΩ@600VDC | Lead Lengths | 300mm(12") |
Operating Temp. | -40°C to 80°C | Protection | --- |
Materials | Lead Free, ROHS | Certified | CE,FCC |
Applications:
• Exhibit/display equipment
• Packaging / wrapping machinery
• Semiconductor handling systems
• Industrial machinery
• rotary index tables
• Process control equipment
• Heavy equipment turrets or cable reels
• Emergency lighting, robotics Palletizing machines, Option
• Medical equipment | rotary sensors, emergency lighting, robotics
• Miniature cable reels
Carbon Brush Installation Instructions:
Shaft Mounted
FAQ
Company Information
JARCH is a professional manufacturer of slip rings and rotary joints,founded in 1998,located in Bao’an,Shenzhen,with more than 80 employees and 1000m2 plant.
We have 8 types of patented products at present and have established extensive and long-term cooperation with many domestic research institutes(Beijing University,SAS,,Beihang University,etc), and own a skilled management team.To creat the brand and do famous brand,we carry out strict performance ISO9001 standard of CQC.
Our slip rings are widely used in civil and military fields ranging from robot,spacecrafts, industrial automation, electric power generation, measurement instruments, medial equipments to building construction. Our main products have fiber optic rotary joint / Electro optical slip ring/ through bore slip ring/ Pneumatic electric rotary union/ Hydraulic rotary union/through bore slip ring/ Pneumatic rotary joint,etc.
Our products are sold to more than thirty provinces in China and exported to more than 38 countries. Our main customers have Huawei,Foxconn,Sany Heavy Industry,BYD,etc.
OEM and ODM are highly welcome!
