750 подача гофрированного кровельного листа, формовочная машина
US $14500-$15000
Формовочная машина для гофрированного листового
- Категория: >>>
- Поставщик: Botou,Xianfa,Roll,Forming,Machine,Factory
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.70 $* | 0.62 $* |
| Aug-19-2025 | 0.55 $* | 0.13 $* |
| Jul-19-2025 | 0.41 $* | 0.62 $* |
| Jun-19-2025 | 0.32 $* | 0.79 $* |
| May-19-2025 | 0.16 $* | 0.40 $* |
| Apr-19-2025 | 0.43 $* | 0.75 $* |
| Mar-19-2025 | 0.52 $* | 0.95 $* |
| Feb-19-2025 | 0.23 $* | 0.7 $* |
| Jan-19-2025 | 0.2 $* | 0.83 $* |
Характеристики
Roll Forming Machine
Machine Including Components
Hydraulic Decoiler--Feeding Platform--Manual Pre Cut--Forming--Hydraulic System--Computer Control Cabinet--Hydraulic Cutting--Receiving Platform

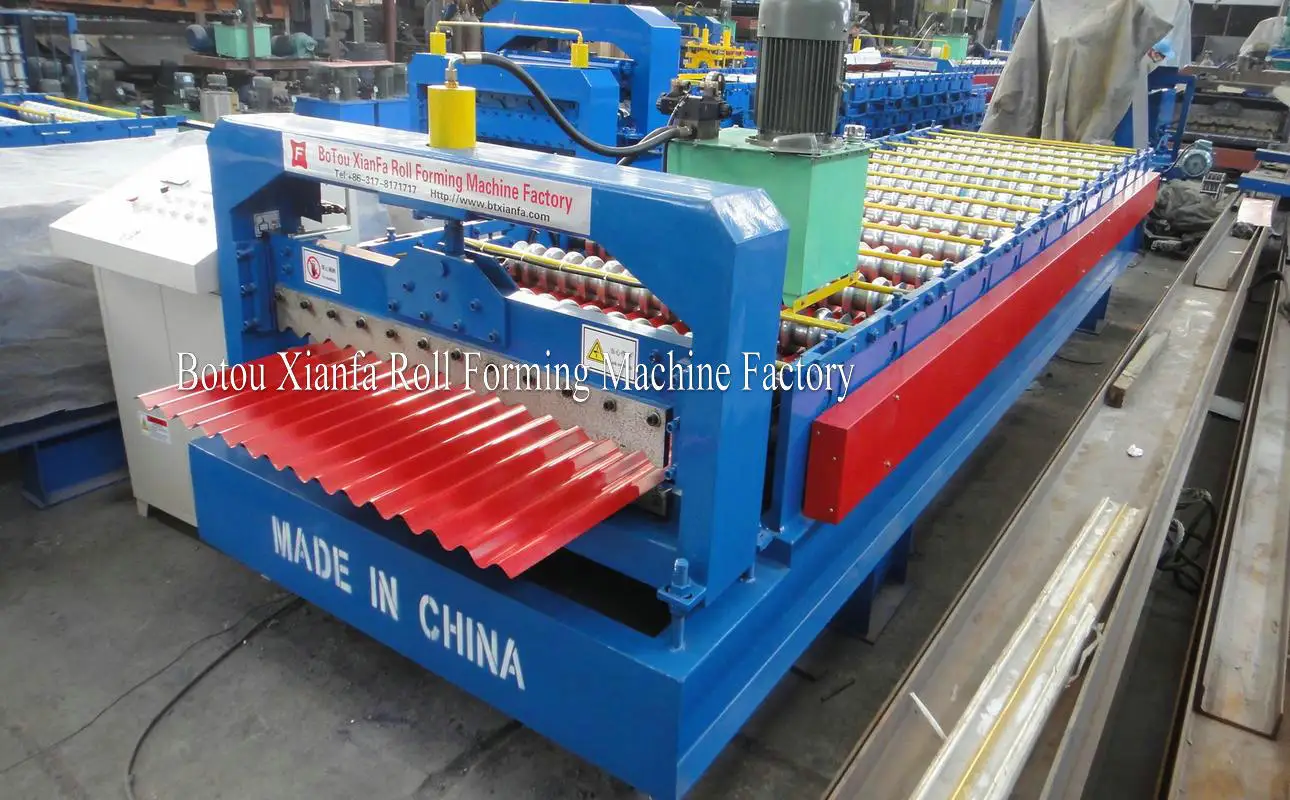

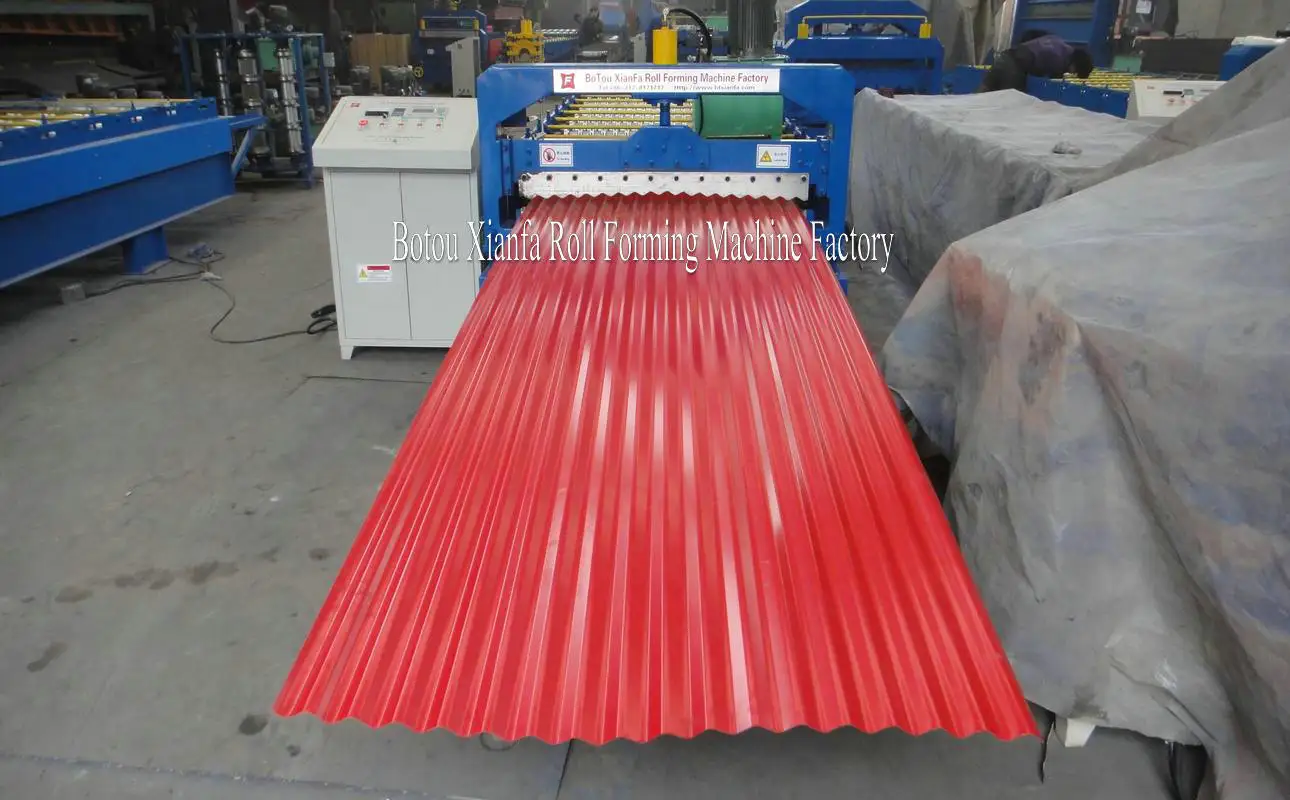

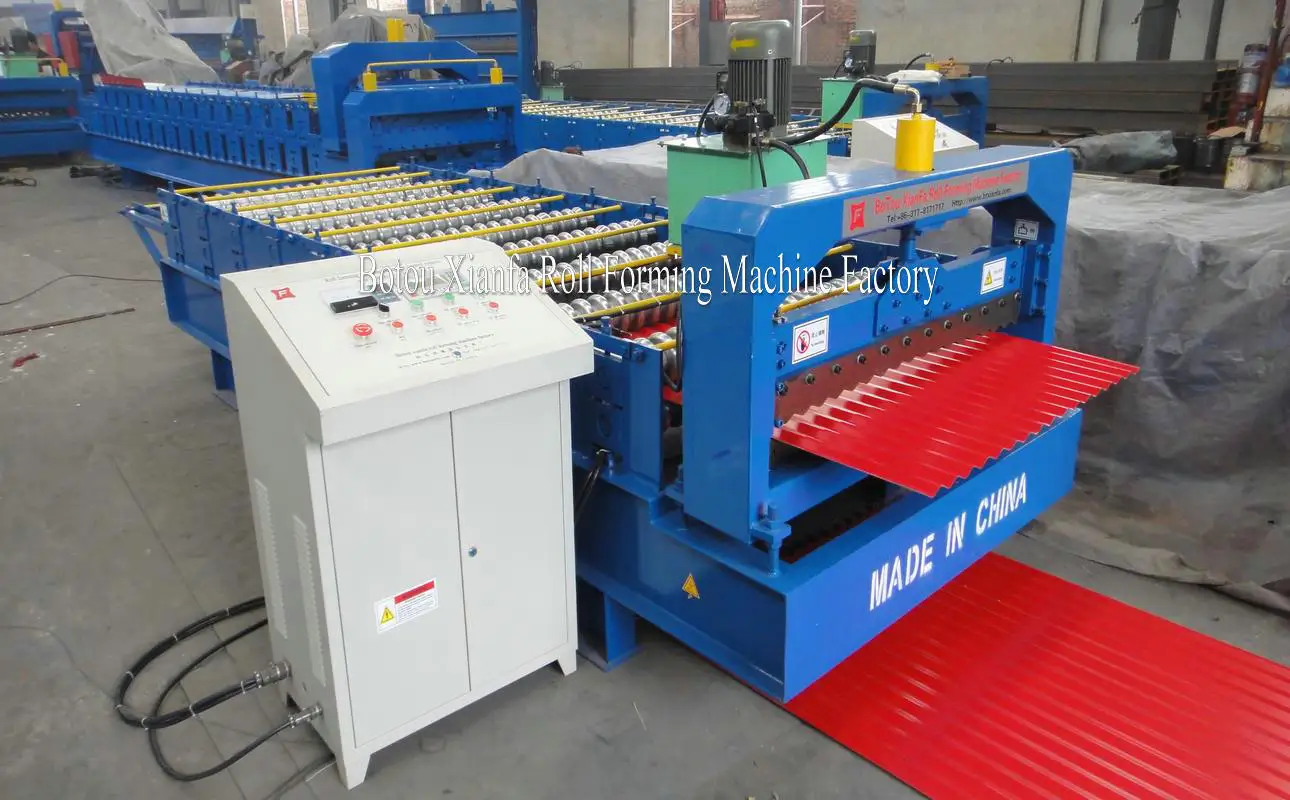

Machine Pictures
Machine Main Parameters
1.Suitable Material:GI/PPGI/Aluminum
2.Width Of The Raw Material:1250mm
3.Rows Of Rollers:12Rows
4.Productivity:0-15m/min
5.Appearance Size:About 5800*1550*1550mm
6.Sidewall thickness :16mm
7.Machine Frame:350 H Steel
8.Total Power:4+4KW
9.Thickness Of Raw Material:0.4-0.6mm
10.Diameter Of Shaft:70mm
11.Voltage:380V 50Hz 3phases
1.Suitable Material:GI/PPGI/Aluminum
2.Width Of The Raw Material:1250mm
3.Rows Of Rollers:12Rows
4.Productivity:0-15m/min
5.Appearance Size:About 5800*1550*1550mm
6.Sidewall thickness :16mm
7.Machine Frame:350 H Steel
8.Total Power:4+4KW
9.Thickness Of Raw Material:0.4-0.6mm
10.Diameter Of Shaft:70mm
11.Voltage:380V 50Hz 3phases
Machine Parts Description
Hydraulic Decoiler
Loading capacity:5T
Inner diameter: 480-520mm
Motor power: 4+3KW
Frequency converter power: 5.5KW
Inner diameter: 480-520mm
Motor power: 4+3KW
Frequency converter power: 5.5KW
Manual Pre Cut AND Feeding Platform
Manual precut steel plate, smooth surface without burr
Feeding Platform,Ensure smooth& precise
material feed.steel plate platform, two
pitching rollers, position stopping block.
The coil is guided in the correct position and passed to the roll forming
Feeding Platform,Ensure smooth& precise
material feed.steel plate platform, two
pitching rollers, position stopping block.
The coil is guided in the correct position and passed to the roll forming

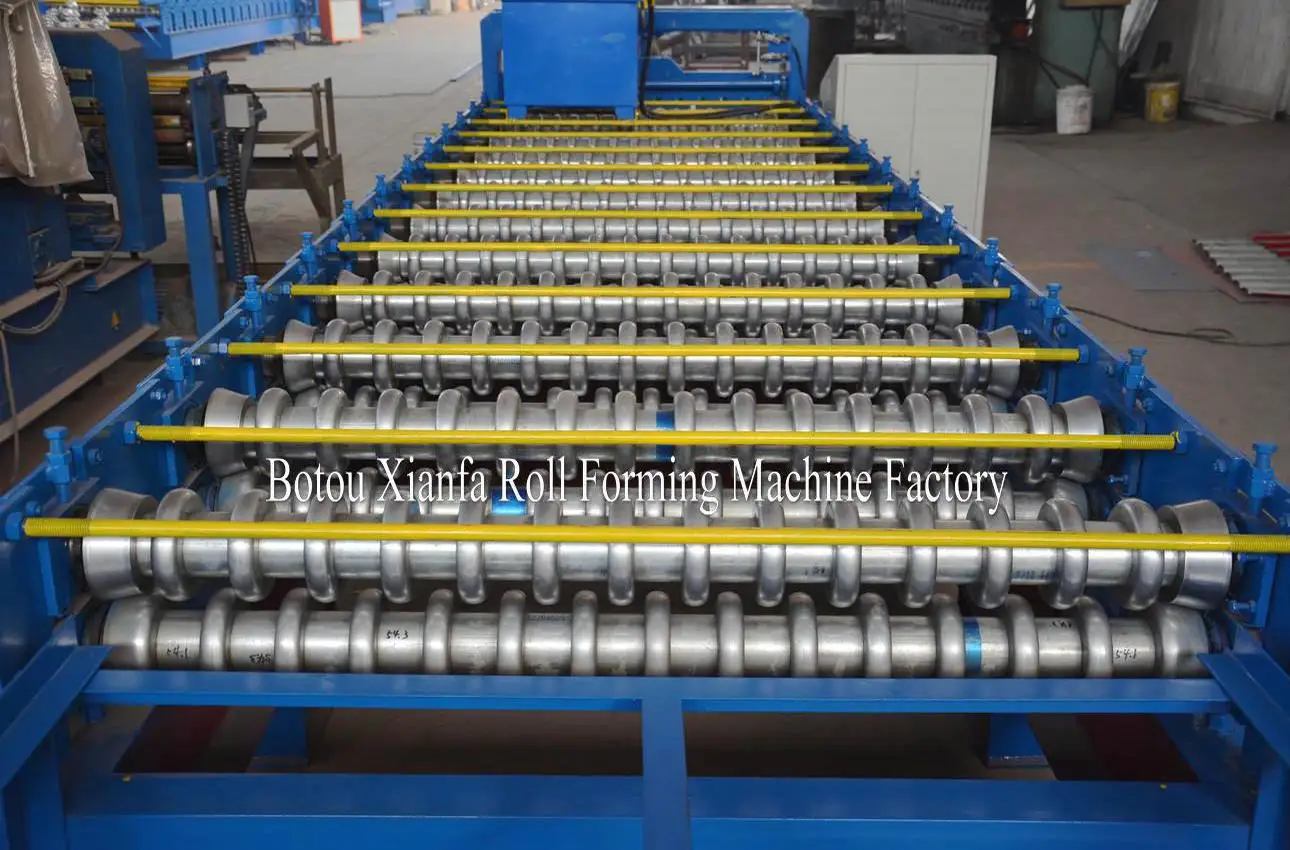

Main Roll Forming Machine
Material of rollers:45# steel，roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Shearing Mechanism
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12,quenching treatment
Finished tile fall automatically
Material of blades: Cr12,quenching treatment
Finished tile fall automatically
Output Table
It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products.
Computer Control Cabinet
Function
The whole line is controlled by
PLC and touch screen operation
PLC system is with high-speed
communication module, it is
easy for operation.
The technical data and system
parameter can be set by touch
Operation
Length is adjustable and digit of it can be adjusted.
Computed mode has two modes: automatic and manual one.
The system is easy to operate and use
The whole line is controlled by
PLC and touch screen operation
PLC system is with high-speed
communication module, it is
easy for operation.
The technical data and system
parameter can be set by touch
Operation
Length is adjustable and digit of it can be adjusted.
Computed mode has two modes: automatic and manual one.
The system is easy to operate and use
Hydraulic System
Adopted top brand hydraulic
system components to
ensure the stability and
lifetime, avoid leakage.Supplies the initial power to
the cuter through a closed oil
tank. It is off without cutting,
which can save the power
Servo Motor
The hydraulic pump station has a heat dissipation system
system components to
ensure the stability and
lifetime, avoid leakage.Supplies the initial power to
the cuter through a closed oil
tank. It is off without cutting,
which can save the power
Servo Motor
The hydraulic pump station has a heat dissipation system
Our Service
Why Choose Botou Xianfa Roll Forming Machine Factory
1) Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world
We need your machines running in order to keep your business running.
2)Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit
Xianfa is ALIBAB’s Gold supplier with BV assessment and CE certificate.
4)Q:What can you do if the machine broken?
A:Our machine's warranty period is 12months,if the broken parts can't repair
we can send the new parts replace the broken parts free,but you need pay the express cost yourself if after warranty period
we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.
5) Q:Can you be responsible for transport?
A:Yes,please tell me the destination port or address we have rich experience in transport.
6) Q:Can you supply the raw materials?
A:Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil
1) Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world
We need your machines running in order to keep your business running.
2)Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit
Xianfa is ALIBAB’s Gold supplier with BV assessment and CE certificate.
4)Q:What can you do if the machine broken?
A:Our machine's warranty period is 12months,if the broken parts can't repair
we can send the new parts replace the broken parts free,but you need pay the express cost yourself if after warranty period
we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.
5) Q:Can you be responsible for transport?
A:Yes,please tell me the destination port or address we have rich experience in transport.
6) Q:Can you supply the raw materials?
A:Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil
Packing Method AND Transportation
1.All machines need one 40 feet container
2.Main machine is nude,the computer control box is packed by carton
box.The loading machine is operated by professionals and will not
cause any damage to the machine during sea transportation
2.Main machine is nude,the computer control box is packed by carton
box.The loading machine is operated by professionals and will not
cause any damage to the machine during sea transportation
3.Payment Term 30% deposit by T/T ,Making machine Provide photos and videos of the machine to the customer after the machine is
finished After the qualified The customer will pay all the balance after confirmation
4.Delivery Time 50Working days after
receiving the deposi tcomplete 3.Warranty Free warranty for 12 months, lifetime maintenance service
receiving the deposi tcomplete 3.Warranty Free warranty for 12 months, lifetime maintenance service
