Низкопотребляемый лазерный диодный модуль синий лазер 20 мВт 405 нм для лазерного сканера
- Категория: Запчасти для лазерного оборудования >>>
- Поставщик: Elite,Optoelectronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.34 $* | 0.48 $* |
| Aug-19-2025 | 0.25 $* | 0.39 $* |
| Jul-19-2025 | 0.20 $* | 0.21 $* |
| Jun-19-2025 | 0.74 $* | 0.58 $* |
| May-19-2025 | 0.73 $* | 0.1 $* |
| Apr-19-2025 | 0.13 $* | 0.61 $* |
| Mar-19-2025 | 0.15 $* | 0.61 $* |
| Feb-19-2025 | 0.4 $* | 0.97 $* |
| Jan-19-2025 | 0.27 $* | 0.40 $* |
Характеристики

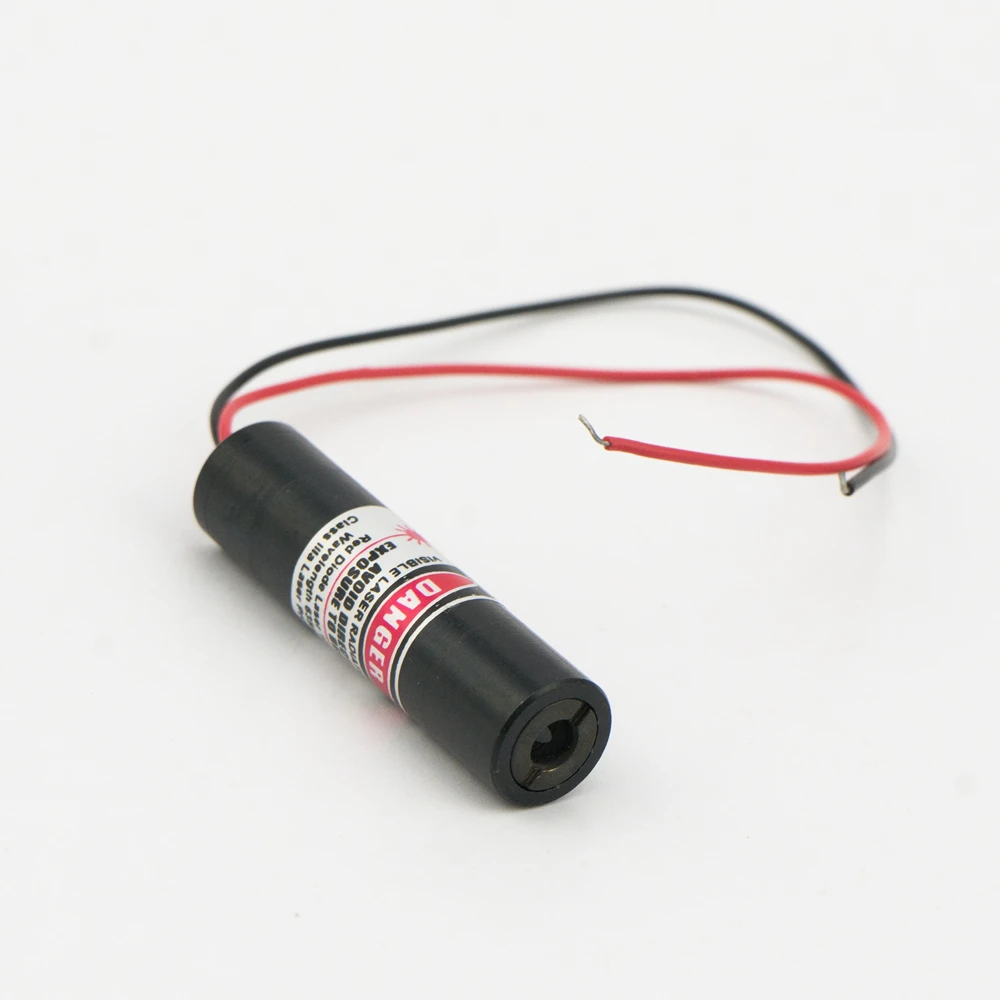

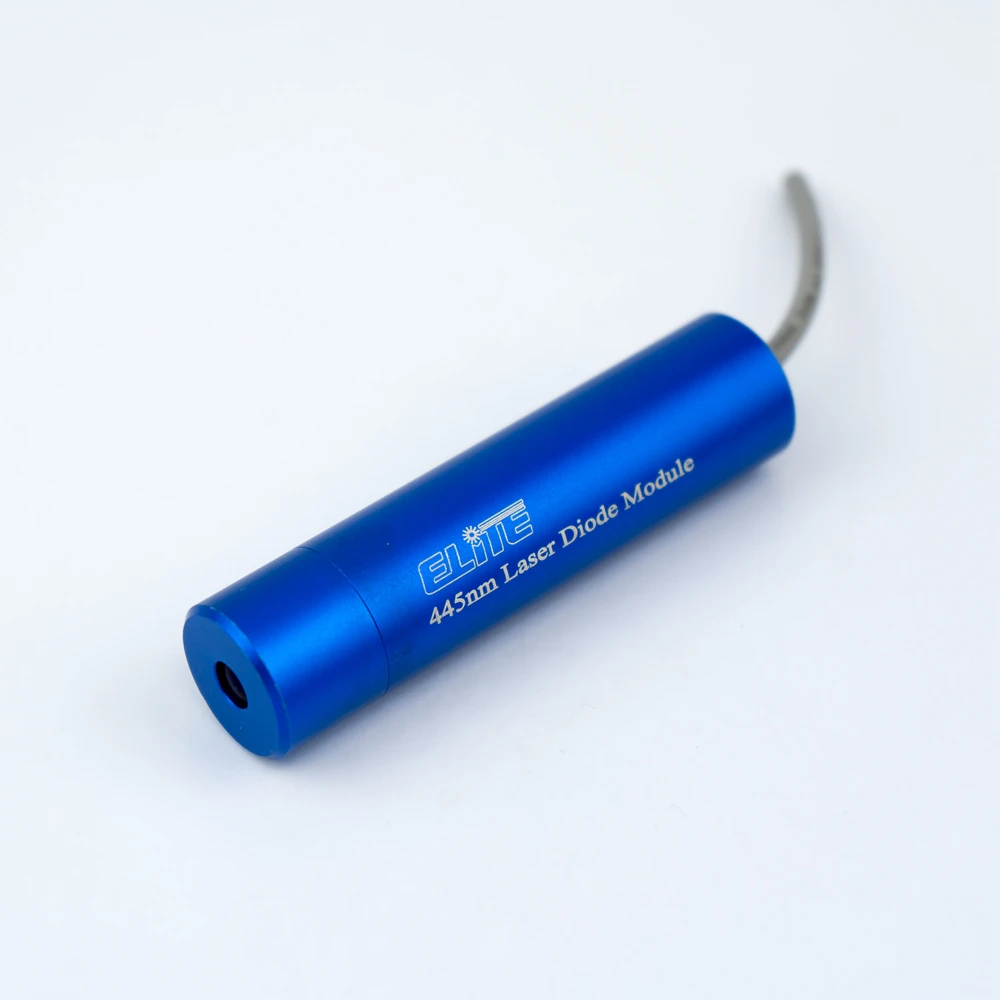

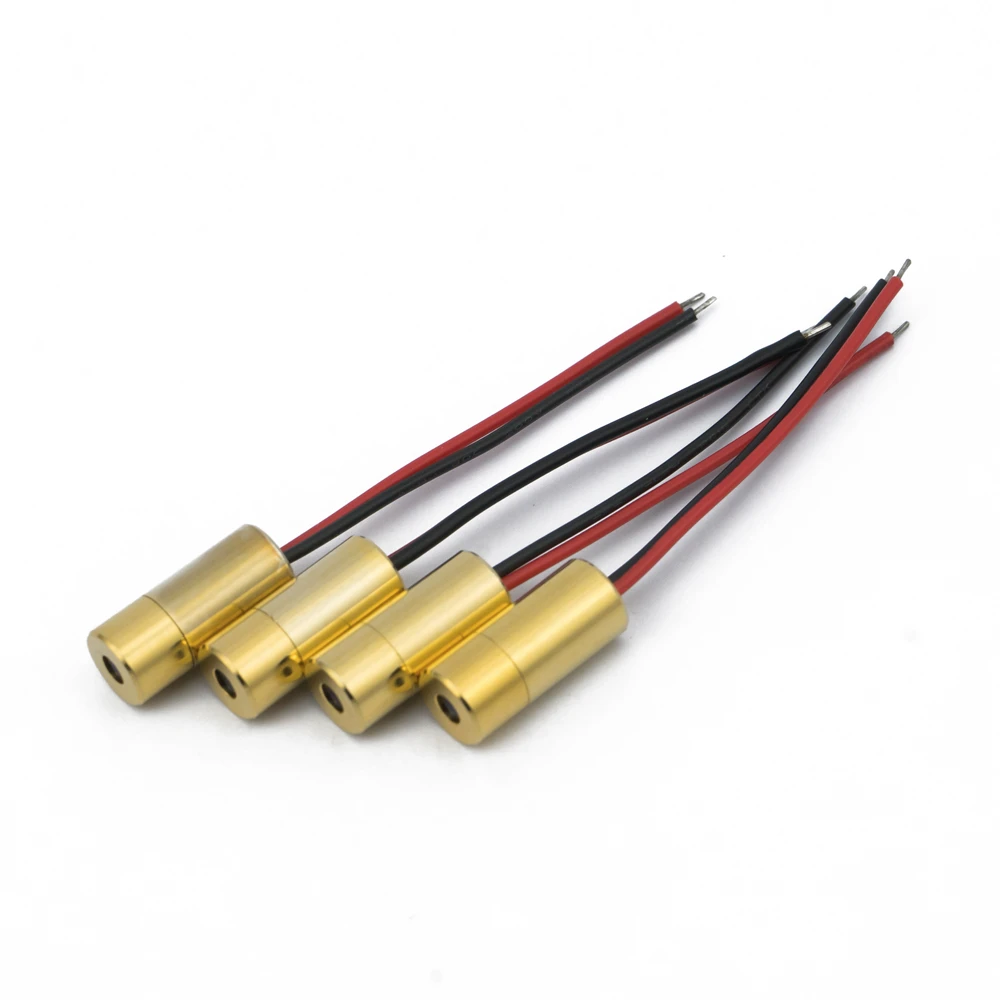

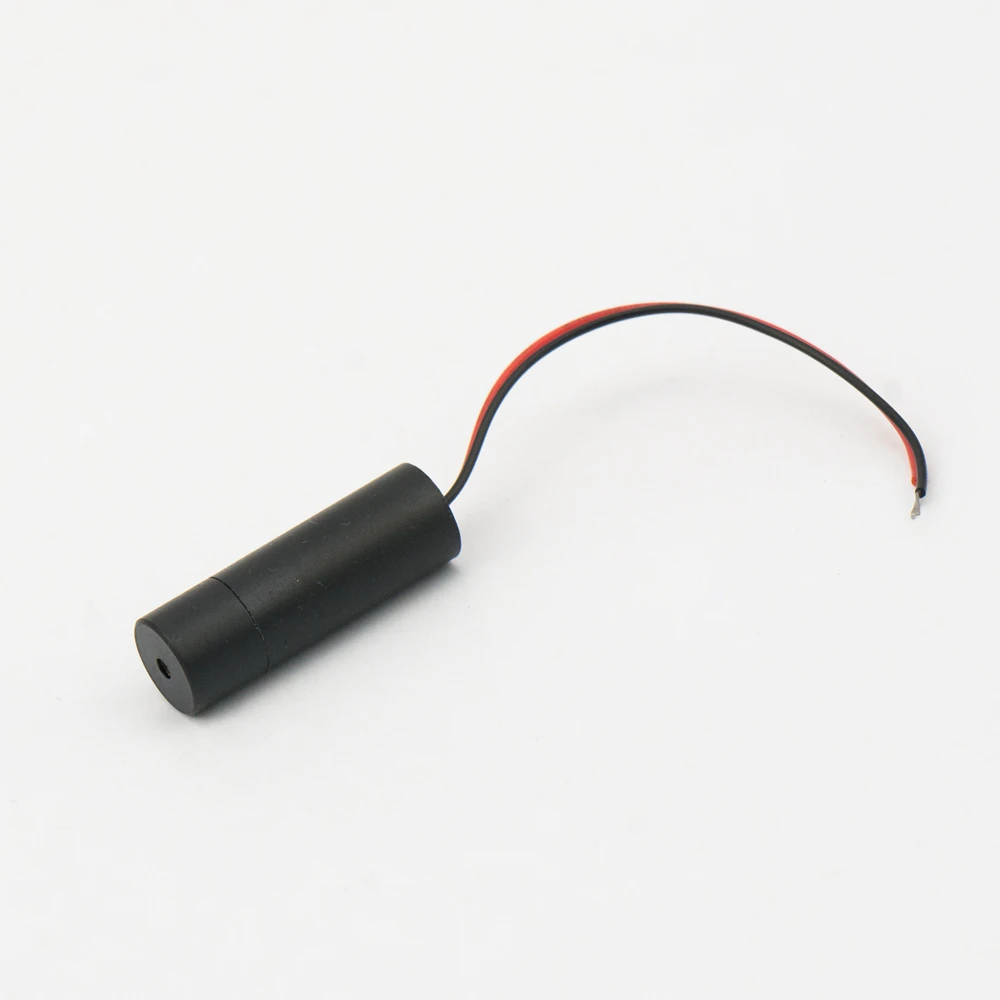

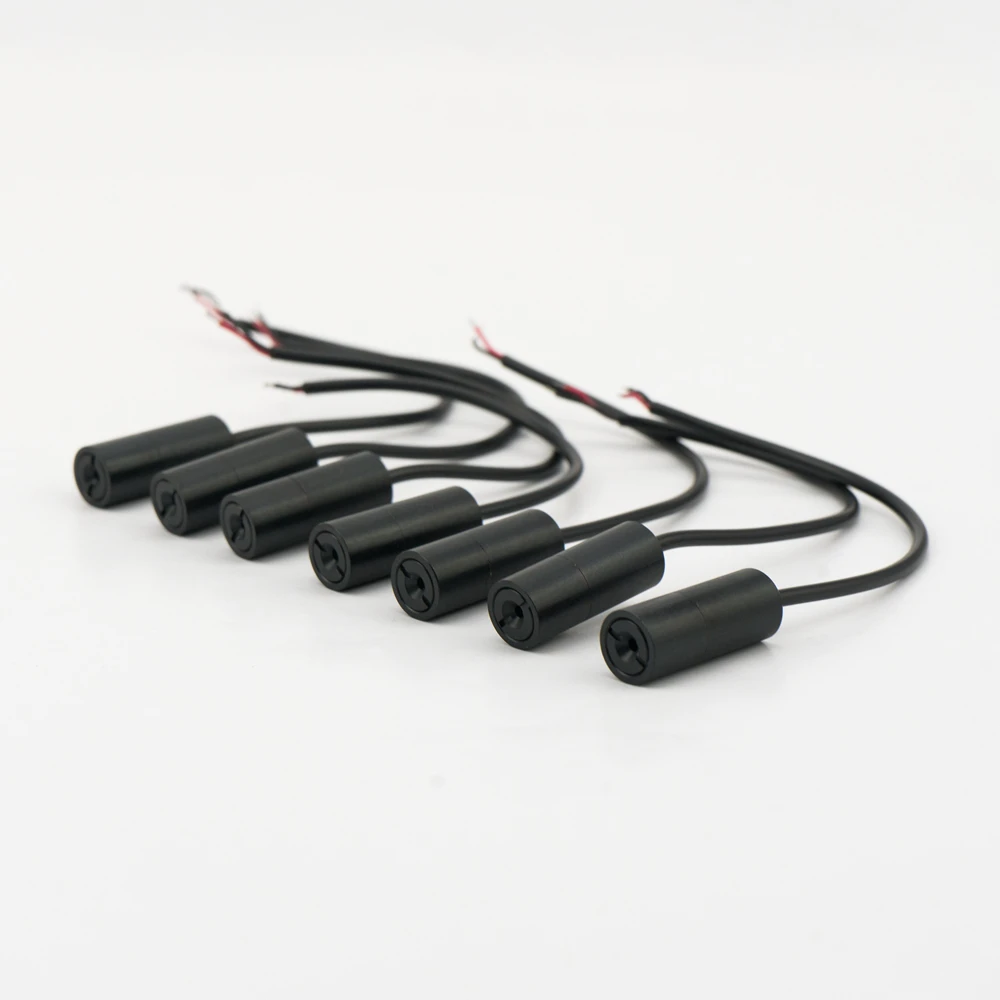

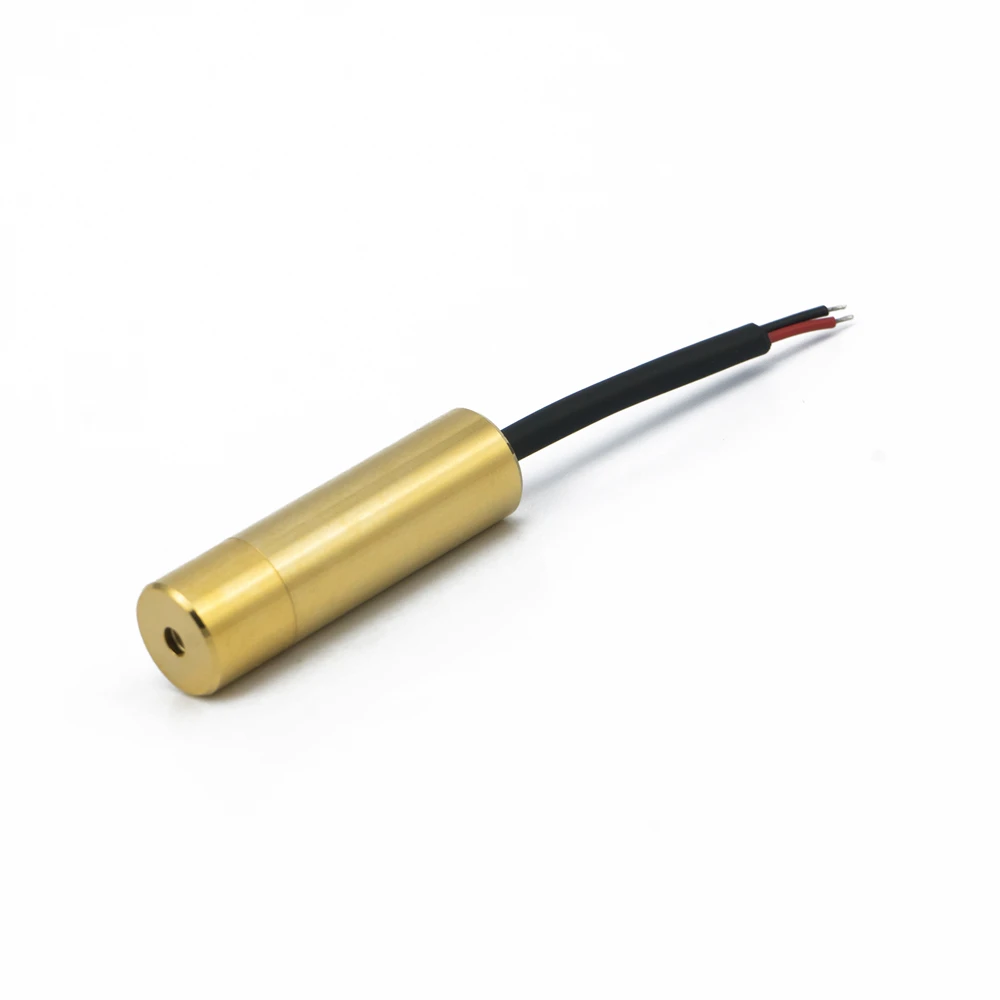

Specification | Industrial Diode Laser Module | ||||||
Wavelength | 450nm 488nm | ||||||
Output Power | 1, 5, 10, 20, 35, 50, 80, 100, 150 and 200mW（Custom） | ||||||
CDRH Class | I, II, IIIa, IIIb | ||||||
Aperture | Ø1.0mm, Ø1.5mm, Ø2.0mm, Ø2.4mm, Ø3.0mm, Ø5.0mm, Ø6.0mm | ||||||
Divergence | 0.1mrad, 0.2mrad, 0.3mrad, 0.5mrad, 0.8mrad, 1.0mrad | ||||||
Circular Beam Size | Ø0.5mm(@0.5m), Ø1.0mm(@1m), Ø4.0mm(@5m), Ø5.0mm(@10m) | ||||||
Elliptical Beam Size | 1x2mm(a1m), 2x4mm(@2m), 3x6mm(@5mm), 5x10mm(@10m), 8x16mm(@20m） | ||||||
Operaating Current | < 300mA | ||||||
Input Voltage | 3.0V, 5.0V, 9.0V, 12.0V, 24.0V | ||||||
Operating Temperature | -20℃~60℃ | ||||||
Storage Temperature | -40℃~85℃ | ||||||
MTBF | >10,000hours | ||||||
3 High Features
1.High Quality
Elite industrial laser diode modules use high-quality laser diode.
2.High Stability
Specially designed collimating lens and high stable driven circuit.
3.High Reliability
More than 10000 hours of use.For high precision instrumrnt and equipment,widely used in precise positioning and high-precision detection.
APC Driving Circuit
The output optical power of LD is stabilized so that it does not change with the increase of temperature and service time.
Low Cost & Long Lifespan
On the one hand, improve the service life, on the other hand, make the volume smaller.
water-resistant IP55~65
Protect the laser module from water and dust.
