Hot Sale Cheap 100% Copper Wire Alternator



ST series generator are mainly designed to serve as power generating unit of small capacity which supply electricity for lighting purpose in ships as for household electric device use in towns or villages.

The construction of the generators is of drip-proof, salient pole rotating filed self-excitation and constant voltage type. The  alternator inside is used with high quality electric magnetic and electrical materials. Stator insulation is class B.

These generators are excellent in appearance.they are consolidate in construction and easy to maintain. Dimensions are adopted IEC standard, they are suitable for Australia,Europe,America and other countries if the end covers model B.



Operating Conditions:

Cooling air temperture:-15°c-40°c

Above sea level:not exceed 1000m

Relative air damping:not exceed 90%





Specification:



Model	Output (kw)	Current		Voltage		Power Factor       (Cosø)	Pole number	Speed(r/min)
		Series Connection	Parallel Connection	Series Connection	Parallel Connection			50Hz	60Hz
ST-1	1	4.35	8.7	230	115	1	4	1500 RPM	1800 RPM
ST-2	2	8.7	17.4	230	115	1
ST-3	3	13	26	230	115	1
ST-5	5	21.8	43.5	230	115	1
ST-7.5	7.5	32.6	65.2	230	115	1
ST-10	10	43.5	87	230	115	1
ST-12	12	52.2	104	230	115	1
ST-15	15	65.3	130	230	115	1
ST-20	20	87	174	230	115	1
ST-24	24	104.4	208.8	230	115	1







Produce:

Produce procedure

Step 1 Excitation Winding,Step 2 Stator Winding,Step 3 Dipping,Step 4 Dynamic Balance,Step 5 Press Fitting,Step 6 Testing

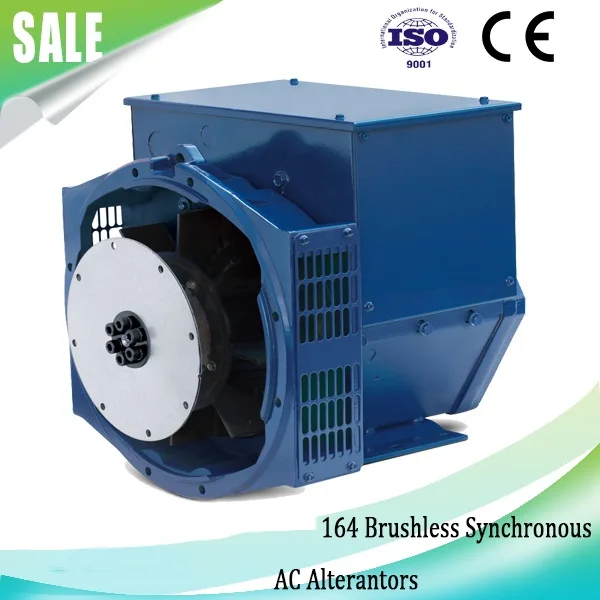

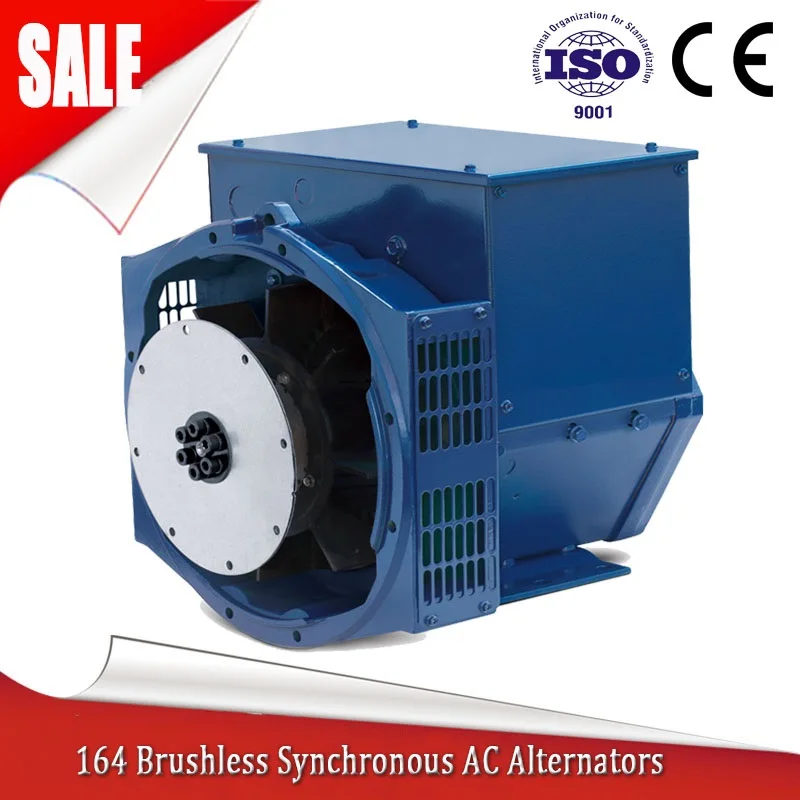

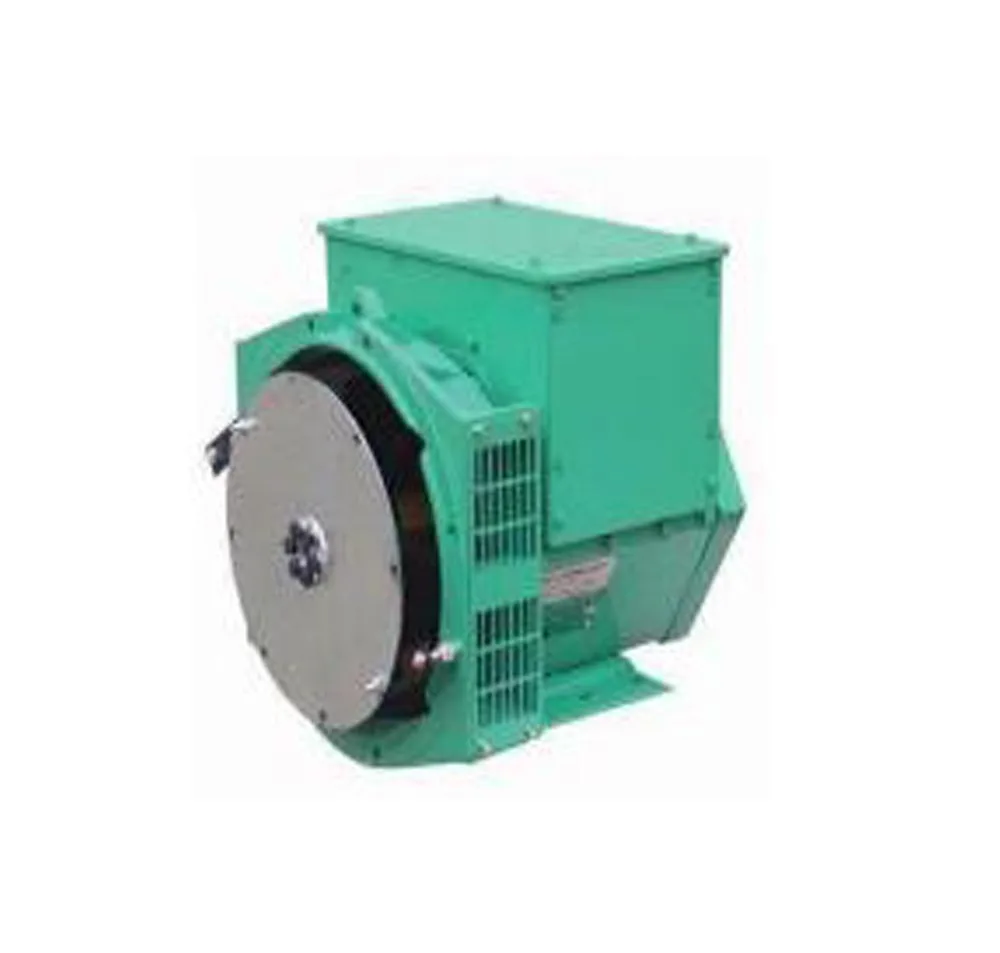

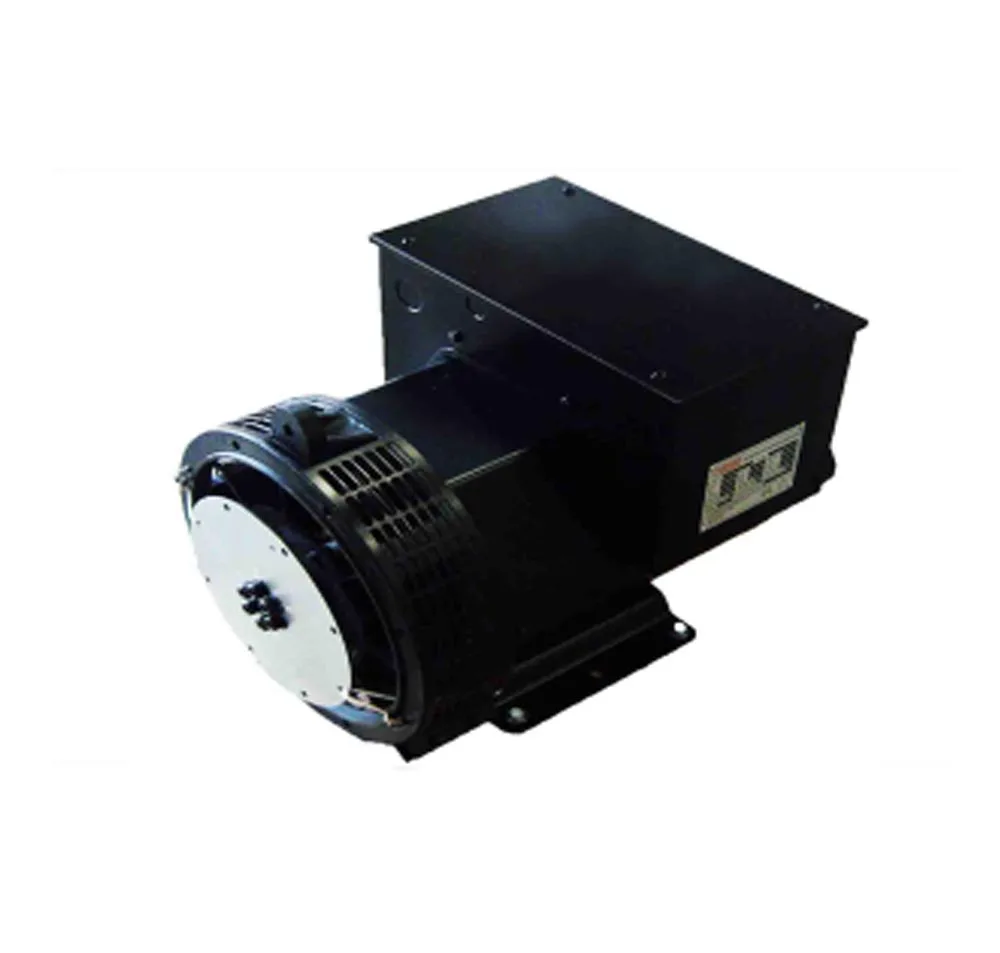

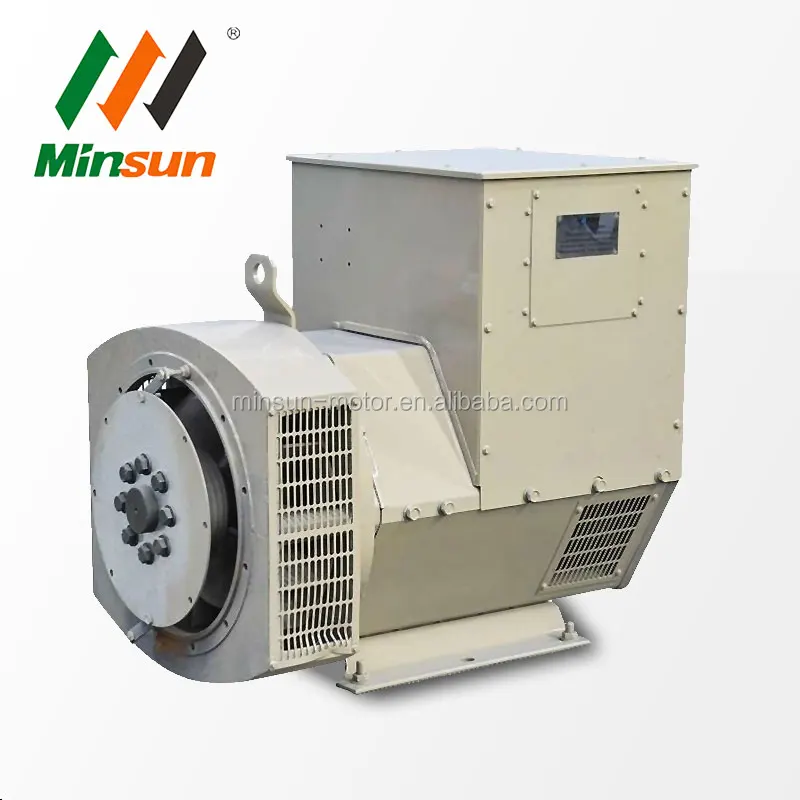

Products  Photos



Plywood Case Packing







ST/STC, Copy of Stamford Alternator (Dynamo)
