Углеродное волокно спирального типа инфракрасная кварцевая нагревательная трубка
- Категория: Home Heater Parts >>>
- Поставщик: GMY,Lighting,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.92 $* | 0.94 $* |
| Aug-15-2025 | 0.27 $* | 0.49 $* |
| Jul-15-2025 | 0.76 $* | 0.58 $* |
| Jun-15-2025 | 0.91 $* | 0.56 $* |
| May-15-2025 | 0.29 $* | 0.56 $* |
| Apr-15-2025 | 0.8 $* | 0.9 $* |
| Mar-15-2025 | 0.15 $* | 0.61 $* |
| Feb-15-2025 | 0.50 $* | 0.94 $* |
| Jan-15-2025 | 0.73 $* | 0.80 $* |
Характеристики

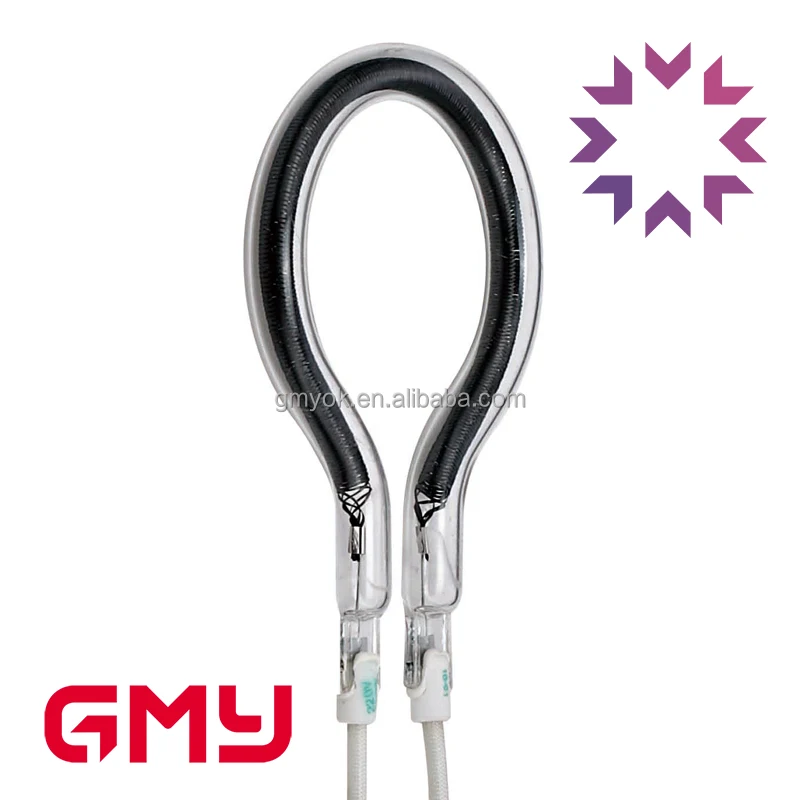

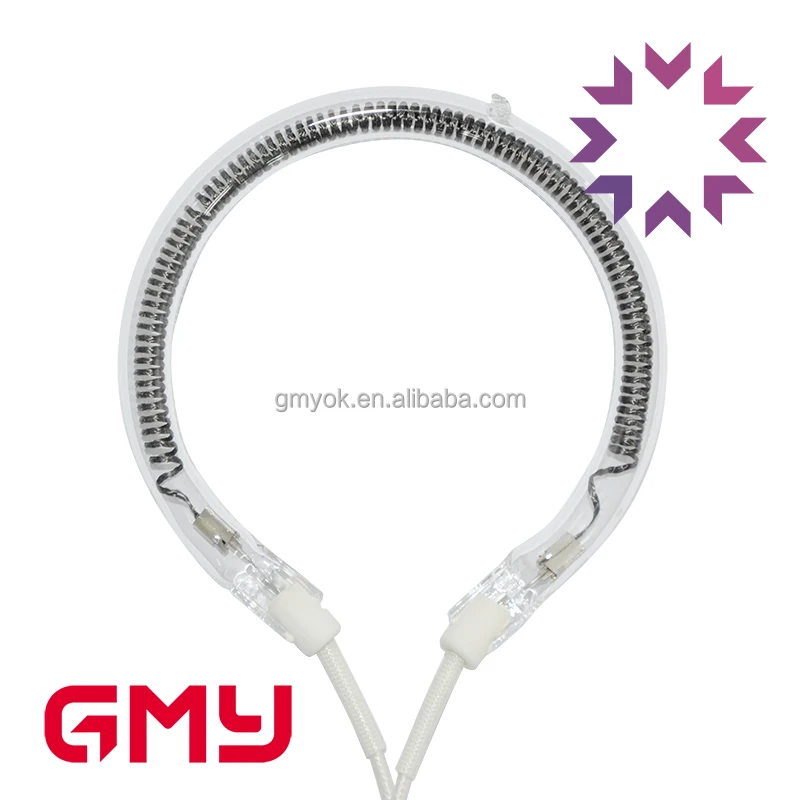

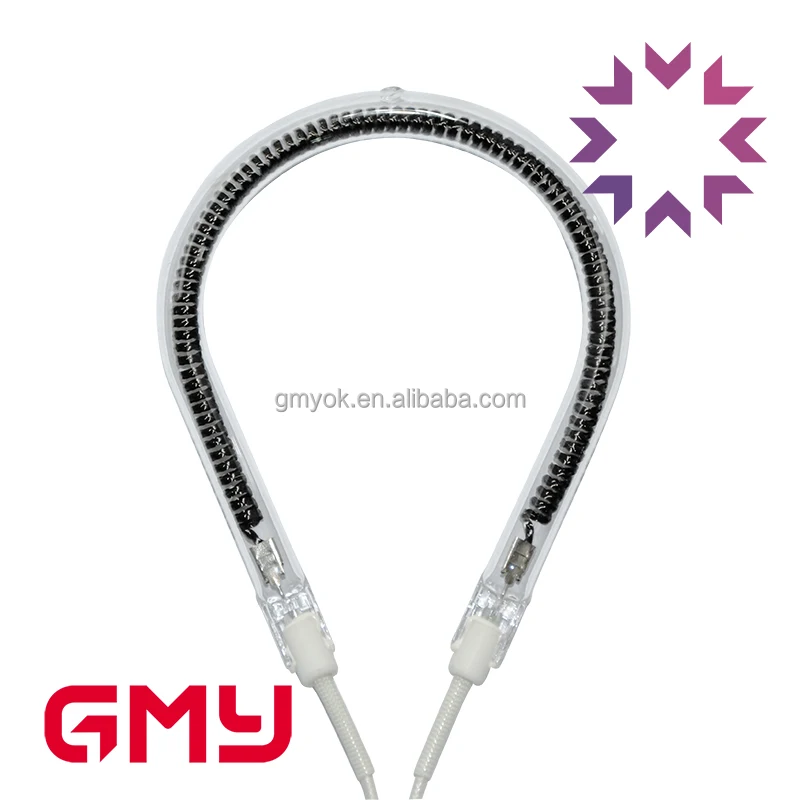

carbon fiber spiral type far infrared quartz heating tube, electric heating tube
Features:
1, Light of Life:
Excellent health care function, especially good for activating human body cells, improve blood circulation, accelerate metabolism, strengthen immunity, no electromagnetic field produced, and harmless to human bodies. the averge life ups to 8000h
2, Energy saving and environmental protection with long life:
The carbon fiber heating element is a kind of pure black material, which has the advantages of rapid warming, tiny thermal hysteretic, even heating, far distance of heat radiation transfer and quick speed of heat exchange. It’s average life is 10000 hours and the luminous flux is far less than the mental electric heating tubes.The electric conversion efficiency can reach more than 95%. It can heat in 1 or 2 seconds and after 5 seconds, the surface temperature can reach 300-700℃. Under the condition of same power and volume, compared with other mental or ceramic electric heating tubes, the carbon fiber quartz electric heating tube spends less time to reach the rated temperature.
3, Electrical stable performance:
in the process of frequent starts up, shuts down and long time continuously work and the power keeps in a certain tolerance range stable, it won't produce any instantaneous electric current shock.
Our Advantage:
1. Own 16years lighting manufacturing experiences
2. With professional sales person
3. Good quality
Technical parameters:
Voltage (v) | 110V 220V | |||
Power (w) | 70 ~ 2000 W | Power error(%) | -8% ~ +5% | |
Length (mm) | 200 ~ 1500 mm | Length error (mm) | +/-2 mm | |
Diameter(mm) | 10,12,14,18,20,23,25,28 mm | Diameter error (mm) | +/-0.1 mm | |
Infrared wavelength (μm) | 8-15nm | Color temperature(k) | ||
The thermal conversion efficiency(%) | ≥ 95% | Maximum working temperature | ≤500℃ | |
The conversion efficiency of thermal radiation | ≥ 70% | Maximum heating temperature | ≤900℃ | |
| Electric Heater Type | Infrared Heater |
| Material of Heating Element | Carbon Fiber |
| Installationr | Ceiling,Desktop,Portable,Underfloor,wall mounted |
| Function | heating |
| Use | Bathroom,Bedroom,Living Room |
| Type | Far Infrared Carbon fiber heating tube |
| Power | 70-3000w |
| Voltage | 12-480V |
| Infrared heater Color | transparent and black |
| materail | quartz/carbon fiber |
| Item Type | IR Lights |
| Emitting Color | Warm White |
| Color Temperature(CCT) | Warm White |
| IR Distance(M) | 8-15nm |
| Working Lifetime(Hour) | 10000 |
| Certification | C-tick, CCC, CE, Energy Star, LVD, RoHS, UL |
| Input Voltage(V) | 110/220 |
| Lamp Power(W) |
Product Applications:
1. Car painting
2. High temperature disinfection
3. Food baking, heating and heat preservation
4. Industrial production oven
5. High temperature curing for glue and printing ink
6. PET bottle blowing, laminating
7. Paper drying
8. Wood drying and preheating before painting
9. Plastic softening and synthesis, cable production
10. Beauty apparatus,, infrared physical therapy care
11. Infrared drying for shoes making machine
12. Infrared heating lamps for wave soldering, reflow soldering equipment
Note: we can custom-made upon request, please consult our sales department directly.
