High Efficiency Infrared Glass Heating Plate for Drying
- Категория: >>>
- Поставщик: Lianyungang,Highborn,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.66 $* | 0.69 $* |
| Aug-15-2025 | 0.92 $* | 0.81 $* |
| Jul-15-2025 | 0.89 $* | 0.26 $* |
| Jun-15-2025 | 0.8 $* | 0.36 $* |
| May-15-2025 | 0.9 $* | 0.63 $* |
| Apr-15-2025 | 0.39 $* | 0.33 $* |
| Mar-15-2025 | 0.54 $* | 0.13 $* |
| Feb-15-2025 | 0.33 $* | 0.37 $* |
| Jan-15-2025 | 0.71 $* | 0.77 $* |
Характеристики
Product Description
Product Name | Efficency Infrared Glass Heating Plate for Drying Oven |
Material | Glass ceramic or Quartz glass |
Power | 200W-1500W (Customzied) |
Size | 350*60*4mm(Customized) |
Paste | Graphene heating/Silver paste |
Payment | T/T,Western Union,Online payment by credit card are available |
Thransport | Air transport: 5-10 days; Ocean shipping: About one month. |
Delivery Time | 1.Stock:delivery within 3-5 days after receiving your payment. 2. OEM/ODM:The normal Lead time is 15-45 days, which depends on your quantiy. |
Product Show

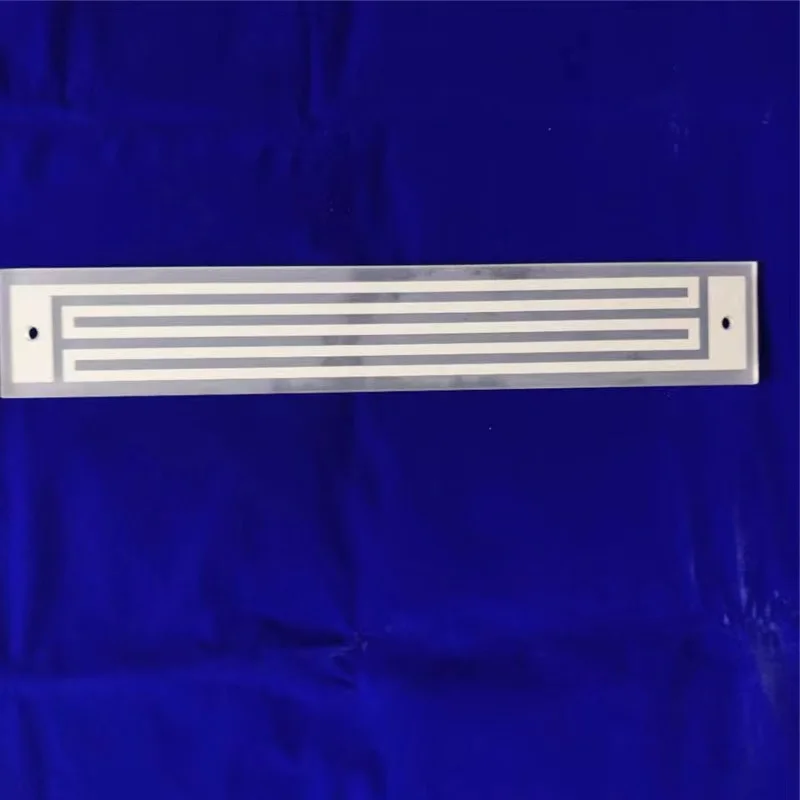

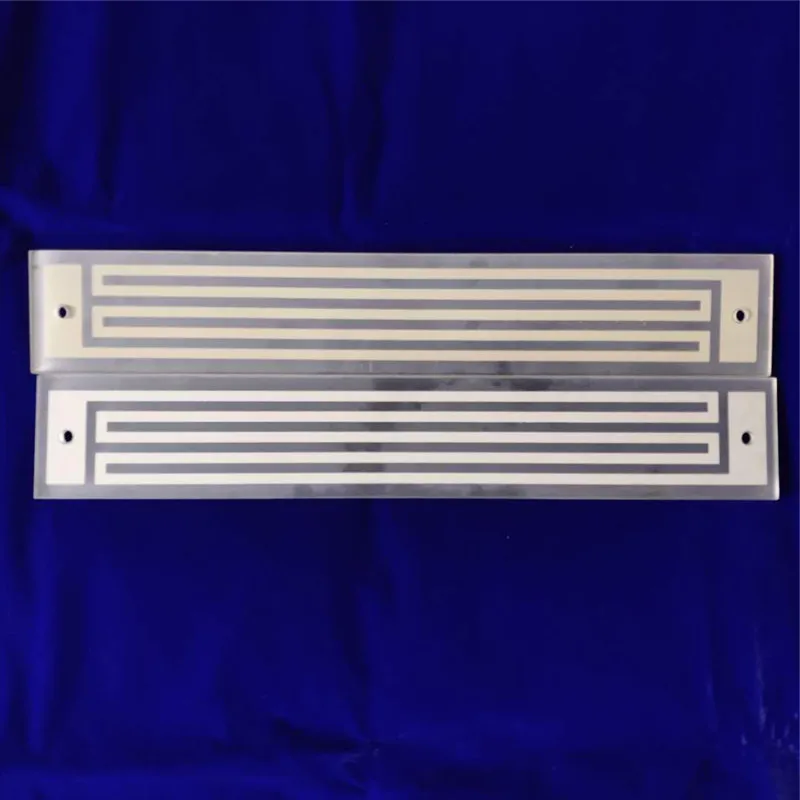

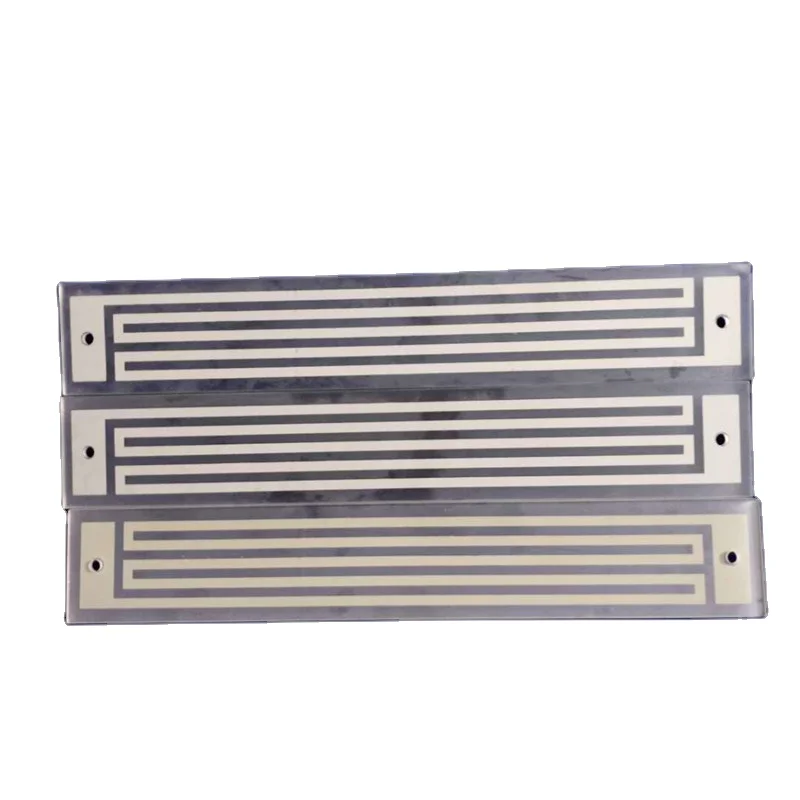

Quartz glass electric heating plate:
1. The service life of the heating plate can reach 90,000 hours.
2. Heating plate is safer than ordinary electrothermal film, without open fire.
3. The heating plate is printed with graphene heating paste, capable of emitting infrared wavelength of 2-15 um
4. Heating plate glass material, size, voltage, power can be customized.
5. The heating plate adopts the panel heating method, heating in the whole area.
Heating plate usages:
2. Heating plate is safer than ordinary electrothermal film, without open fire.
3. The heating plate is printed with graphene heating paste, capable of emitting infrared wavelength of 2-15 um
4. Heating plate glass material, size, voltage, power can be customized.
5. The heating plate adopts the panel heating method, heating in the whole area.
Heating plate usages:
Household heaters, therapy instruments, laboratory drying equipment, ovens, tunnel furnace, etc
Advantages:
1. Compared with traditional electric heating tubes, the energy-saving heating plate made of water-based nano-energy-saving electric heating materials has an energy-saving efficiency of 37-48% under the same working conditions;
2. High effective electric heating conversion efficiency, rapid heating, and fast heating. The temperature of the heating plate surface can quickly rise from room temperature to above 420℃ within 100 seconds. Compared with the traditional electric heating tube, the heating efficiency is increased by 2-3 times;
3. The heating is stable and uniform, and the heat is emitted by infrared radiation, with strong penetrating power and good baking effect.
4. Long service life. Due to the special process and the characteristics of energy-saving materials, the design service life of the glass-ceramic energy-saving heating plate can reach 25,000 hours.
2. High effective electric heating conversion efficiency, rapid heating, and fast heating. The temperature of the heating plate surface can quickly rise from room temperature to above 420℃ within 100 seconds. Compared with the traditional electric heating tube, the heating efficiency is increased by 2-3 times;
3. The heating is stable and uniform, and the heat is emitted by infrared radiation, with strong penetrating power and good baking effect.
4. Long service life. Due to the special process and the characteristics of energy-saving materials, the design service life of the glass-ceramic energy-saving heating plate can reach 25,000 hours.
Graphene glass ceramic electric heating plate:
Standard specification is: 400*150*4mm;
The power of the dry-burning specification product is 1.2KW (±0.1KW);
The power range of customized products is 0.2KW-1.5KW;
The power of wet-burning specification product is 1.2KW (±0.1KW);
The power range of customized products is 1.0KW-4.0KW,
The power of the dry-burning specification product is 1.2KW (±0.1KW);
The power range of customized products is 0.2KW-1.5KW;
The power of wet-burning specification product is 1.2KW (±0.1KW);
The power range of customized products is 1.0KW-4.0KW,
Applications:
1. Industrial electric ovens, agricultural and sideline products drying,heat preservation equipment.
2. Civil electrical products. Civil heating equipment.
3. Medical and healthcare far-infrared physiotherapy products, far-infrared sweat room.
4. Aerospace instrument insulation, military equipment insulation
2. Civil electrical products. Civil heating equipment.
3. Medical and healthcare far-infrared physiotherapy products, far-infrared sweat room.
4. Aerospace instrument insulation, military equipment insulation
Certifications
HONOR CERTIFICATES
CE & RoHs CERTIFICATES
Here are CE & RoHs certificates and test reports ,they are only for a part of products.
PATENT CERTIFICATES
We have applied for more than 20 patents, including 11 authorized patents and 3 invention patents
Our Company
Lianyungang Highborn Technology CO.,LTD
Lianyungang highborn technology co., ltd. is a professional production and processing company of advanced ceramics ,machinable glass ceramics, electronic smoke mandels, alumina ceramic mandels, zirconia ceramic mandels, silicon nitride ceramic mandels and other products, with a complete and scientific quality management system. Lianyungang highborn technology co., LTD. 's integrity,strength and product quality has been recognized by the industry. Welcome friends from all walks of life to visit, guidance and business negotiations.
Packing & Delivery
FAQ
Q:Are you a trading company or a manufacturer?
A:We are professional manufacturer which has almost 13 years of experience in this industry.
Q:Can you produce according to the samples?
A:Yes,we can produce by your samples or technical drawings.
Q:Would it be possible for us to visit your factory?
A:Sure,we welcomed our customers visit our factory in any time.
Q:Will your company supply samples?
A:Yes,the sample expense will be deducted from the value of your order.
Q:What's your payment terms?
A:T/T, L/C, Western Union, Money Gram, are available for us.
Q:Delivery time for my order?
A:Within 7-15 working days for your sample order; 20 working days for your bulk order( It depends on the models and quantity you are going to order).
