Полностью автоматическая машина для обжима и зачистки проводов с
- Категория: Cable Manufacturing Equipment >>>
- Поставщик: Kunshan,Yuanhan,Electronic,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.78 $* | 0.86 $* |
| Aug-16-2025 | 0.75 $* | 0.88 $* |
| Jul-16-2025 | 0.86 $* | 0.96 $* |
| Jun-16-2025 | 0.52 $* | 0.20 $* |
| May-16-2025 | 0.93 $* | 0.42 $* |
| Apr-16-2025 | 0.0 $* | 0.71 $* |
| Mar-16-2025 | 0.31 $* | 0.67 $* |
| Feb-16-2025 | 0.89 $* | 0.14 $* |
| Jan-16-2025 | 0.71 $* | 0.39 $* |
Характеристики
Full Automatic double Ends Wire Stripping Cutting tin dipping Crimping Terminal Machine
Product Description
| Product introduction |
| 1, can be double head tin, single head twisted tin tin, double head twisted tin tin, ultra short stripping tin |
| 2. The front-end wire feeding part of the machine adopts two sets of feeding reels. When the machine produces ten lines at the same time, the machine can more stably control the length of the feeding line, and the back-end part adopts a cylinder brake mechanism to perform back-skin peeling. |
| 3, the main use of PLC control system, its simple operation, accurate positioning, high accuracy, long life and other characteristics |
| Machine parameters | |
| Model | YH-SZ-01 High quality Automatic Double Head wire stripping twisting and Tinning Machine |
| Function | single-line cutting, single-ended stripping twisted wire tin,double-side stripping twisted wire tin |
| Wire range | AWG#14-AWG#34 (Other wire diameters can be customized) |
| Capacity | 20000-25000 (depending on wire material) (up to 12 at the same time) |
| Cutting length | 8mm-99999mm |
| Cutting accuracy | 0.003*L (L is the length of the tangent) |
| Stripping length | 0.1mm-10mm (other sizes can be customized) |
| Twisted length | 0.1-10mm (other sizes can be customized) |
| Compressed air | 0.5Mpa-0.7Mpa |
| Tool material | imported tungsten steel / high speed steel |
| Power supply | AC220V ≤ 50-60HZ (single-phase) |
| Machine weight | about 350KG |
| Dimensions | 1120(L)*720(W)*1200(H)mm |

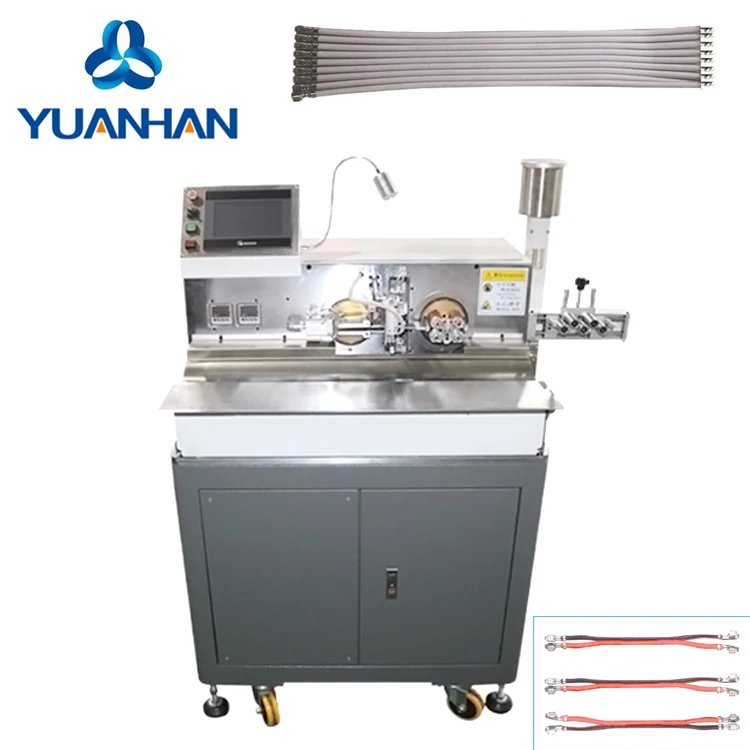

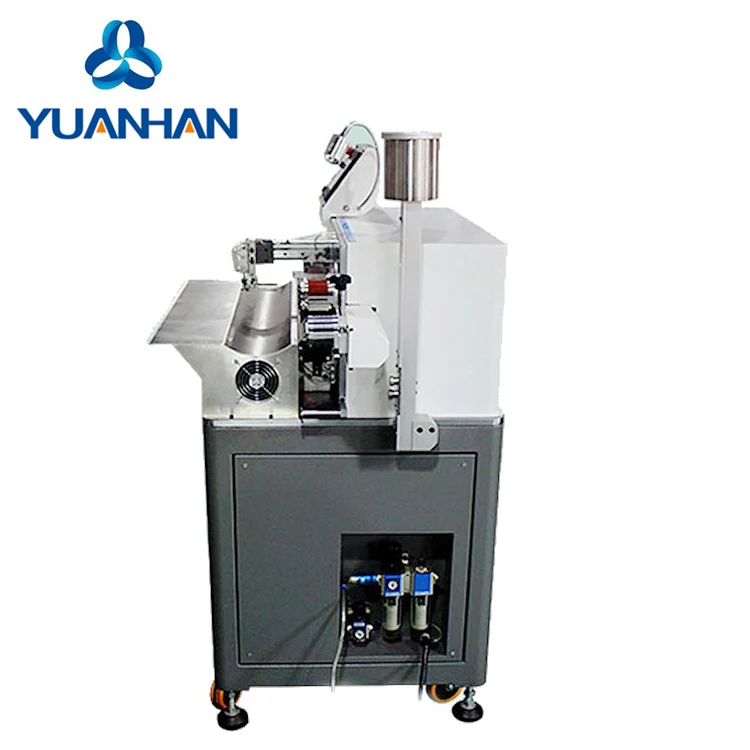

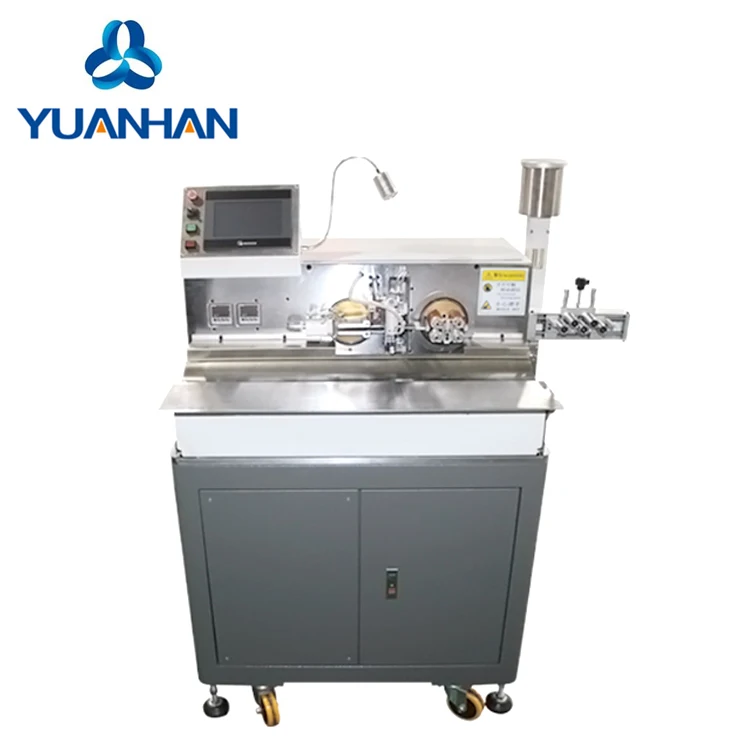

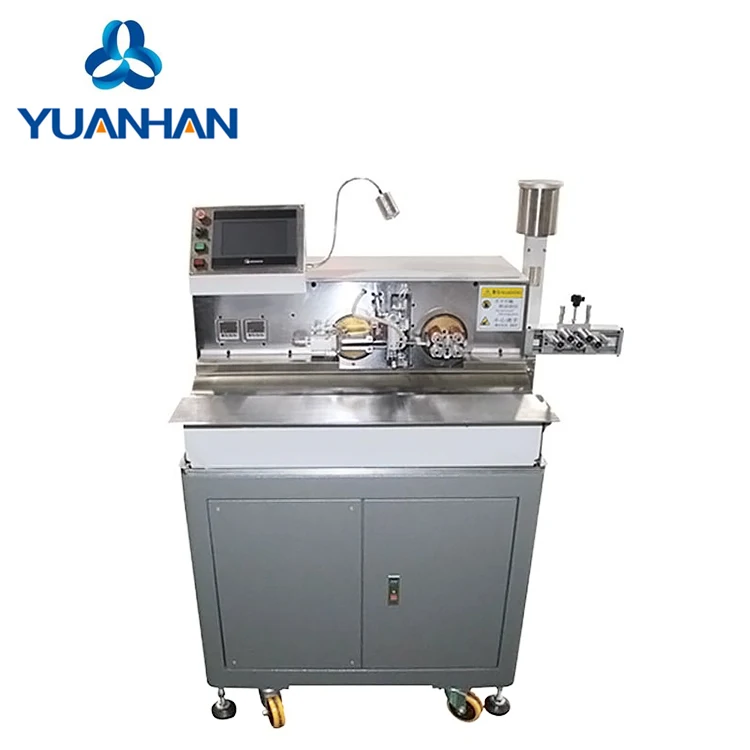

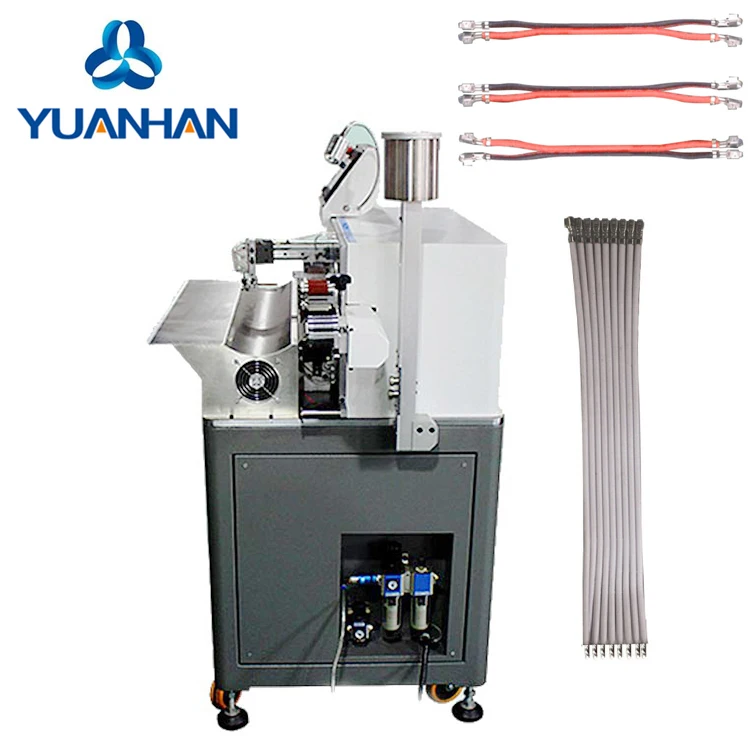

Detailed Images
Related Products
Please click these machine, learn more
 |  |
 |  |
Packaging & Shipping
Full Automatic Wire cutting stripping double head twisting tinning machine and wire Cutting twisting machine
| Packaging Details: | Export standard package for automatic terminal crimping machine |
|---|---|
| Delivery Detail: | within 3-5 working days |
Our Company
Company Information
Company information
Kunshan Yuanhan Electronic Equipment Co., Ltd, located in Kunshan city,
Jiangsu, China, tape winding machine factory,tape winding machine
manufacture with 60 senior technicians and advanced equipments
specializing in the producing and processing of various types of winding
machine for Automotive wiring harness, electronic wiring harness wrapping.
Our Services
We provide
- Best products and factory price.
- On-time delivery and the shortest delivery time.
- 1-year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free; and you need to pay for the delivery.
- OEM and customized service.
- User manuals will go with relative machines.
Our services
- QC: All products will be checked before delivery.
- Compensation: If any unqualified product is found, we'll pay the compensation or send new qualified products to customers.
- Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance.
- Operation Guidance: If you have any problem with operation, please feel free to contact us.
