1300 мм деревянная щетка шлифовальный станок с 6 роликов/деревянная шлифовальная кисть полировальная машинка для дверки кухонных


Поделиться:


Цена:5 500,00 $ - 5 900,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-19-2025 6545.86 $* 6872.94 $*
Aug-19-2025 6490.53 $* 6815.45 $*
Jul-19-2025 5445.41 $* 5717.36 $*
Jun-19-2025 6380.0 $* 6699.93 $*
May-19-2025 5555.78 $* 5833.24 $*
Apr-19-2025 6270.16 $* 6584.13 $*
Mar-19-2025 6215.60 $* 6526.23 $*
Feb-19-2025 6160.9 $* 6468.53 $*
Jan-19-2025 6105.87 $* 6410.26 $*

Характеристики


1300mm wood brush sander machine with 6 rollers /wood sanding brush polishing machine for kitchen cabinet door









Product Overviews





Function:





After CNC process carving, make surface or curved design more clean and smooth, remove the trimming and dust .This machine can working: Joinery board / multi layer board / particle board / integrated timber / wood / furniture / wood flooring / wooden doors and windows / arts and crafts / glass steel / wood and plastic product processing equipment preferred.





1.Manual  brush  machine


The small sanding machine is for manual polishing ,suitable for very small special strip board,


 This machine suitable for some special wood,like strip, round rod  etc,we can polish all aspect by hand moving


.png

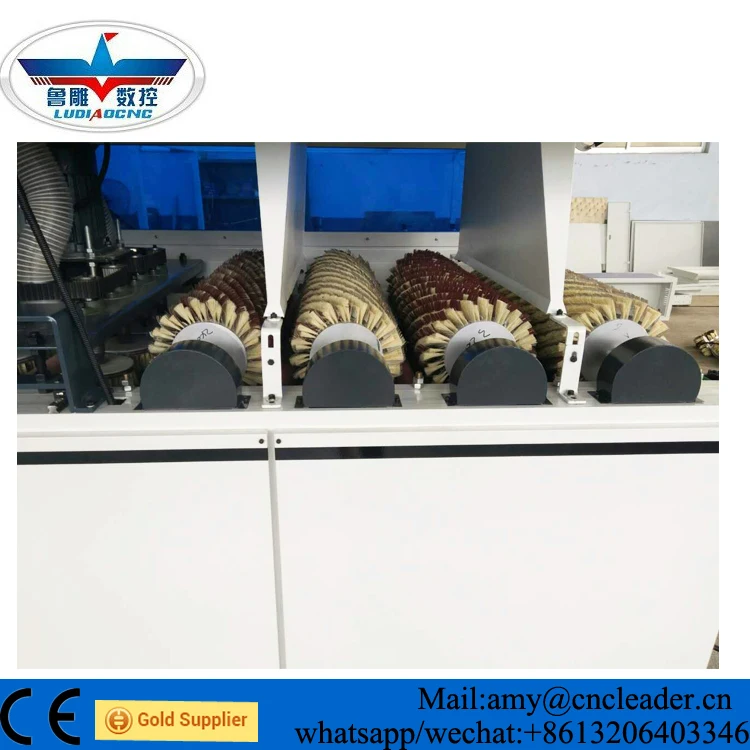

2.Linear brush roll type


 Which suitable for flat board  or with small carved depth ,within6mm around.Better see picture first and give advise


(630mm /1000/1300mm width are with same design just  machine size in width and length different)


4 roller.jpg4.jpg





Technical Parameters








































































TYPE



LD630



LD1000



LD13000



Brusers roll



2/4



2/4/6



2/4/6



Working Width



30-630mm



30-1000mm



30-1300mm



Working Thickness



2-100mm



2-100mm



2-100mm



Feed Speed



5-25m/min



5-25m/min



5-25m/min



Size of Abrasive Belt



650*1900mm



1020*2000mm



1320*2200mm



Working Air Pressure



≥0.55Mpa



Speed of Sucked Air



≥25m/s



Power



5.5kw



6.37kw



8.5kw



Pakcage



Wooden case



Warranty



One year



Voltage



380V 3P



Delivery time



15days



Note


(Brush rolls difference with 2 or 4  is when working on very rough trimming,4 rolls is faster and cleaner, but we can sanding twice with 2 rolls.and 4 rolls machine is 80cm longer than 2s) more rolls with longer platform, another motor and invereter,  and other accessories parts ,so the price is also higher


The machine can be with 6rolls, for longer board sanding or  more precision brushing .price also will be changed,Pls let me know your idea ,thanks

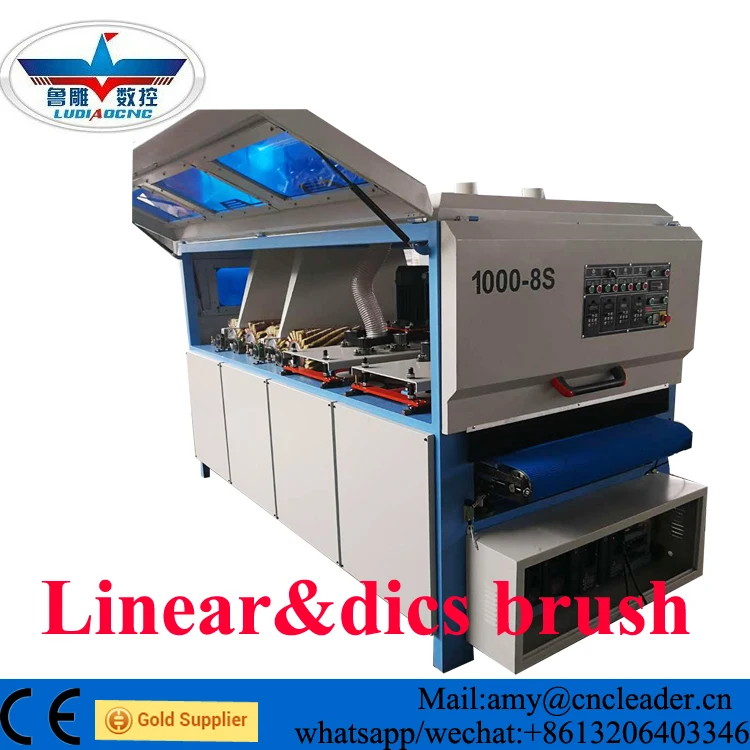

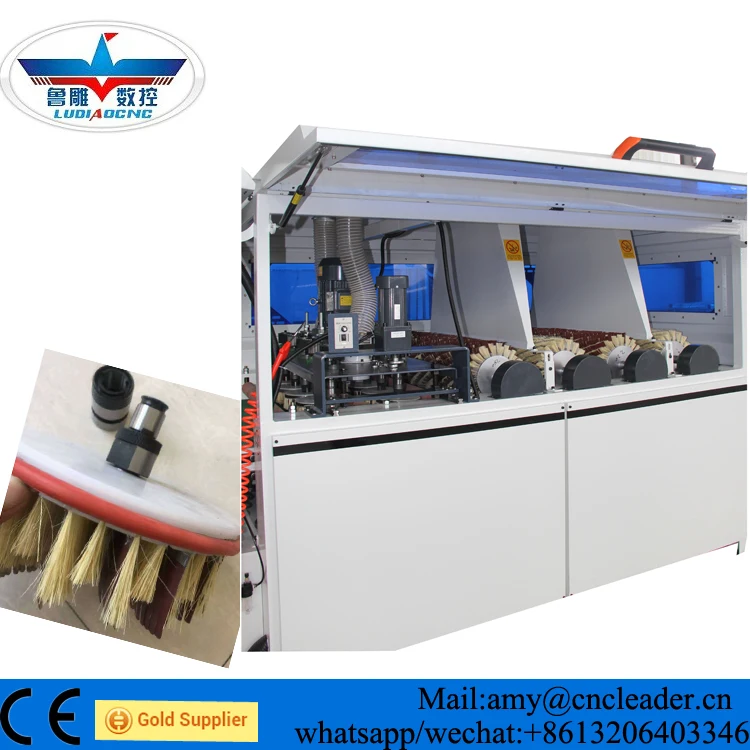

3.Rounds dics and liner roll combination type





2+9 (2 pics linear brush and 9 dics brush )




4+9 (4pics linear brush and 9 dics brush )










 2+18 (2pics linear brush and 18 dics brush)




4+18 (4 pics linear rollers, and 18 pics disc brush)







Note:The quantity of  combination is optional ,you can also choose 2+9/  4+9  /2+18 /4+18 etc





The price is negotiated according to different machine requirements


The machine combination the linear brushers and round  discs brushers together.very high efficient for the carved and falt board,like kitchen cabinet door industry ,like various design pattern ,and the speed can be adjusted














































































model



LD1300



LD1000



max working width



1300mm



1000mm



Polishing roll  brusher



2/4



2/4



Disk tray brusher



9/18



min working length



500mm



working thickness



3-110mm



Platform



Adjustble.up*down



Reducer motor



1.5kw



feeding speed



6-30m/min







total power



15kw



14KW



motor



2.2KW for each line brusher roll



Inverter



2Liner brusher share one inverter, 9 disks share one inverter



belt size



1330*2200mm



1130*2200mm



air pressure



0.6mpa



overall dimensions



3200*2100*1800mm



3200*1750*1800mm



net weight



1200kg



1000kg






Packaging & Shipping










Our Services





1. Guarantee:


12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.





2. Technical support:


1. Technical support by phone, email or MSN/Skype around the clock


2. Friendly English version manual and operation video CD disk


3. Engineer available to service machinery overseas





3. After sales services:


Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine.


Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel etc





Contact me


.jpg





Company Information


 Woodworking macinery Exhibition
