Статический датчик крутящего момента зубчатого

Категория: Измерители силы >>>
Поставщик: Manyyear,Technology,Company,Limited

Цена:265,00 $ - 325,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-16-2025	337.46 $*	344.59 $*
Jul-16-2025	273.31 $*	278.59 $*
Jun-16-2025	331.65 $*	338.9 $*
May-16-2025	329.65 $*	336.73 $*
Apr-16-2025	262.95 $*	267.93 $*
Mar-16-2025	323.10 $*	329.92 $*
Feb-16-2025	321.20 $*	327.78 $*
Jan-16-2025	318.95 $*	324.2 $*

Характеристики

Product Description

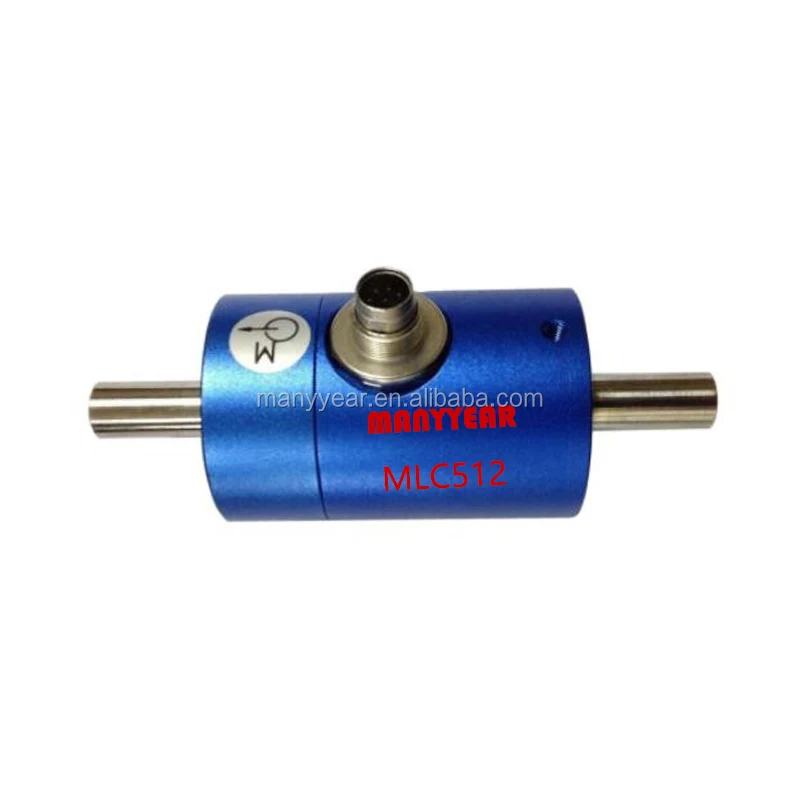

Gear shaft static torque sensor

MODEL: MLC512
category: Torque Sensor
Range: 0～0.1, 0.2,0.5,1,2,3Nm
Dimension: D32*85mm
Material: alloy steel
Apllication: Static torque measurement, motor torque, engine torque, combustion engine torque, fan torque, viscometer
, the pump torque, the gearbox torque, torque wrench

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

Range	0～0.1, 0.2,0.5,1,2,3Nm	Resonant Frequency	100μS
Rated Output	1±10% mV / V	insulation	≥5000MΩ/ 100VDC
Zero Output	±1% F.S.	Work voltage	10VDC(9-15VDC)
Nonlinearity	±0.1，0.3% F.S.	Compensated Temp.	-10 ~ 60℃
Hysteresis	≤±0.05% F.S.	operating Temp.	-20 ~ 65℃
Repeatability	≤±0.05% F.S	Safty overload	150% F.S.
Creep	≤±0.03% F.S/30min	Ultimate overload	200% F.S.
Ratedoutput drift by temp.	0.03% F.S. / 10℃	Wire	Ø5.2×3m
Zero drift by temp.	0.03% F.S. / 10℃	Electric connect	RED/E+，BLK/E-，GRN/S+，WHT/S-
Input resistance	350,750±10Ω	Material	aluminium，stainless steel or alloy steel
Input resistance	350,700±5Ω	Others	Customizabler

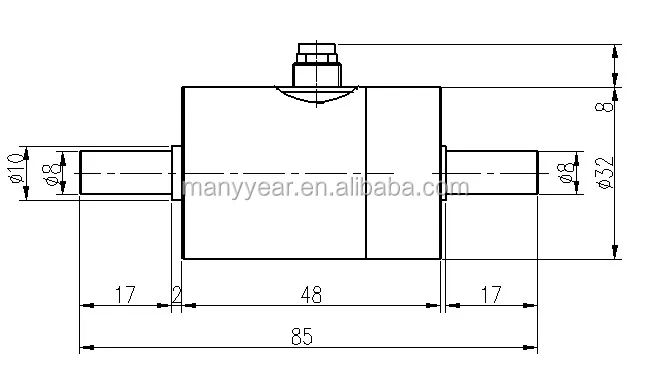

Product Assembly Structure

Blow force structure is for reference.

Product Process

Product Application

Delivery and Shipment

Related Products

Company Introduction

MANYYEAR Technology was established in 2008.
We focus on mechanical measurement and design, and provide customers with precise mechanical sensor products.
We have our own production base, with complete sensor production processes from CNC processing, strain gauge production, metal surface treatment, sensor packaging, sensor testing, engineering testing, sensor calibration, etc. And can provide customers with 1000 KPCS per month of qualified product capacity.
Our factory has passed ISO9001 standard. Our products have CE, ROHS, invention patents and other qualifications.
We provide OEM and ODM services to our customers.
We provide free design assistance to our customers.
