Product Description

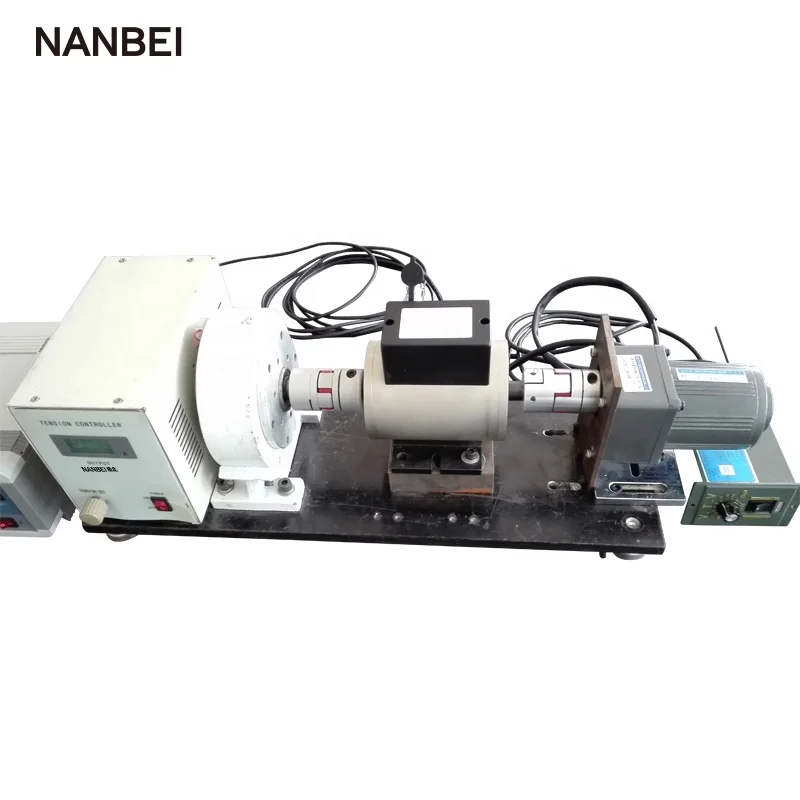

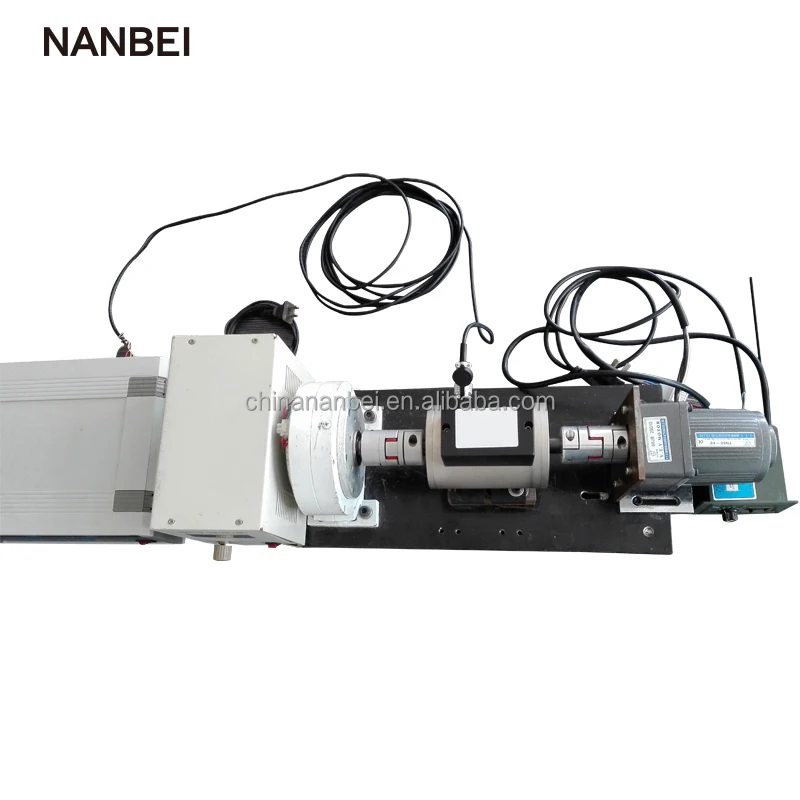

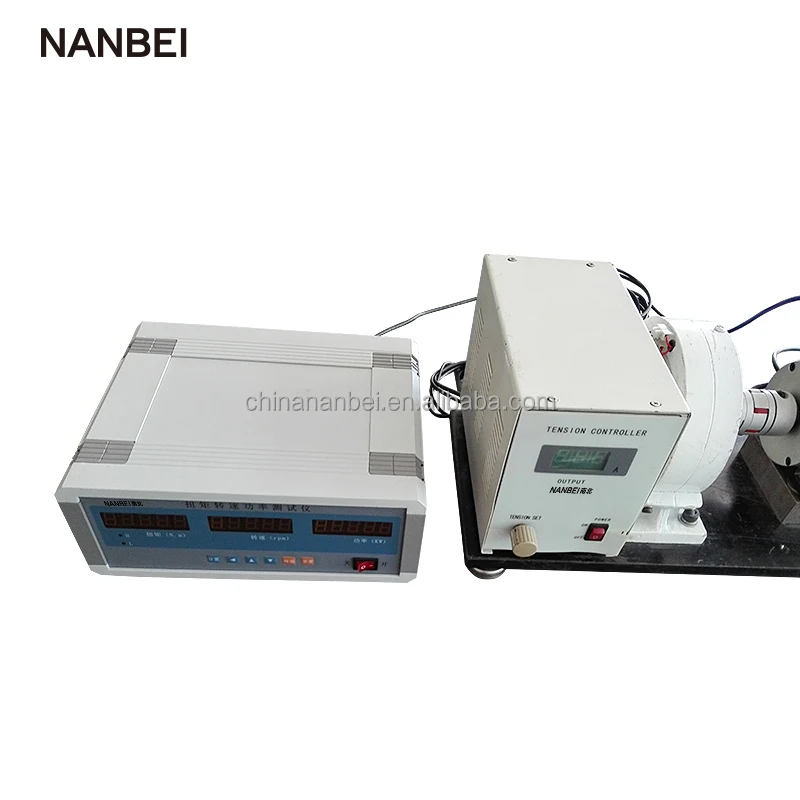

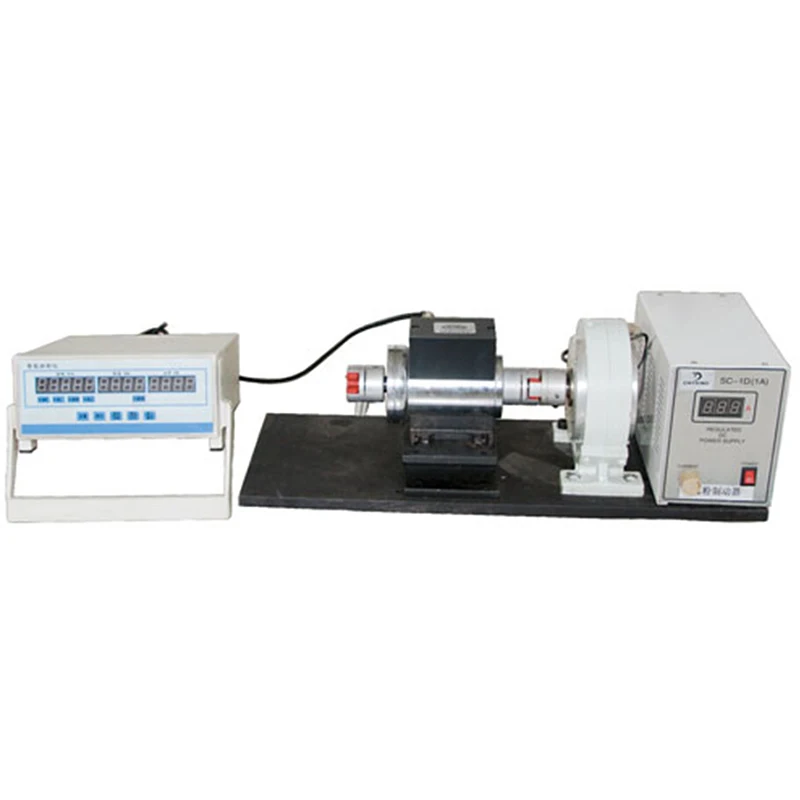

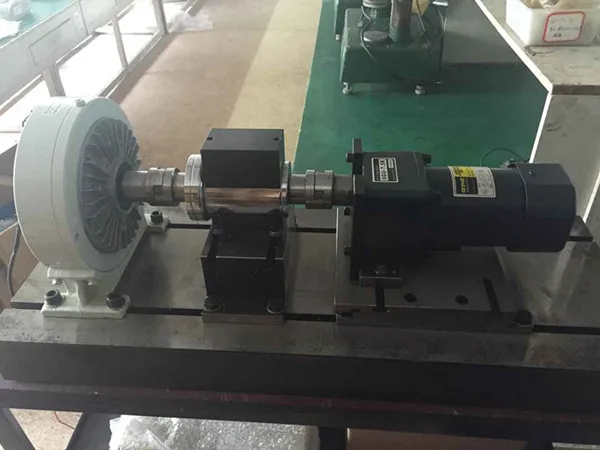

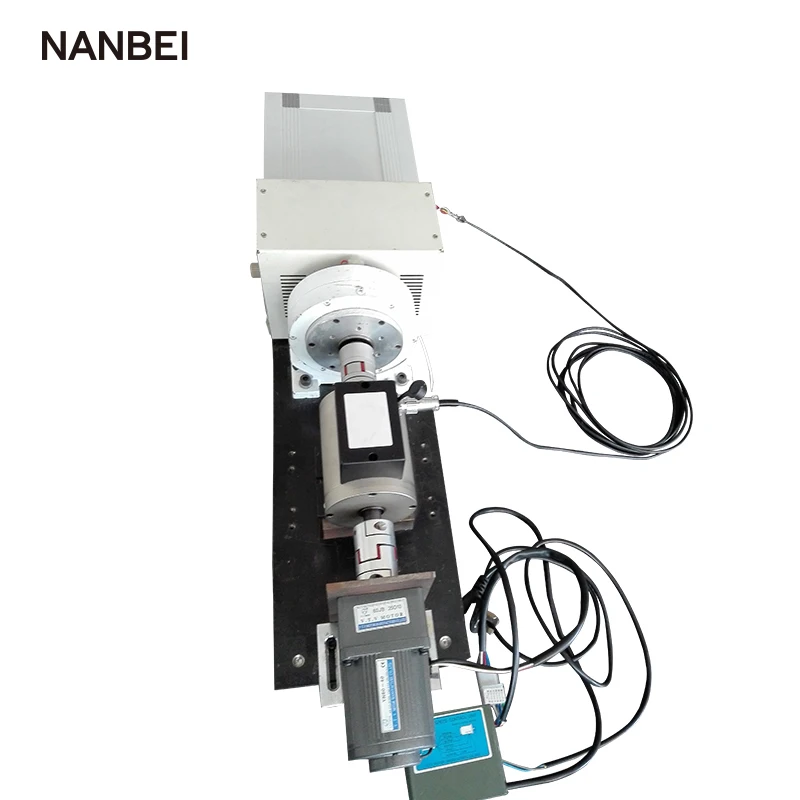

electric motor testing equipment dynamic torque meter dynamometer for motor test

Introduction
NDN series of dynamic torque meter is to test and detect a variety of dynamic torque design and manufacture of an intelligent design equipment.
Used to detect a variety of motors, reducer output torque, speed, power of high-precision test equipment. Widely used in a variety of motors, machinery manufacturing, scientific research institutions and other industries.
Product features

1, the signal output waveform square wave amplitude optional 5V / 12V.
2, boot 5 minutes to enter the working state, without preheating process.
3, high precision detection, good stability, strong anti-interference.
4, without repeatedly zero to continuously measure the positive and negative torque.
5, small size, light weight, easy to install.
6, the sensor can be used independently from the secondary instrument, as long as the socket pin to provide ± 15V (200mA) power supply.
7, you can output impedance and torque is proportional to the square wave or pulse wave frequency signal

Specification

Model	NDN-100	NDN-200	NDN-300	NDN-500
Max load value	100N•m	200N•m	300N•m	500N•m
Load division value	0.1N•m
Maximum speed	6000rpm
Accuracy	±1%
Power supply	±15VDC
Torque accuracy	＜±0.5%F•S、＜±0.35%F•S、＜±0.1%F•S3
Frequency Response	100μs
Nonlinear	＜±0.2%F•S
Importance	＜±0.1%F•S
Backlash	＜±0.1%F•S
Zero when the drift	＜±0.2%F•S
Zero drift	＜±0.2%F•S/10℃
Output impedance	350Ω±1Ω、700Ω±3Ω、1000Ω±5Ω(option)
Insulation resistance	5000MΩ
Static Overload	120%、150%、200%(option)
Operating temperature	-10～50℃
Storage temperature	-20～70℃
Voltage	±15V±5%

Model	NDN-1000	NDN-2000	NDN-3000	NDN-5000
Max load value	1000N•m	2000N•m	3000N•m	5000N•m
Load division value	1N•m
Maximum speed	4500rpm			3000RPM
Accuracy	±1%
Power supply	±15VDC
Torque accuracy	＜±0.5%F•S、＜±0.35%F•S、＜±0.1%F•S350Ω±1Ω、700Ω±3Ω、1000Ω±5Ω(option)
Frequency Response	100μs
Nonlinear	＜±0.2%F•S
Importance	＜±0.1%F•S
Backlash	＜±0.1%F•S
Zero when the drift	＜±0.2%F•S
Zero drift	＜±0.2%F•S/10℃
Output impedance	350Ω±1Ω、700Ω±3Ω、1000Ω±5Ω(option)
Insulation resistance	5000MΩ
Static Overload	120%、150%、200%(option)
Operating temperature	-10～50℃
Storage temperature	-20～70℃
Voltage	±15V±5%

Model	NDN-10K	NDN-15K	NDN-30K	NDN-50K	NDN-100K	NDN-200K
Max load value	10KN·m	15KN·m	30KN·m	50KN·m	100KN·m	200KN·m
Load division value	0.01KN·m						0.1KN·m
Maximum speed	3000rpm	2000rpm			1500rpm	1000rpm
Accuracy	±1%
Power supply	±15VDC
Torque accuracy	＜±0.5%F•S、＜±0.3%F•S、＜±0.1%F•S（可选）
Frequency Response	100μs
Nonlinear	＜±0.2%F•S
Importance	＜±0.1%F•S
Backlash	＜±0.1%F•S
Zero when the drift	＜±0.2%F•S
Zero drift	＜±0.2%F•S/10℃
Output impedance	350Ω±1Ω、700Ω±3Ω、1000Ω±5Ω（option）
Insulation resistance	500MΩ
Static Overload	120%、150%、200%（option）
Operating temperature	－10～50℃
Storage temperature	－20～70℃
Voltage	±15V±5%
