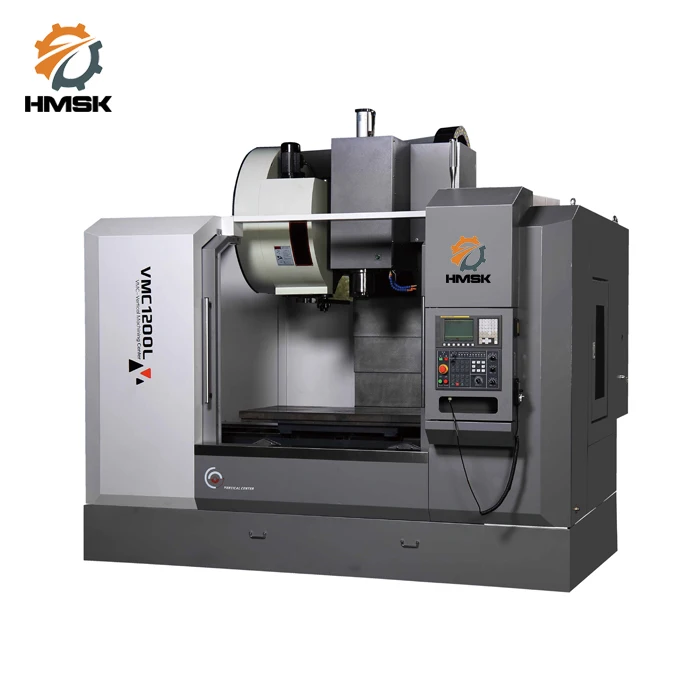

VMC1200L 3 оси cnc фрезерный станок по металлу с ЧПУ Fanuc


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-18-2025 0.57 $* 0.47 $*
Aug-18-2025 0.52 $* 0.31 $*
Jul-18-2025 0.91 $* 0.74 $*
Jun-18-2025 0.4 $* 0.63 $*
May-18-2025 0.89 $* 0.26 $*
Apr-18-2025 0.18 $* 0.26 $*
Mar-18-2025 0.64 $* 0.84 $*
Feb-18-2025 0.68 $* 0.79 $*
Jan-18-2025 0.18 $* 0.19 $*

Характеристики



Product Description




CNC milling machine center Product Application

All 3axis use class C3 precision screw,match up the nut preloading and screw prestretched, preeliminate backlash and temperature rise,so that the machine can achieve stability of the positioning and repeatability accuracy. Besides,the X/Y/Z axis use precision linear rails to ensure the control of the positioning accuracy and processing errors,so that the machine can have high accuracy and long working life.



Specification
VMC1200L
Worktable size(LxW)
1400x700mm
T-slot (NxWx D)
5x18x115mm
X/Y/Z axis travel
1200/700/700mm
Distance from spindle center to column
775mm
Distance from spindle nose to worktable surface
103-803mm
Spindle taper
BT50
Spindle power
11/15kw
Max.spindle speed
6000rpm
Max.feed speed
12m/min
Rapid feed speed(X/Y/Z)
24/24/15m/min
X/Y/Z axis ball screw
4012

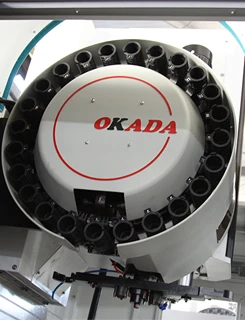

Tool magazine capacity
24t
Tool change time(T-T)
3/2.5s
Positioning accuracy(X/Y/Z)
±0.010mm
Re-positioning accuracy(X/Y/Z)
±0.005mm
LxWxH
3330x2880x3250mm
Max.loading of worktable
1000kgs
Machine weight
10000kgs


Detailed Images
