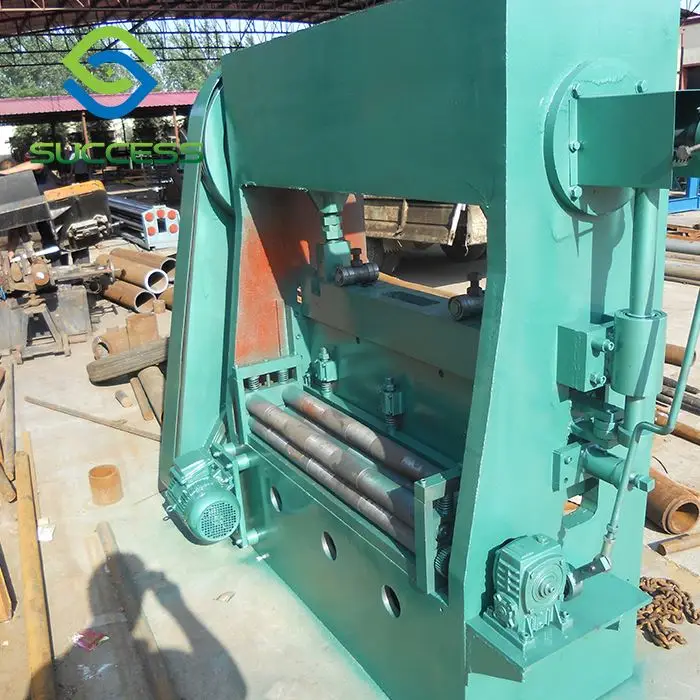

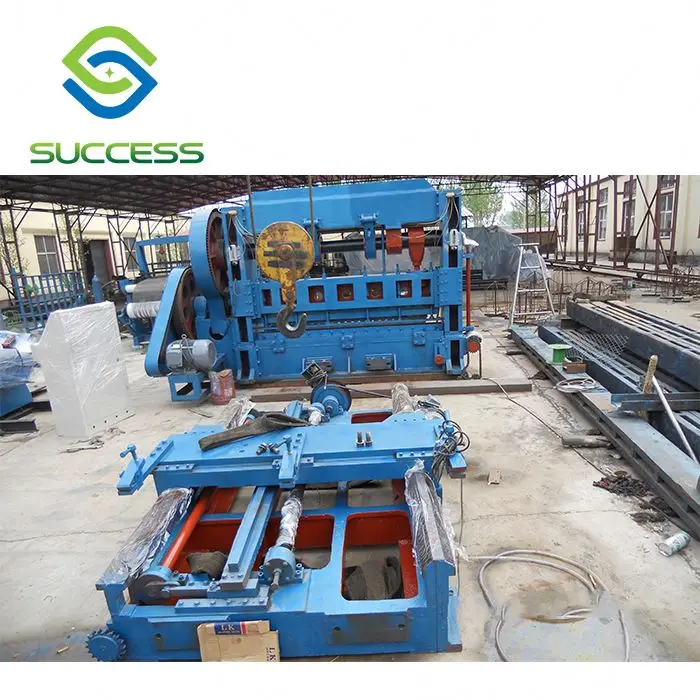

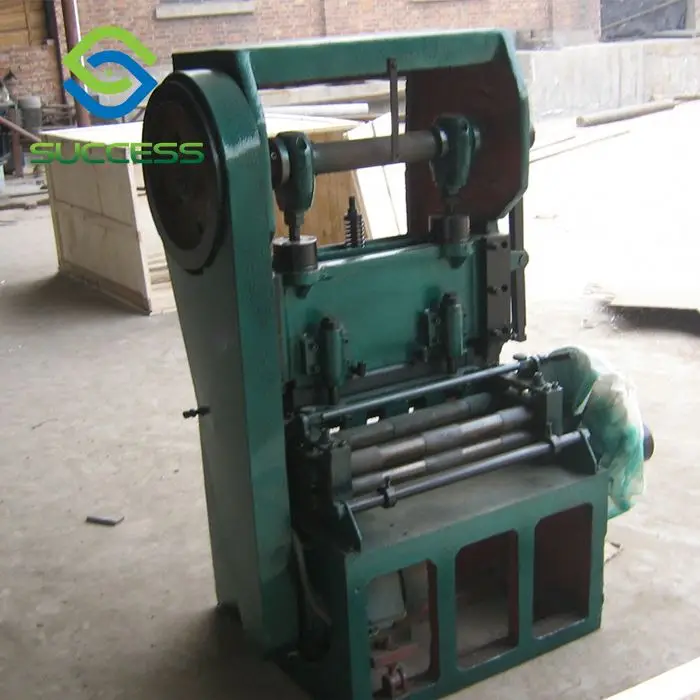

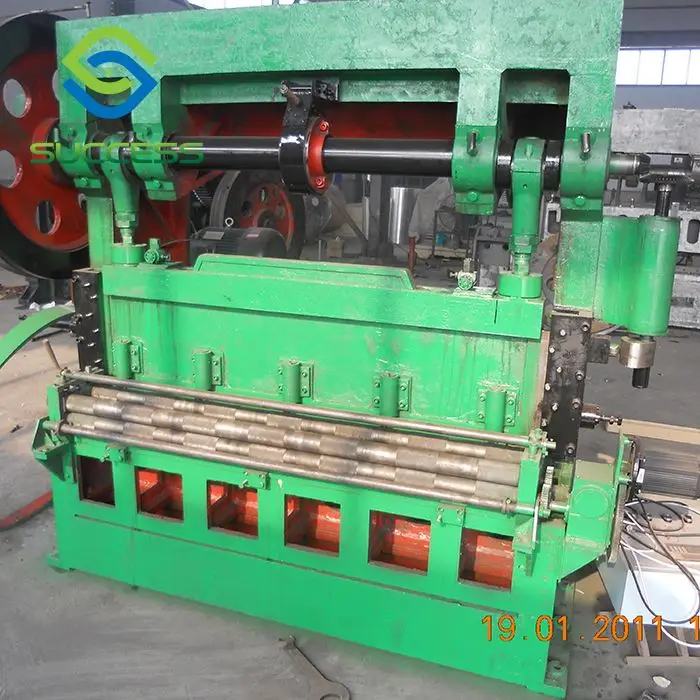

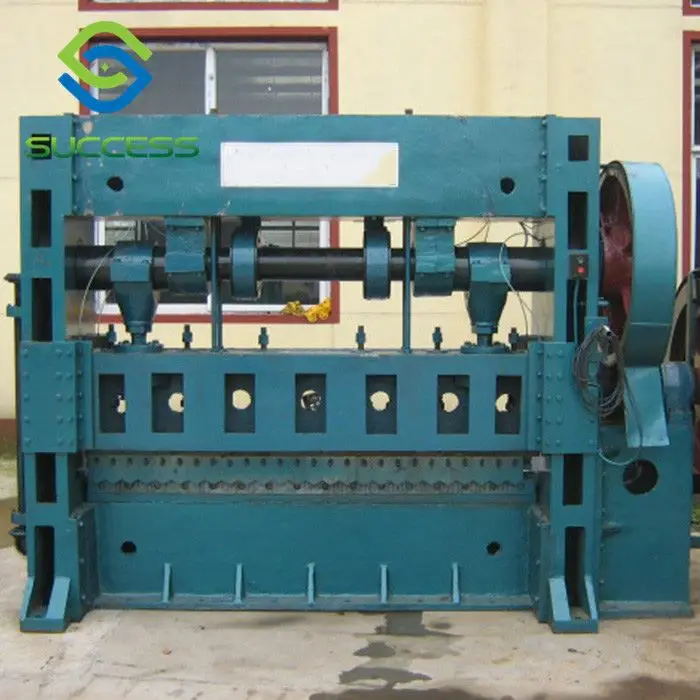

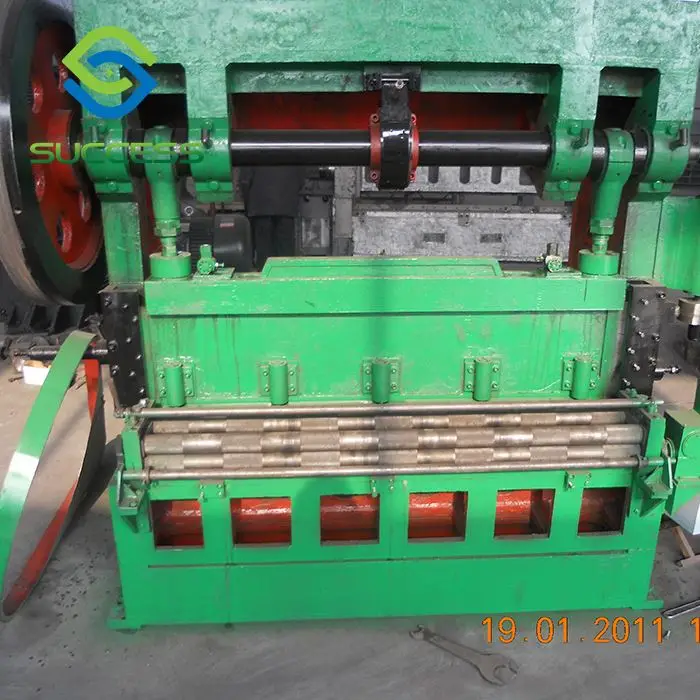

simple structure expanded wire mesh fence making machine

1.Expanded metal mesh machine can be separated two kinds which are stretch net and perforated metal.

2.We can also call it fence machine stretch net machine Machine hole and shaped punching machine

3.Expanded metal mesh machine can expand all kinds of steel and iron plate.

4.Then stretch it to fence mesh, this machine can be called fence machine.

Steel Screen Machine:

Model Specifications	Punching Shear Material Thickness	Maximum Punching Shear Thickness	Slider Reciprocating Times	Feeding Distance	Punching Shear Mesh Length Distance	Motor Power	Total Weight	Overall Dimensions
JQ25-6.3	<=1.0mm	500mm	180/min	0-1.15mm	<=20mm	2.2KW	0.95T	950X570X1780
JQ25-16	<=1.0mm	1000mm	150/min	0-1.2mm	<=25mm	3KW	2T	1800X1320X1550
JQ25-25	<=1.5mm	1200mm	150/min	0-1.2mm	<=30mm	4KW	3T	1940X1600X2010
JQ25-63A	<=2.5mm	2000mm	70/min	0-4mm	<=100mm	11KW	10T	2400X3500X2300
JQ25-63 B	<=3mm	2000mm	45/min	0-4mm	<=200mm	11KW	10T	2400X3500X2300
JQ25-100	<=4mm	2000mm	60/min	0-4	<=150mm	15KW	12T	3600 x 2500 x 3000
JQ25-160A	<=6mm	2000mm	20/min	0-7mm	<=200mm	22KW	18T	5500X1750X3300
JQ25-160B	<=6mm	2500mm	20/min	0-4mm	<=200mm	22KW	20T	5500X1750X3300

Plain Net Machine:

Model	ZPJ-05Type	ZPJ-10Type	ZPJ-125Type	ZPJ-15Type	Note: Plain net thickness is less than or equal to 2.5mm
Plain Net Width	500mm	1000mm	1250mm	1500mm

Motor Power	Maximum Working Length	Maximum Working Width	Normal Working Speed
Motor 7.5kw	Rolling Mill 7300mm	Rolling Mill 216mm	2 Rolling Mill m/min
Reducer 7.5kw	Wire Drawing Machine 7300mm	Wire Drawing Machine 1200mm	Wire Drawing Machine 2m/min

It is suitable for the material such as low carbon steel sheet, aluminum sheet, stainless steel sheet, aluminum magnesium alloy sheet, copper sheet, Nickel sheet.

Application

The light expanded metal mesh widely use for filter, stereo shield,decoration,arts and crafts, covering screen for first class sound case etc.

Our JQ25 series expanded metal machine is a revolutionary products,.It adopts automatic lubricating system,automatic feeding material by step motor ,the electric system is PLC control.it running stable, operation easy.

We have various different type of expanded metal machine, the specification from 6.3tons to 160 tons.The mesh punching thickness from 0.1 to 10mm, The mesh width from 600mm to 3200mm.

Features:

1.easy to operate,

2.no waste production,

3.high speed,

4.high precision,

5.produce varied petterns,

6.excellent performance ect.
