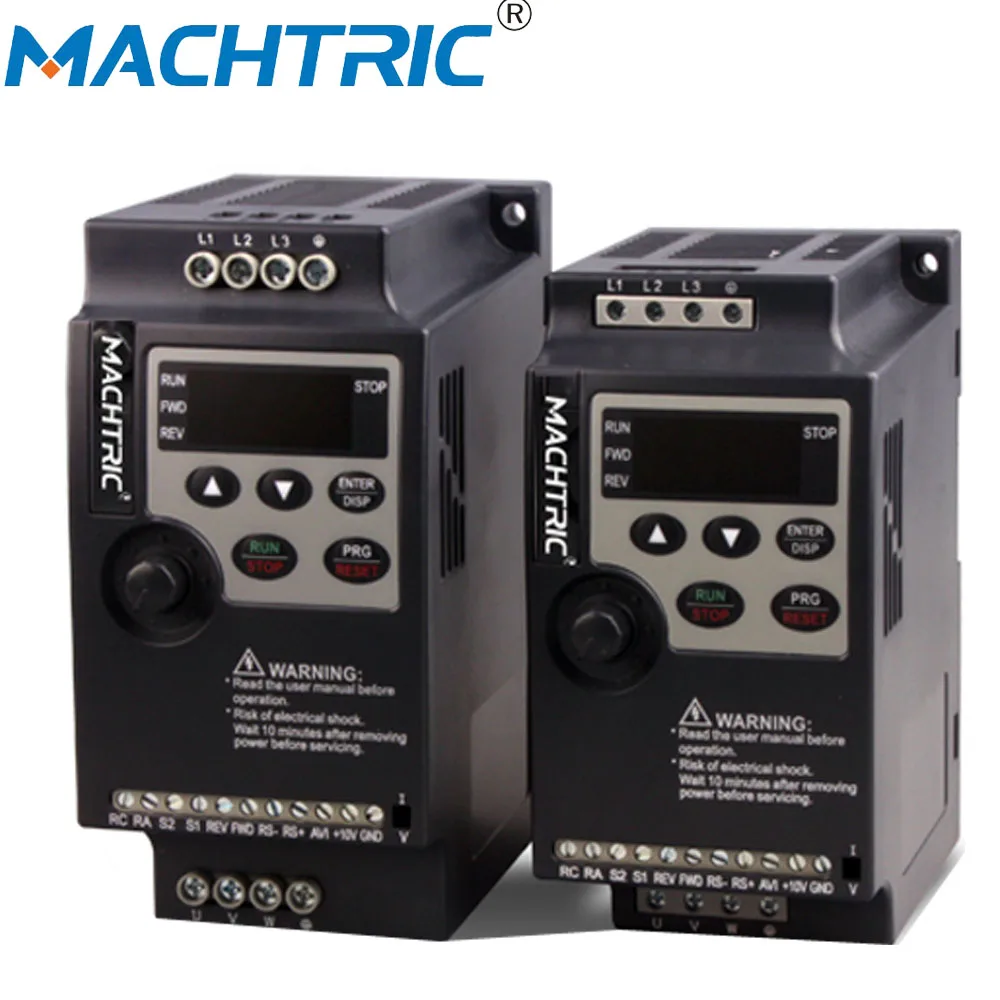

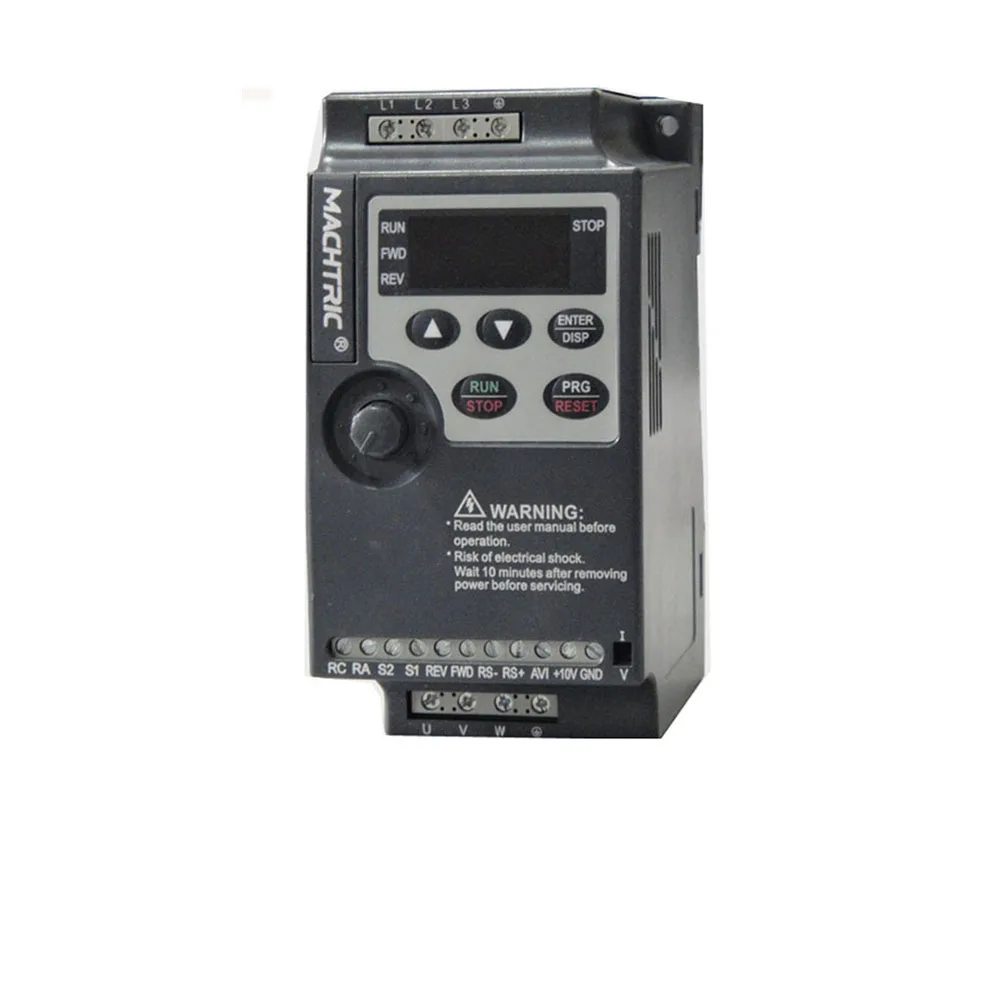

Компактный преобразователь частоты мощности 380 В/220 В серии Machtric

Power

Supply

Rated voltage,

Frequency

One-phase/Three-phase AC 220V 50/60Hz

Voltage Range

220V: 170~240V

Output

Voltage Range

220V: 0~220V

Frequency

Range

0.10~400.00Hz

Control method

V/F control, Space vector control.

Indication

Operating status/Alarm definition/interactive

Guidance:eg, frequency setting, the output

frequency/current, DC bus voltage, the

temperature and so on.

                   Control Specifications

Output

Frequency

Range

0.10Hz~400.00Hz

Frequency

Setting

Resolution

Digital input: 0.01Hz, analog input: 0.1% of

maximum output frequency

Output

Frequency

Accuracy

0.01Hz

V/F Control

Setting V/F curve to satisfy various load

Requirements.

Torque

Control

Auto increase: auto raise torque by loading

Condition; Manual increase: enable to set

0.0~20.0% of raising torque.

Multifunctional

Input Terminal

Four multi-function input terminals, realizing

functions including fifteen section speed control,

Program running, four-section acceleration/

deceleration speed switch, UP/DOWN function

and emergency stop and other functions

Multifunctional

Output Terminal

1 multi-function output terminals for displaying

of running, zero speed, counter, external

abnormity, program operation and other

Information and warnings.

Acceleration/

deceleration

Time Setting

0~999.9s acceleration/deceleration time can be

set individually.
