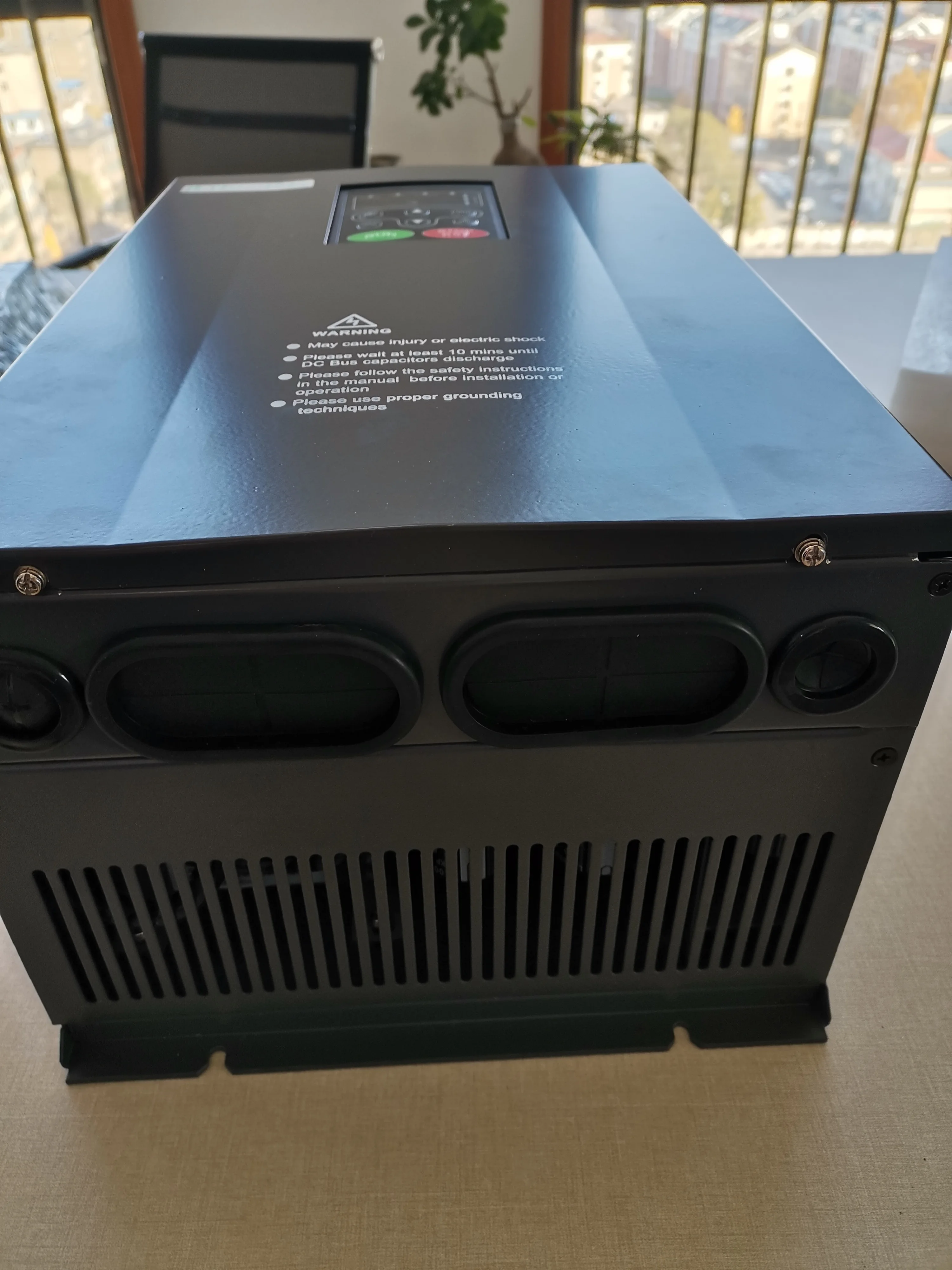

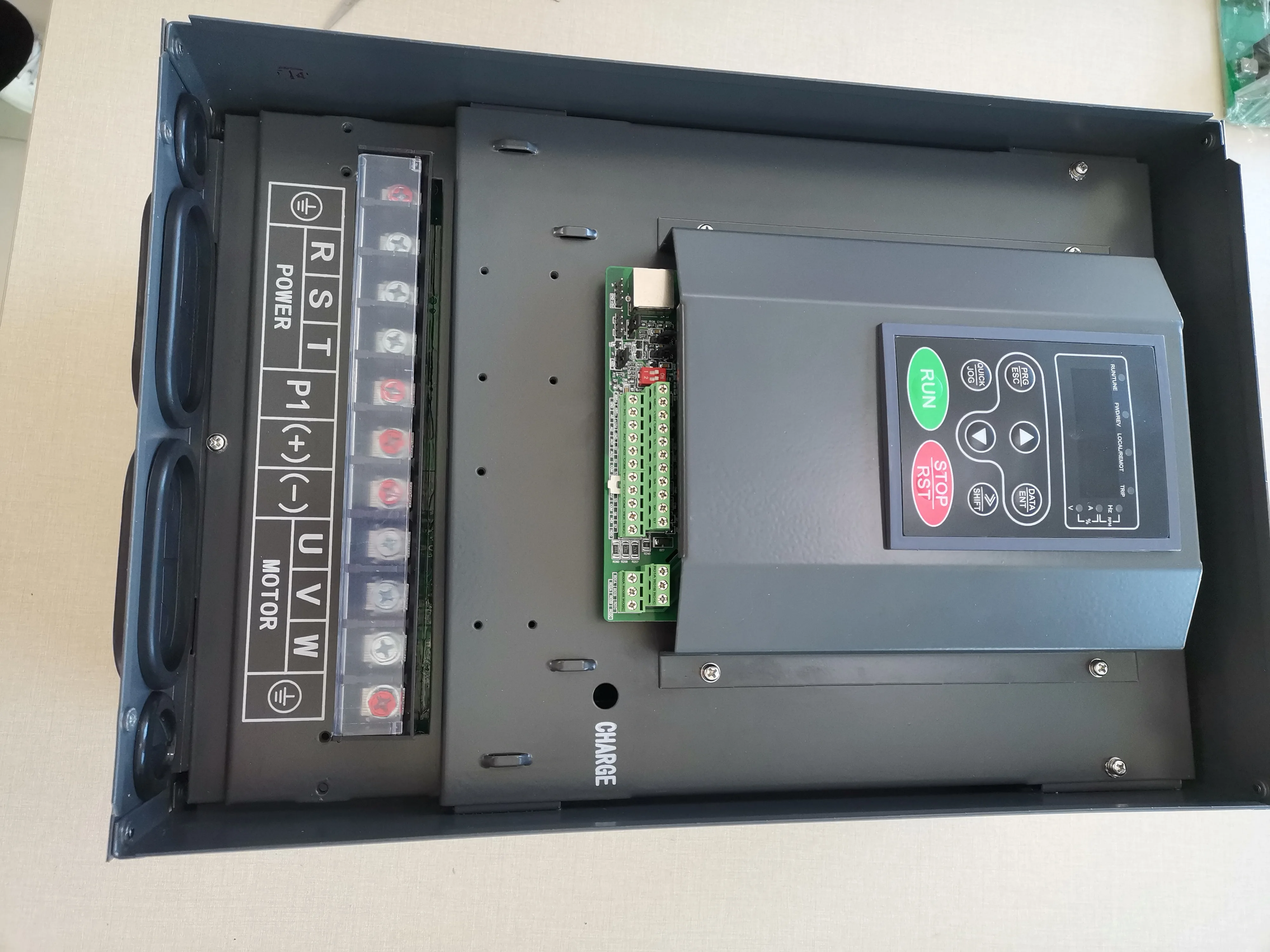

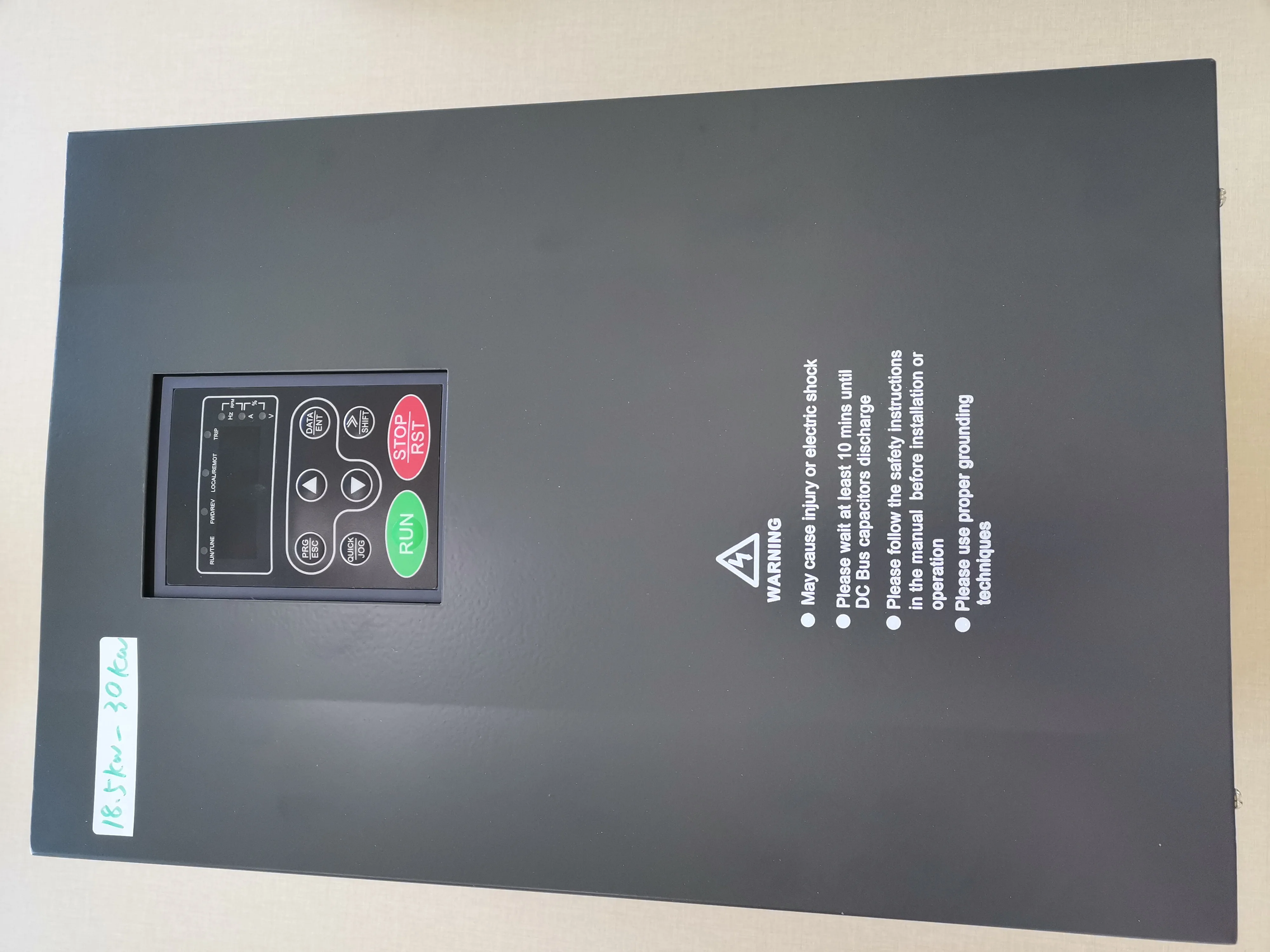

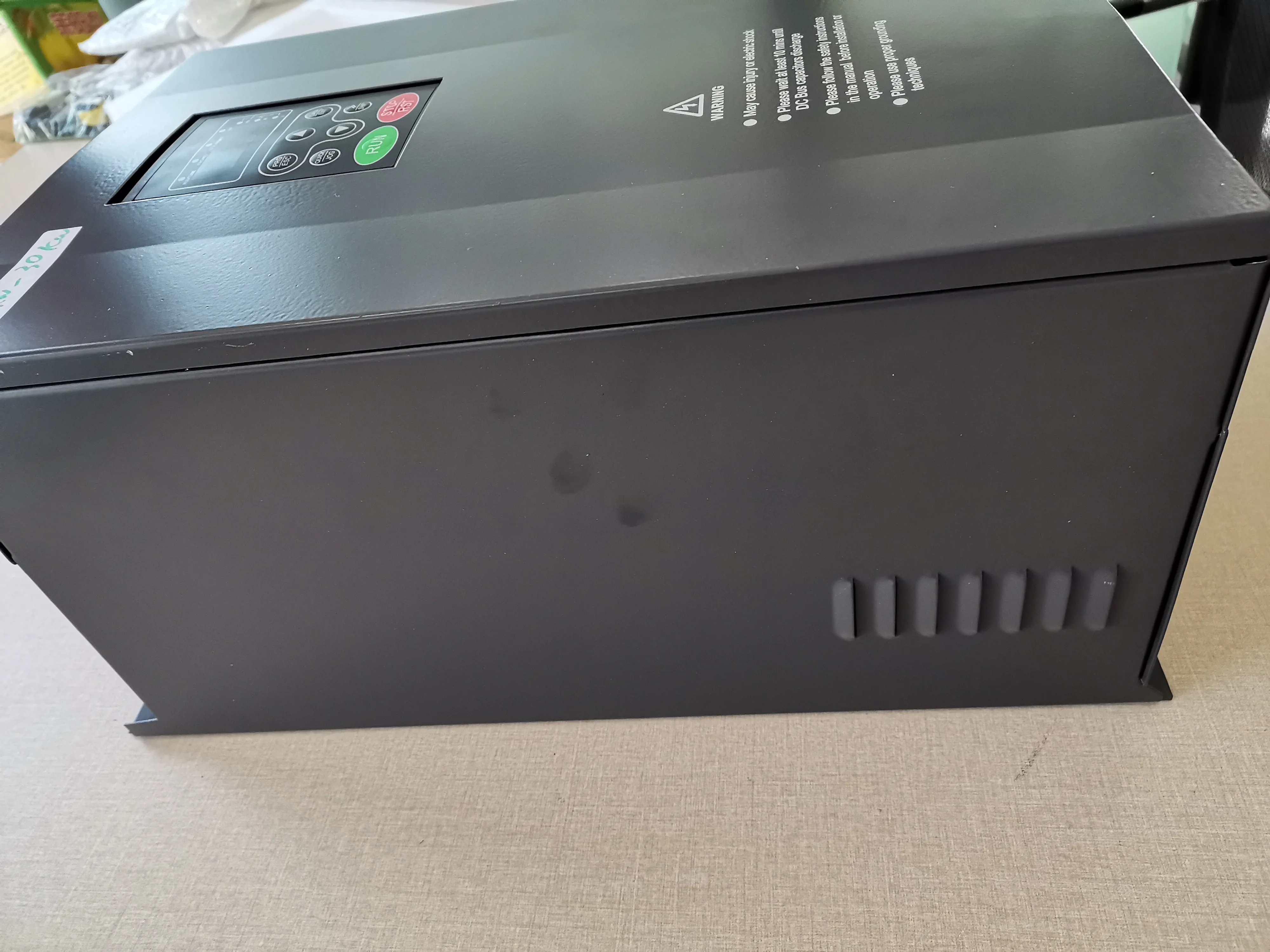

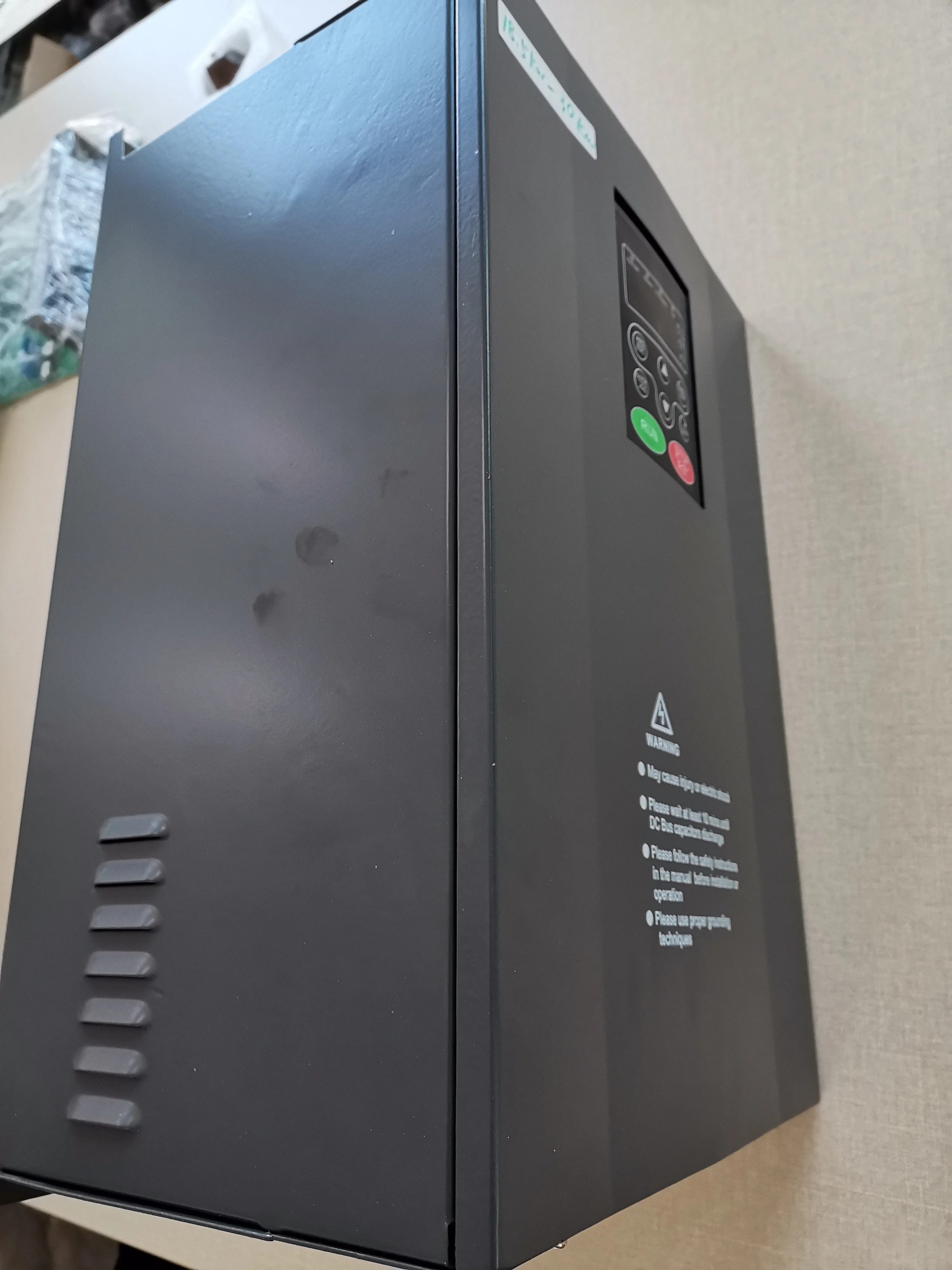

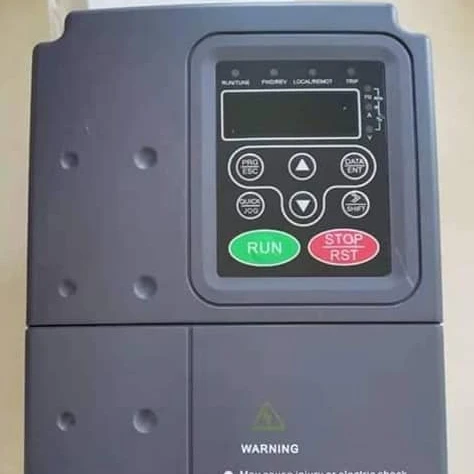

CHF100A инвертор солнечный насос привод переменного тока

Technology Features
* Input & Output
Input Voltage Range: 380/220V±15%
Input Frequency Range: 47~63Hz
Output Voltage Range: 0~rated input voltage
Output Frequency Range: 0~400Hz
* I/O Features
Programmable Digital Input: Provide 7 terminals which can support ON-OFF
inputs, 1 terminal which can support high speed pulse input and support PNP,
NPN
Programmable Analog Input: AI1 can accept input of -10V ~10V, AI2 can accept
input of 0~10V or 0~20mA.
Programmable Open Collector Output: Provide 1 output terminal (open collector
output)
Relay Output: Provide 2 output terminals
Analog Output: Provide 2 output terminal, whose output scope can be 0/4~20 mA
or 0~10 V, as chosen.
* Main Control Function
Control Mode: V/F control, Sensorless Vector Control (SVC)
Overload Capacity: 60s with 150% of rated current, 10s with 180% of rated
current.
Speed Adjusting Range: 1:100 (SVC)
Carrier Frequency: 1 kHz ~15.0 kHz.
Frequency reference source: keypad, analog input, HDI, serial communication,
multi-step speed, simple PLC and PID. The combination of multi- modes and the
switch between different modes can be realized.
PID Control Function
Simple PLC, Multi-Steps Speed Control Function: 16 steps speed can be set.
Traverse Control Function
None-Stop when instantaneous power off
Speed Trace Function: Smoothly start the running motor.
QUICK/JOG Key: User defined shortcut key can be realized.
Automatic Voltage Regulation Function (AVR):
Automatically keep the output voltage stable when input voltage fluctuating
Up to 25 fault protections:
Protect from over current, over voltage, under voltage, over temperature, phase failure, over load etc
