Датчик постоянного тока с разделенным сердечником UL CE датчиком диаметра отверстия 10

Описание и отзывы

Трекер стоимости

Характеристики

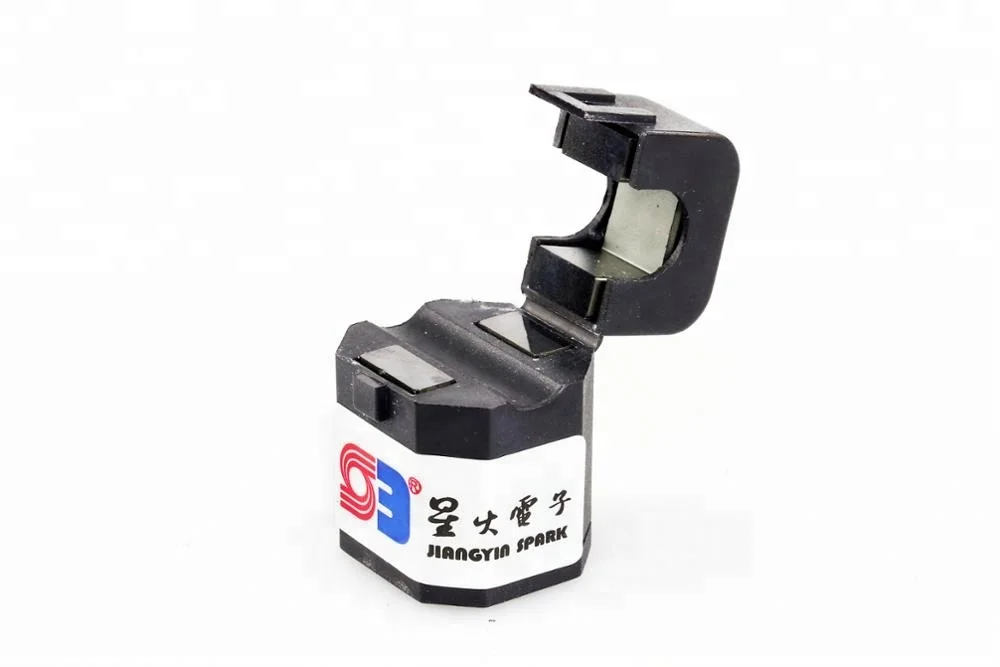

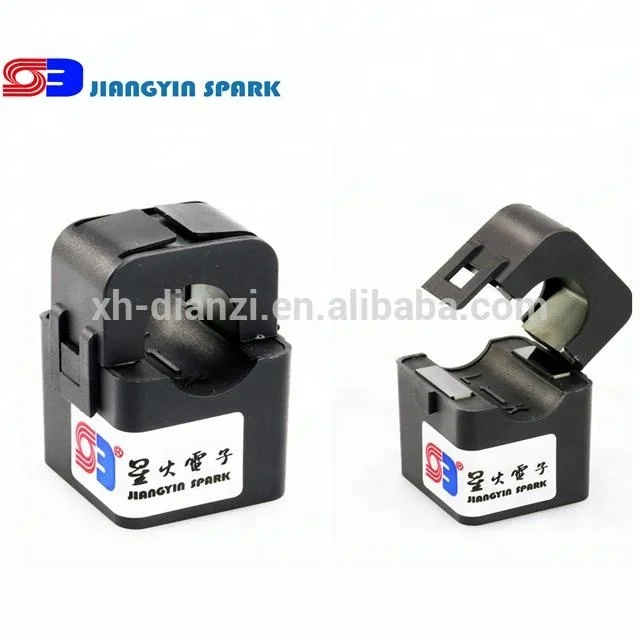

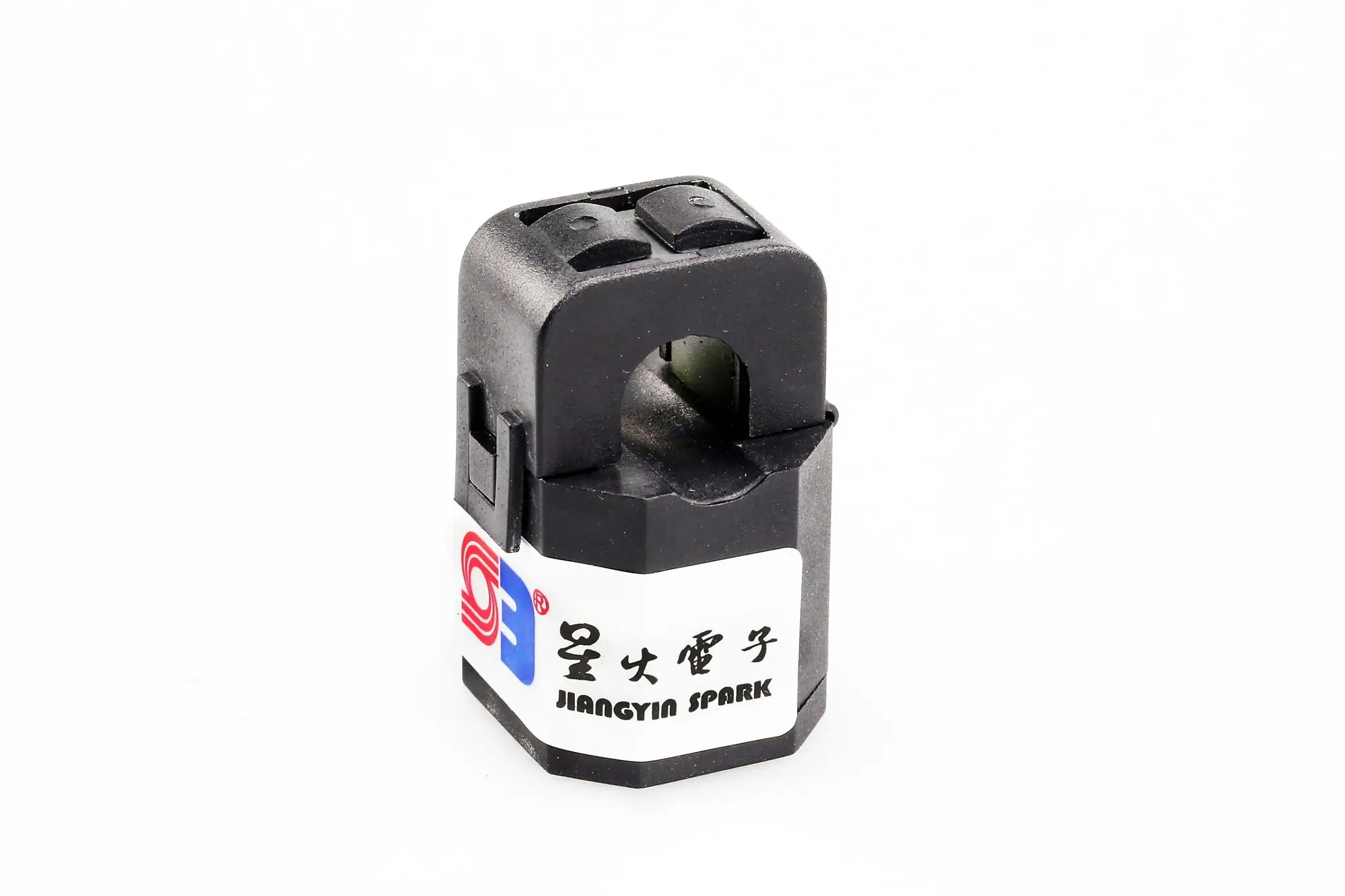

Split core current transformer with high quality and CE UL

Specifications:
Maximum continuous primary current 80A
Secondary turns: 3000
Wire leads: 3.5mm jack plug
Frequency: 50/60Hz
DC resistance: 460ohms @ 20degree Celsius

Applications:
Portable instruments
Sub-metering
Monitor motor loads

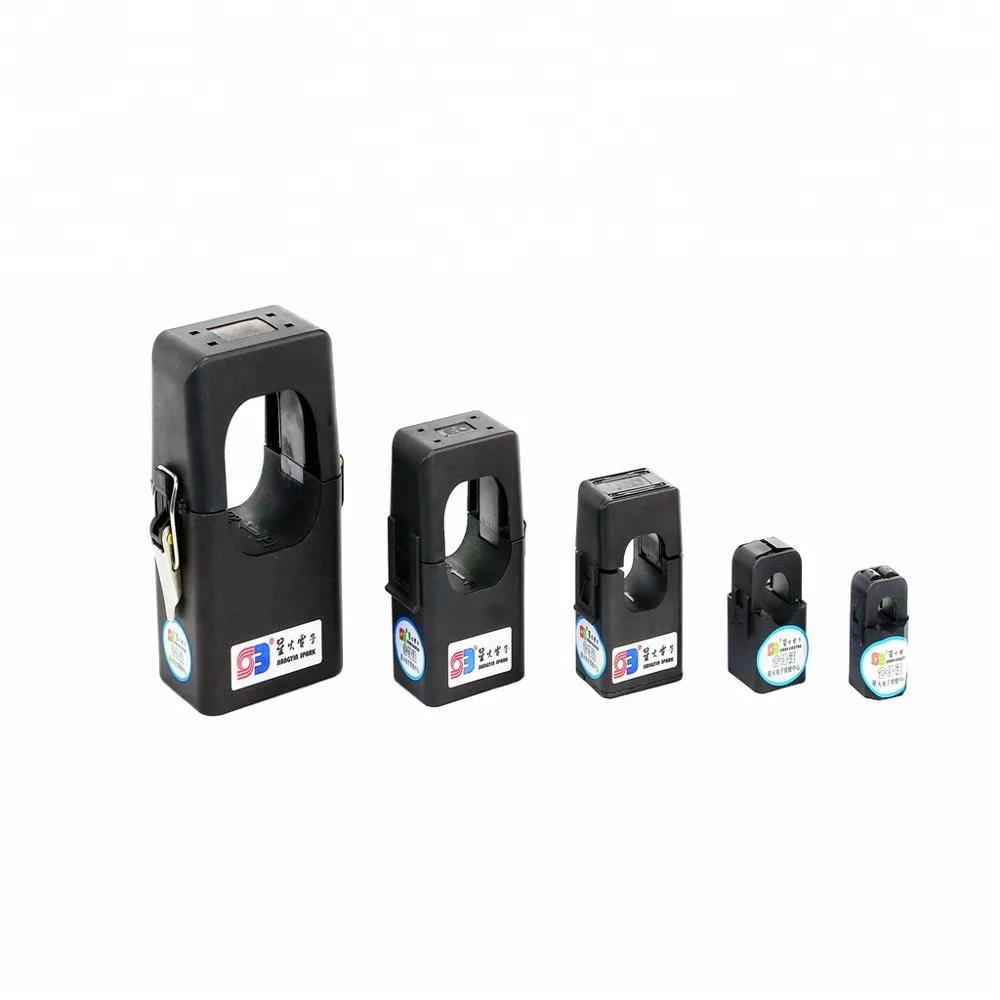

Model	I.D.	Ratio	Rated Amps	Accuracy
XH-SCT-T06	6mm	1000:1	1, 5,10, 15, 20,	1.0

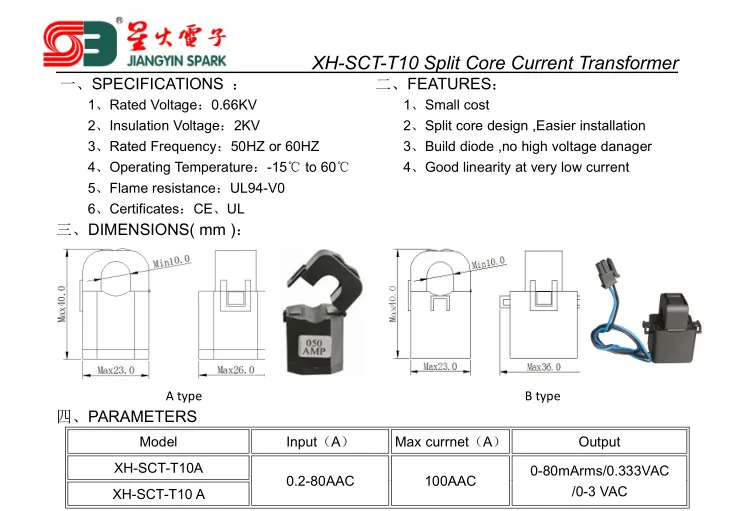

XH-SCT-T10	10mm	3000:1	5, 15, 30, 50, 75,80	0.5 , 1.0
XH-SCT-T16	16mm	3000:1	50, 70, 100, 120	0.5 , 1.0
XH-SCT-T24	24mm	3000:1	100, 150, 200, 300	0.5 , 1.0
XH-SCT-T36	36mm	3000:1	300, 400, 500, 600	0.5 , 1.0
