carbonated drink co2 mixing machine

1 High content co2 and water mixing machine factory is designed and made for improving the proportion of water, syrup and carbon dioxide.

2 High content co2 and water mixing machine factory adopts foreign advance technology-static mixer to lighten water layer

3 which increase carbonizing time, assure mixing result and deoxying.

4 adopts high quality water pump and SEIMENS electrical equipment and other parts

5 with the advantages of coordinating action, beautiful appearance, convenient washing, high automatic level and other advantages.

6 High content co2 and water mixing machine factory is suitable for mixing all kinds of drink, such as carbonated beverage ,soda water, fruit juice, cola and other soft and hard drink.

1. Wide application: it nearly can deal with all kinds of soft drink such as carbonated drink, syrup type and others.

2. Adjustable pressure of carbonic acid gas: the carbonating pressure in the cooling carbonating tank is decided by the readings of stock tank which can be adjusted by changing the pre-carbonization to form a best condition for filling machine.

3. CO2 Content is high: in case of operating the machine at lower temperature, the content of CO2of all products can reach up to 3.5-4.5 time s of much higher.

4. Mixing precision: the white sugar of beverage liquid keep around ±0.05 degrees.

5. Convenience for adjusting: it can adjust the capability and the ratio of water to sugar conveniently without changing the components.

6. High automatization: with micro-machine controlling, it can realize the auto-interlock in the process of production and it will auto-alarm and stop when failures happen.

7. Structure sanitation : the machine adopts device and pipelines made of stainless steel to rinse

Model	QHS-3000	QHS-6000	QHS-9000	QHS-18000
Output	3T	6T	9T	18T
Syrup and water adjusting rate	1:3-1:10	1:3-1:10	1:3-1:10	1:3-1:10
CO2 content	2.5	2.5	2.5	2.5
Mixing precision	2%	2%	2%	2%
Cooling water inlet temperature	0-4	0-4	0-4	0-4
Cooling water inlet pressure	0.15-0.25Mpa	0.15-0.25Mpa	0.15-0.25Mpa	0.15-0.25Mpa
Syrup inlet temperature	2~8	2~8	2~8	2~8
Syrup inlet pressure	0.1~0.2Mpa	0.1~0.2Mpa	0.1~0.2Mpa	0.1~0.2Mpa
Inlet pressure of carbon dioxide CO2	0.7~0.8Mpa	0.7~0.8Mpa	0.7~0.8Mpa	0.7~0.8Mpa
Purity of carbon dioxide CO2	99.9%	99.9%	99.9%	99.9%
Working pressure of storage tank	0.45-0.55Mpa	0.45-0.55Mpa	0.45-0.55Mpa	0.45-0.55Mpa
Motor power	3.5kw	5kw	6.5kw	7.2kw
External size (L*W*H) mm	2000×1400×2200	2100×1500×2270	2150×1400×2380	2000×1750×2400
Weight	1200kg	1350kg	1500kg	1950kg

Products Structure and Working Procedure:

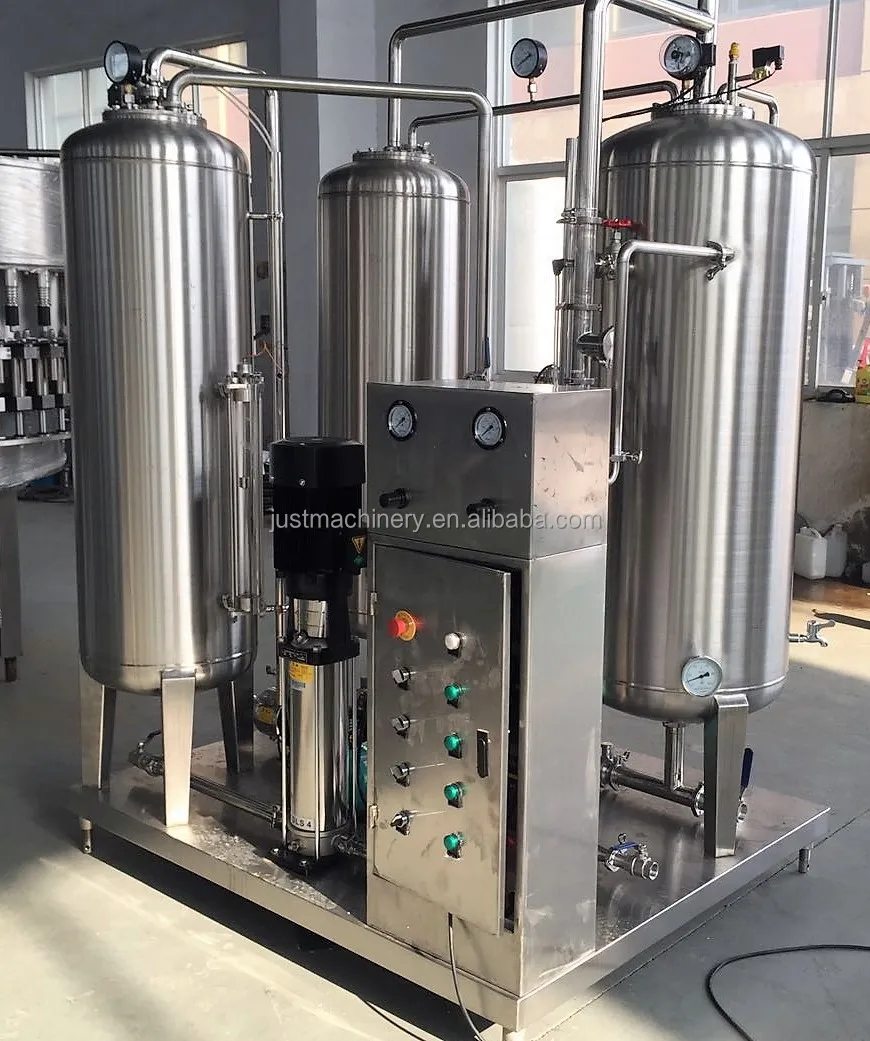

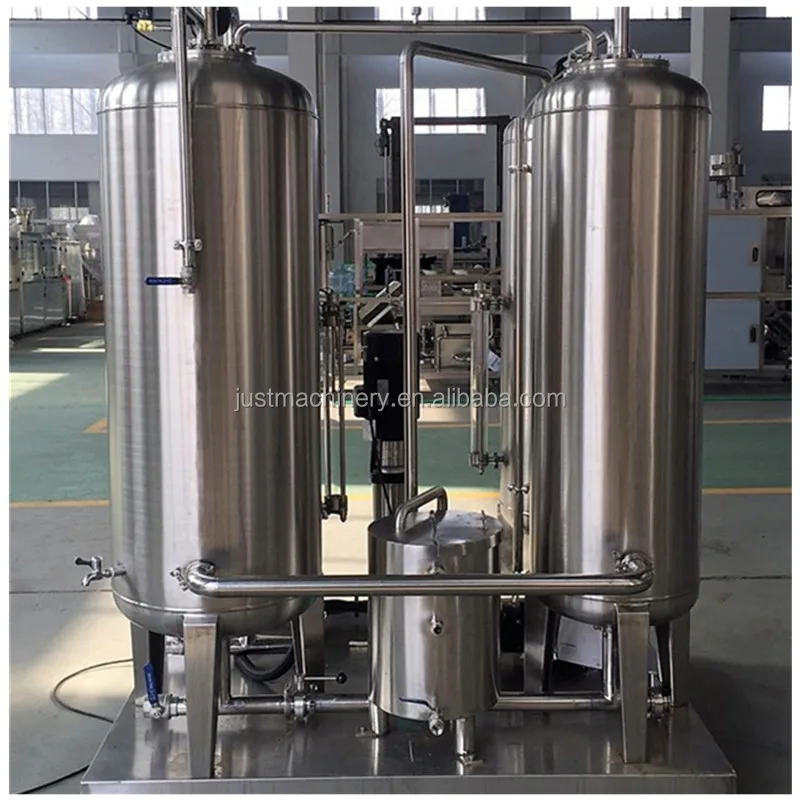

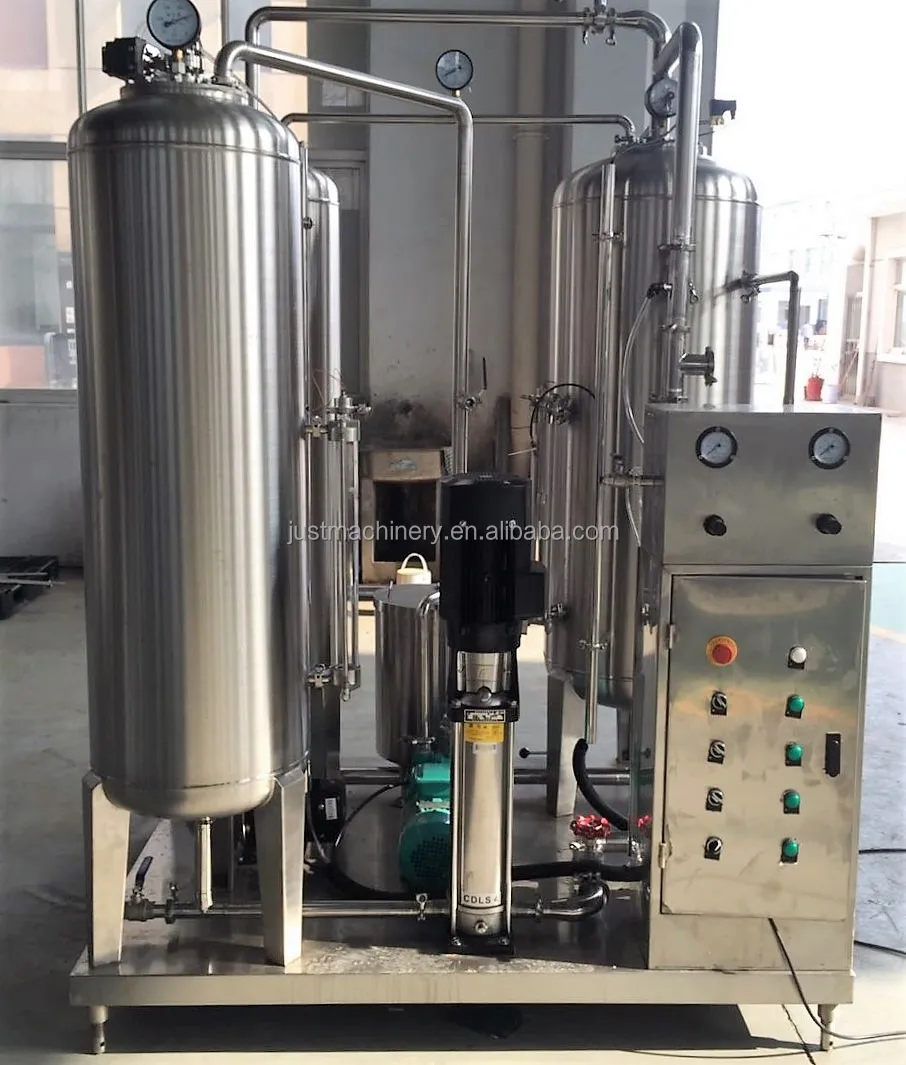

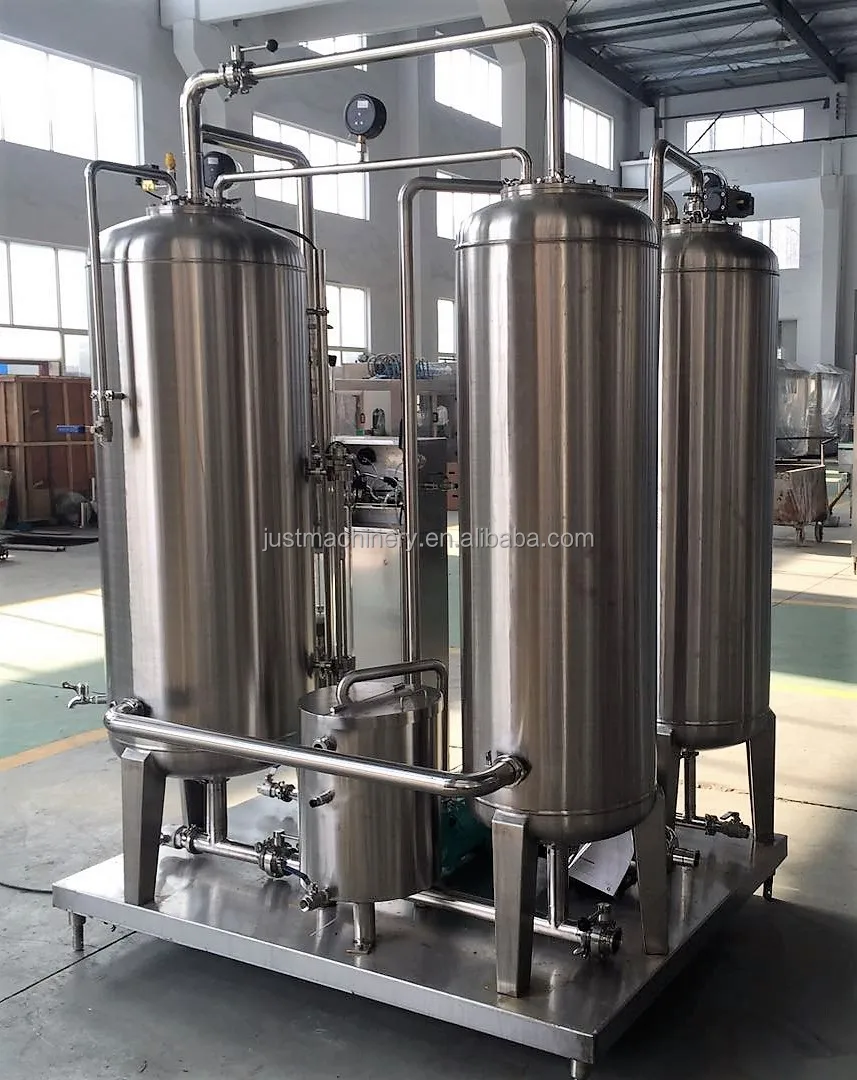

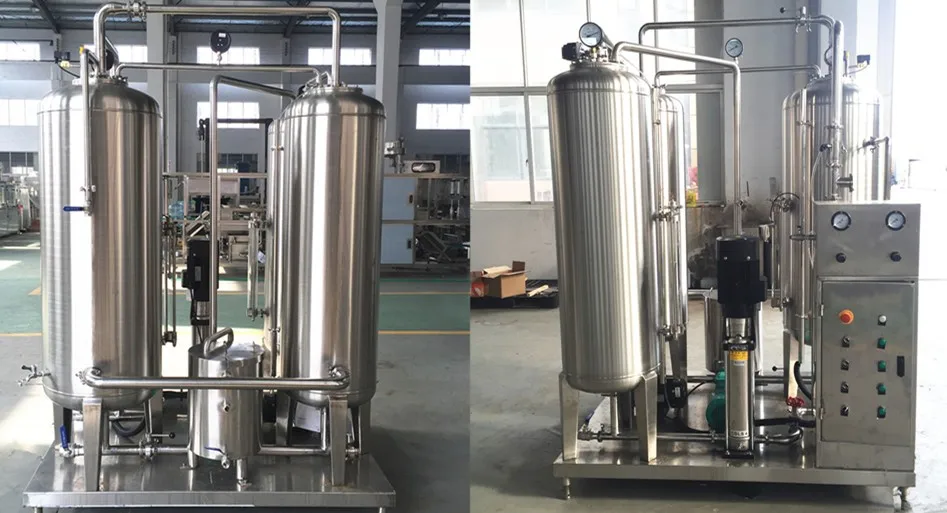

1. CO2 tank, syrup tank, liquid level device, static mixing device, tank, electrical controlling system, air providing tank, and necessary producing pipe and cleaning pipe including ball valve, magnetism valve, check valve are composed this machine. (See photo 1: main structure)

2. Main working Procedure

a. Cooling water→multi-grade pump→oxygenating CO2→volume control

b. Cooling syrup→multi-grade pump→syrup tank→volume control

(a and b → multi-grade pump→static mixing device→

c. CO2 air resource→filter and pressure reducing→ tank→filling machine

Carbonated drink filling machine line flow:
