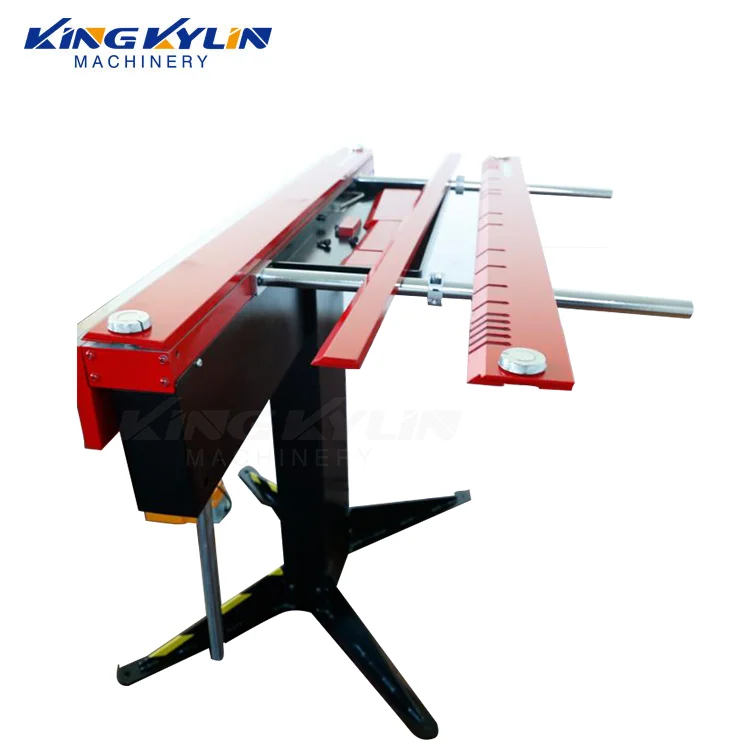

KK-1250E Магнитный гибочная машина плиты нержавеющей стали

Цена:*

Количество:

Product Description

1. It's easy to form very deep narrow channels, closed sections, and deep boxes that are difficult or impossible on a conventional machine.

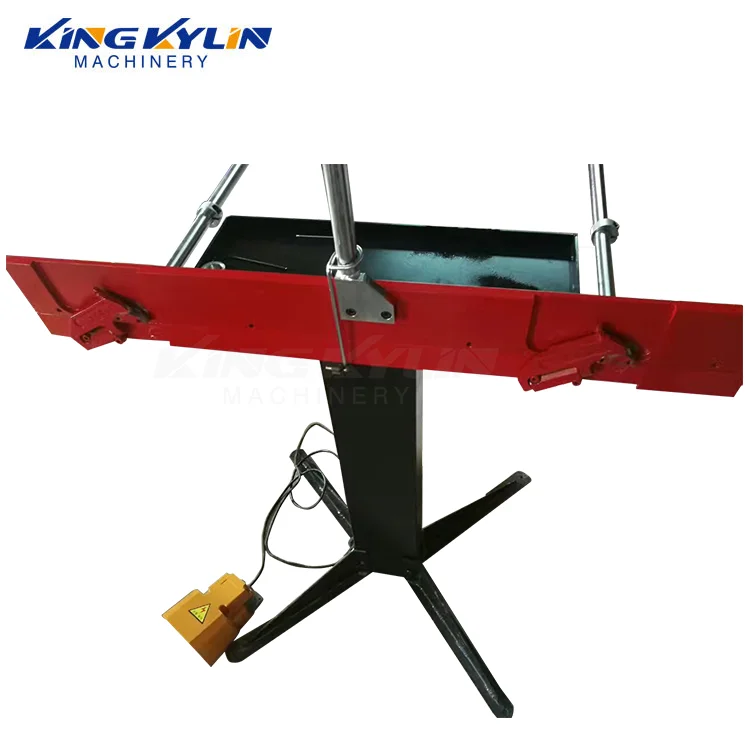

2. The unique hinging system extending its versatility, the single column stand design providing a free-arm effect at the ends of the machine.

3. Easy Operation, and a two-handed interlock provides safety for the user.

Specification of Magnetic Bending Machine

\t Model	\t KK-650E	\t KK-1000E	\t 1250E
\t *Max.bending lengththickness**	\t 625*1.6mm	\t 1000*1.6mm	\t 1250*1.6mm
\t Magnetic Force	\t 3tons	\t 4.5tons	\t 6tons
\t Backgauge	\t 390mm	\t 640mm	\t 640mm
\t Thermal Cut-out	\t 70°C	\t 70°C	\t 70°C
\t Currant Rate	\t 4A	\t 6A	\t 6A
\t Worktable Height	\t 670mm	\t 1050mm	\t 1300mm
\t Distance between of lifters	\t 630mm	\t 1010mm	\t 1260mm
\t Packing Size	\t 8311238cm	\t 12011238cm	\t 14511238cm
\t Gross Weight	\t 127kg	\t 177kg	\t 220kg

\t Model	\t KK-2000E	\t KK-2500E	\t KK-3200E
\t *Max.bending lengththickness**	\t 2000*1.6mm	\t 2500*1.6mm	\t 3200*1.6mm
\t Magnetic Force	\t 9tons	\t 12tons	\t 10tons
\t Backgauge	\t 640mm	\t 640mm	\t 640mm
\t Thermal Cut-out	\t 70°C	\t 70°C	\t 70°C
\t Currant Rate	\t 12A	\t 15A	\t 15A
\t Worktable Height	\t 2090mm	\t 2590mm	\t 3290mm
\t Distance between of lifters	\t 2028mm	\t 2528mm	\t 3228mm
\t Packing Size	\t 22011238cm	\t 27011238cm	\t 34011238cm
\t Gross Weight	\t 360kg	\t 420kg	\t 510kg

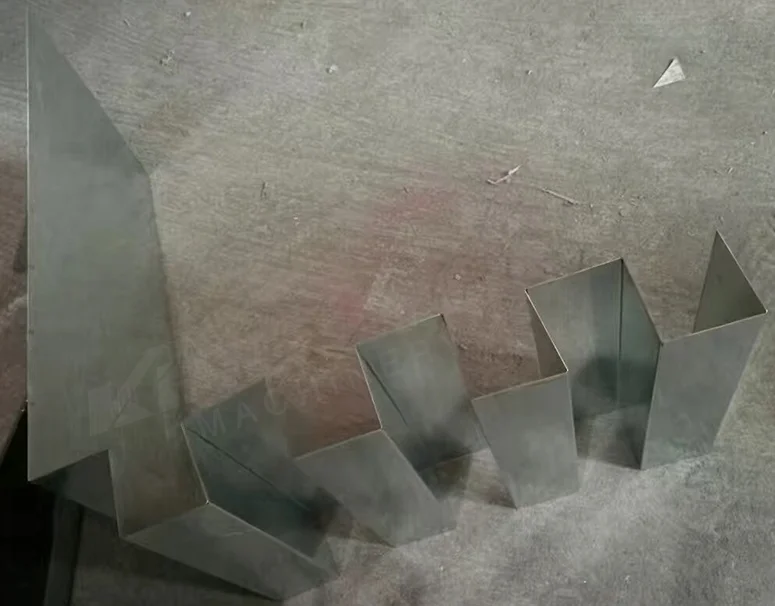

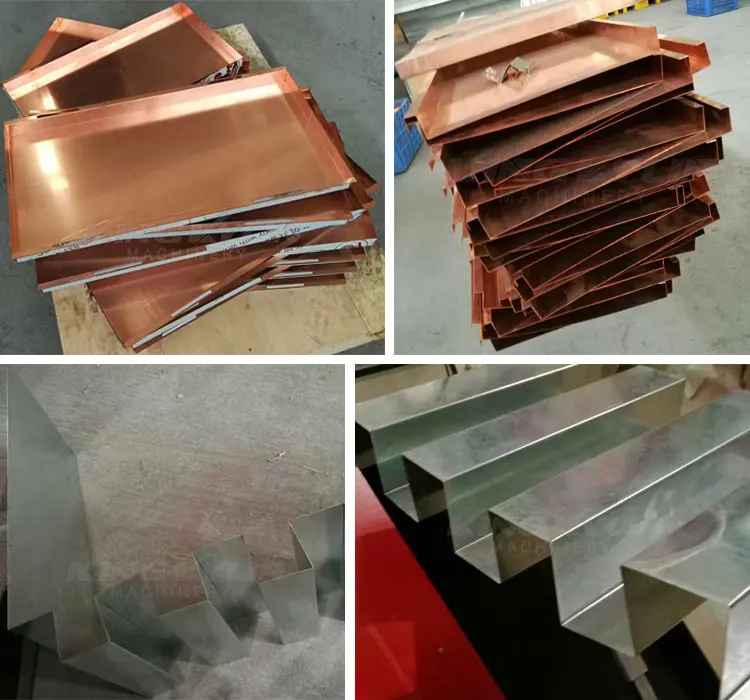

Final Products

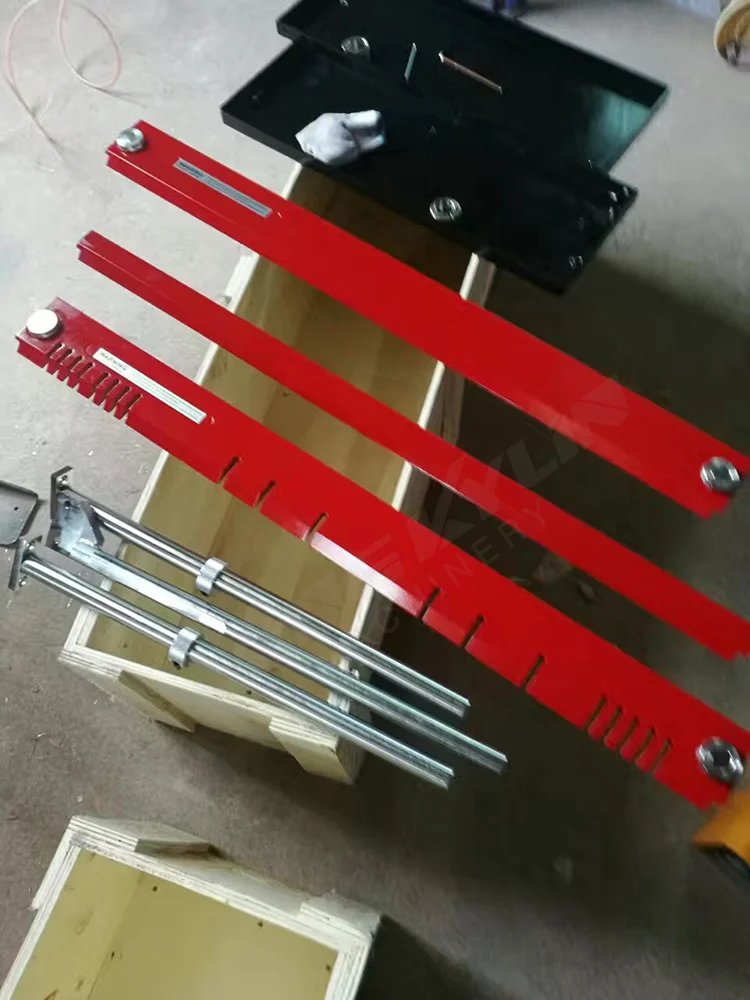

Packing & Delivery

\t Packing & Delivery
\t Package	\t Inside: covered with film Outter: plywood case
\t Delivery	\t Transport: by sea/ door to door Delivery time: 30 days after received your payment.
