Складная машина с гидравлическим тормозом Ebone

Категория: Sheet Folding Machine >>>
Поставщик: Suzhou,MYT,CNC,Machine,Co.,Ltd

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.45 $*	0.35 $*
Aug-16-2025	0.2 $*	0.37 $*
Jul-16-2025	0.71 $*	0.29 $*
Jun-16-2025	0.25 $*	0.97 $*
May-16-2025	0.40 $*	0.41 $*
Apr-16-2025	0.49 $*	0.9 $*
Mar-16-2025	0.90 $*	0.11 $*
Feb-16-2025	0.23 $*	0.31 $*
Jan-16-2025	0.22 $*	0.88 $*

Характеристики

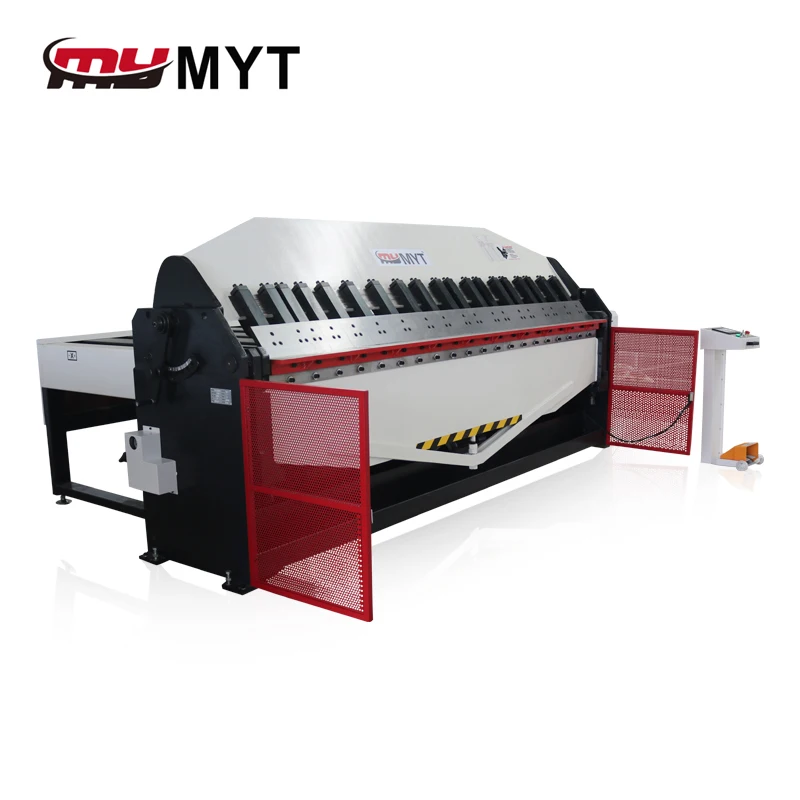

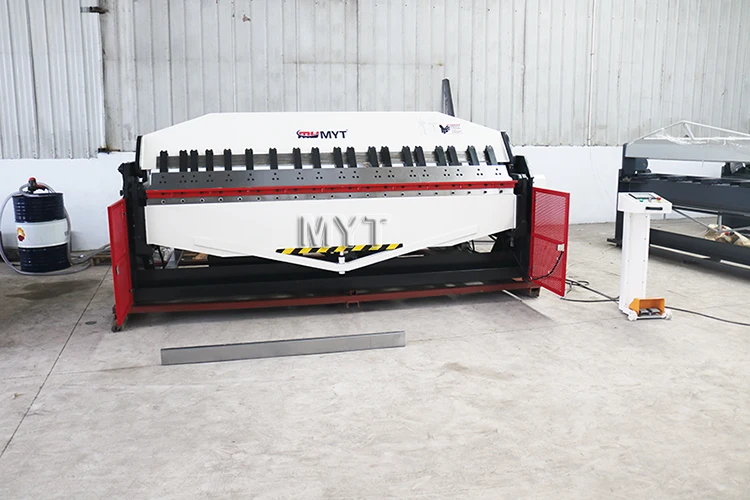

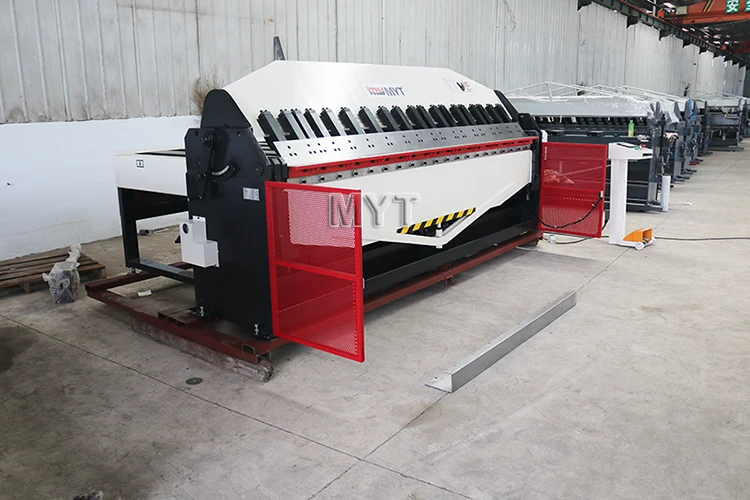

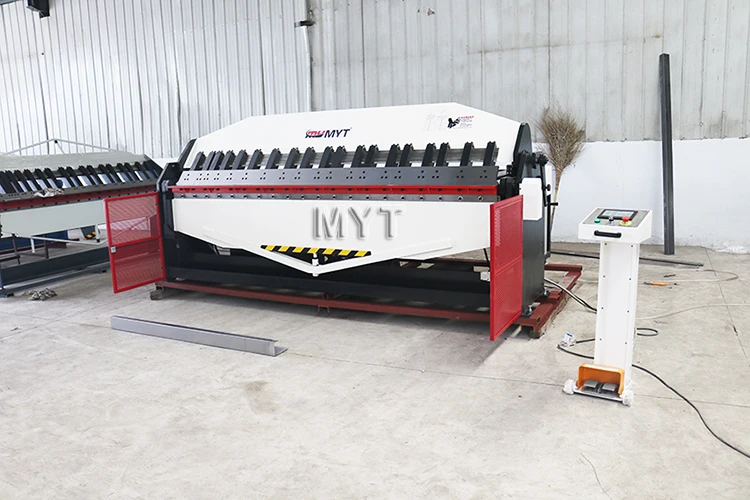

Ebone Pan Brake Folder

Features:

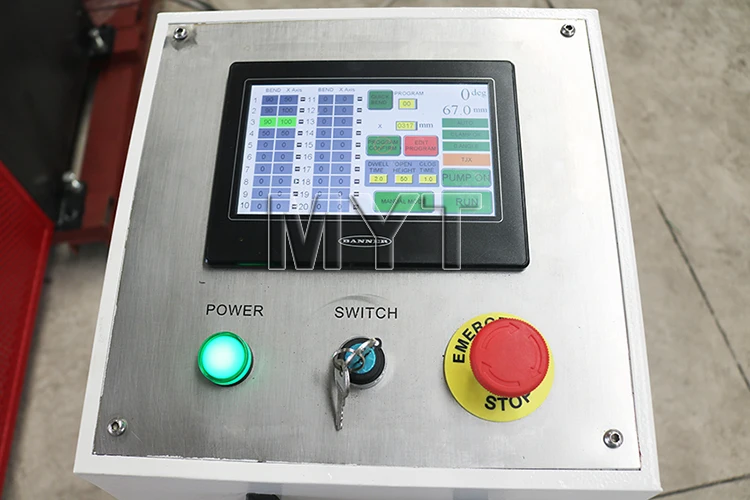

* NC Touch Screen Control features 99 programs, each program has up to 20 bends & each bend has material compensation. It also incorporates a quick bend function for jobbing work
* Auto cycle: after clamping bottom beam will bend to pre-set angle and return, head unclamps to set position
* NC programmable opening height & bending dwell timer ensures consistent bending angle
* Quick action rapid head adjustment to optimize bend radius on 1-5mm material thickness
* Heavy duty steel fabricated construction

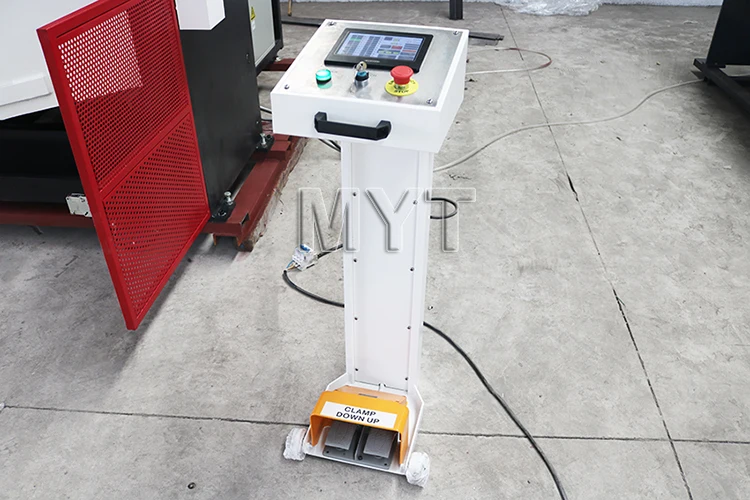

* Roving foot pedal incorporates control panel for maximum flexibility
* Unique moving guards ensures the front of the machine is clear for unobstructed loading/unloading of material
* Quality hydraulic and electrical components supplies by leading manufactures including Rexroth, Telemechanique and Merlin Gerin
* Extended fingers allows bending of pans or boxes to a depth of 205mm

The difference between hydraulic type and semi-hydraulic

Hydraulic

* Two axis control system(Bend angles and backgauge)
* Includes a CNC control backgauge. The effective distance from12 to 1100mm
* Mild steel capacity is rated on hot rolled material with 250MPa

Semi-hydraulic

*one axis control system(Just control Bend angles )
* Includes a manual backgauge. (Optional )

Product Paramenters

Model Item			HP-4×2500	HP-5×2000	HP-4×3050
Folder Length: mm			2500	2000	3050
Folder Thickness: mm			0.5~4.0	0.5~5.0	0.5~4.0
Max. lift of the upper beam: mm			200	200	200
Evolving angle of the bending beam º			0 º~120 º	0 º~120 º	0 º~120 º
SIZE	L. mm	3000	2500	3600
		W. mm	810	810	810
		H. mm	1500	1500	1500
Weight: Kg			3200	2700	3900
Main Motor: KW			5.5	5.5	5.5
