220 кВт в 1ph вход 3ph выход VFD IP65 преобразователь частоты для водяного

220 кВт в 1ph вход 3ph выход VFD IP65 преобразователь частоты для водяного

Категория: >>>
Поставщик: Quanzhou,Machtric,Automation,Equipment,Co.,Ltd.

Цена:133,40 $ - 134,56 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-16-2025	169.81 $*	172.61 $*
Jul-16-2025	137.26 $*	140.54 $*
Jun-16-2025	166.20 $*	169.26 $*
May-16-2025	165.23 $*	168.23 $*
Apr-16-2025	132.50 $*	135.43 $*
Mar-16-2025	162.23 $*	165.5 $*
Feb-16-2025	161.13 $*	164.18 $*
Jan-16-2025	160.62 $*	163.6 $*

Характеристики

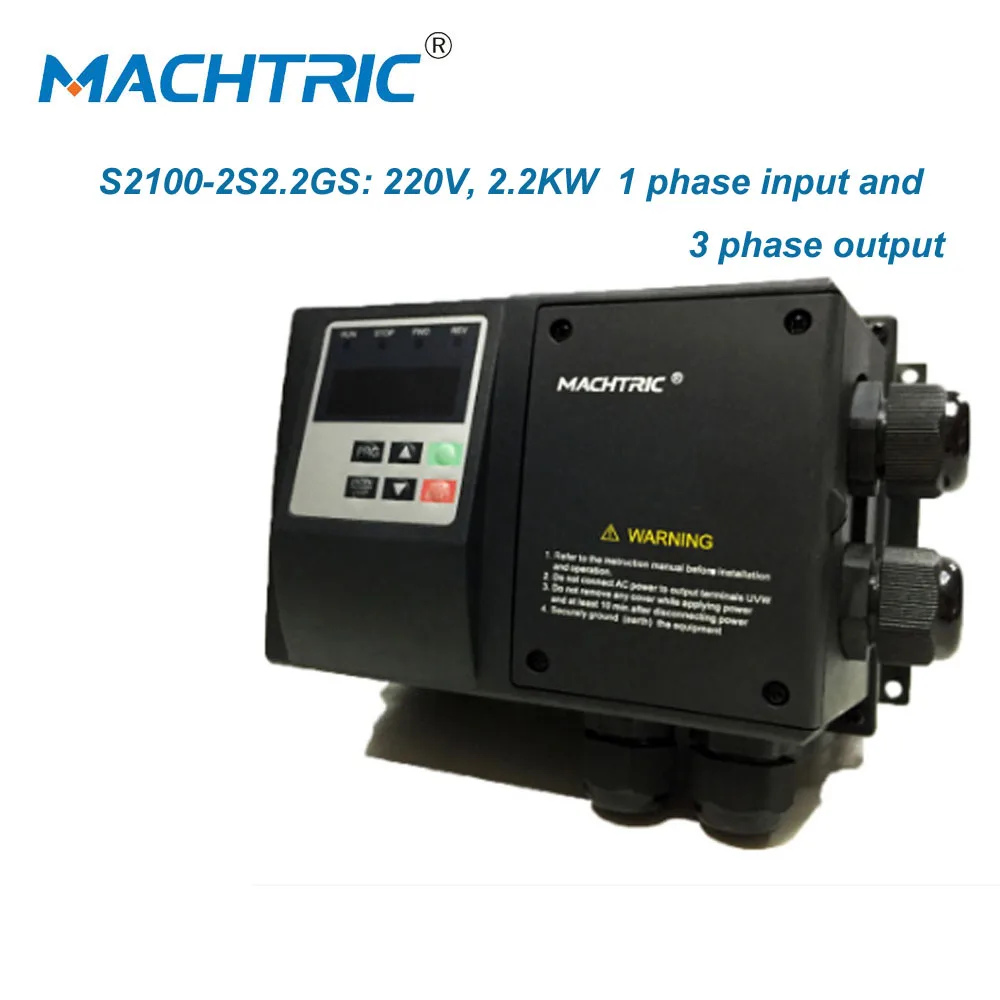

2.2KW 220V 1PH Input 3PH Output VFD IP65 Frequency Inverter for Water Pump

S2100S Detail.

Product description:

Model		S2100S
Input	Rated voltage,Frequency	3 AC 380V / 220V; 50-60 Hz
Input	Voltage Range	380V: 330V~440V;220V: 170-240V
Output	Voltage Range	380 V: 0~380 V; 220V: 0-220V
Output	Frequency Range	0.10~400.0 Hz
Control method		V/F control,Space verctor control
Indication		Operating status/Alarm definiton/interactive guidance;eg,frequency setting,the output frequecy/current,DC bus voltage,the temperature and so on.
Control Specification	Output Frequency Range	0.10~400.00 Hz.
	Frequency Setting Resolution	Digital input: 0.01 Hz. Analog input:0,1% of maximum output frequency
	Output Frequency Accuracy	0.01 Hz.
	V/F Control	Setting V/F curve to satisfy various load requirements
	Torque Control	Auto increase:auto riase torque by loading condition;Manual increase:enable to set 0.0~20% of raising torque
	Multifuncional Input Terminal	8 multi-function input terminals,realizing fuctions including fifteen section speed control,program running, four-section acceleration/deceleration speed switch,UP/DOWN function and emergency stop and other functions
	Multifuntional Output Terminal	3 multi-function output terminals for displaying of running,zerospeed,counter,external abnormity,program operation and other infornation and warnings

product show.jpg

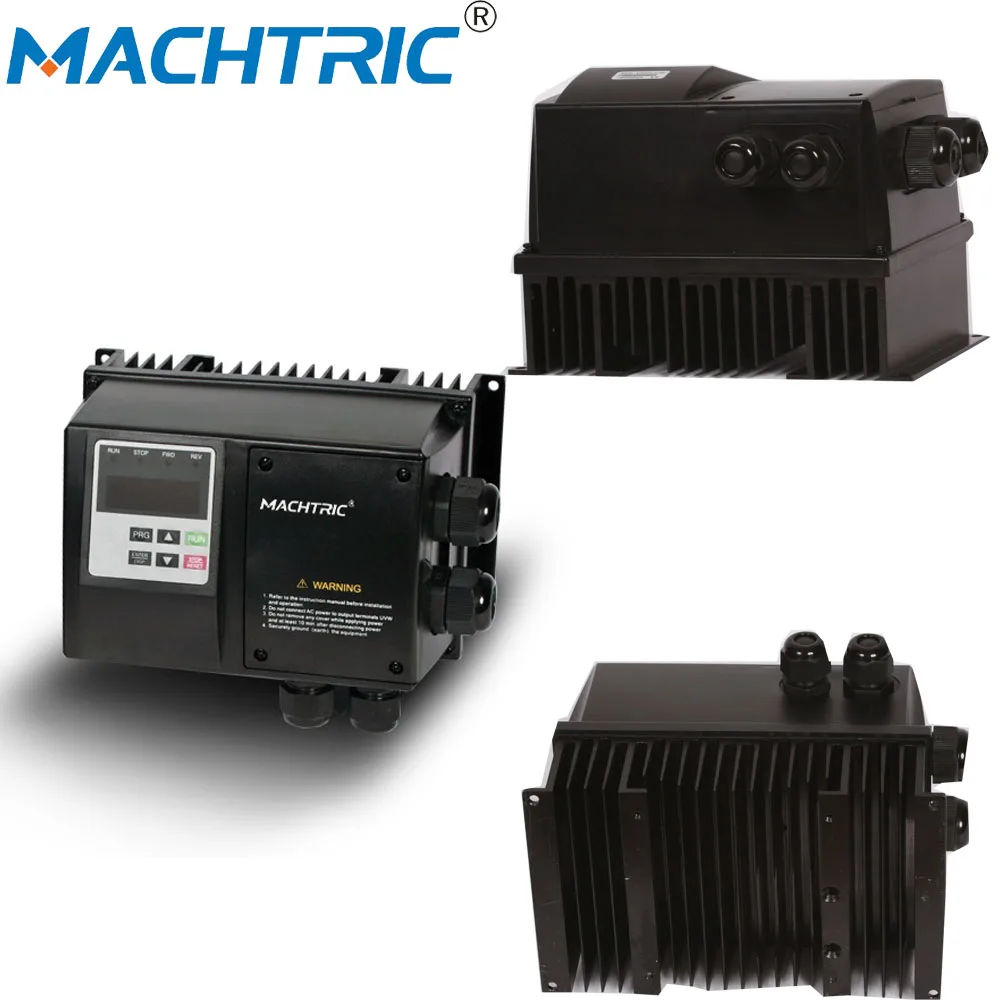

Inverter outline:

Inverter diagram:

S2100S jiexiantu.png

Advantage:

Big savings on installation: With a built in RFI filter, the S2100S IP65 inverter can be positioned close to the motor which cuts the cost of shielded motor cables. Choose the version with integrated insulator to simplify your external connections.

Big performance: The S2100S IP65 is a modern sensorless vector inverter with 200% overload capacity, a wide range of supply and fieldbus options, and excellent I/O.

Big advantages of easy handling: The S2100S IP65 inverters integrate the EPM memory module - a simple plug in chip that stores all the drive settings. The EPM module can be programmed off-line and the settings transferred from drive to drive in seconds. In the unlikely event that a drive fails, the EPM guarantees you minimum downtime.

Quanzhou Machtric Automation Equipment Co., Ltd is a company who manage international High Tech Products in the guidance of International Business . With the help of the Strength R&D, System Engineering , taking advantage of the its abundant international trade resources, we have solved many problems for different customers. At the same time, we have managed many another famous foreign brand in multi-level. We would like to be one of the most popular Industry Automation Solution Suppliers. We try to provide wisdom, individual product solution.
