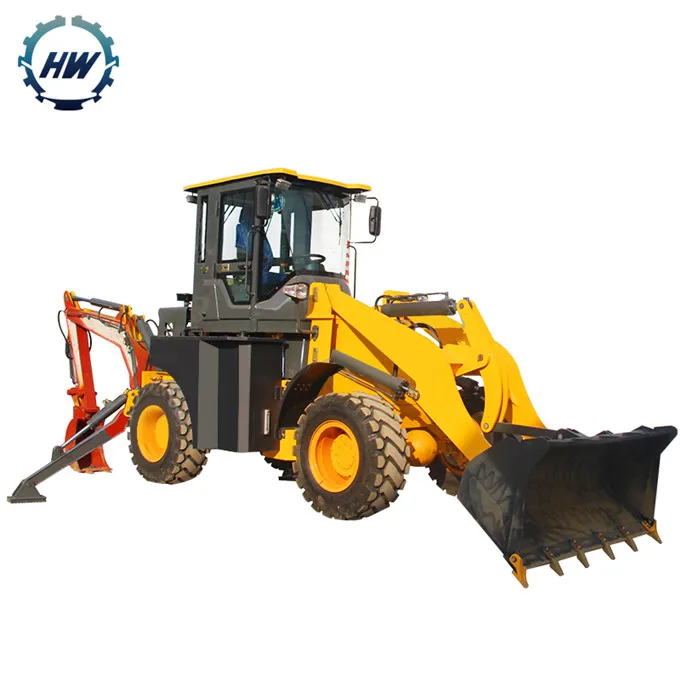

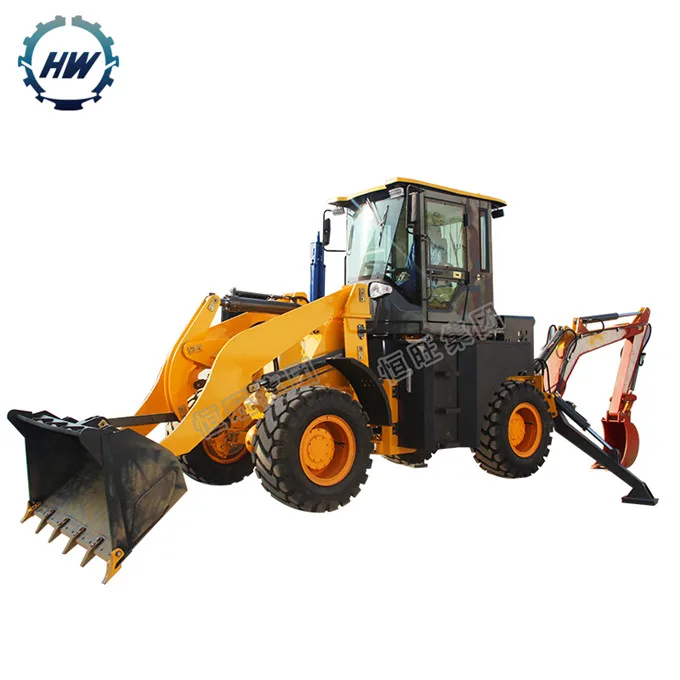

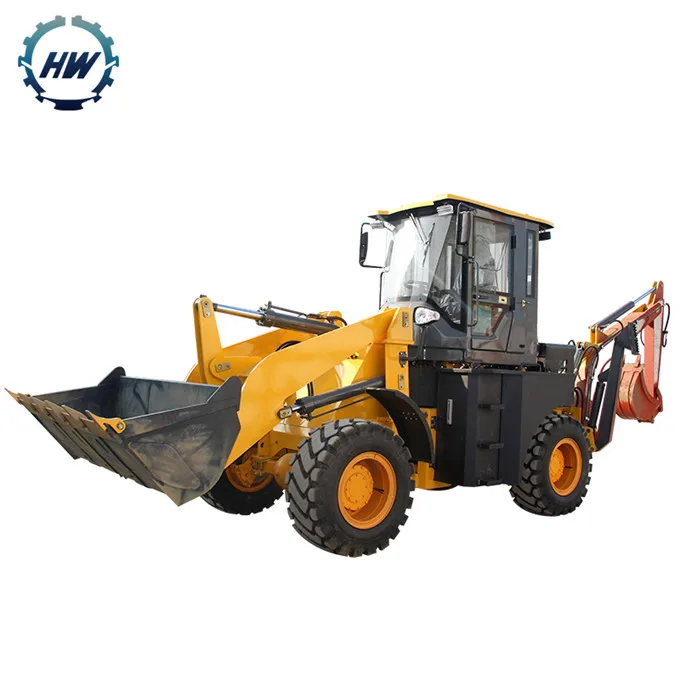

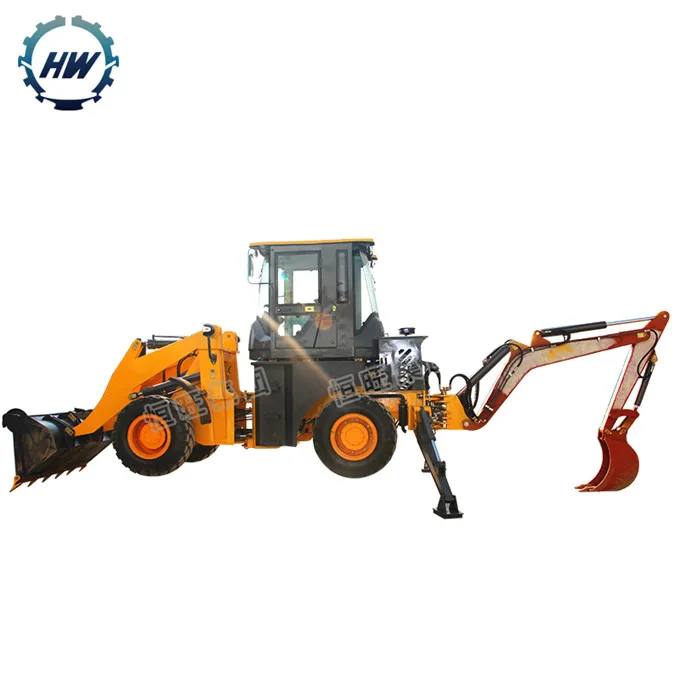

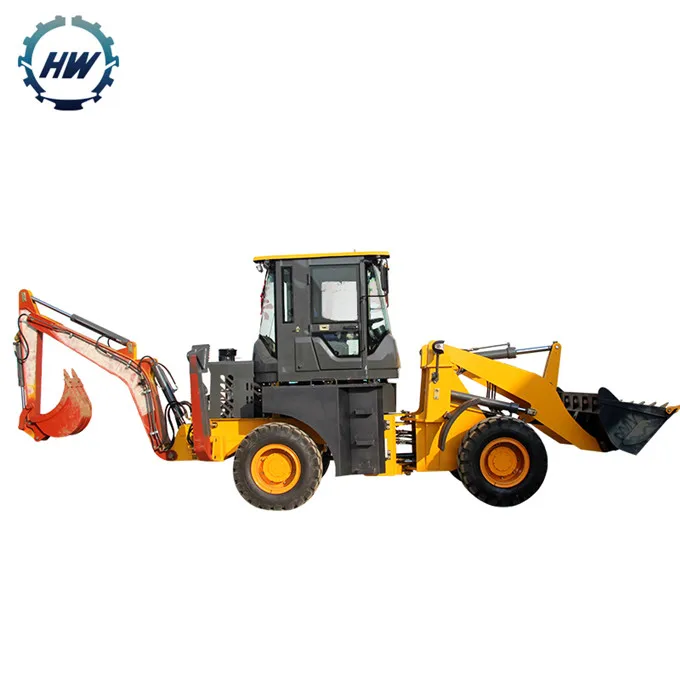

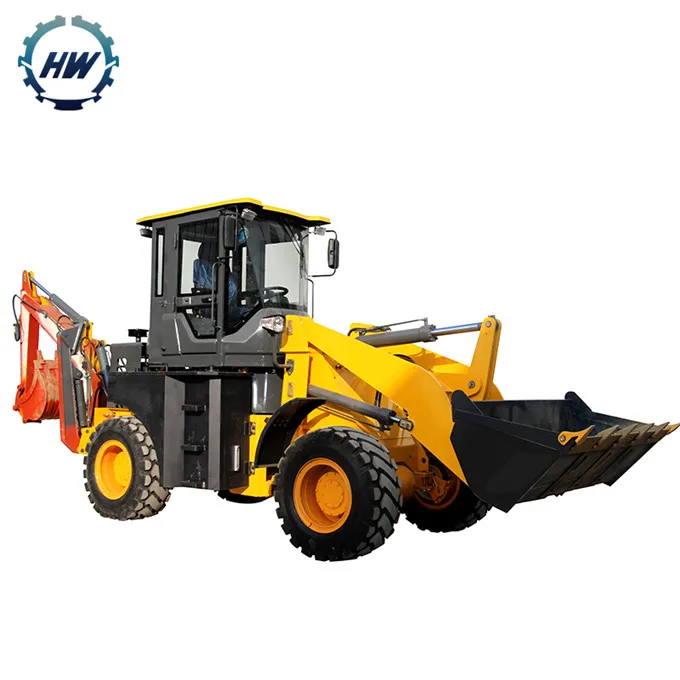

China small backhoe Loader backhoe with diesel engine cheap price



Multi-functional engineering machinery incorporating and loading into an organic whole. It adopts the complete machine is rationally distributed and compact; it is comfortable and convenient to handle,the turning radius is small and the cost performance is high. It is widely used in municipal administration, the construction of projects such as the building, the oil field, water conservancy,the forest farm, the military project, and so on.

It also can be used in excavating, carrying and leveling and can carry on the flexible and swift homework to scarp heap and waste residue of the large and medium-sized enterprise. It is the ideal model of realizing machine with multi-functions. the wheel type excavators a loader is to fight pair, unhitch in the front, articulate, type style excavators a loader.



Match with high quality engine, low, low blow off of noise, driving force forceful, twist from when reserve is big. The driving force excavating loader special use fixing an axis changes the gear speed change box, structure is compact, drive is efficient, structure stiffness is big, life-span is long.



The dyadic center equidistance hinge joint fleet of carriage, makes turn the radius is small, the expedient function is good. ·Excavating a part is that dyadic structure of box, load support capability are strong, the intensity is tall, the stability is good. ·The drive’s cab, wide vision, air-conditioning, operation environment sealing off subtraction vibrating, allocating are comfortable, safe. ·Various machines and tools such as may select and use for –in-one bucket, breaking a hammer to pieces, the function are especially all in readiness.



SPECIFICATIONS FOR DIGGER LOADER
Loader Performance	Loading bucket capacity	m3	1.2
	Rated load capacity	kg	1600kg
	Dumping height	mm	2600
	Dumping reach when at max. dumping height	mm	880
	Max. breakout force	Kn	49
Backhoe Performance	Capacity of excavator bucket	m3	0.3
	Max. excavating depth	mm	2700
	Max. excavating radius	mm	5000
	Revolute angle of movable	°	180
Hydraulic system	Hydraulic system	KPa	50.1
	Main pump	KN	161
	Rate flow	KN	125
Front and Rear Axles	Front and Rear Axles	%	45
	Max. Traction	Kn	38
	Max. steering angle	°	35
Hydraulic System	Min. turning radius (front wheel center)	MM	4910
	Loading pressure	Mpa	21.5
	Digging Pressure	Mpa	21.5
	steering Pressure	Mpa	14
Tyre	16/70-20
Engine	Engine	Model	WEI CHAI4108
	Rated power	HP	110
	Rated speed	r/min	2400
Transmission System	Forward I gear shift	km/h	0-11
	Forward II gear shift	km/h	0-27
	Reverse I gear shift	km/h	0-10
	Reverse II gear shift	km/h	0-26
FIGURE	Drive type		4WD
	Operation weight	Kg	3800
	Size(L*W*H)	mm	7300mm*2100mm*3000mm



Cheap !!   shovel backhoe loader digger for backhoe
