Высокоскоростной картридж с растворимыми чернилами Mfg Exp термопринтер для струйных
- Категория: Установки трафаретной печати >>>
- Поставщик: Hefei,Hanjie,Packing,Machinery,Ink-Jet,Printer,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.71 $* | 0.45 $* |
| Aug-16-2025 | 0.28 $* | 0.32 $* |
| Jul-16-2025 | 0.21 $* | 0.96 $* |
| Jun-16-2025 | 0.31 $* | 0.11 $* |
| May-16-2025 | 0.66 $* | 0.45 $* |
| Apr-16-2025 | 0.22 $* | 0.24 $* |
| Mar-16-2025 | 0.25 $* | 0.45 $* |
| Feb-16-2025 | 0.59 $* | 0.2 $* |
| Jan-16-2025 | 0.29 $* | 0.81 $* |
Характеристики
PRODUCT SPECIFICATIONS
Handheld Inkjet Printer | ||||||||
Printing Features | ||||||||
Printing Direction | Adjusted within 360 degree,can meet all kinds of production needs | |||||||
Character Type | High-definition printing character ,such as dot matrix font,simplied ,Chinese ,English and Multi Language | |||||||
Function | Handheld print and online printing （need sensor extra） | |||||||
Print Pictures | Pictures(BMP single bitmap format can be uploaded through USD disk | |||||||
Print Height | 2mm-12.7mm | |||||||
Print Code | Bar code,QR code | |||||||
Print Distance | 1-10mm Mechanical Adjustment(the best distance between the nozzle and printed object is 2-5mm) | |||||||
Print Serial Number | 0-9 | |||||||
Automatic Print | Date,Time,Batch number ,serial number and etc | |||||||
Storage | External USB save the information transfer in a free way | |||||||
Message Length | 2000characters for each message,no limitation on length | |||||||
Print Speed | 70m/min | |||||||
Ink Type | Quick-dry environment ink,water-based ink and oily ink | |||||||
Ink Color | Black,white,red blue,yellow,green invisble | |||||||
Ink Volume | 42ml(Usually can print 800,000 characters) | |||||||
Print Material | Board,Carton,Stone,Cable,Metal ,Material,Plastic Product,Fiber Board,Light Steel Keel,Aluminum Foil | |||||||
Work Online

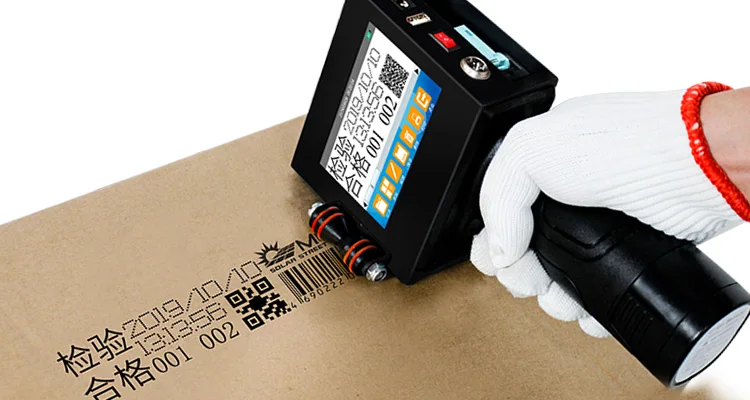

Manual Print
The Main Operation Steps:
1.Edit the contact on screen by touch pen and save;
2.Click "Print" on menu;
3.Press print button,release and scroll on object surface
AUTOMATIC PRINT
The Main Operation Steps:
1.Fix printer at side of conveyor ,adjust nozzle head direction,and sensor position based on the object surface,
2.Printing distance between nozzle head and object surface is better within 3-4MM;
3.Edit the contact on printer and save ;
4.Choose the correct "Code" on printer,set print speed and time delay parameter based on conveyor speed and real situation;
PRINT EFFECT DISPLAY
1) Handheld inkjet printer is the most mature technology because of its extensive application, mature technology
and long service life.
2)Through TIJ inkjet technology, we can print the graphics in the shortest time and finish the fine marking process.
3)Handheld supports or customized production line accessories can be configured according to user requirements.
4) It can automatically mark data, serial number bar code.
5)It can be used for data communication and networking, and support online variable data printing.
and long service life.
2)Through TIJ inkjet technology, we can print the graphics in the shortest time and finish the fine marking process.
3)Handheld supports or customized production line accessories can be configured according to user requirements.
4) It can automatically mark data, serial number bar code.
5)It can be used for data communication and networking, and support online variable data printing.
INK CARTRIDGE COLOR OPTION
WHY CHOOSE US
10years+ manufacturer in the inkjet printer,
Support low MOQ ,1set can be sell
Any inquirys reply within 24h.
Support the customized boot screen for customers(just more than 10sets can be )
Support the customized boot screen for customers(just more than 10sets can be )
SALES AND SERVICE NETWORK
One Handheld Inkjet Printer Set Including: 1Printer ,1 battery,1 charger,1 touch pen,1 plate,1USB,1 black ink.
PACKING LIST | ||||||||
Items | Size(cm) | G.W(kg) | Remarks | |||||
External Packaging | 31*25*17 | 3 | Cardboard box packing | |||||
Inner Packaging | 27*23*15 | 2.2 | Exclusive customized metal suitcase | |||||
Items | Pcs | Standard packing | ||||||
Inkjet Printer | 1 | |||||||
Battery 12V | 1 | |||||||
Charger | 1 | |||||||
Touch Pen | 1 | |||||||
Manual&Teaching Video | 1 | |||||||
Ink cartridge | 1 | |||||||
FAQ
Q: Are you factory or trading company?
A: We are factory of handheld inkjet printer. We have our own R&D department to design the program. If you have any suggestion for
the ink cartridge, please tell us freely.
Q: Is there any warranty?
A: Yes, We provide 12 Months Warranty on all of our products.
Q: Can it print on plastic? What's your font height?
A: Yes, our inkjet printer also can printer on box, stone, medium density fibreboard, stainless steel, pipe, metal, aluminum foil,
cable, etc.
The range for font height is 2mm~13mm (0.0789inch~0.0512inch, adjustable)
Q: What's the lifetime for ink cartridge? How many colors do you have?
A: For the lifetime, it has 42 ml ink. Expire time is 8-10 months. Because solvent ink is fast drying.
For the color of ink cartridge, solvent ink includes blue, white, red, yellow, green color. Waterbased ink includesinvisible and
black color.
Q: What language can print?
A: It can print Chinese,English, Korean,Japanese,Spanish,Portuguese,Turkish,Arabic,Italian,French,Russian . For other language,
you can print through USB.
Q: What fonts does it include? If the size can be adjusted?
A: Font includes vector fonts and Bitmap fonts. Bitmap fonts is adjustable. You can print text, QR code, BAR code, Picture,
Time,and count. Picture and logo need to be inserted by u disk.
