Автоматический статор внутри лота спиральная катушка обмоточная машина
- Категория: Transformer Making Equipment >>>
- Поставщик: Ningbo,Nide,Mechanical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 471976.26 $* | 481416.63 $* |
| Jul-16-2025 | 382784.17 $* | 390440.94 $* |
| Jun-16-2025 | 464544.71 $* | 473835.15 $* |
| May-16-2025 | 460827.68 $* | 470044.74 $* |
| Apr-16-2025 | 367919.49 $* | 375277.9 $* |
| Mar-16-2025 | 453395.73 $* | 462463.28 $* |
| Feb-16-2025 | 449678.21 $* | 458672.9 $* |
| Jan-16-2025 | 445962.26 $* | 454881.65 $* |
Характеристики
Product Description

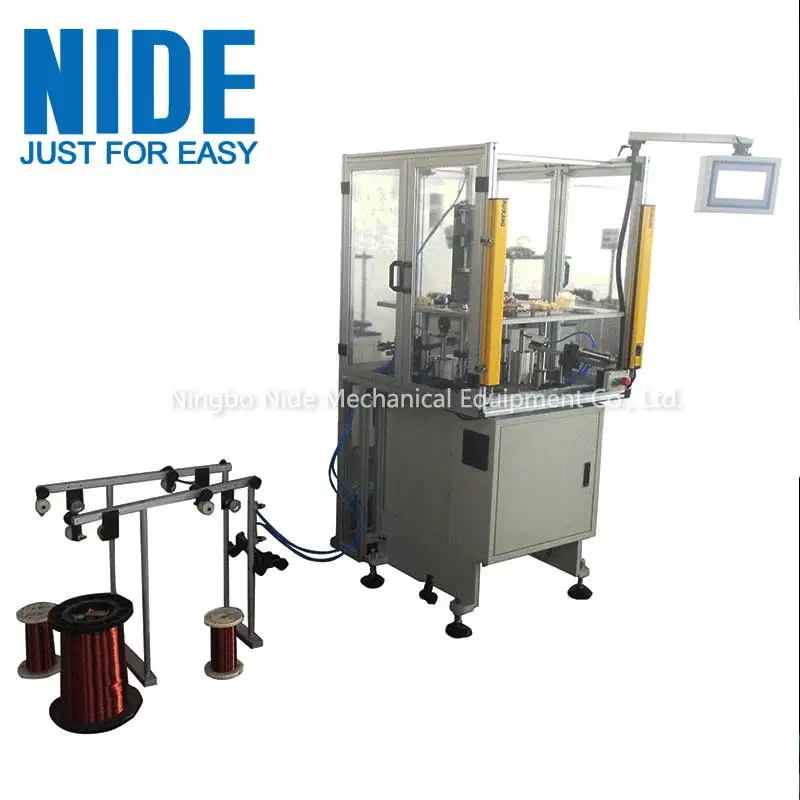

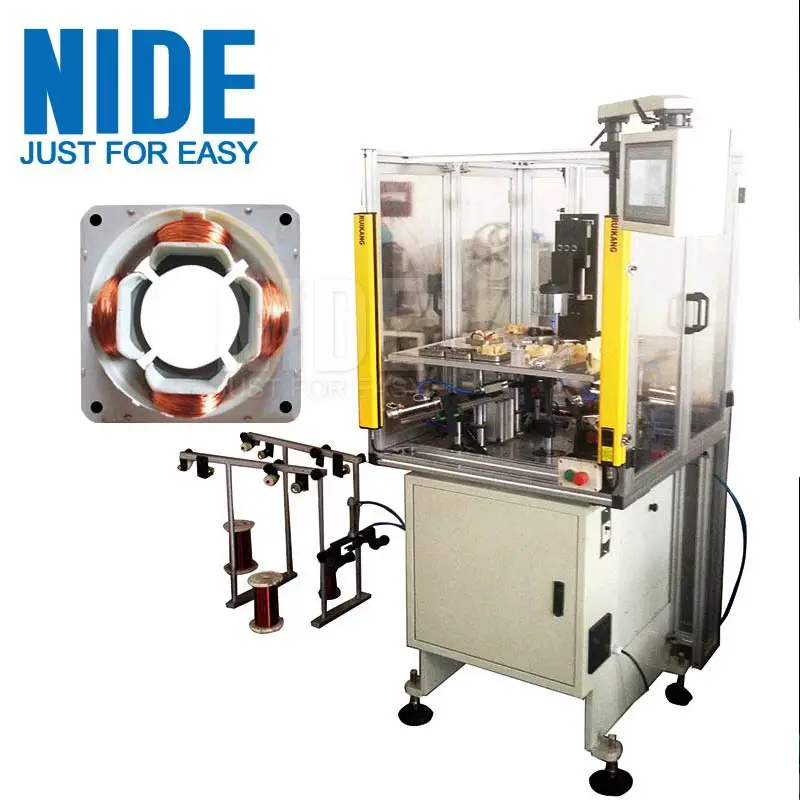

Automatic four slots BLDC stator inslot needle coil winding machine
(1)Description:

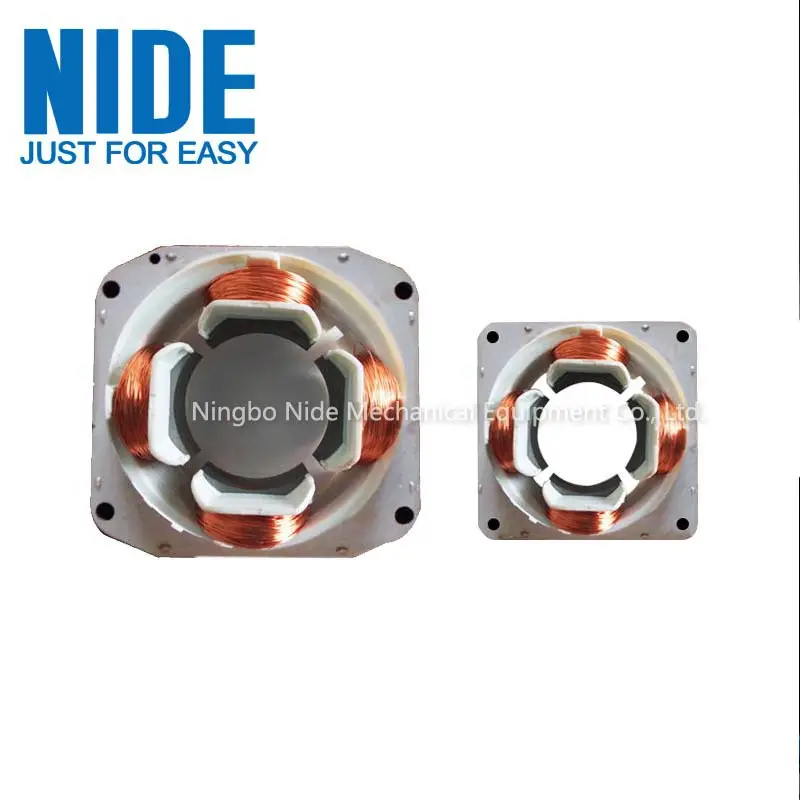

This automatic bldc motor Stator coil Winding Machine can Wind Four slots at the same time,
And auto winding, auto wire acrossing, auto wire clamping, auto wire cutting
With aluminium alloy protection cover to cover the gear unit
only Manually load/unload stator, after cylinder press the stator tight, automatically wind the stator
Magnetic constant torque tensioner
(2) Main technical parameter:
| Production name: | Automatic BLDC motor stator needle coil winding machine |
| Stator O.D: | ≤120mm |
| Stator ID: | ≥15mm |
| Wire range: | 0.10-0.60mm |
| Stator stack length(including bobbin): | 5~100mmm |
| slot number: | four |
| Stator slot width: | ≥1.5mm |
| Winding speed range: | 0-380rpm |
| Voltage: | 220V/60HZ, three phase |
(3)Instructions for use:
Manually put stator into the fixture press “start” button lock the stator by cylinder, automatic winding, lift stator cut the wire
bldc winding equipment uk,Brushless Motor bldc winding equipment uk,fully automatic bldc winding equipment uk
provide our customers with full package of optimized solution to motor manufacturing.
https://www.youtube.com/user/nida0606/videos
QC/Technical Support
All the machine will leave factory only after passing quality control.
More Information
With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries.Among the customers, many of them are the world-renown companies.
| Customerized service | 1. Customized product design and manufacturing |
| 2. Customized tranning | |
| 3.Technical suggestions | |
| After-sales service | 1. Warranty Period: 12 month usually |
| 2. Overseas service center available | |
| 3. Engineers available to service overseas |
Established in 2007, Nide is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.
Nide has three main business divisions.
The first division is to provide different kinds of motor manufacturing machinery, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.
The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.
Our machines are mainly applied to induction motors, BLDC motor, universal motor, three phase motor, single phase motor, AC motor, DC motor, such as washing machine motor, air conditioner motor, pump motor, cooler motor, alternator motor, fan motor, ceiling fan motor, compressor motor, power tool motor, vacuum cleaner motor, mixer motor, series motor, electrical car motor, wheel hub motor, electric toothbrush motor, hair dryer motor, electric shaver motor,etc.
