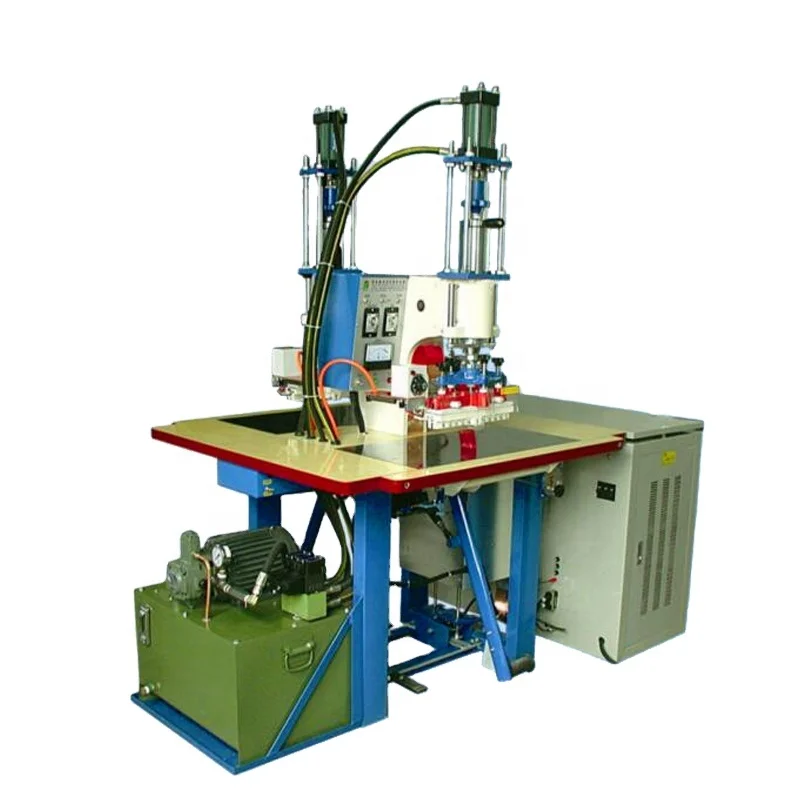

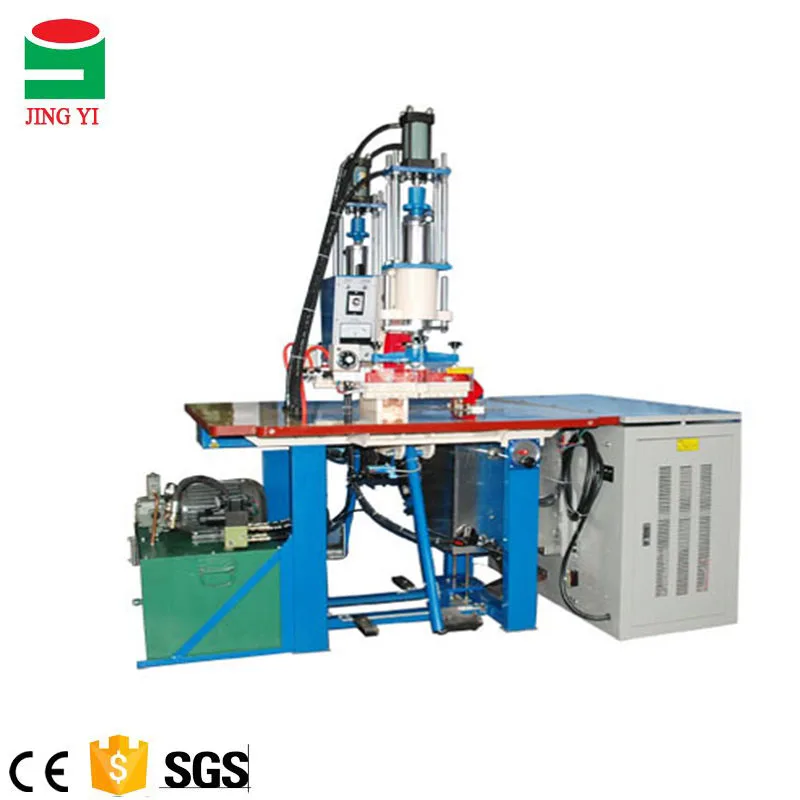

8 кВт гидравлический пластиковый высокочастотный сварочный аппарат
- Категория: Plastic Welders >>>
- Поставщик: Dongguan,Jingyi,High,Frequency,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.43 $* | 0.39 $* |
| Aug-15-2025 | 0.97 $* | 0.25 $* |
| Jul-15-2025 | 0.71 $* | 0.99 $* |
| Jun-15-2025 | 0.60 $* | 0.76 $* |
| May-15-2025 | 0.82 $* | 0.68 $* |
| Apr-15-2025 | 0.70 $* | 0.12 $* |
| Mar-15-2025 | 0.88 $* | 0.31 $* |
| Feb-15-2025 | 0.14 $* | 0.73 $* |
| Jan-15-2025 | 0.13 $* | 0.34 $* |
Характеристики
Alibaba Supply JingYi Brand High Frequency Embossing Machine For PU Leather
Customer & Feedback
Product Description
Application:
PVC stretch ceiling,TUP/PU Shoes upper, trademarks, raincoat,stickers,PVC umbrella,PVC bag,leather bag,handbag,beach bag,stationery,nameplate,inflatable toys,waterbed,Double PVC/PET blister package etc.
Basic operating principles:
This machine is a high frequency device, whose self-exited oscillator of the electron tube can produce high frequency electromagnetic field. And the plastic to be processed is in the high frequency electromagnetic field between the upper and low electrode. When its interior molecules are polarized and produce heat automatically by mutual movement and friction, it will be welded with the pressure of the die.
Features:
1. Anti-spark electric system
When the spark occurring, the high sensitiveness spark electric system will cut the high frequency power immediately to protect the mould and material.
2. Jamming Prevention Device
Equipped with high frequency stabilizer and magnetic leakage suppressor, this device can prevent the leakage of electromagnetic radiation to avoid other electrical instruments jamming such as televisions and radios, etc.
3. Safety Device
When the current over its limit, the overload relay works automatically to protect the oscillation tubes and rectifier. The frequency deviation caused by mistake is avoided.
4.The Special Mechanical Structure
With a excellent design and structure, the machine can works precisely and intensively.
5.Easy Tuning And Special Protection Circuit
The selectable output power can ensure the stable quality of the product. While the welding process, it could largely reduce the heating time.
6.Pneumatic Pressure Device
It is provided pneumatic pressurizing device, which can adjust the pressure in the practical situation, greatly decrease the operation difficulty and impaction equipments, changing the controlling method may modify the high-frequency process technology.
More Videos:
https://youtu.be/ZtBsF6gzo3c https://youtu.be/iAlJX9OhMMI
https://youtu.be/Bl7nyVCAuJc https://youtu.be/el4EXUu2vjw
https://youtu.be/YtqiEI89a6M
More Pictures:
Specifications:| Model | JY5000TQ | JY8000TQ |
| H.F. Output | 5KW | 8KW |
| Oscillation Frequency | 27.12MHZ27.12MHZ | |
| Power Supply | AC220/380/400/415/440V 3 PHASE(Customize) | |
| Input Power | 8.5KVA | 15KVA |
| Oscillation Tube | 7T85RB | 7T69RB |
| Max Pressure(kg) | Air pressure 400kg,Oil pressure 1500kg | |
| Max gap of electrodes(mm) | 80 | |
| Stroke(mm) | 60 | |
| Working table size | 350*700mm | 350*700mm |
| Operation mode | pedal+pneumatic+hydraulic | |
| Net weight(kg) | 550 | 600 |
| Gross weight | 600 | 650 |
| Package Size | 2000(L)x1220x1710mm | |
Machine Maintenance:
a. Add oil lubricant in each function parts every several days, and often wipe cleanly.
b. To cleanout and lubricate each parts of the machine every half year, clear away the dust in the parts of transformer, high voltage capacitor, blower fan and Resonant Cavity.
c. f the aluminium pan of the output adjusting capacitor and the capacitor in the side of resonant cavity, was ablated by caustic caused by dust or eyewinker, the caustic surface should be repair flatly and smoothly in time.

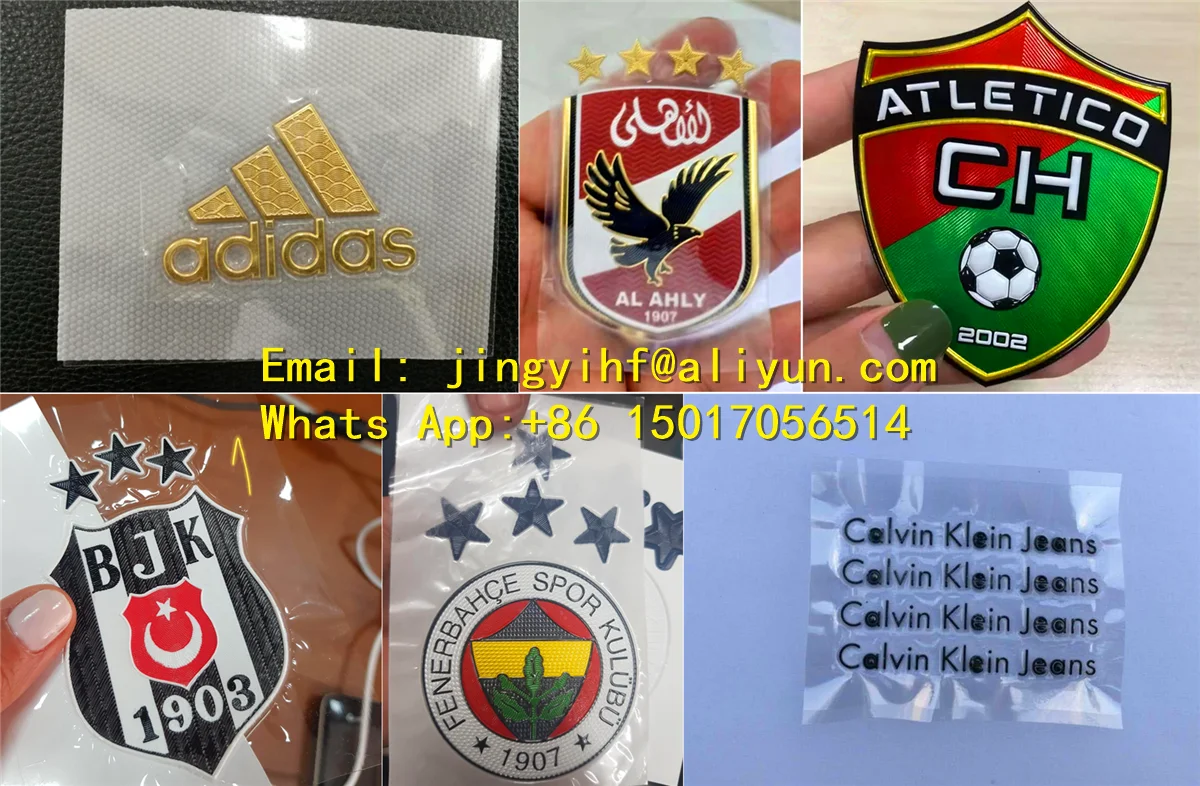

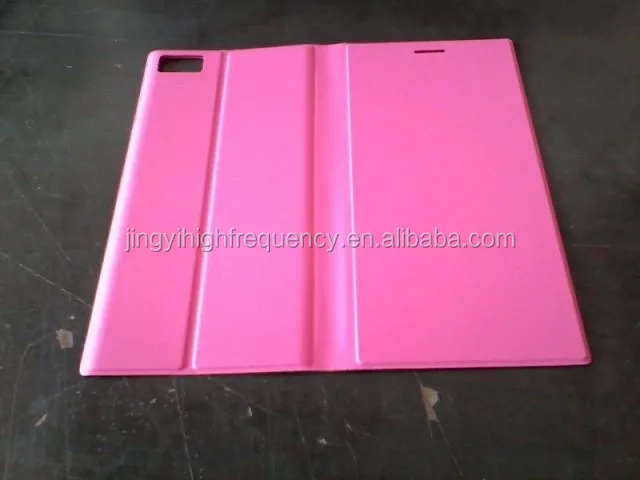

Samples:
Our Services
Q: Are you trading company or manufacturer ?
A:Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
♦ More Questions, please click here
Pre-sale services:
1. Providing professional technical support.
2. Send the product catalog and instruction manual.
3. If you have any question PLS contact us online or send us email, we promise we will give you a reply at the first time!
4. Personal call or visiting are warmly welcome.
Sale of services:
1. We promise honest and fair, it's our pleasure to serve you as your purchasing consultant.
2. We guarantee punctuality, quality and quantities strictly implement the terms of contract.
After-sales service:
1. 1 years warranty when you receive the goods, life long maintenance
2. 24-hours telephone service or whatsapp/wechat
3. A large stock of components and parts, easily-worn parts.
Packaging & Shipping
Quality Control
Contact Details
We warmly welcome your inquiry and visiting at any time,it is our honor to serve you and have further communication !
