N2919SZ Intel J1900 ультра низкая мощность SIM-карта Nano ITX Barebone
- Категория: Barebone System >>>
- Поставщик: Yentek,(shenzhen),Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.21 $* | 0.7 $* |
| Aug-16-2025 | 0.52 $* | 0.47 $* |
| Jul-16-2025 | 0.9 $* | 0.17 $* |
| Jun-16-2025 | 0.74 $* | 0.17 $* |
| May-16-2025 | 0.44 $* | 0.46 $* |
| Apr-16-2025 | 0.85 $* | 0.91 $* |
| Mar-16-2025 | 0.16 $* | 0.39 $* |
| Feb-16-2025 | 0.60 $* | 0.17 $* |
| Jan-16-2025 | 0.48 $* | 0.32 $* |
Характеристики
Intel IoT Solution Alliance Affiliate Member
Intel Intelligent System Alliance Member
ISO9001:2008 Quality Management Certified
ISO14001:2004 Environmental Management Certified
National High Tech Enterprise with Procssional and Experienced R&D Team

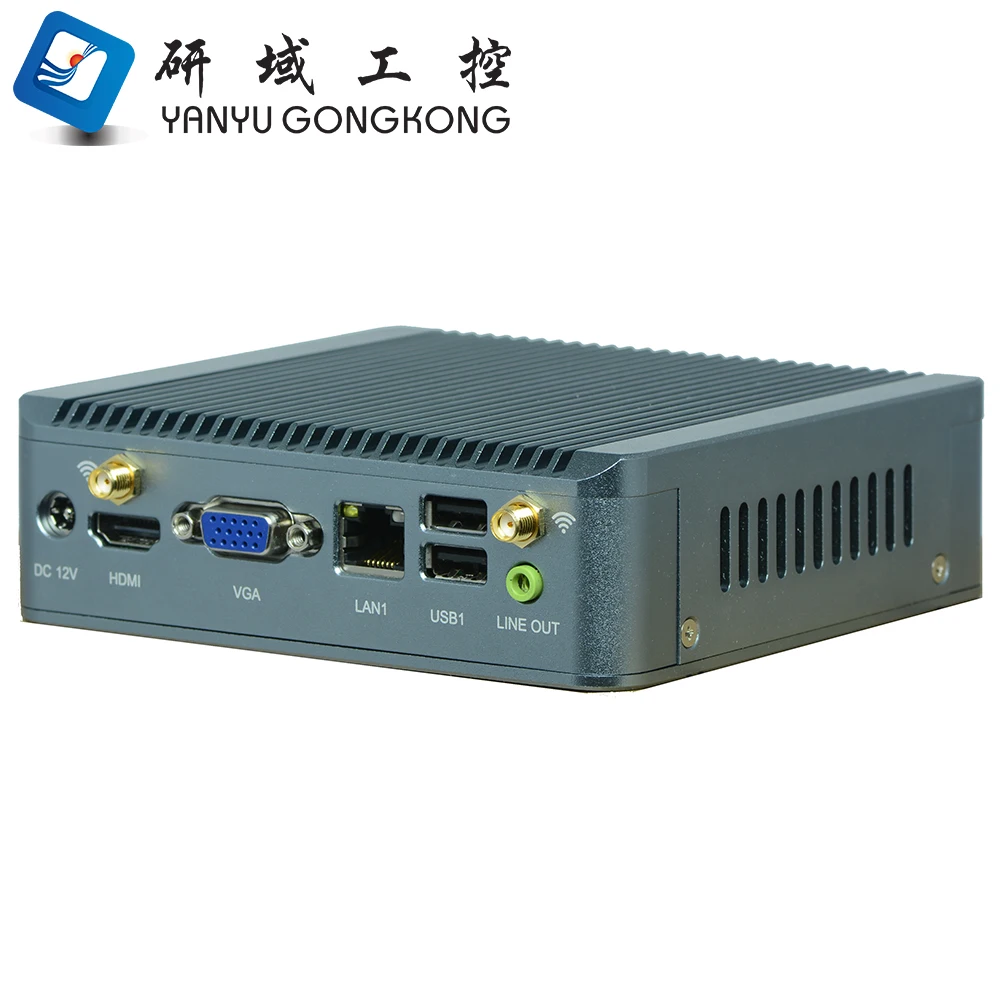

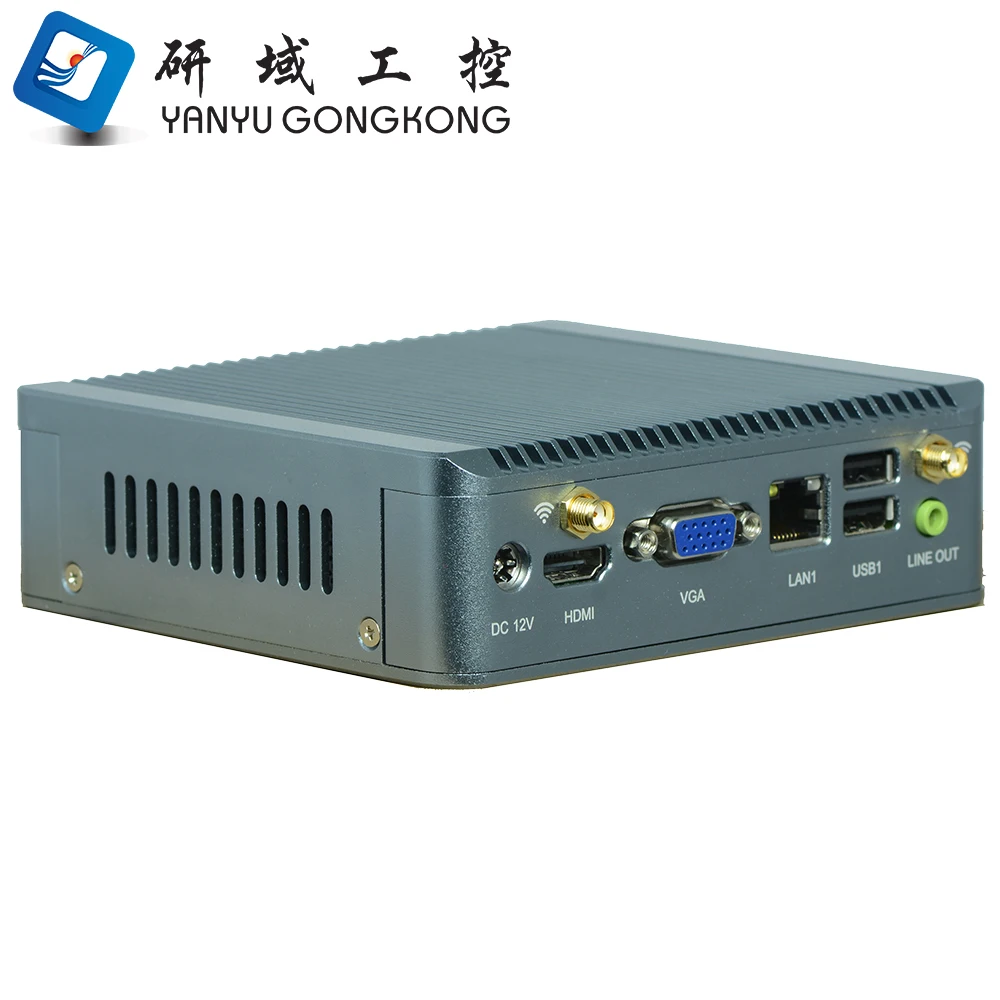

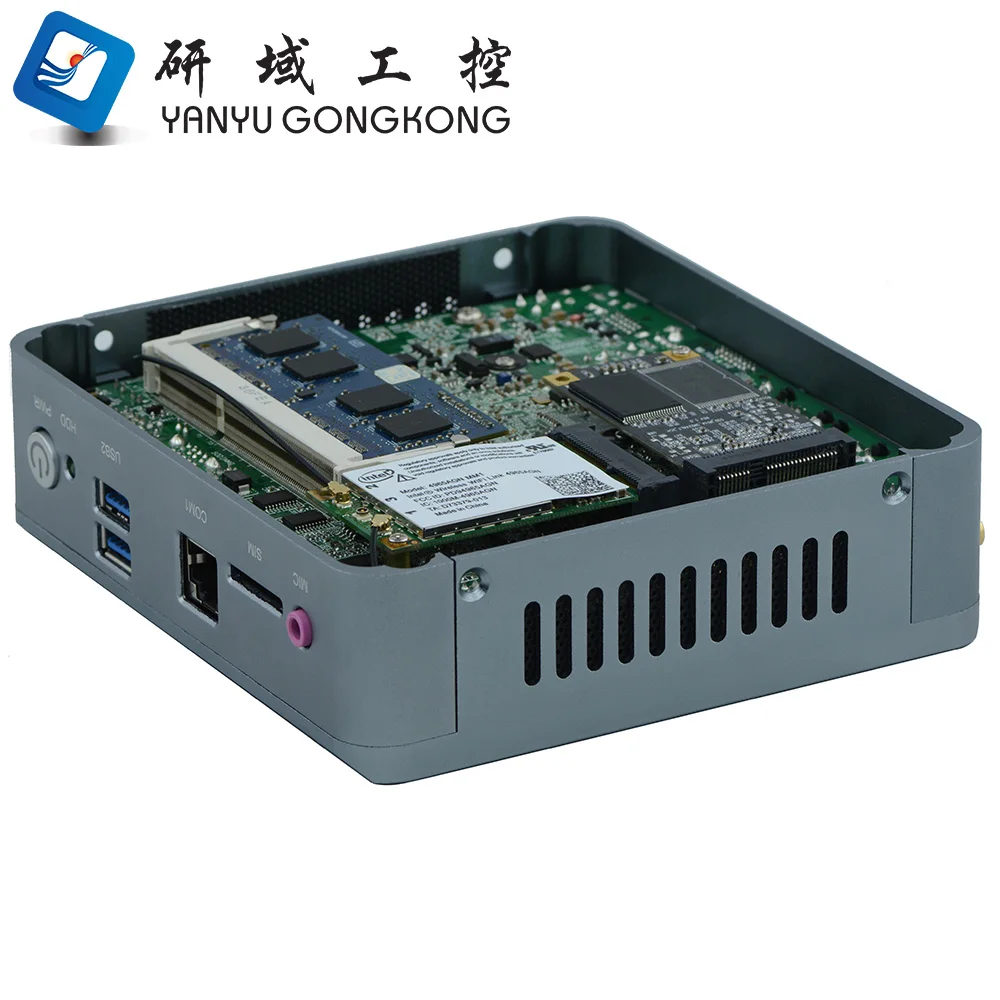

N2919SZ Intel J1900 Ultra Low Power SIM Card Nano ITX Barebone PC
Features
Fanless cooling structure
Full aluminum alloy, compact structure, flexible installation

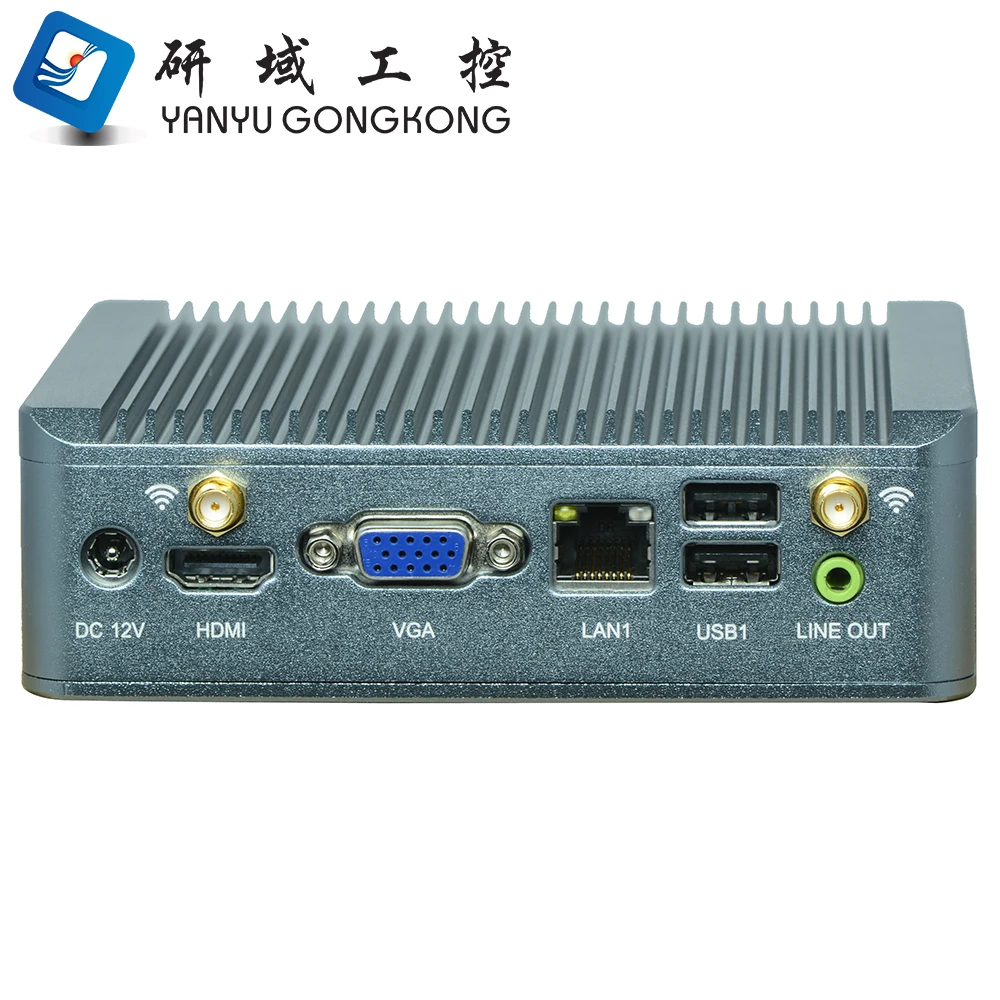

1xVGA, 1xHDMI, support synchronous/asynchronous display
Provide 1*SIM card slot expansion, support WiFi / 3G module
2 Gigabit LAN port, support Wake On LAN
Rich IO: 1*DC_Jack, 6*USB, 1*HDMI, 1*VGA, 1*Audio, 1*LAN
Specification
| Model No. | N2919SZ | |
| Chassis | Color | Iron gray |
| Dimension | 134mm*126mm*41mm(L*W*H) | |
| Structure | Full aluminum fanless cooling structure | |
| Material | Full aluminu alloy | |

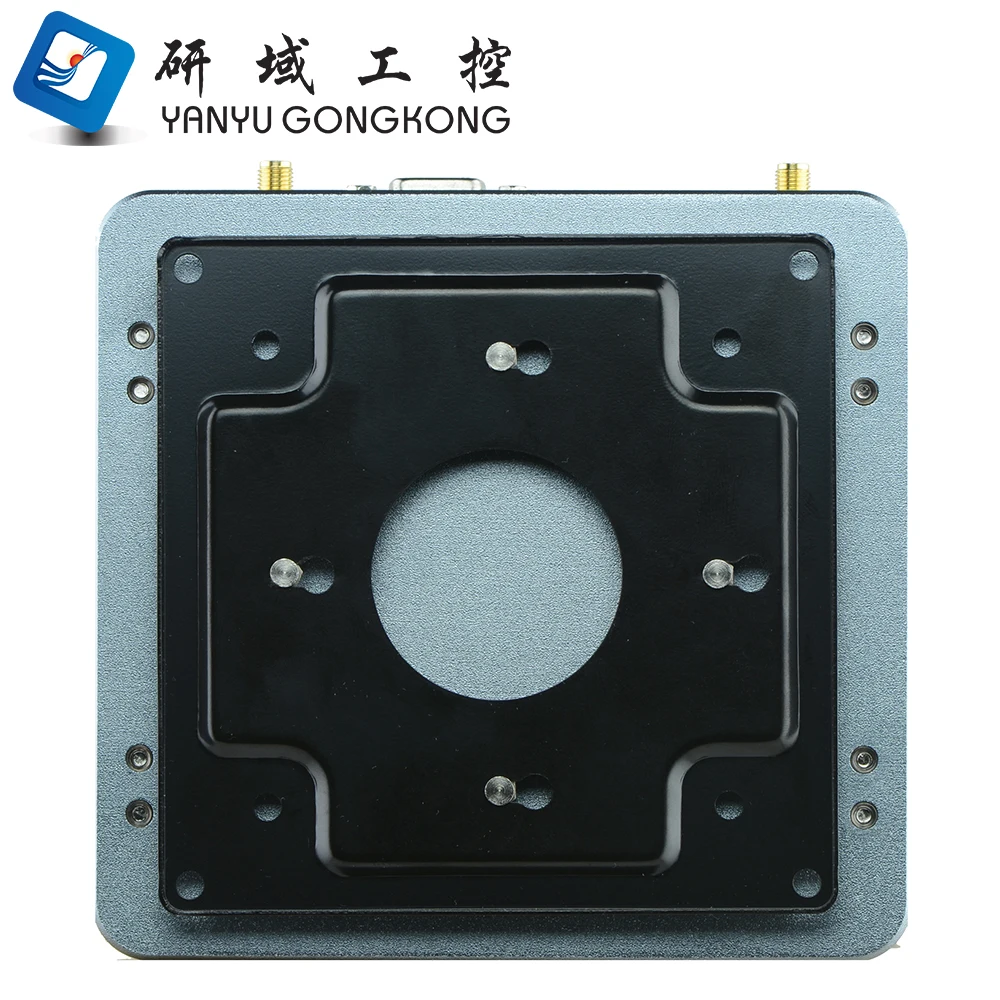

| Installation | Desktop type or mounted installation | |

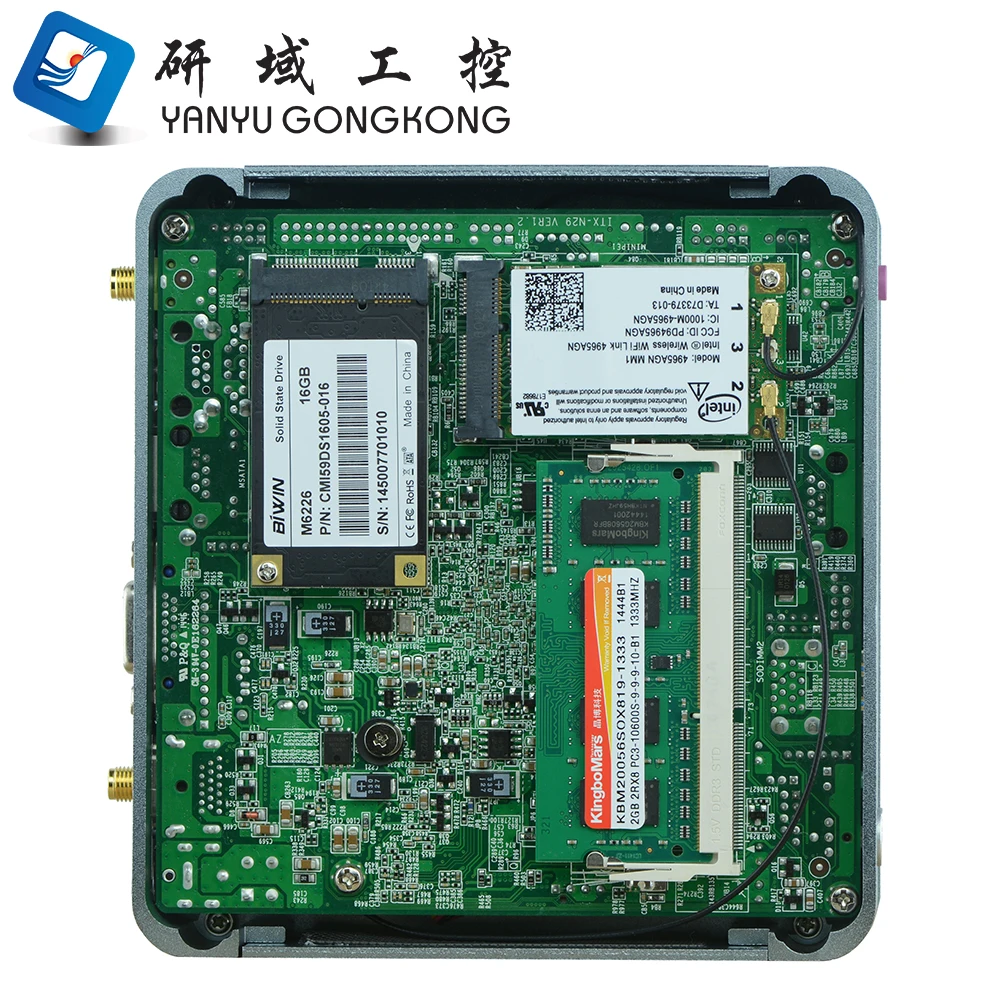

| Motherboard | Model | STX-N29 |
| Processor | Integrated Intel® Celeron J1900 quad core 2.0GHz processor | |
| Chipset | Intel® Bay trail SOC chipset platform | |
| Graphics | HD Graphics | Integrated Intel® HD Graphics, support VGA, HDMI synchronous/asynchronous display |
| Storage | Memory | 1* SODIMM 1600/1333MHz DDR3L/1.35V memory, max up to 8GB |
| SATA | N/A | |
| CF | N/A | |
| SSD | Support 1*MSATA SSD expansion | |
| Audio | Sound Card | Integrated ALC662 6 channels Hi-Fi audio controller, support MIC, Line_out |
| Network | Ethernet | 1*RTL8111F Gigabit LAN, support Wake On LAN /PXE |
| WiFi | Provide 1xMini-PCIE slot, support WiFi / 3G module | |
| I/O Port | Serial Port | 1*CISCO standard serial port |
| USB | 3* USB2.0, 1*USB3.0 | |
| Power Switch | 1* Power switch | |
| LED indicator | 1*HDD LED | |
| Expansion | 1* SIM Card Slot | |
| LAN | 1*RJ45 Gigabit LAN port | |
| Display | 1*VGA, 1*HDMI | |
| Power | 1*12V DC IN Jack | |
| Antenna | 2*WiFi/3G SMA antenna (Optional) | |
| Audio | 1*Line-out, 1*MIC | |
| Power | Power Adaptor | 12V/5A adaptor |
| Reliability | Operating Temp. | 0℃~45℃ |
| Storage Temp. | -20℃~70℃ | |
| Relative Humidity | 5%-95%, no condensing | |
| Vibration | 0.5g rms/5-500HZ/random/operating | |
| Operate System | Support Windows7, Windows8, Windows10, Linux OS | |
Order Information
| No. | Model | Processor | Motherboard | Memory | SSD | LAN | USB | WiFi | Adaptor | OS |
| 1 | N2928SZ | J1800/2.41GHz | N29_18 | / | / | 2*RTL8111E | 4 | N/A | 12V/5A | / |
| 2 | N2929SZ | J1900/2.00GHz | N29_19 | / | / | 2*RTL8111E | 4 | N/A | 12V/5A | / |
| 3 | N2919SZ | J1900/2.0GHz | N29 | / | / | 1*RTL8111E | 4 | N/A | 12V/5A | / |
FAQ:
1. Do you provide OEM/ODM service?
A: Yes,.We can support OEM/ODM service, the process of customization is following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
2. What is the Minimum Order Quantity (MOQ)?
A: We can sell one piece sample for your test.
3. What payment method do you use?
A: T/T,Western Union,PayPal.
4. What is the lead time of your product?
A: 3 days for sample, 15 working days for large quantity.
5. How does your factory do related quality control?
A: Quality is top priority. We firstly check the motherboard quality after manufacturing, secondly check the computer before storage in warehouse and thirdly check before shipping out.
6. What is the warranty time of your product?
A: 1 year warranty for non-artificial damage, for the 2nd to 3rd year we can repair it free, but will charge for the parts that needed to change.
7. Does your motherboard can keep working 24*7 hours?
Our low power consumption industrial boards have passed very strict tests, there is no problem to work 24*7 hours.
8. Are you a factory or trading company?
A: YANYUGONGKONG
MEMBER OF INTEL® INTELLIGENTSYSTEMS ALLIANCE, is a leading R&D and manufacturing technology-innovation enterprise specialized in Industrial Motherboards and embedded products industry.
Our products include: mini-itx motherboard,all-in-one motherboard, 3.5'' industrial motherboard, firewall motherboard, NVR&industrial motherboard, mini PC , HTPC, all-in-one PC, embedded PC, vehicle computers, cloud terminal, networking security, OPS mini PC, NAS server, etc.
Computer, OEM / ODM available.
9 If we come to China, can you arrange the visiting to your factory?
A: We warmly welcome and look forward to your visiting to our factory at any time.
