Характеристики

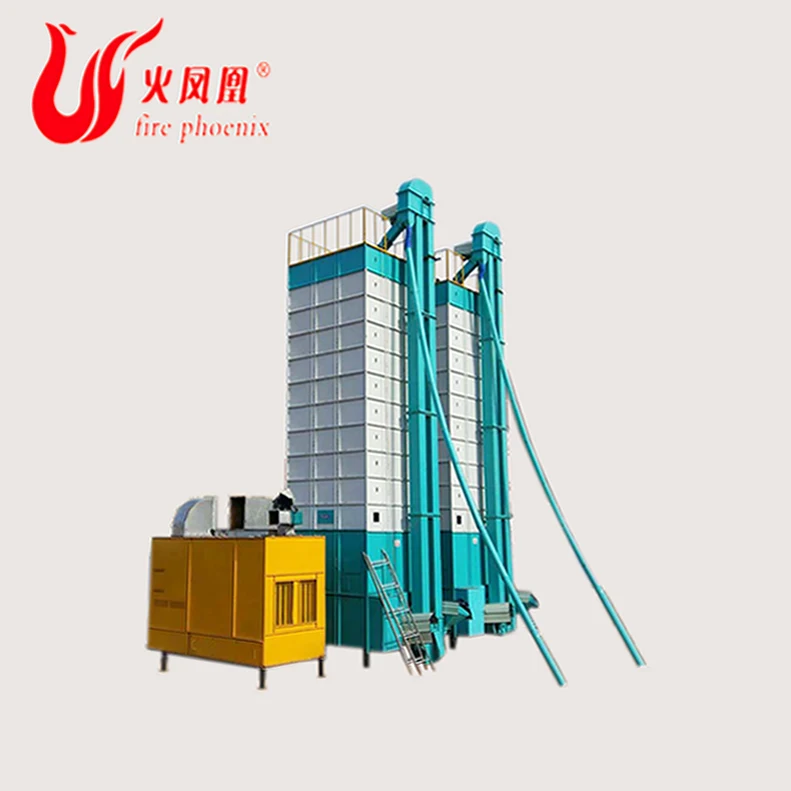

2020 new products automatic rice dryer energy - efficient China factory
Product Overviews
Brief Description
1. Spray burners is imported from Italy, automatically adjust fire by the control system which can ensure the hot air humidity controlled in a certain range.
2. Eight-slot drying section, wide drying area, strong ventilation system, uniform drying.
3. Full computer touch screen control system
4. Burning the abandoned rice husk, firewood, straw, indirect heat extraction, clean hot air for drying material without any pollution.
Main technical parameter
Serial number | Item | Unit
| Technical parameter | |
1 | Model | / | 5HXG-100,120,150 | |
2 | Type | / | Batch circulation grain dryer | |
3 | Handling capacity (Moisture content of 22-24% of the maximum processing capacity) | t | Rice 10,12,15 | |
4 | Dimension (length×width×heighth) | mm | 4100*2400*7500 4100*2400*8500 4100*2400*9500 | |
5 | Machine quality | kg | 2500,2800,3300 | |
6 | Combustion engine | / | Gun type spray | |
7 | Lighting mode of combustion engine | / | Automatic lighting | |
8 | Fuel | / | 0#(diesel) | |
9 | Combustion consumption | kg/h | 7.0-13.6 | |
10 | Exhaust fan type | / | Centrifugal
| |
11 | The air volume of exhaust fan | m³/h | 10800 | |
12 | Automatic control and safety equipment | / | Automatic moisture meter, temperature control, air pressure switch, motor overload protection automatic shutdown | |
13 | Matched power | Grain discharge motor | kw | 0.015 |
Fan motor | 4 | |||
Dusting motor | 0.09 | |||
On the auger motor | 1.5 | |||
Under the auger motor | 0.75 | |||
Circulation motor | 0.1 | |||
14 | Voltage | v | 380 | |
15 | Drying capacity | t%/h | Rice 8-10 Wheat 7-10 | |
16 | nonuniformity of drying | % | ≤1.0 | |
17 | Breakage rate appreciation | % | ≤0.5 | |
18 | Crack rate | % | ≤3.0 | |
The structure of grain dryer
Feature
Feature
We can meet your any special requirements, such as: Add insulation. Use special heat source
(biomass, rice husk, diesel, coal, electric, steam, etc.), special designed, Special accessories, etc.
We can make your own custom equipment for you.
* Details are thoughtful, Small footprint
* Low temperature cycling
* Less crushed phenomenon, low crackle ratio
* Galvanized design, Durable quality
* Easy installation, operation and maintainance
* Available drying for many different material
* Professional after sales service with technical support
* Batch type recirculating or continuous system
Application
Paddy dryer is suitable for efficient drying all cereals, grains, beans and seeds of all crops such as maize, coffee bean,
wheat, rice, barely, millets, sunflower seed, soybean, oil seeds ,rice etc. It is suitable to all kinds of farm and rice processing factory.
Packaging & Shipping
Our Services
Our Services
1. The supply of the complete equipment of the workshop and the installation of the equipment;
2. Supply of electric control equipment in the workshop;
The design of the whole set of process design drawings;
Technical consulting and technical services;
The warranty period of the product shall be one year;
3. The buyer shall be responsible for the indoor and external electrical wiring, threading pipe, line installation, equipment hoisting, installation of technical staff pay, air tickets and accommodation.
Releted Product
Company Information
Company Information
Hanzhong Burt Machinery Co.Ltd is a professional manufacturer. Our group product flour milling machine, wheat washing machine and many types food
or seed dryer almost 30 years.Our products have a number of patents and certification. Our products always export to western Asia, Africa, South America
and dozens of other countries.We have a perfect overseas service system and team.If we are lucky enough to cooperate, we can solve the after-sales problem
quickly and professionally.
Exihition
Our company has participated in the Canton fair several times, the sino-kazakhstan trade conference and other large international conferences,
and has received wide recognition and support from customers
Certifications
We have advanced technology research and development team, and have obtained ISO9001 product certification and many technical patents.
