The nail-bead machine is located by infrared, and the foot is determined to make the material four claws and beads fixed on the fabric leather.
The pearl is pinned down from the top to make it easy to find the position, improve the working efficiency, the speed of the upper hand, the safety, the computer operation failure rate is low, suitable for any 4-10 full circle pearl use.
Product Feature
1. Fast speed: with a speed of over 450 pieces per minute, the production efficiency is significantly improved.
2. The operation is simple, and the foot switch USES ordered nailing beads, and the single point is in two modes.
3. Infrared positioning, accurate and reliable.
4. Reasonable delivery structure, solve the problem of the traditional rotary drive nail sticking.
5. Low gas consumption: this product consumes only 60% of the same product.
Technical Parameter
Model
HT-NP100
Voltage
220v
Total Power
0.25kw
Air Pressure
0.45- 0.6mpa
Speed
180-480pcs/min
Pearl size
4mm 5mm 6mm 8mm10mm
WorkingTable Max Size
500mm*950mm
Weight
105kg
Dimension
900mm*950mm*1200mm

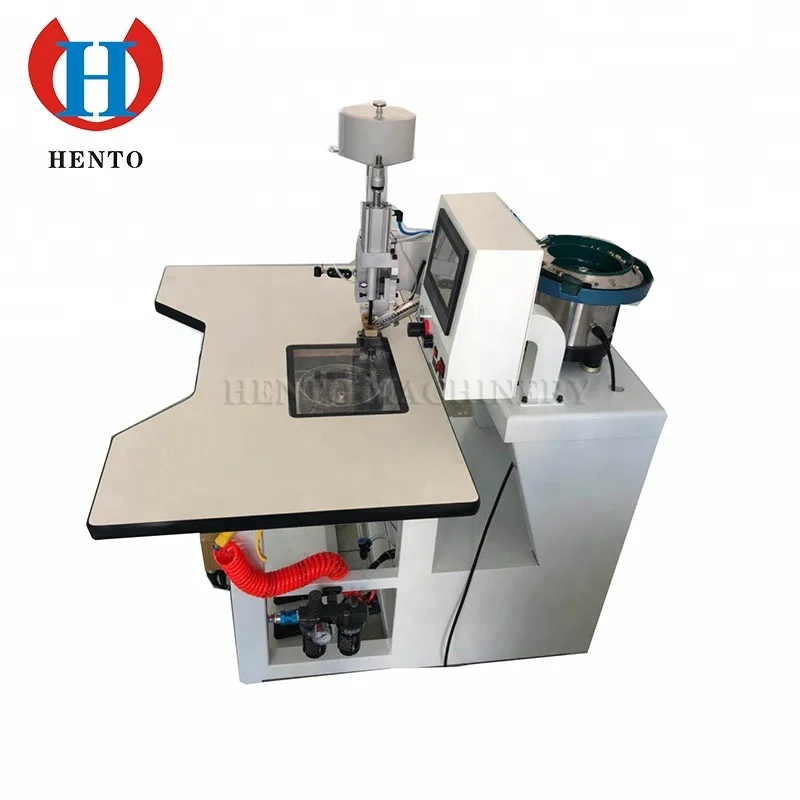

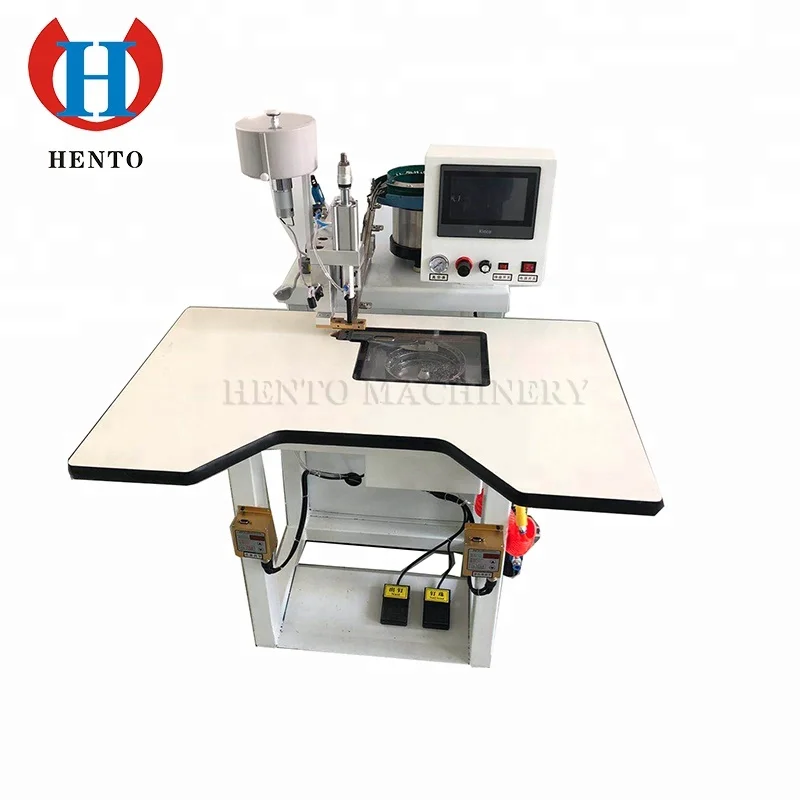

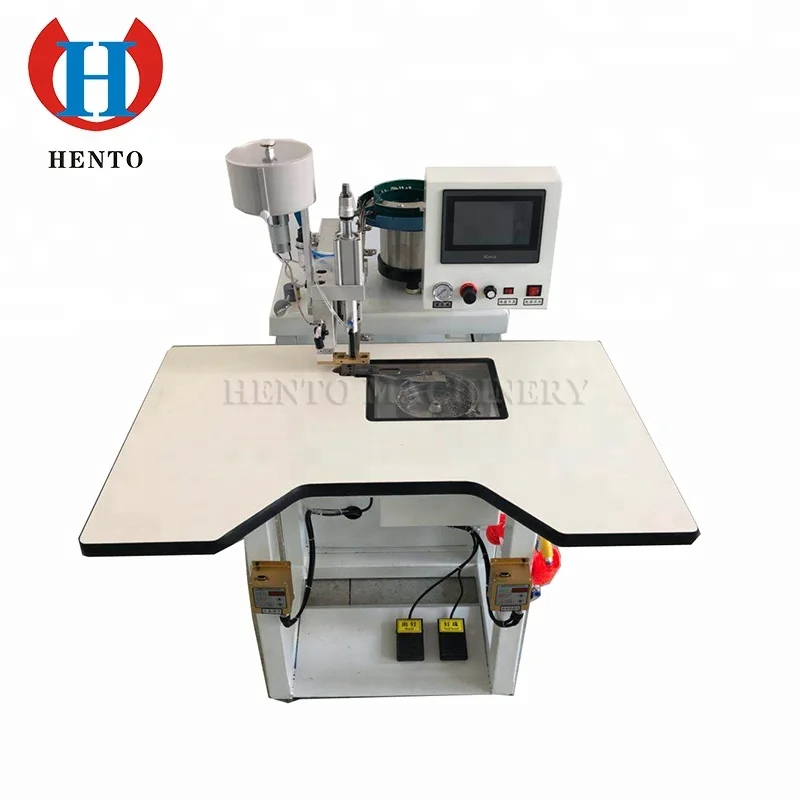

Pictures of Product
