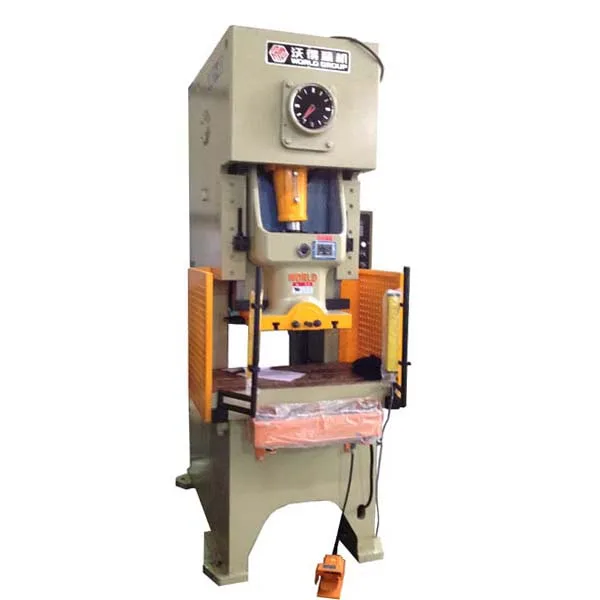

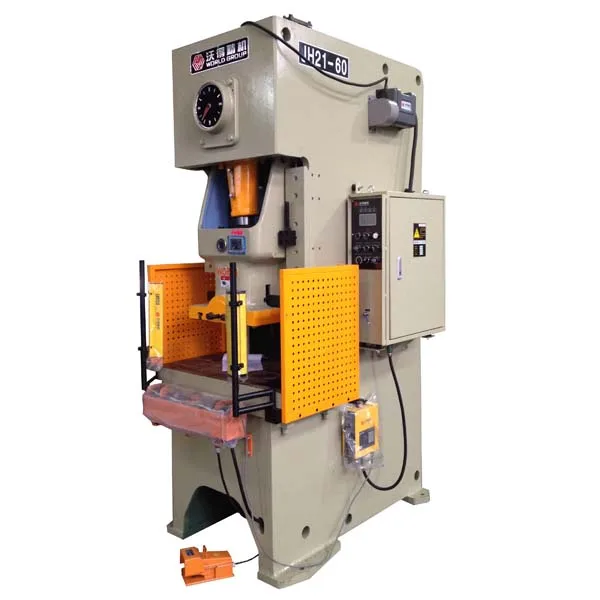

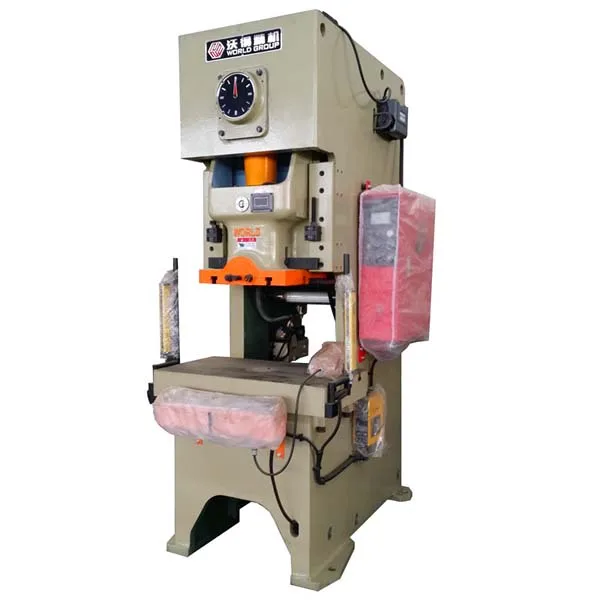

Auto parts making 100 ton JH21-100 C frame sheet metal forming power press


Поделиться:


Цена:21 800,00 $ - 22 500,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 25942.83 $* 27239.35 $*
Aug-15-2025 25724.65 $* 27010.87 $*
Jul-15-2025 21582.79 $* 22661.60 $*
Jun-15-2025 25288.57 $* 26552.84 $*
May-15-2025 22018.34 $* 23119.32 $*
Apr-15-2025 24852.50 $* 26095.84 $*
Mar-15-2025 24634.81 $* 25866.70 $*
Feb-15-2025 24416.15 $* 25637.75 $*
Jan-15-2025 24198.41 $* 25408.99 $*

Характеристики


Product Description

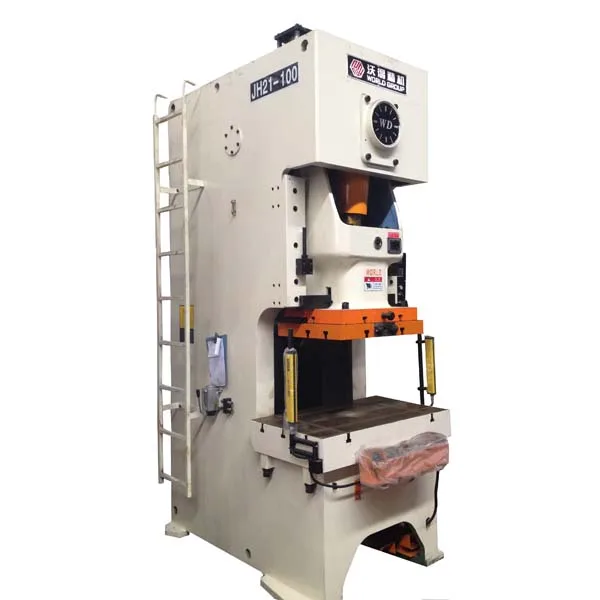

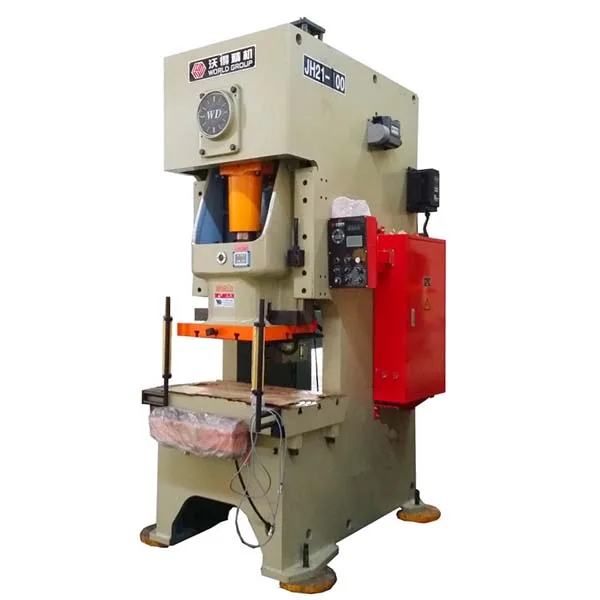

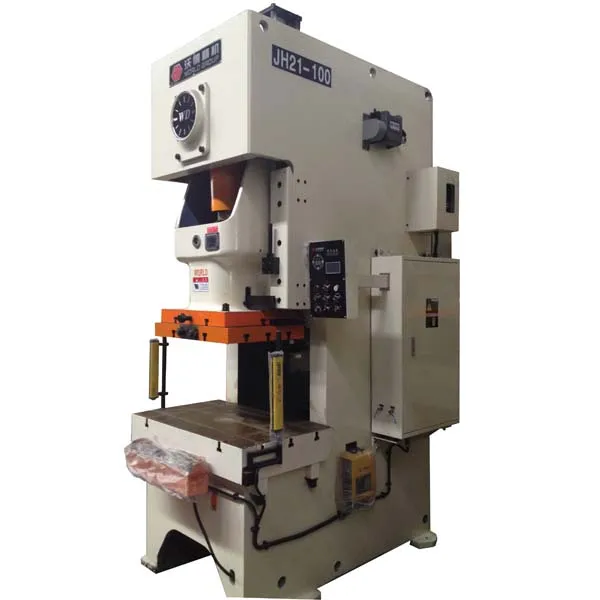

 Auto parts making 100 ton JH21-100 C frame sheet metal forming power press machine

As a kind of general punching machine, C frame mechanical power press including single crank press or double crank press, mechanical clutch press or pneumatic clutch press, capacity range from 25ton to 400ton. No matter what stamping parts you produce, hard wares, tools, aluminum circles, auto parts, electric parts, home appliance parts, or mobile phone parts, you can find one or two models punching press here.

\t
Specification for Price of Auto parts making 100 ton JH21-100 C frame sheet metal forming power press machine
\t
Nominal capacity
\t
1000KN
\t
Table size
\t
640X1060m
\t
Slide stroke
\t
160mm
\t
Slide size
\t
520X670mm
\t
Max die set height
\t
335mm
\t
Overall dimensions
\t
2000X1300X3010mm
\t
Die height adjustment
\t
90mm
\t
Motor power
\t
7.5KW
\t
Distance between uprights
\t
670mm
\t
Weight
\t
8650kg
Detailed Images

Wet clutch.

World self made wet clutch, long life low noise low maintinace cost.

We use best imported friction disc and nok seal to produce wet clutch.

 Grease lubrication pump

 Auto grease lubrication pump with distributor to all lubrication points. Times and frequency can be set with touch screen.

Manual thin oil lubrication pump.


Manual lubrication pump for slide balance cylinder

A manual with lubrication plan and oil type is stick on the press body

PLC

PLC central control

We use best panasonic or Mitsubishi PLC


Hydraulic overload protected pump

 Hydraulic overload protected pump is used to protect slide from injuring if overload. Easy reset

Main motor

We use siemens motor

Packing & Delivery
Product features

Features

-Hardened pinion gear, tap fit of main gear to crankshaft.


-Welded steel frame, heat treatment and shot blasting. This enables the press to deliver angular frame deflection, ensuring longer die life and higher part quality.

-Wet type pneumatic combined clutch and brake.

-Hydraulic overload protected system.

-Slide balance cylinders.

-Lubrication system.

- 3 phase main motor.

-Casting iron slide with 6 points slide guide and bronze plate.

-Casting steel table.

-Casting iron connecting rod and forging steel ball screw.

-Electric box.

-Control panel and touch screen.
