High output hydraulic open head  rubber strainer extruder machine with ce ceertificate  for sale



1. Production Description:

How the  New rubber strainer working:

1.  We can use block glue from rubber kneader  feeding double-head strainer/filter directly.

2. Using screw pushing, conveying to remove the impurity in the reclaimed rubber /block glue.

3 . According to customer requirements,different shapes rubber products can be extruded.





Model	XJL-150	XJL-200		XJL-250
Screw diameter (mm)	150mm	200mm		250mm
Length:Diameter (L/D)	6.3	6		5.4
Feeding length	500mm	600mm		600mm
Max. screw speed (r/min)	60r/min	50r/min		40r/min
Main motor	45KW	75KW		110KW
Feeding motor	5.5KW	7.5KW		7.5KW
Cropping motor	1.5kw	1.5kw		1.5kw
Hydraulic motor	3.7kw	3.7kw		3.7kw
Output(kg/h)	500-800Kg/h	900-1500 Kg/h		1500 -2000Kg/h
Steam pressure(Mpa)	0.2--0.4MPa
Cooling water pressure(Mpa)	0.2-0.4MPa
Oversize	3500×1650×1520		3700×1850×1750		4800×2150×1850







Usage:



*  The filter Rubber raw material enters the rolling mill to filter away impurities such as scrap iron, stones, etc.to ensure the safety of the roller of the rolling mill.



*  In the process of rolling,the threshing of  the screw rod promotes the uniform plasticization of the rubber.





 2.Column rubber tile vulcanizing press lightspots display:



Rubber strainer machine mainly consists of the extruding part for materials feeding, reducer, motor and it’s control system. It is is mainly applied for cleaning out the impurities from rubber mixture or reclaimed rubber. Below is the main product parameters:





•  Strainer tube and screw: The material of the screw is made by 38 CrMoAIA nitrogen steel with high quality and the surface is nitrogen and its nature is adjusted .The hardness of the surface is HRC60-65 and the depth is 0.5-0.7 mm


• rotation speed : the screw can be adjusted to match the other related machine








•


   hard tooth reduction gearbox, with low noise and long service life




•


   double filter press and hydraulic push to replace the filter screen, and operate fast, without leakage, saving time and energy




•


  automatic cutting rubber device to reduce the labor intensity of workers

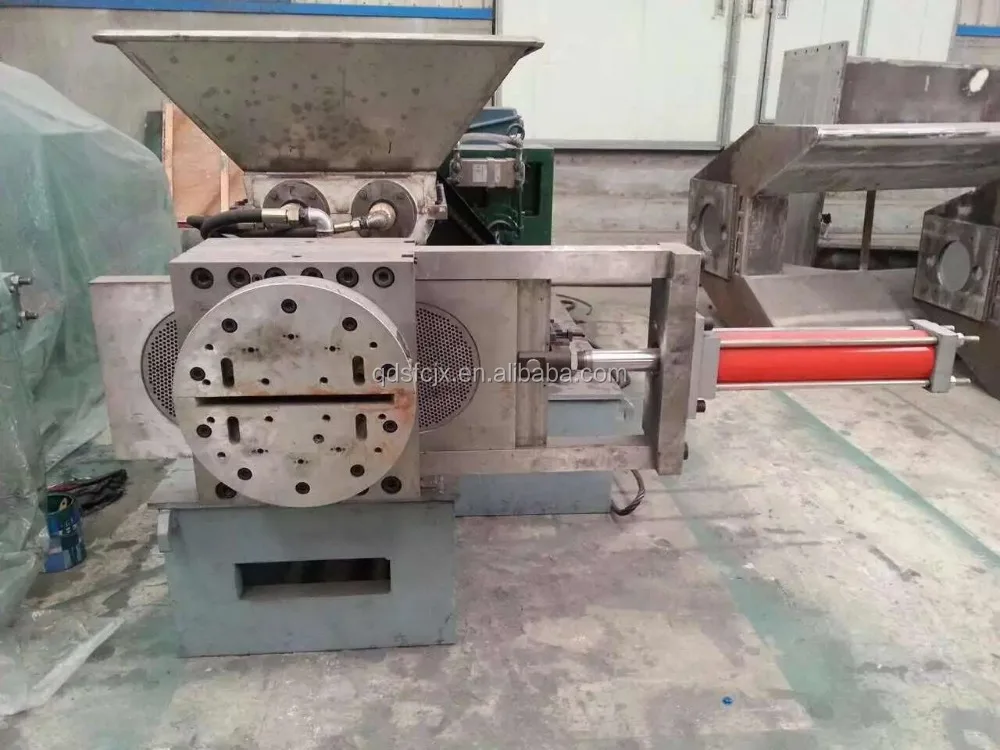

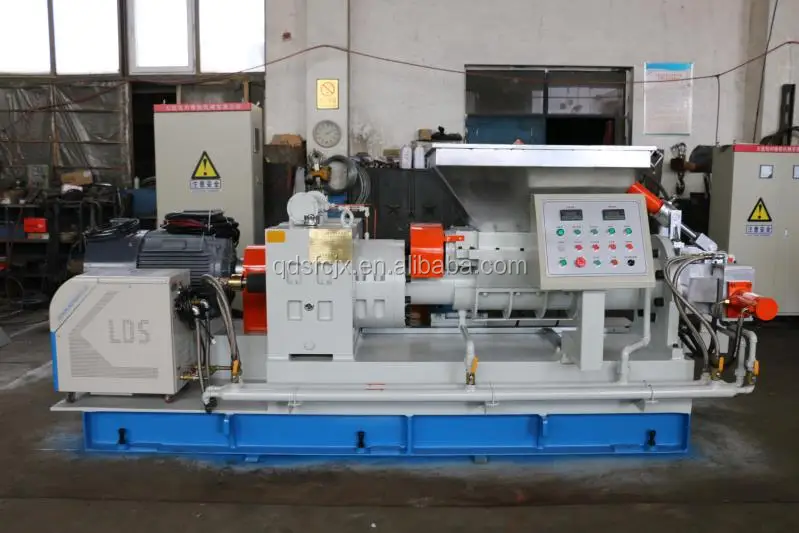

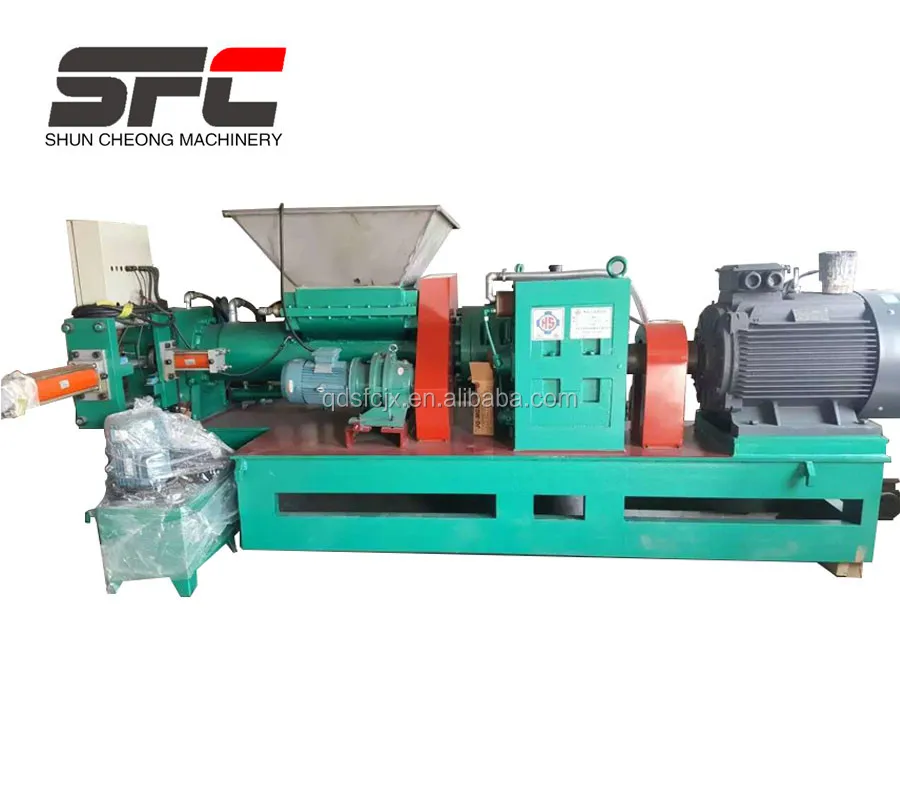

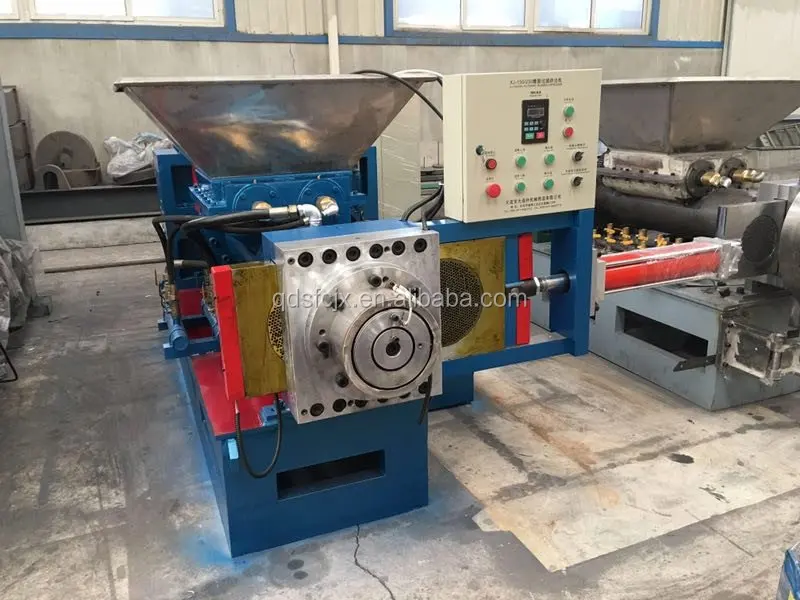

• More pictures of rubber strainer/extruder /filter:





 3.Delivery &payment:

• Delivery lead time:  35-40 days since receiving the deposit

• Packing way:


•  1) wrapped with stretch film, avoid rubbing the paint off thesurface


•  2)  wooden packaging can be  customized


•  3) key parts, such as electronic control box, will be wrapped by shockproof  packaging materials, and then packed in wooden cases.

• Term of payment: T/T (30% deposit, 70% balance of B/L) ; L/C









4.Our service:

• Overseas service and technical support can be supplied


• We will get the machines dispatched within the stipulated time


• 24 hours online service, immediate response to your request


• Testing machine is available, make sure customer satisfied with machine's quality


• Help customer to design, make drawing,accept OEM rubber machine


• Arrange shipment and inform customer in advance 7 days before finishing the   order







5.Related rubber vulcanizing press display:

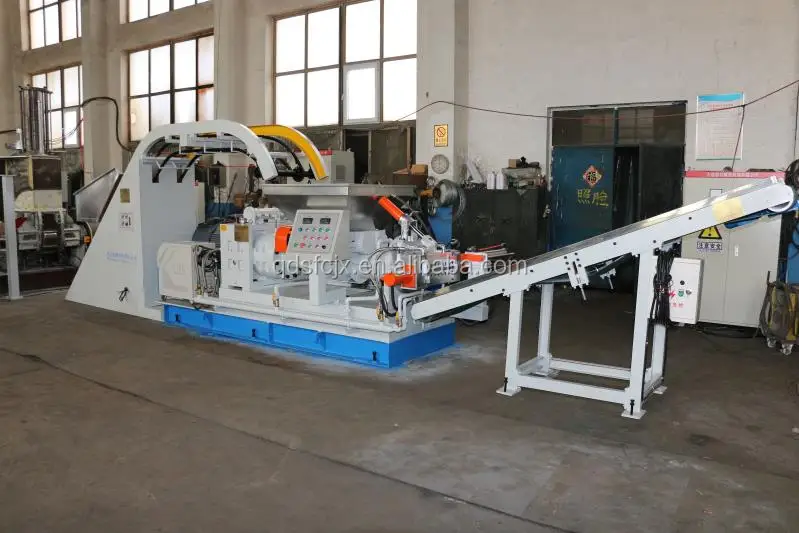

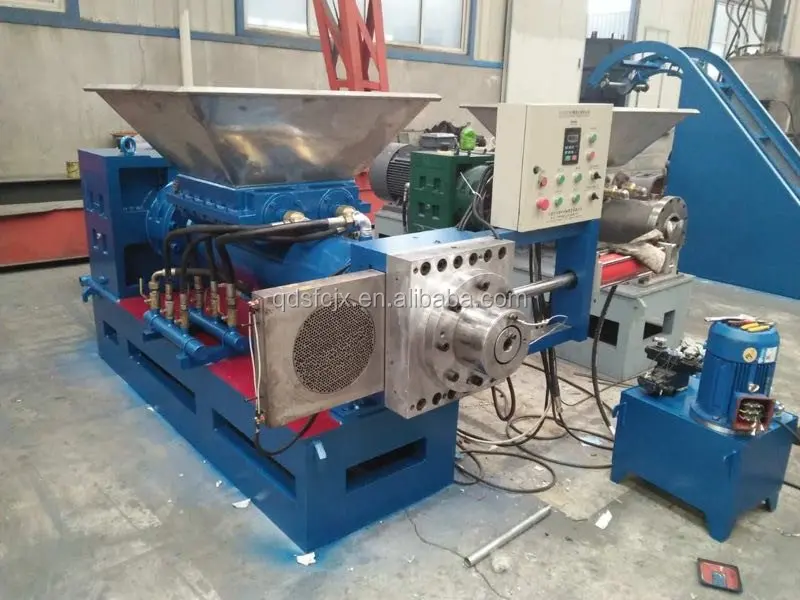

Double-head /hot feeding rubber strainer:               Single-head/manual rubber strainer:







6.About us:



•  Qingdao shun cheong rubber machinery manufacturing co.,ltd is a chinese manufacturer  with establishment in 2007, and have 10 years experience in making various of rubber machines area, also pass the ISO 9001:2008 , SGS, CE certificates too.

• our factory major in rubber kneader/rubber mixing mill ; various of plate vulcanizing press ; 2 roll/3 roll/4 roll rubber calender; rubber batch off cooler; waste tire recycling line;reclaimed rubber production line;conveyor belt production line;rubber seals extruding &vulcanizing line etc...


• Market:  our machineries have exported to America, Mexico, ndia, Vietnam, South Africa, Singapore, Malaysia, Indonisia, Australia, Sri Lanka and many other countries and regions

• Professional engineers and teams, then basing on customer requirements, we accept OEM*ODM machines, also oversea engineer service is available
