Гидравлический масляный пресс автоматическая машина для резки кожи и

Описание и отзывы

Трекер стоимости

Характеристики





Model	HSC/S600	HSC/S100
Maximum Cutting Force	600KN	1000KN
Tension distance	25-135mm	25-135mm
Cutting area	1250*1200mm	1600*1000mm
	1600*1200mm
Main motor power	5.5kw	11kw
Weight(approx.)	7500kg	10500kg



1. The machine is applicable to continuous and large-batch cutting of nonmetal materials such as

carpet,leather,rubber and cloth etc.in large-scale factories by die cutter.

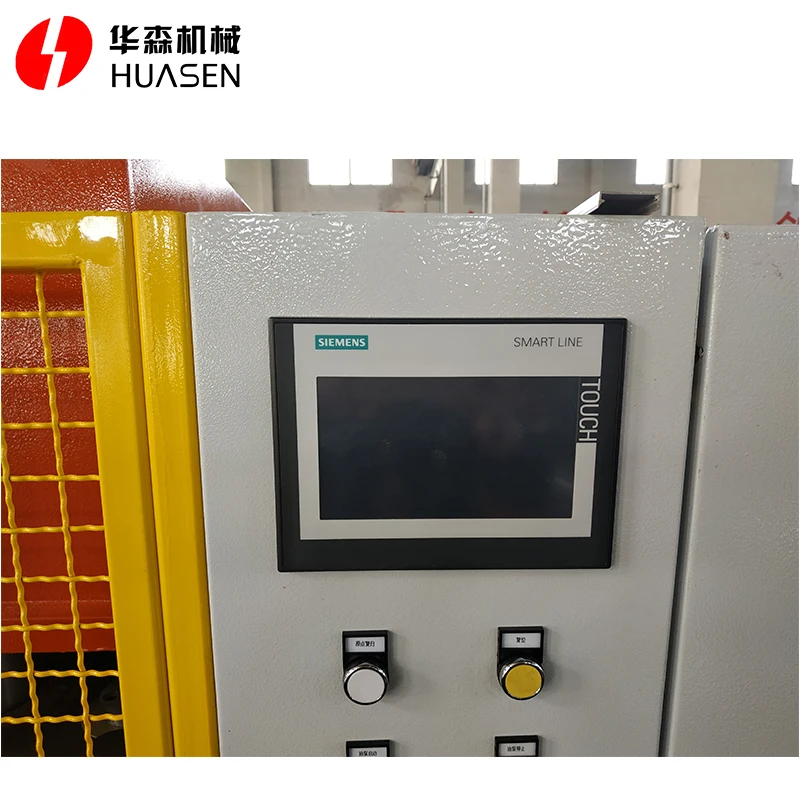

2.The conveying part adopts PLC control.The material are driven by the servo motor and input from one side of machine,and after die cutting,output from the other side,which can guarantee accurate feeding and stable operation.The feeding length can be adjusted conveniently through touch screen.

 3. The main machine is controlled by four-column guiding,double -crank balancing,four-column blocking fine-adjustment mechanism and hydraulic control system,which can guarantee the speed and accuracy of die cutting of machine.All movable connecting parts are equipped with central oil supply automatic lubricating device,which reduces the abrasion to the minimum extent.

4. The input and output of materials are conveyed on the conveying belt,and the die cutting of materials is also automatically completed on the conveying belt.

5. Photoelectric pneumatic deviation correcting device is adopted,which guarantees the accurate operation position of conveying belt.

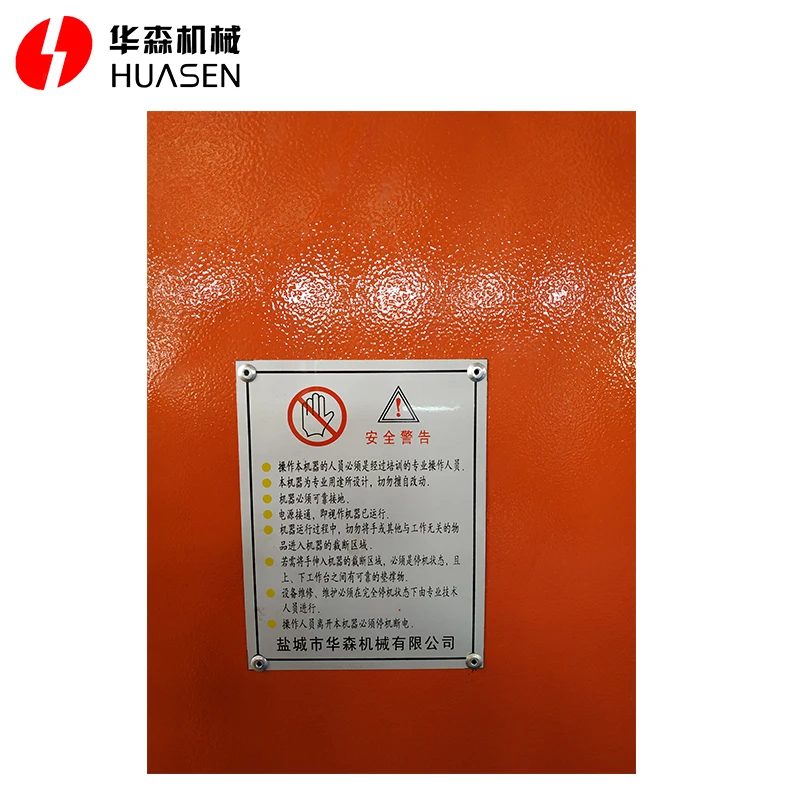

 6.The inlet and outlet of cutting area of the machine are installed with safety screens,which can guarantee personal safely of operators.

7. The die cutter is fastened by pneumatic clamp device so as to make the replacement of die cutter convenient and prompt.

8. Products of special specifications can be customized.







                           Yancheng City Huasen Macinery Co.,Ltd is established in 1980s and Located in

                Gangzhong  Industrial Park, Yandu District, Yancheng City,Jiangsu Province.We are a

                experienced and  professional hydraulic pressure die cutting machinery and compound/

                lamination machinery  supplier/manufacturer in China. We manufacture and export various

                cutting machine, die cutting machinery and auxiliary equipment of nonmetal materials for

                domestic and international customers such as: Shanghai Volkswagen, Janpan Toyota,

                USA 3M,Germany BOS,BYD Auto and Wuhan Shenlong ect.
                      We has beed granted more than 10 national patents and own independent intellectual

                 properties. Currently our main market is Domestic, Europe, USA, Japan, South Korea,

                 South America and Africa etc.
