Product Description

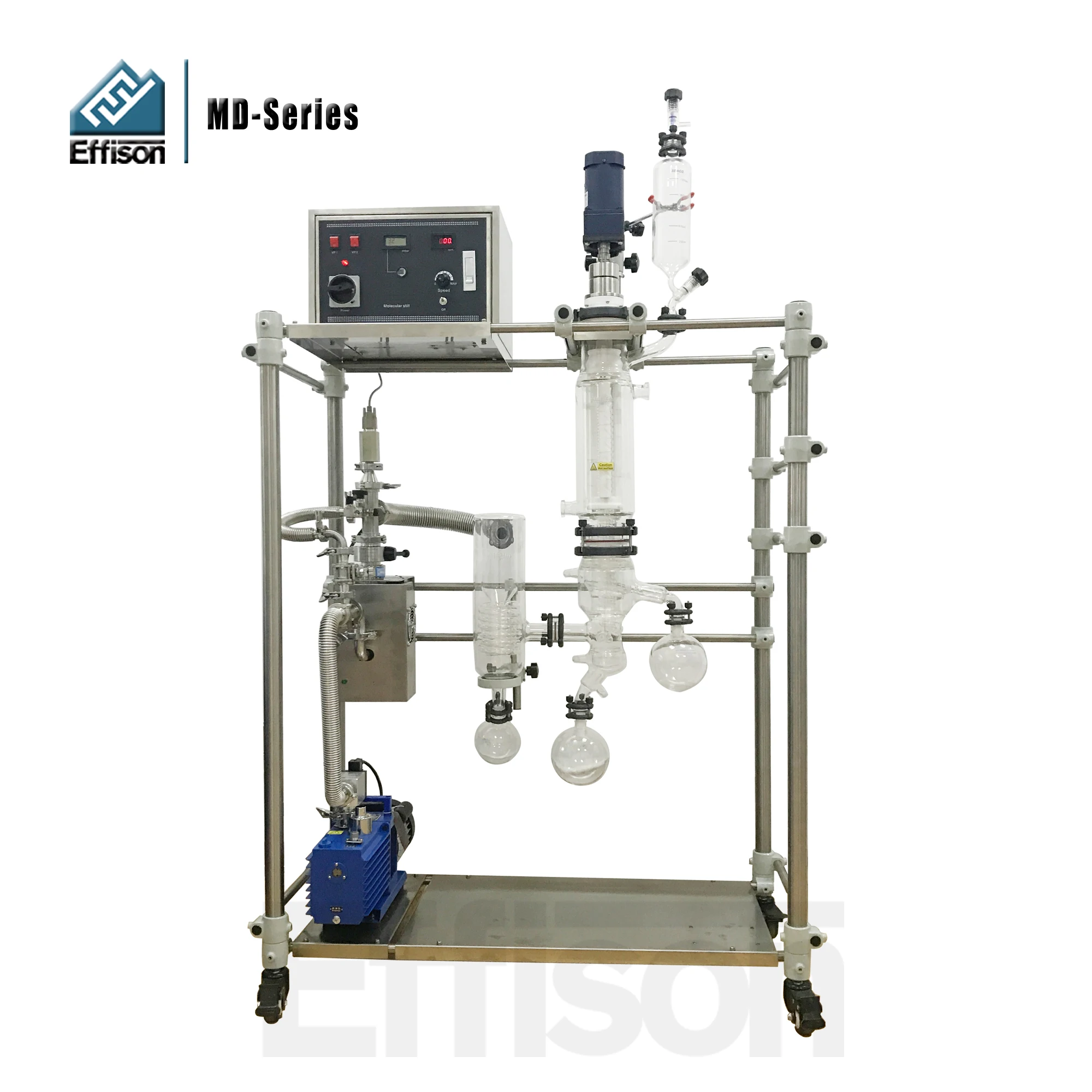

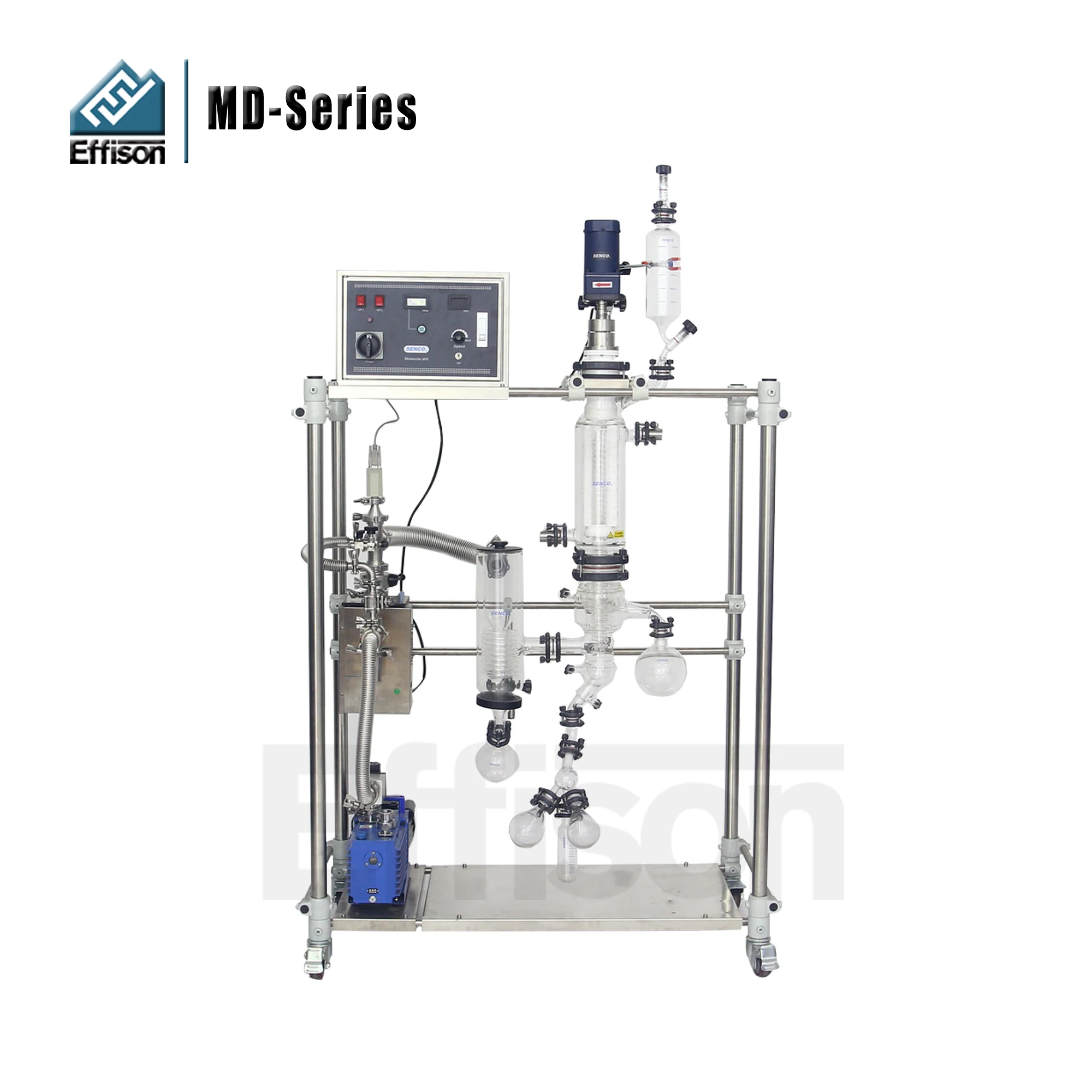

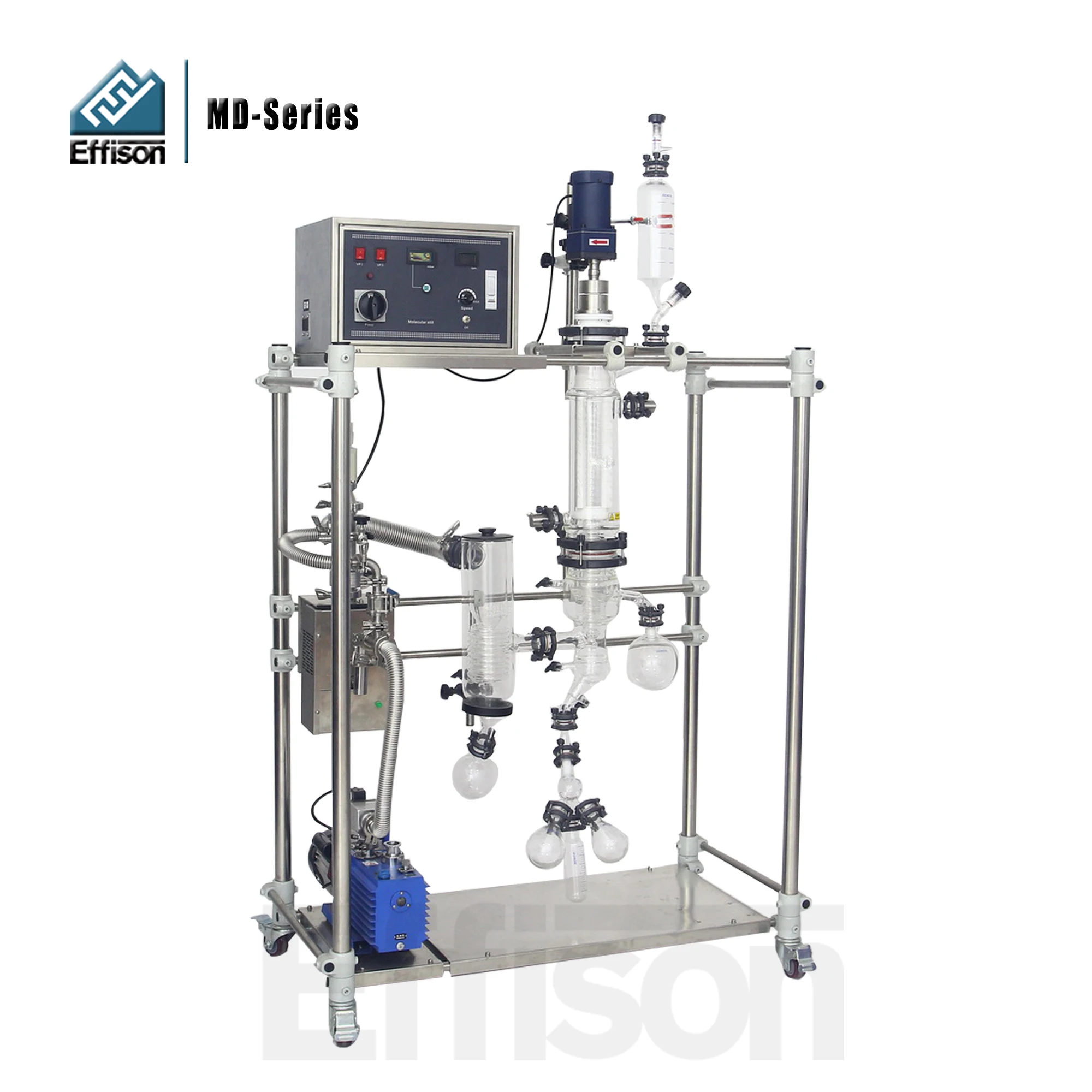

Large Production Plant Oil Extraction Molecular Distillation Equipment
Molecular distillation equipment Refine Oil is a comparatively new separation technology. It can separate liquid-liquid mixture under temperature that is far lower than boiling point by the difference of mean free path of molecules under high vacuum condition. Such separation is difficult or unable to achieve on normal distillation equipments. Molecular Distillation is especially suitable to separate substances of high boiling point, heat sensitive and easy oxidized.
Main application field: Separation process in trades like Food, Pharmaceutical, Fine chemical, Electronic materials, Polymers (Polyols, fatty acids, polyphenols-compounds, polyurethane, epoxy resin, lactate, glycerol monostearate, flavors and fragrances, fuel oil and paraffin oil), etc.
Working Principle
Technical Datas
Technical specifications of our Plant Oil extraction equipment:
Model | MD-800 | MD-1200 | Remark | |
Vaumm Unit | Vane pump | Vane pump | Can reserve port for user's pump | |
Ulimate pressure | 0.05mbar (5Pa)/0.001mbar (0.1Pa) | 0.05mbar (5Pa)/0.001mbar (0.1Pa) | ||
Evaporation Srface | 800cm2 | 1200cm2 | Other size optional | |
Inner Condenser Surface | 1100cm2 | 1600cm2 | Can modify to Falling Film Evaporator | |
Feeding Unit | 1L, 10~5000ml/hr | 2L, 10~5000ml/hr | Depends on meaterial nature | |
Collection Unit | Distillate&Residue 1L+1L | Distillate&Residue 1L+2L | ||
Rotation Unit | Magnetic drive 60~480rpm | |||
Film Type | PTFE wiper filming (or to change to roller filming) | |||
Vacuum System | SS Valve & Tubing set | |||
Display | GamutDigital Display | |||
Cold Trap | ~ | Customizable | ||
Cleaning Kits | ~ | Present | ||
Overall Dimensions | 1200*600*2000mm | 1200*600*2300mm | ||
Power Supply | AC220V, 1P, 50/60Hz | |||
Features of Plant Oil extraction equipment:
1.Full range digital vacuum meter (0.001-1000mbar)
2.High cleanness (solution contacts only glass and PTFE)
3.System integration of vacuum, heating and cooling supply with precise adjustable value
4.Complete flange connections, easy sys. maintain and clean.
5.Magnetic coupling drive, high sealing performance
Detailed Images
Feeding System
Feeding funnel with valve, which can connect to a peristaltic pump. Magnetic drive rotation, no friction.
PTFE Vavle
PTFE valve, no pollution to raw material, control feeding speed according to your extraction process.
Glass Evaporator
Glass evaporator, has no metal exposed filming system mounted. Featured as clean and transparent.
Roller/Scraper filming system.
Cow Distillation Receiving
Cow distillation receiving. Quick disassemble and easy clean structure.
Diffusion Pump Set
Diffusion pump set, make sure the system to keep high vacuum degree during the extraction process.
Controller Console
Whole gamunt pressure display. Digital display and control of the rotarting speed.
