Входное давление 25 МПа и выходной азотный регулятор давления 0-2 5 для
- Категория: Pressure Regulators >>>
- Поставщик: Shanghai,Yiwei,Flow,Control,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 124.26 $* | 130.22 $* |
| Aug-19-2025 | 123.55 $* | 129.79 $* |
| Jul-19-2025 | 103.19 $* | 108.38 $* |
| Jun-19-2025 | 121.17 $* | 127.20 $* |
| May-19-2025 | 105.92 $* | 110.31 $* |
| Apr-19-2025 | 119.40 $* | 125.36 $* |
| Mar-19-2025 | 118.5 $* | 124.63 $* |
| Feb-19-2025 | 116.28 $* | 122.27 $* |
| Jan-19-2025 | 115.85 $* | 121.1 $* |
Характеристики
Product Description
General Description

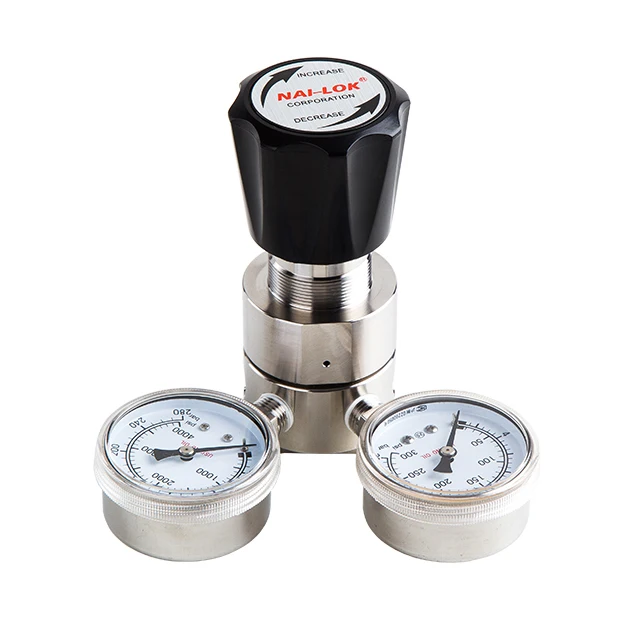

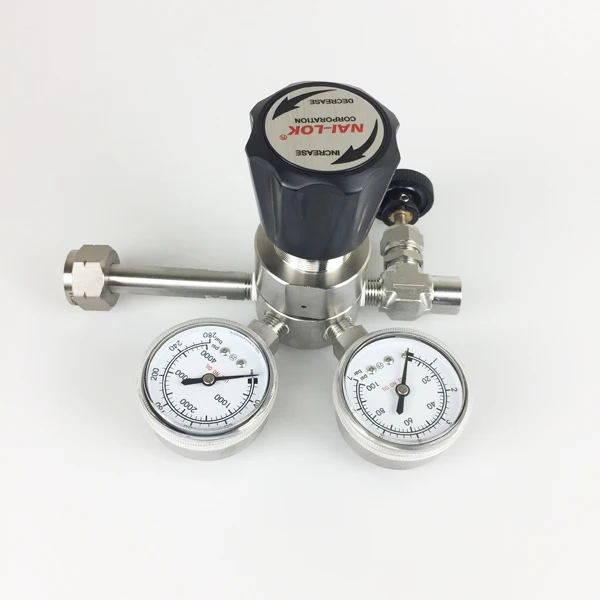

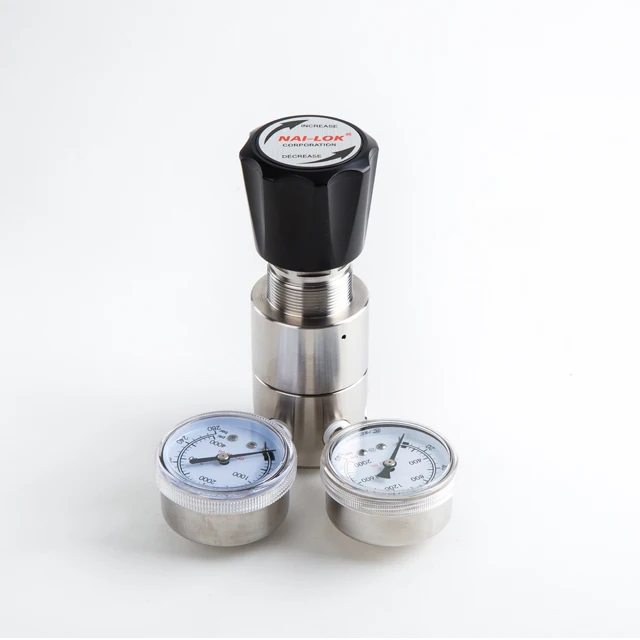

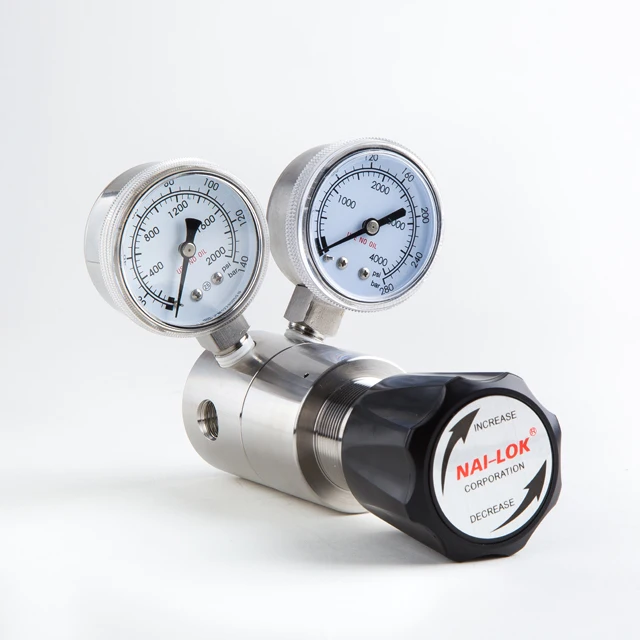

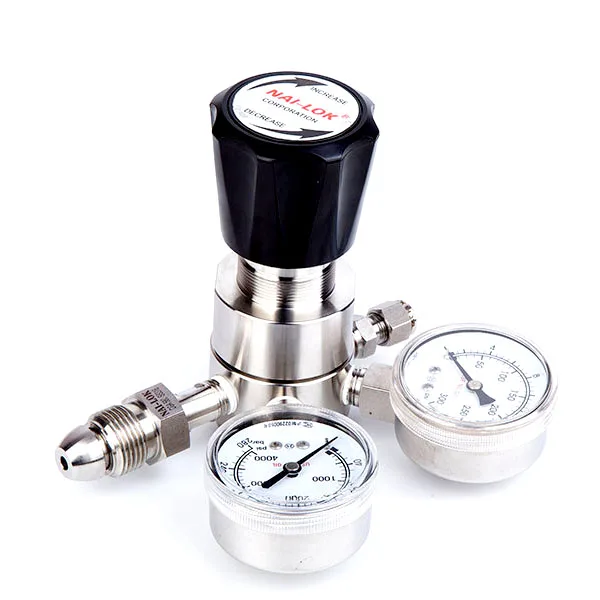

NAILOK NR11 Serie stainless steel pressure regulators, single stage diaphragm construction,stable output pressure, applied to pure gases, standard gases and corrosive gases and so on.
Features
- Single stage pressure-reducing structure
- Body thread: 1/4"NPT(F)
- Desigh Proof Pressure:150% maximum rated
- Flow Capacity:CV=0.05
Technical Data
- Maximum inlet pressure: 4000PSIG
- Output pressure: 0-25,0-50,0-100,0-150,0-250,0-500psig
- Design Proof Pressure:150% maximum rated
NR11
BASIC SERIES BODY MATERIAL INLET AND OUTLET PORT TYPE INLET AND OUTLET PORT SIZE INLET PRESSURE FLOW CAPACITY PORT TYPE NR11 1-Brass 0- 0-25 psig 2- NPTF 4- 1/4" 1- 3500 psig CV=0.06
5-Chrome plated brass 1- 0-50 psig 2- 400 psig CV=0.15
4- 4 ports 6-316L Stainless steel 2- 0-100 psig 9-Monel 3- 0-250 psig 5- 0-500 psig
