15 кВт высокочастотный ПВХ брезентовый сварочный
- Категория: Plastic Welders >>>
- Поставщик: Shanghai,Puxiong,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.60 $* | 0.83 $* |
| Aug-18-2025 | 0.64 $* | 0.15 $* |
| Jul-18-2025 | 0.86 $* | 0.48 $* |
| Jun-18-2025 | 0.28 $* | 0.49 $* |
| May-18-2025 | 0.32 $* | 0.27 $* |
| Apr-18-2025 | 0.29 $* | 0.95 $* |
| Mar-18-2025 | 0.83 $* | 0.28 $* |
| Feb-18-2025 | 0.77 $* | 0.31 $* |
| Jan-18-2025 | 0.27 $* | 0.94 $* |
Характеристики
Product Description

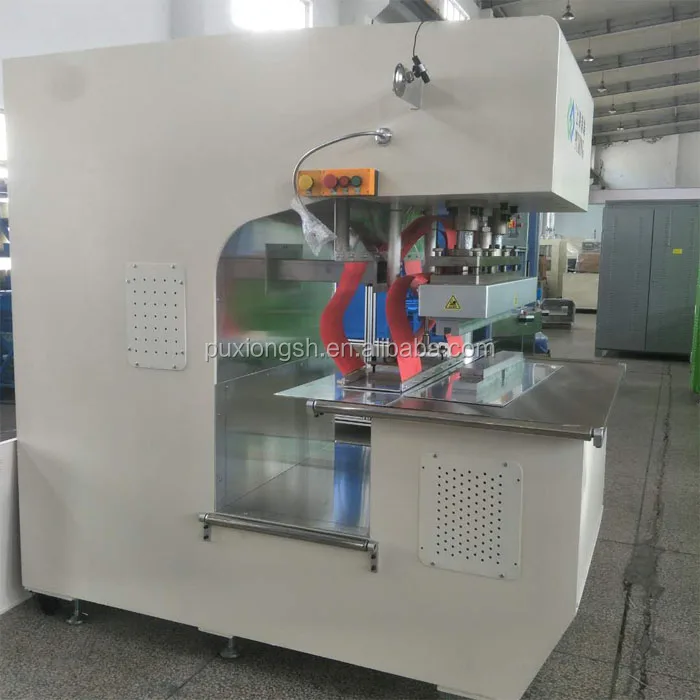

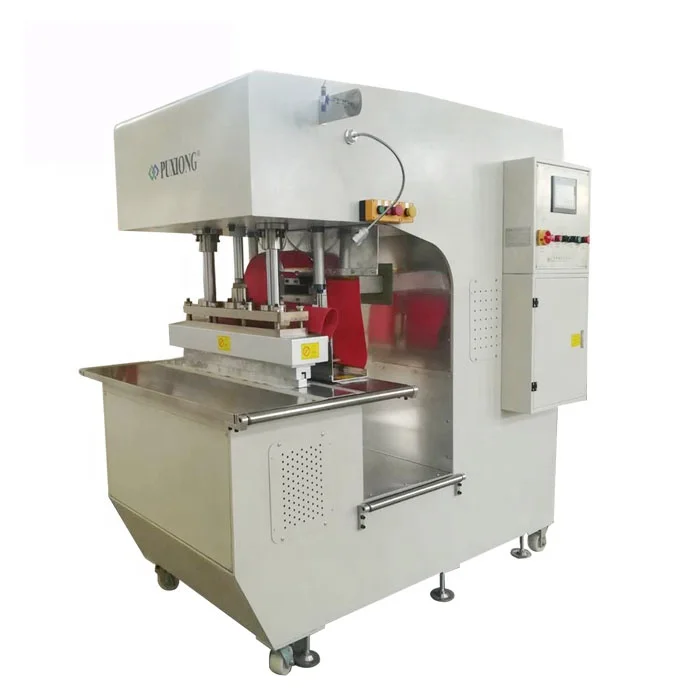

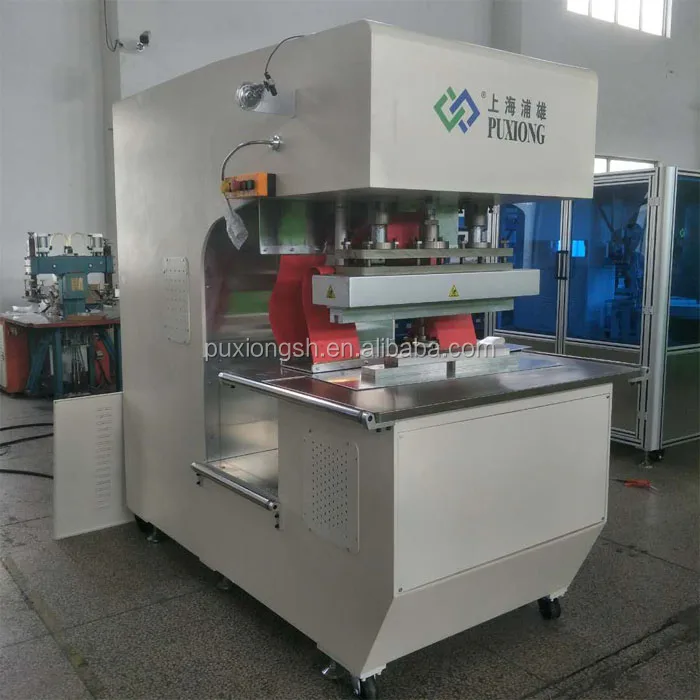

PXMS-G05P Welding Machine
This popular welding machine mainly for PVC PVDF PVF TPU membrane material welding, with smart PLC touch screen.
Technical Parameters
Model | PXMS-G05P | PXMS-G04M | PXMS-K04M | ||||||
Power | 15 KW | 12 KW | 12 KW | ||||||
Voltage | 380V/Customized | 380V/Customized | 380V/Customized | ||||||
Pressure Mode | Pneumatic (0.6MPa Adjustable) | Pneumatic (0.6MPa Adjustable) | Pneumatic (0.6MPa Adjustable) | ||||||
Oscillation Frrequency | 27.12MHZ+-0.5% | 27.12MHZ+-0.5% | 27.12MHZ+-0.5% | ||||||
Worktable Size | L1200*W800 mm | L900*W550mm | L1000*W550 mm | ||||||
Throat Depth | 750 mm | 500 mm | 500 mm | ||||||
Welding Bar | L1000*W30mm/L800*W40 mm(Customized) | L500*W40mm/L600*W30 mm(Customized) | L500*W40mm/L600*W30 mm(Customized) | ||||||
The Max Welding Area | 33000 mm2 | 20000 mm2 | 20000 mm2 | ||||||
Overall Dimension | L2100mm*W1500mm*H2100mm | L1560mm*W900mm*H1860mm | L1500mm*W1500mm*H2100mm | ||||||
Weight | 1100 KG | 800 KG | 550 KG | ||||||

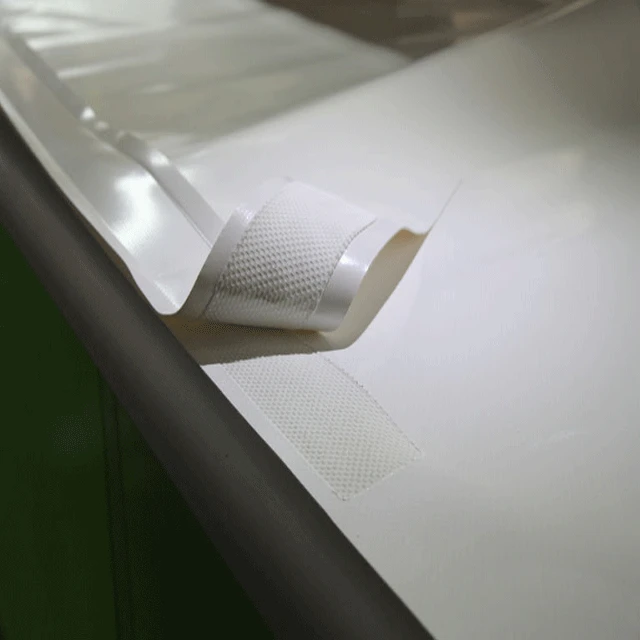

Main application
Certifications

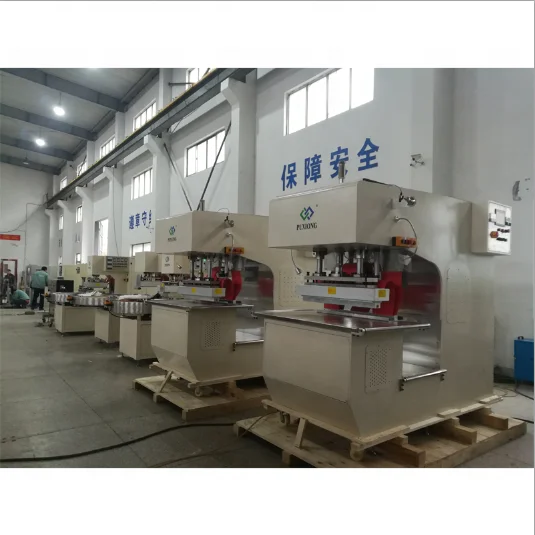

Our Company
Shanghai Puxiong specializes in R & D, designing and manufacturing high frequency welding machines, blister heat sealing machines, intelligent automatic production lines,etc. Now we have developed into a high-tech enterprise which is integrated into R & D, manufacturing and selling the whole set of automation production line.
We are the only long-term strategic partner of "Qualified Machinery Supplier" assigned by all military research institutions. With an area of 10,000 square meters, the company has a team of 40 mechanical and electrical engineers with more than twenty-year experience.
Our strengths
1.Up to 10 senior R&D engineers.
2.Excellent after-sales service system with 21 years experienced technical staffs.
3.Larger scale factory and workers in the same industry.
Our Exhibition
Customer Visit
Our Service
Pre-sales service Sales-service After-sales service
1. Professional engineers help to recommend suitable machine according to your detailed requirements.
2. You are always welcome to visit our factory.
3. If not convenient to visit factory, VR video is available.
4. Providing sample photos, testing video of similar cases for your reference(except special industry).
1. Sending photos,video of your machine manufacturing progress every few days.
2. Sending your machine finished photos,video.
3. Sending test videos or remote live video with you to test your machine.
4. Synchronous teaching guidance while testing your machine.
5. Sending your machine package photos.
1. Reserve extra spare parts, wearing parts for you, shipped with your machine.
2. One year Warranty(except wearing parts and human caused)
3. Providing lifetime technical support for you.
4. 7*24 hours service, timely and politely solve any working problems of machines.
5. Our engineers are available to serve on abroad.
Packing & Delivery
1. Your machine is fixed all around to ensure no shaking during transportation.
2. Thicker base plate, ensure support strength, and your machine will not be hurt by forklift.
3.Wrapping film and desiccant, protect your machine from moisture.
4. Standard exported wood cases(multilayer board).
FAQ
Q1: Are you a factory or trading Company?
We are a professional machine manufacturer.
Our factory located in Qingpu district, Shanghai, CN.
It only takes 30 mins from Hongqiao airport/train station to our factory, you are always welcome to visit our factory.
Q2: What is your warranty?
One year warranty, lifetime technical support.
Free spare parts provided within warranty(except wearing parts and human caused mistake)
(We usually enclose extra spare parts,wearing parts shipped with the machine.)
Q3: Does the machine power voltage meet my factory power source?
Voltage can be customized as per your requirement, for example, in India, 415V,50HZ,3P; in US,230V, 60HZ, 3P.
Q4: How to choose the suitable high frequency output power for my product?
Generally speaking, 12 kw: the max welding area is 20000mm2/time.
15 kw: the max welding area is 33000 mm2/time.
25 kw: the max welding area is 48000 mm2/time.
You can also feel free to contact with us to recommend for you.
Q5: How do pack my machine?
Your machine will be packed with standard strong wooden case.
Fragile parts in your machine will be filled with cushion material like sponge, foam..
Q6: How to guarantee my machine received in a good condition?
Our QC department will control the quality from raw material to the finished product.
We will send you inspection video, photos or remote live video when your machine is finished and testing.
You are welcome to come to our factory to check your machine.
With standard good packaging.
Q7: How do I use my machine?
Detailed enclosed machine instructions.
Complete our engineer demonstration operation video.
Remote live video guidance by whatsapp, skype...
Come to the factory and teach hand in hand.
Q8: What is your payment term?
50% TT in advance as your deposit, and 50% before shipping your machine.
Q9: What is your lead time?
Generally speaking, about 30 days, according to machine details.
Q10: Could you make die / mould for me, if I buy machine from you?
Including 1 pc mould in quotation.
The mold can be customized as per your need.
Contact to get more...
Email: sale004@chinapuxiong.com
Whatsapp/Wechat/Skype: +86 159 2156 6131
Web: www.chinapuxiong.cn /puxiongsh.en.alibaba.com
