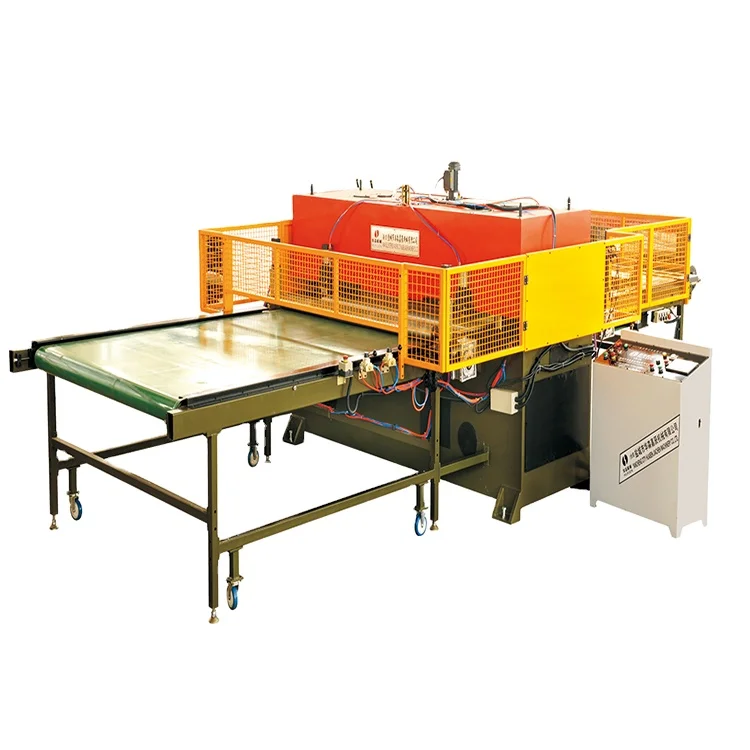

Высокоточная четырехколонная режущая машина автоматического шагового типа

Описание и отзывы

Трекер стоимости

Характеристики





Model	HSC/Q600	HSC/Q800	HSC/Q1000	HSC/Q1300	HSC/Q1500	HSC/Q2000
Maximum cutting force	600KN	800KN	1000KN	1300KN	1500KN	2000KN
Tension distance(mm)	50-200	50-200	50-200	50-200	50-200	50-200
Cutting area(mm)	1600*900	1600*900	1600*900	1600*1000	1600*1000	1600*1200
	1400*900	1400*900	1400*900	1400*1000	1400*1000	1400*1200
Main motor power	5.5kw	7.5kw	7.5kw	11kw	15kw	15kw
Weight(approx.)(kg)	6500	8000	10500	12500	15000	17000
	6000	7500	9800	11500	14000	15800





1. The machine is a applicable to die cutting operation of various nonmetal rolled materials by die                         cutter(automobile inner decoration,clothing,grinding,etc.).

2. Microcomputer controlled,With simple,prompt and accurate operation.

3. The main machine adopts double oil cylinder ,double-crank connecting rod balancing,Four-column precision

    guiding mechanism ,which can guarantees that the cutting depth at every cutting position is same.

4. The pressing board carries out slow cutting when it presses downward to contact the die cutter,which can

    make the size error between the uppermost layer and lowermost layer of cut materials is lower.

5. The central oil supply automatic lubricating system guarantees the service life and precision of the machine.

6. It is provided with the automatic stepping type feeding mechanism ,which is suitable for feeding rolled

    materials of multiple layers and realize preclse feeding.The feeding length can be conveniently set on the

    computer.

7. The optional cutting board micro-movement device can evenly consume the cutting board and save cost.

8.The optional die cutter pneumatic clamp device can make the replacement of die cutter convenient and

   prompt.

9.The optional automatic limit stopper can automatically adjust limit stopping height according to different die

   cutters,so as to ensure the cutting precision and prolong the service life of the die cutter.

10. Products of special specifications can be specially designed and manufactured according to customer

      requirements.(The cutting force can be 4000KN  400T at most)







                           Yancheng City Huasen Macinery Co.,Ltd is established in 1980s and Located in

                Gangzhong  Industrial Park, Yandu District, Yancheng City,Jiangsu Province.We are a

                experienced and  professional hydraulic pressure die cutting machinery and compound/

                lamination machinery  supplier/manufacturer in China. We manufacture and export various

                cutting machine, die cutting machinery and auxiliary equipment of nonmetal materials for

                domestic and international customers such as: Shanghai Volkswagen, Janpan Toyota,

                USA 3M,Germany BOS,BYD Auto and Wuhan Shenlong ect.
                      We has beed granted more than 10 national patents and own independent intellectual

                 properties. Currently our main market is Domestic, Europe, USA, Japan, South Korea,

                 South America and Africa etc.
