Настенный Кондиционер Настенный Сплит Кондиционер
US $500.00-$520.00

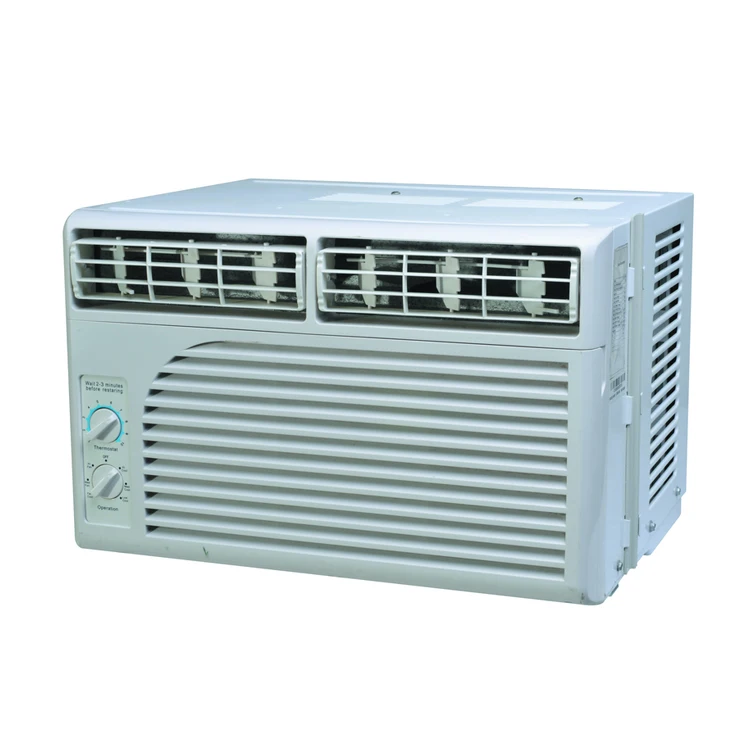

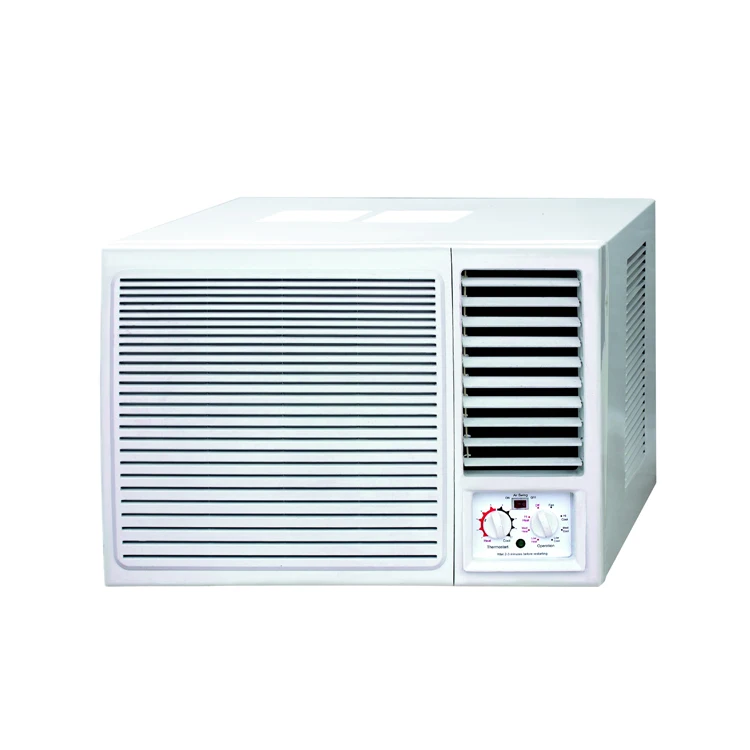

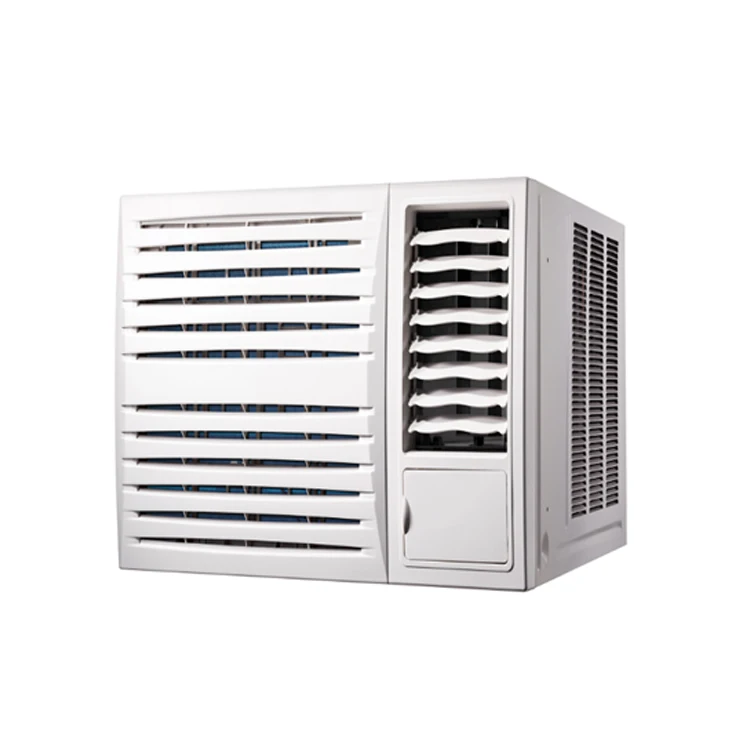

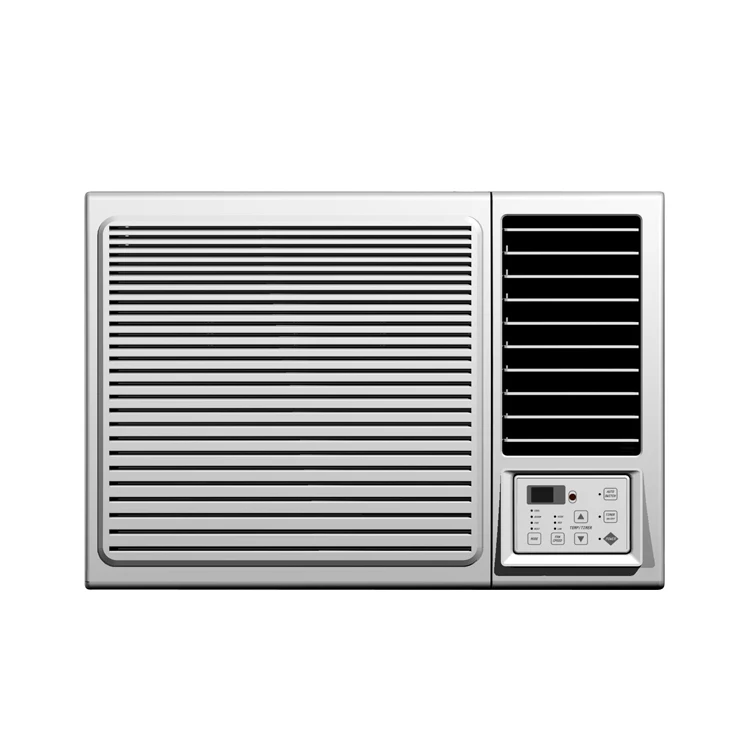

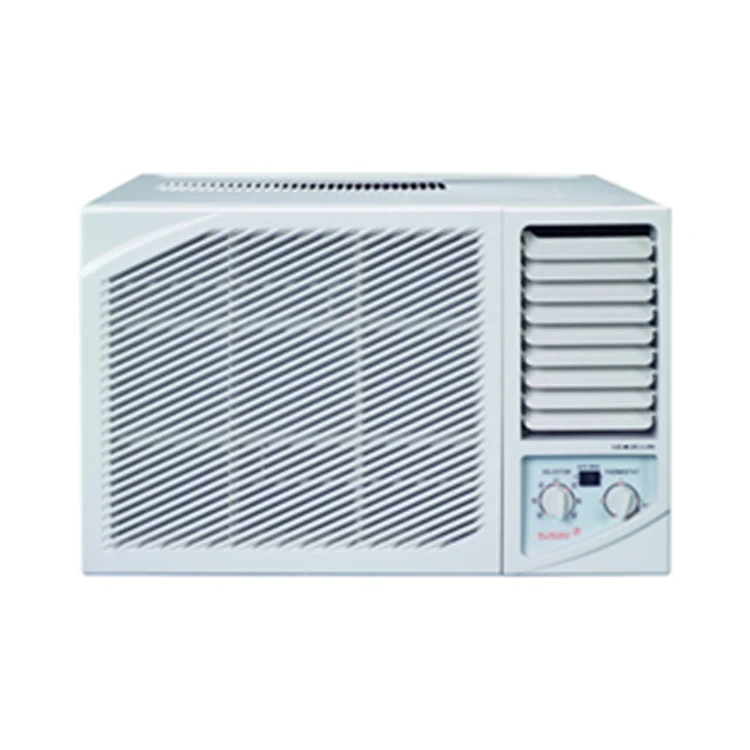

2021 новый дизайн оконного типа 12000btu 1.5hp
- Категория: Air Conditioners >>>
- Поставщик: Shenzhen,Midas,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.15 $* | 0.44 $* |
| Aug-19-2025 | 0.24 $* | 0.45 $* |
| Jul-19-2025 | 0.56 $* | 0.99 $* |
| Jun-19-2025 | 0.59 $* | 0.88 $* |
| May-19-2025 | 0.31 $* | 0.40 $* |
| Apr-19-2025 | 0.40 $* | 0.18 $* |
| Mar-19-2025 | 0.22 $* | 0.42 $* |
| Feb-19-2025 | 0.78 $* | 0.13 $* |
| Jan-19-2025 | 0.82 $* | 0.33 $* |
Характеристики
Product Description
| Project NO. | 1.0HP | ||
| Code | mechanical | ||
| New code | 22020320000863 | ||
| Factory model | PH-KC25/N1-F2F(C1) | ||
| Sale model | MWF2-09CMN1-NC1 | ||
| Power supply | Ph-V-Hz | 1Ph,220-230V~ 60Hz, | |
| Cooling | Capacity | Btu/h | 9100 |
| Input | W | 852 | |
| Current | A | 4.1 | |
| EER | W/W | 3.06 | |
| Moisture Removal | L/h | 1.0 | |
| Rated input consumption | W | 1180 | |
| Rated current | A | 5.3 | |
| Starting current | A | 20 | |
| Compressor | Model | ASM89N1VEZ | |
| Type | Hermetic Motor | ||
| Brand | GMCC | ||
| Capacity | Btu/h | 10100/10185 | |
| Input | W | 708/712 | |
| Rated current(RLA) | A | 3.2/3.15 | |
| Locked rotor Amp(LRA) | A | 20 | |
| Thermal protector | BF785-MA | ||
| Thermal protector position | EXTERNAL | ||
| Capacitor | uF | 25 | |
| Refrigerant oil/oil charge | ml | ESTER OIL VG74.300.ml | |
| Fan motor | Model | YKTS-78-4-1 | |
| Input | W | 125/109/103 | |
| Capacitor | uF | 2.5 | |
| Speed(Hi/Mi/Lo) | r/min | 1430/1320/1230 | |
| Evaporator | a.Number of rows | 4 | |
| b.Tube pitch(a)x row pitch(b) | mm | 21x13.37 | |
| c.Fin spacing | mm | 1.2 | |
| d.Fin type (code) | Hydrophilic aluminium | ||
| e.Tube outside dia.and type | mm | Φ7,innergroove tube | |
| f.Coil length x height x width | mm | 245x294x53.48 | |
| g.Number of circuits | 4 | ||
| Condenser | a.Number of rows | 3 | |
| b.Tube pitch(a)x row pitch(b) | mm | 19.5x11.6 | |
| c.Fin spacing | mm | 1.2 | |
| d.Fin type (code) | Unhydrophilic aluminium | ||
| e.Tube outside dia.and type | mm | ¢5, innergroove tube | |
| f.Coil length x height x width | mm | 370x331.5x34.8 | |
| g.Number of circuits | 2 | ||
| Refrigerant type | kg | R410A/0.45 | |
| Design pressure | MPa | 4.2/1.5 | |
| Plug type | 18# / SP008 | ||
| Control type | Mechanical Control | ||
| Operation temp | indoor(cooling/heating) | ℃ | 17-32/--- |
| outdoor(cooling/heating) | ℃ | 18-43/--- | |
| Application area (Cooling Standard) | m2 | 12-18 | |
| Dimension(W*D*H) | mm | 450x585x346 | |
| Packing (W*D*H) | mm | 640x505x420 | |
| Net/Gross weight | Kg | 32/34.6 | |
| Loading quantity 20’ /40’ /40'HQ | Pieces | 200/410/492 | |
