Настенный Кондиционер Настенный Сплит Кондиционер
US $500.00-$520.00
9000Btu 12000Btu 1800Btu солнечные блоки переменного тока постоянного кондиционер гибридная Солнечная энергия настенный сплит
- Категория: Air Conditioners >>>
- Поставщик: Yangzhou,Dongtai,Solar,Energy,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 984.50 $* | 1004.8 $* |
| Jul-15-2025 | 798.81 $* | 814.12 $* |
| Jun-15-2025 | 969.94 $* | 988.56 $* |
| May-15-2025 | 961.9 $* | 980.96 $* |
| Apr-15-2025 | 767.6 $* | 782.63 $* |
| Mar-15-2025 | 946.89 $* | 965.36 $* |
| Feb-15-2025 | 938.80 $* | 957.65 $* |
| Jan-15-2025 | 930.41 $* | 949.40 $* |
Характеристики
Product Description
Deye High Quality 12K Wifi Smart Wall Mounted AC DC Hybrid Solar Air Conditioner
Specification
9000 12000 18000 24000 BTU AC Solar Powered Air Conditioner DC Off Grid Solar Air Conditioner Hybrid Mini Split For Home | ||||||||||
Model | Unit | 12000btu | 18000btu | 24000btu | ||||||
DGWG2-ACDC-12K | DGWGV-ACDC-18K | DGWGV-ACDC-24K | ||||||||
Climate Type | Tropical | T3/T1 | ||||||||
Application area | m2 | 12-20 | 20-30 | 30-42 | ||||||
Power Supply | AC Power | Ph-V-Hz | 1Ph 208V-240V/50-60HZ | |||||||
DC Power (PV in Series) | V | 80-380V | ||||||||
DC Power Current | A | |||||||||
Adviced Solar Panel | Pcs | (3-4)*330W in series | (3-6)*330W in series | (3-8)*330W in series | ||||||
Rated Cooling | Capacity(T1) | W | 3510(900-3900) | 5070(1200-6000) | 6450(1800-7900) | |||||
Power input(T1) | BUT | 12000(3000-13300) | 17300(4100-20400) | 22000(6100-27000) | ||||||
Power input(T1) | W | 940(190-1270) | 1400(220-2100) | 1790(300-3200) | ||||||
Capacity(T3) | W | 2910 | 4290 | 5130 | ||||||
BTU | 9900 | 14700 | 17500 | |||||||
Power input(T3) | W | 1050 | 1630 | 1940 | ||||||
Rated Heating | Capacity | W | 4100(1000-4500) | 6100(1200-6800) | 7800(1800-9100) | |||||
BTU | 14000(3000-15300) | 20800(4100-23000) | 26600(6100-31000) | |||||||
Power input | W | 1170(190-1700) | 1770(220-2500) | 1770(300-3500) | ||||||
T1 EER (W/W)/ (BTU/W) | / | 3.75/12.75 | 3.60/12.35 | 3.60/12.30 | ||||||
T3 EER (W/W)/ (BTU/W) | / | 2.75/9.45 | 2.65/9.00 | |||||||
COP (W/W)/ (BTU/W) | / | 3.50/11.95 | 3.45/11.75 | 3.45/11.75 | ||||||
Dehumidification capacity | L/h | 1.3 | 1.7 | 2.5 | ||||||
Compressor | Model | / | WHP04200 | WHP05600 | 5RD198 | |||||
Model | / | 2xRotary Inverter | ||||||||
Model | / | Highly | Panasonic | |||||||
Indoor fan motor | Model | / | BLDC-15W | BLDC-45W | ||||||
Speed(Turbo/Hi/Mi/Lo) | r/min | 1300/1200/1100/950 | 1050/950/850/750 | 1350/1250/1150/1000 | ||||||
Indoor air flow(Turbo/Hi/Mi/Lo) | m3/h | 540/485/435/350 | 540/485/435/350 | 1290/1180/1070/900 | ||||||
Indoor noise level (Turbo) | m3/h | ≤42.5 | ≤46 | ≤50 | ||||||
Indoor unit | Dimension(W×H×D) | mm | 840×205×295 | 1080×330×237 | ||||||
Packing (W×H×D) | mm | 920×290×360 | 1140×300×382 | |||||||
Net weight/Gross weight | Kg | 9.0/12.5 | 15.0/18.5 | |||||||
Outdoor fan motor | Model | / | BLDC-40W | BLDC-55W | BLDC-75W | |||||
Speed | r/min | 880 | 850 | |||||||
Outdoor air flow | m3/h | 2100 | 2200 | 3500 | ||||||
Outdoor noise level | dB(A) | ≤52 | ≤55 | ≤58 | ||||||
Outdoor unit | Dimension(W×H×D) | mm | 802×564×32 | 802×564×323 | 910×622×405 | |||||
Packing (W×H×D) | mm | 910×622×405 | 910×622×405 | 1006×755×418 | ||||||
Net/Gross weight | Kg | 33.5/37.5 | 37/42.0 | 50/54.5 | ||||||
Refrigerant type | / | R410A | ||||||||
Max Design pressure | MPa | 4.3/1.5 | ||||||||
Refrigerant copper pipe | Gas side/Liquid side (inch) | inch | 3/8 1/4 | 1/2 1/4 | ||||||
Max. refrigerant pipe length | m | 15 | 20 | 25 | ||||||
Max. difference in level | m | 8 | 10 | |||||||
Drain pipe size | mm | 16 | ||||||||
Refrigerant connction copper pipe length | m | 3 | 4 | |||||||
Connection wire length | m | 4 | 5 | |||||||
Electronic Expansion Valve | / | Yes | ||||||||
Loading QTY 40" Hq/ 20"GP | Sets | 200/85 | 160/75 | 115/50 | ||||||
Product details
Company introduction
Ningbo Deye Inverter Technology Co., Ltd Ningbo Deye Inverter Technology Co., Ltd is dedicated to providing complete photovoltaic power system solutions, including residential and commercial power plants solutions. Also, Deye offers the right device for each application: for all module types, for grid-connection and stand-alone grids as well hybrid inverter system, for small house systems and commercial systems in the Megawatt range. Among them, PV grid-connected inverter power range from 1.5-110kW, Hybrid inverter 3kW-12kW, and microinverter 300W-2000W.
Internal details

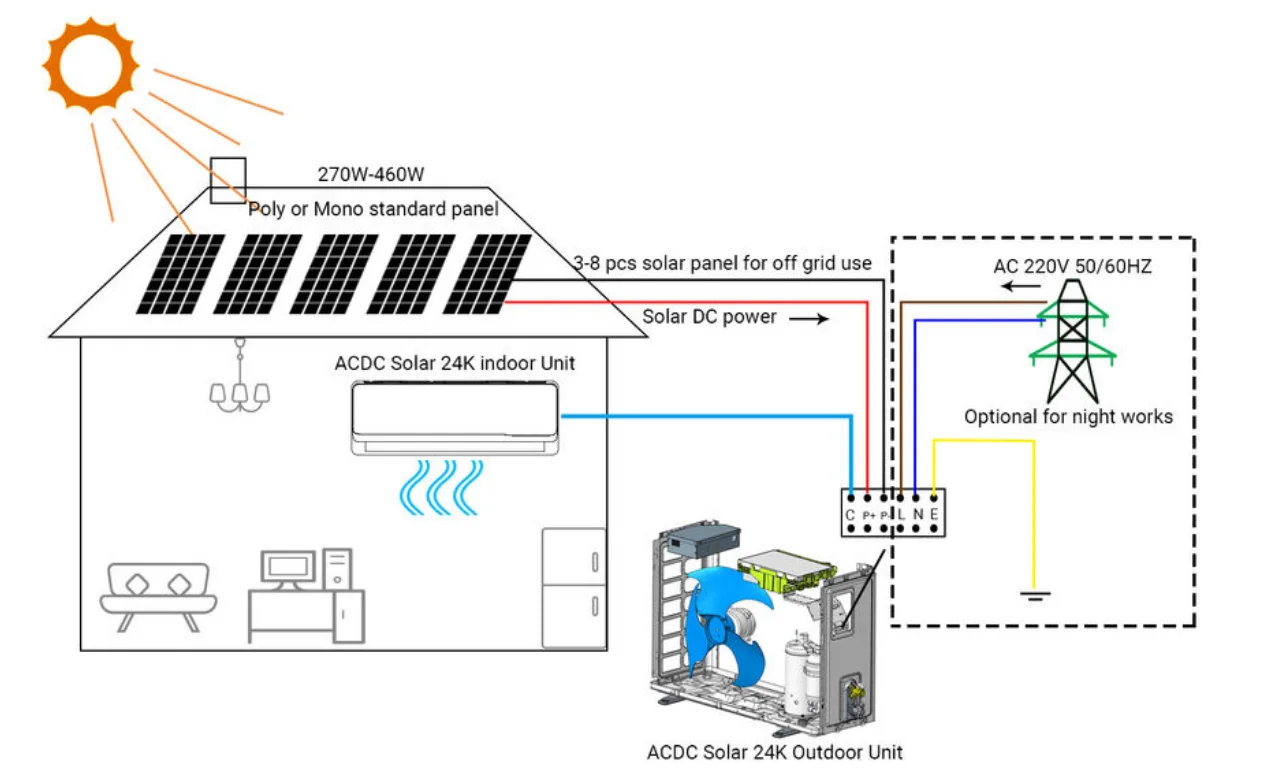

Hybrid ACDC solar air conditioner easy installation only add solar panel with plug and play MC4 connection. Without solar technology can do installation with instructions.
1. MC4 connect to solar panel Power cable connect to Grid Indoor and outdoor unit connection
2.PCB controller integrated No need solar inverter No need battery\\
3.PCB and controller designed and produced by Deye.Hardware and soft ware both can be upgrade based on different market standard

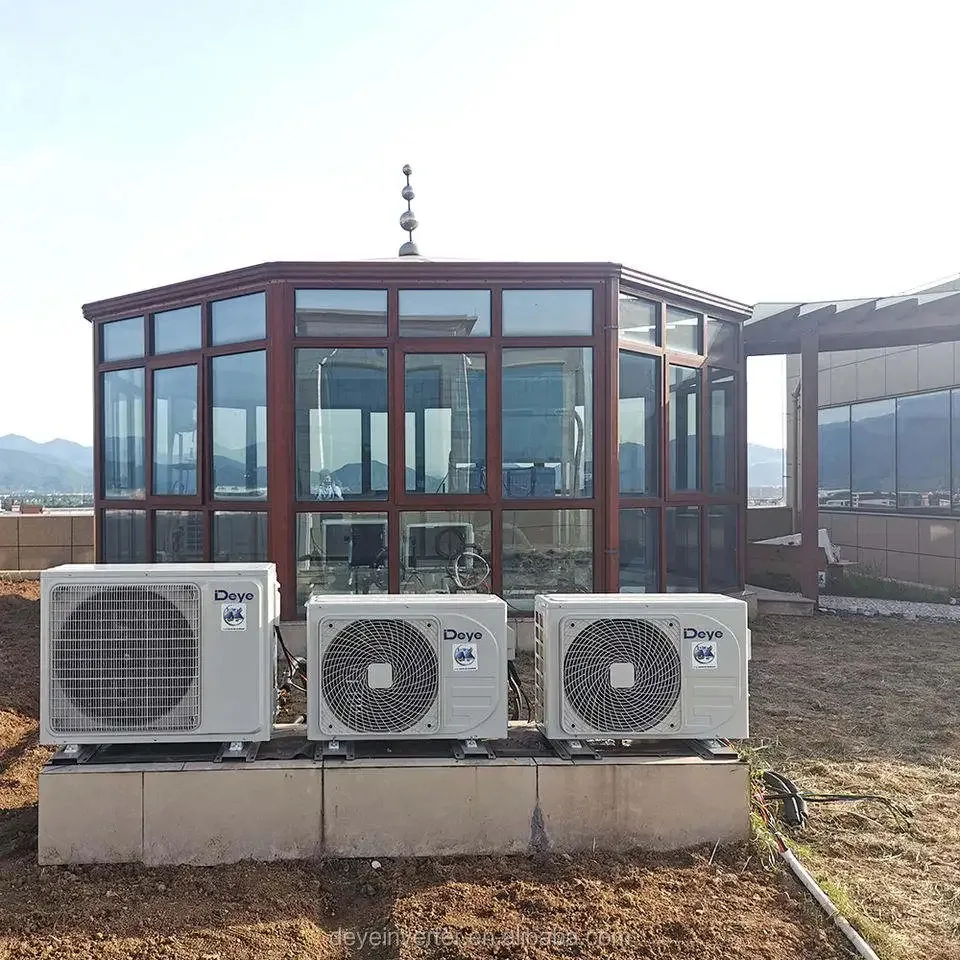

Project
