Экономичная Цена 4*4 ЧПУ маршрутизатор 1212 машина для резьбы по дереву
- Категория: Деревообрабатывающее оборудование >>>
- Поставщик: Jinan,Blue,Elephant,Cnc,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 2380.45 $* | 2499.98 $* |
| Aug-19-2025 | 2360.21 $* | 2478.36 $* |
| Jul-19-2025 | 1980.27 $* | 2079.55 $* |
| Jun-19-2025 | 2320.27 $* | 2436.33 $* |
| May-19-2025 | 2020.88 $* | 2121.31 $* |
| Apr-19-2025 | 2280.82 $* | 2394.13 $* |
| Mar-19-2025 | 2260.77 $* | 2373.76 $* |
| Feb-19-2025 | 2240.87 $* | 2352.91 $* |
| Jan-19-2025 | 2220.94 $* | 2331.49 $* |
Характеристики
Product Show
Product Features

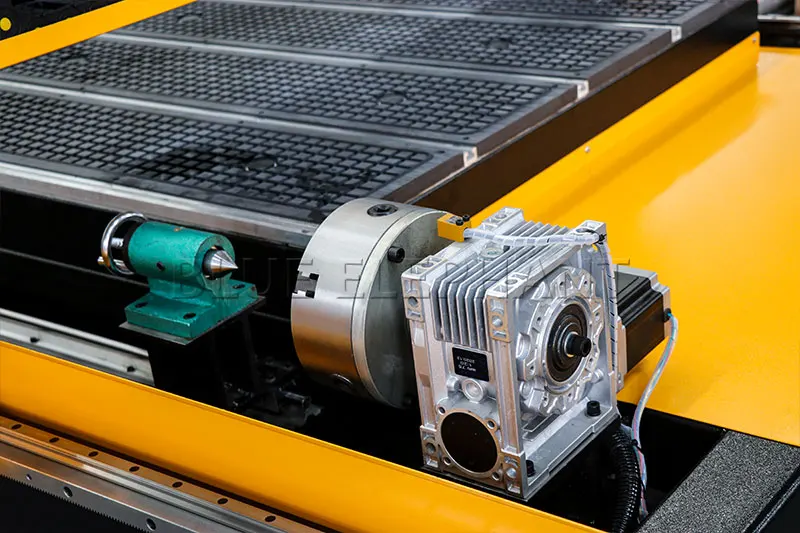

This rotary axis CNC machine is also one of 4 axis CNC router. And the rotary device, as the fourth axis of the CNC router, it can replace the X axis or Y axis for column processing, such as chair frames, stair frames, roman columns, columns, etc.
Product Details
Technical Parameters
Description | Parameter |

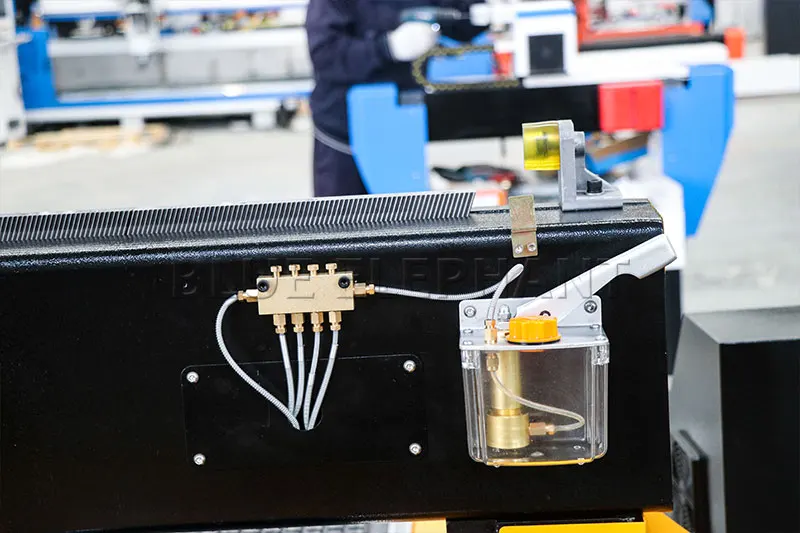

Lubrication system | Manual Lubrication system |
X,Y,Z Working Area | 1200*1200*200mm |
Structure | New type thicker and bigger heavy duty welded frame and gantry |
Working voltage | 220V, 3Ph, 60Hz (optional: 380V) |
Table Surface | Vacuum and T-slot table |
Spindle | 3.5KW HQD air cooling spindle |
Spindle speed | 0-18000rpm |

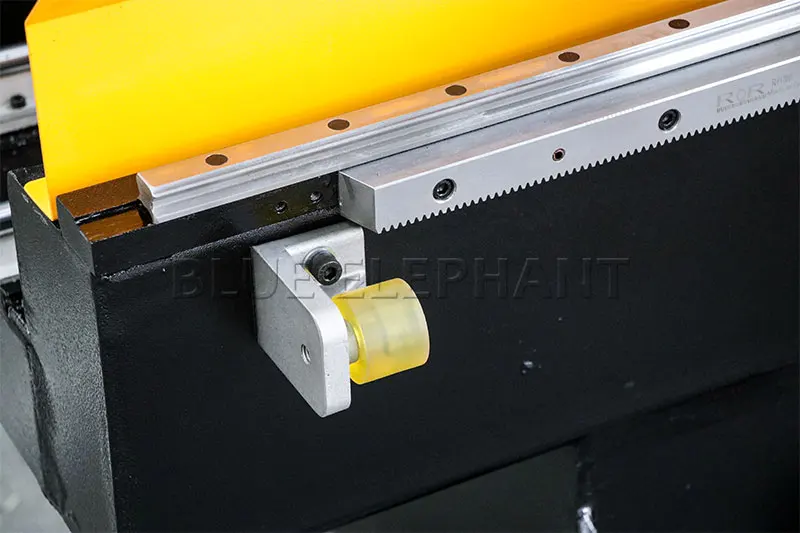

X, Y Structure | Taiwan PMI #20 linear square guide way and helical rack |
Z Structure | Taiwan TBI Ball screw and Taiwan PMI #20 linear square guide way |
Motor and driver | FL118 stepper motor Leadshine 860H driver |
Inverter | 3.7 kw Fuling inverter |
Control System | Mach 3 control system with USB port |
Vacuum pump | 5.5kw water circulation vacuum pump |
Software Compatibility | Artcam Software |
Tool sensor | Manual tool sensor calibration |
Applied Industries
Applied Materials
Quality control
Related Video
Service Process
Company Information
Jinan blue elephant is in the manufacture of automated CNC Router machine, CNC laser machine and other CNC equipments. Our main products include: ATC CNC router, 4 axis CNC router, 5 axis CNC, customized furniture production line, CNC nesting machine, metal laser cutting machine, CNC five-sided drilling, six-sided drilling, CNC machining center, automatic drilling machine, foam/eps cnc machine, plasma cutter, laser cnc, stone cnc etc .
