Цифровой активный инфракрасный фотоэлектрический лучевой сигнализатор с одним инфракрасным
- Категория: Другие товары для обеспечения безопасности >>>
- Поставщик: Shenzhen,Home,Warning,Security,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 4.66 $* | 4.59 $* |
| Jul-18-2025 | 3.7 $* | 3.96 $* |
| Jun-18-2025 | 4.48 $* | 4.49 $* |
| May-18-2025 | 4.13 $* | 4.83 $* |
| Apr-18-2025 | 3.39 $* | 3.32 $* |
| Mar-18-2025 | 4.27 $* | 4.10 $* |
| Feb-18-2025 | 4.32 $* | 4.78 $* |
| Jan-18-2025 | 4.84 $* | 4.52 $* |
Характеристики
Product Description

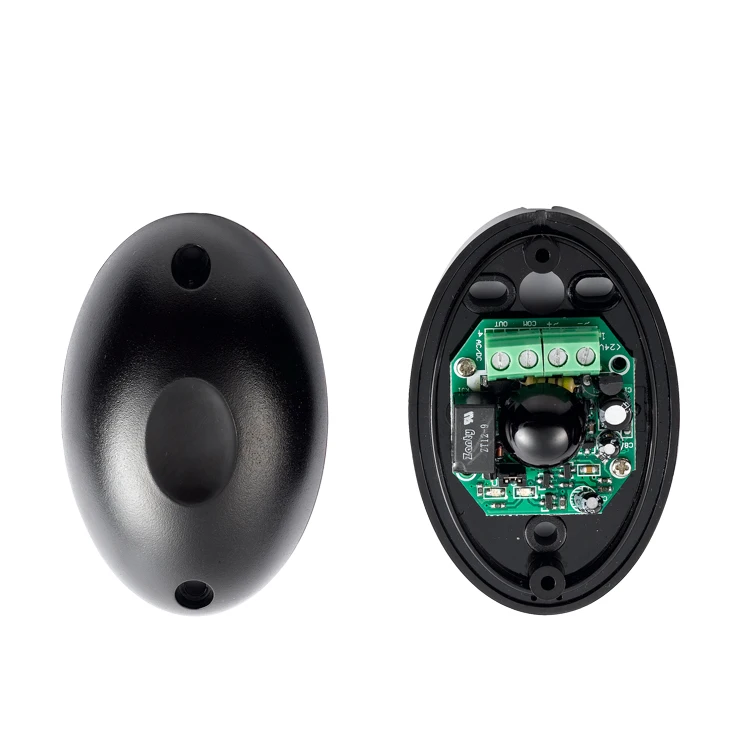

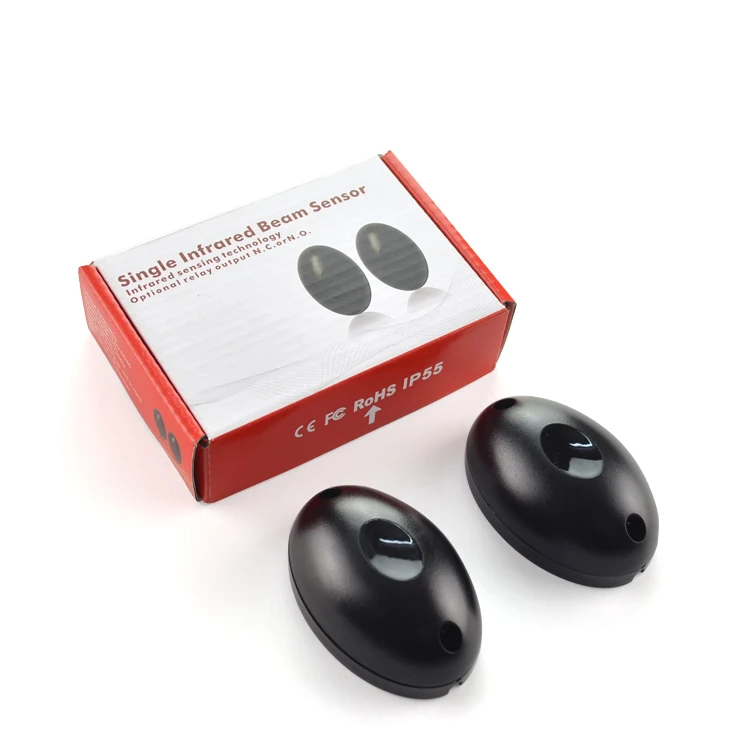

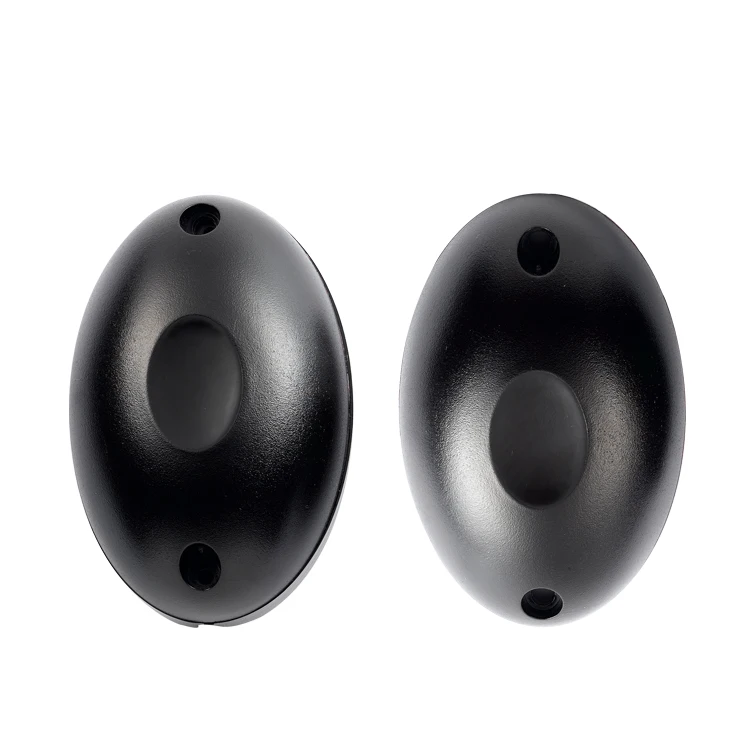

Digital Active Infrared Photoelectric Beam Alarm Single Infrared Beam Detector
1. Passed CE,FCC,ROHS,IP55 certification
2. With rain proof design
3. Unique digital filter circuit design,strong anti false alarm ability
4. With high levels of anti-RFI/EMI capability
5. Fully sealed design,rain-proof(fog),dust-proof(worm),suitable for hostile environment
6. The product is suitable for access control system,home intruder alarm system. Installation place:door,window,passage,barriers and so on.
7. 12-24V wide voltage design,can be used with kinds of alarm panel and access control system.
8. Detecting distance 20m
| Specification for Digital Single Beam Infrared Detector | |
| Model | ABO-20L |
| Working voltage | DC 12 - 24V |
| Working current | R - 15mA ; T - 30mA |
| Installation | Outdoor/Indoor |
| Usage | Alarm/Access Control System |
| Certificate | CE certificated |
| Detecting distance | 20m |
| Frequency | 1.92KHz |
| Wave length | 940nm |
| Working temperature | -25℃~+55℃ |
| Alarm Output | NC NO; 1A/36V Max |
| Waterproof grade | IP55 |
| Dimension | 49.2*75.3*29.6mm |
Products
Hot sale
Company Show
Packaging & Shipping
| Packing Details for Digital Single Beam Infrared Detector | |
| PACKING | Neutral color box or customer's packing |
| PCS/CARTON | 200PCS |
| GW/CARTON | 24.0KG |
| CARTON SIZE | 49.5*48*36 cm |
Our Services
1.Your inquiry related to our products or prices will be replied in 24hours.
2.Well-trained and experienced staffs to answer all your questions.
3.If there is defect products,we promise to provide spare ones together with your next order.
4.OEM&ODM is available.
