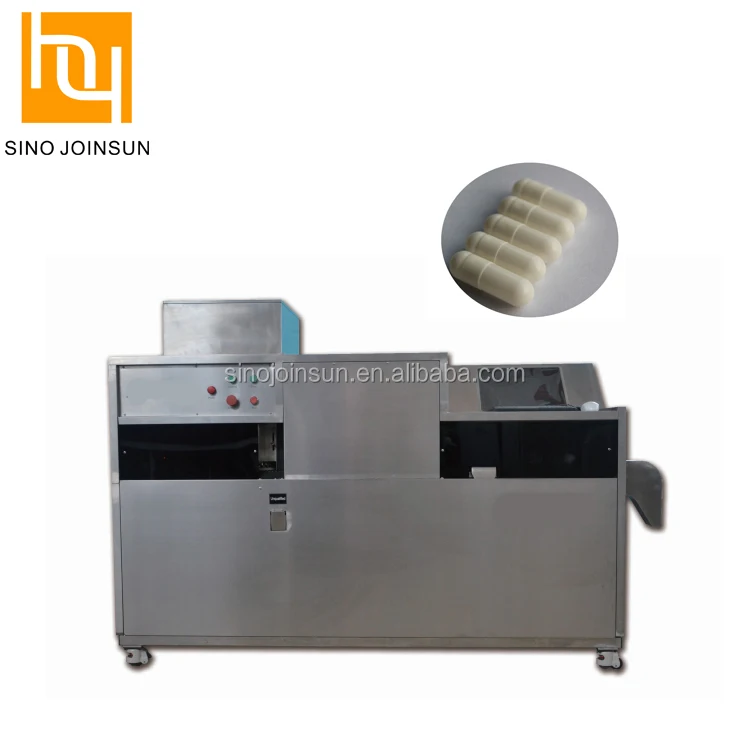

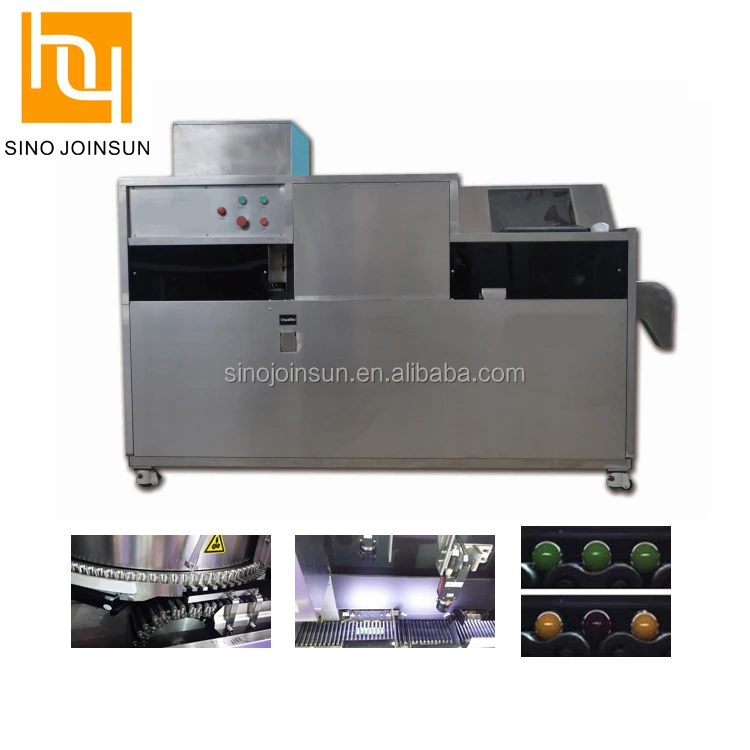

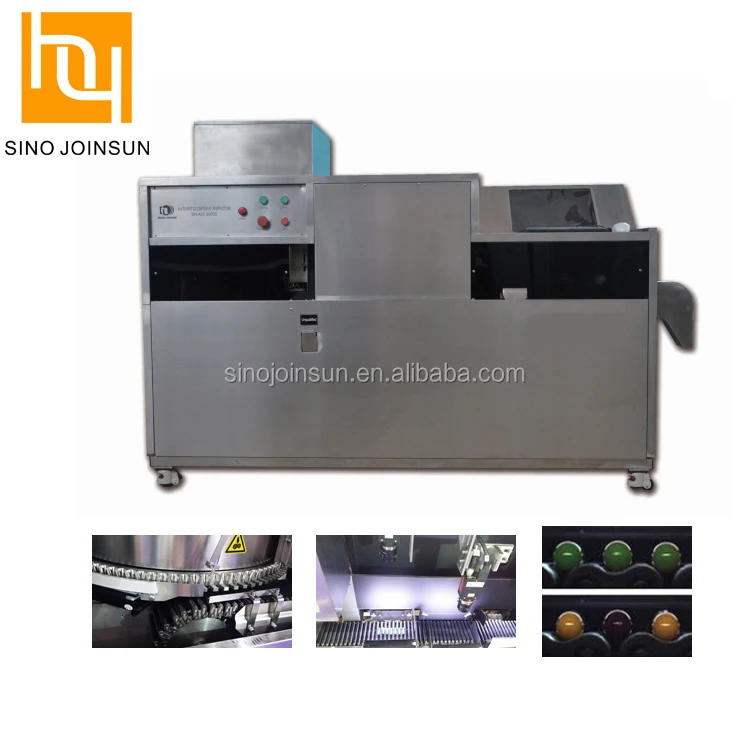

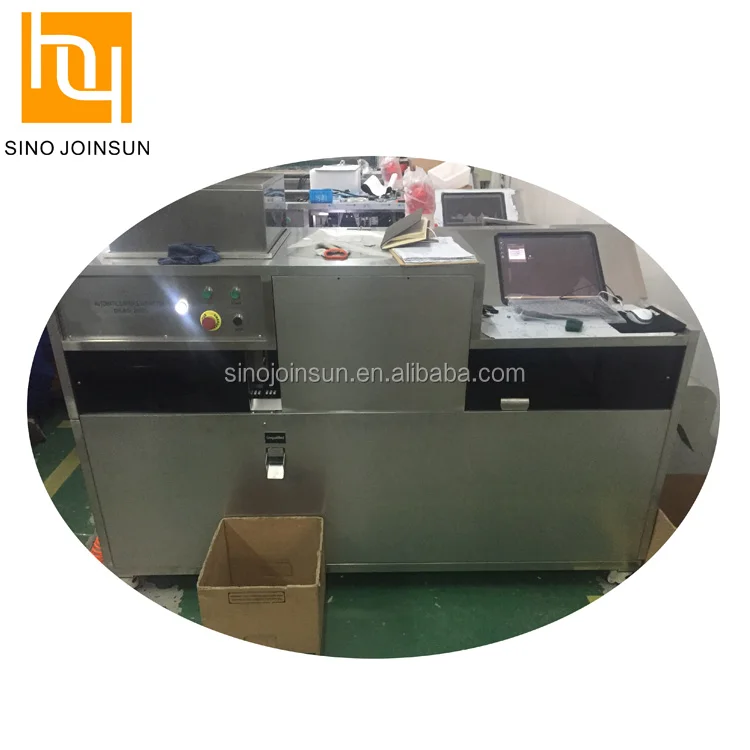

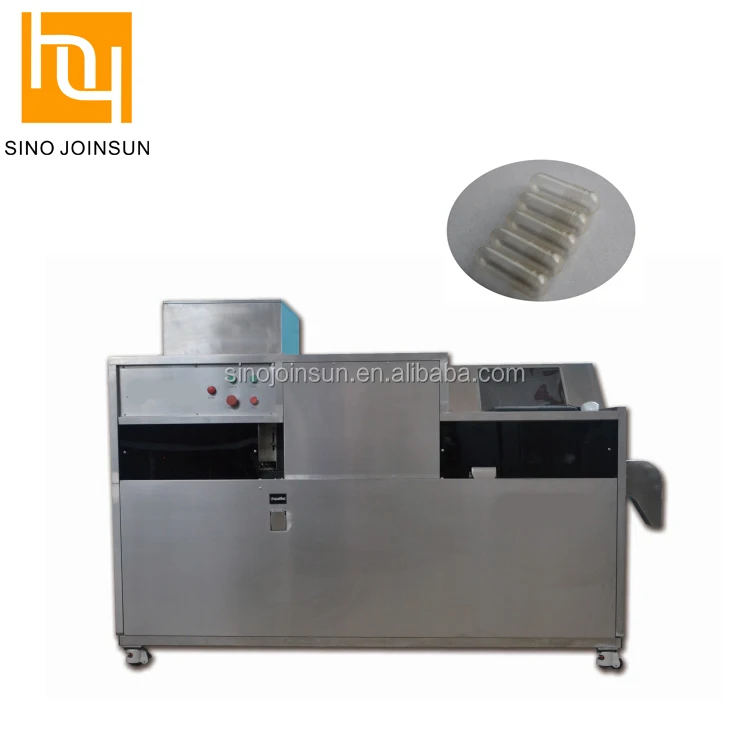

smart capsule inspection machine for transparent capsule and opaque capsules
Product Description
Pharmaceutical capsule inspection machine
This is one of the most advanced automatic capsule inspection machine in China.
It can detects and sorting almost of all kinds capsule appearance defects according to your quality requirement.
It can help to control your capsule quality efficiently, and can also help to save the labour cost.
Function:
This inspector can inspect and sort different kinds of defects capsule, Such as olid hole, scrape hole, uncut, splites, short body, closed capsule, thin spots, long cap, long boday, short cap, short cap, ,double dip, Telescoped, cracked, trims, mashed, double caps, bad join, major collet pinches, major rough cut, major punched end, foreign capsules, critical strings and so on.
Working principle:
It adopts principle of machine vision detection and image processing technology to Realize the detection function
Feature:
1 Full automatic, do not need the operater to watch it all the time .
2, with 360 degree total inspect of teh appearnce, no fade zoon.
3,It working in high Efficiently and accurately , it can inspect all the detects and which match the industrial standard.(If checked by manpower, the workers is easy to get fatigue, and make the quality is not stable.)

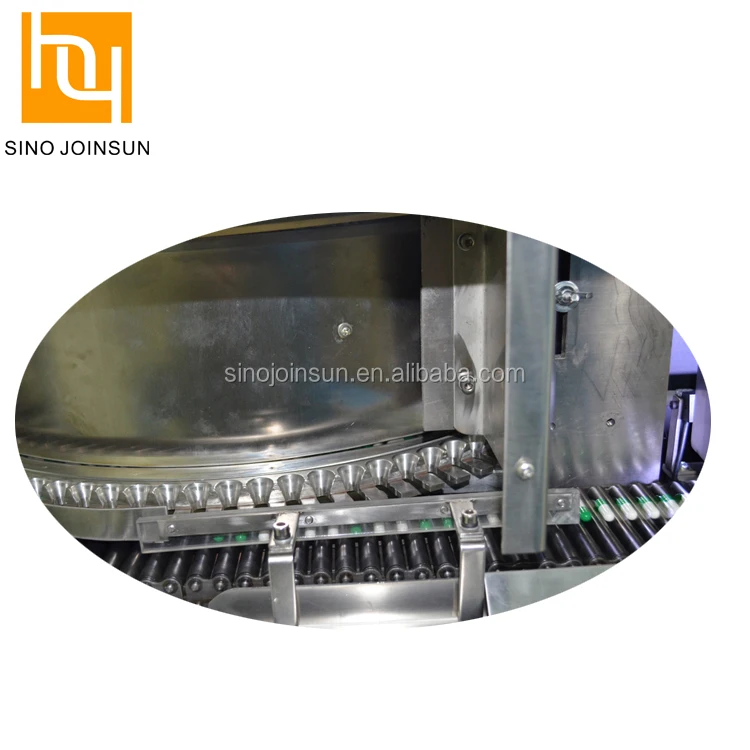

4,The machine is adopting rotary feeding which make it with high casting rate.
5,With strong software function, it 's easy to creat temples for different products according to your quality standard.
6,It can display the inspect result, images and running state real-time, and store the data automatically. It's help for qulaity management.
7, This capsule inspector is easy to operation and maintenance and with stable working.
Technical parameters
Test parameters | |
applicable product | Empty gelatin capsule & empty vegetable capsules (Opaque and transparent, translucent)
|
The specification | 00#, 0#, 1#, 2#, 3#, 4#, 5#
|
Defects test items | Hole, chip, crack, gap, short body/long body, flat shell, splitting, trimming, single section, wrinkled, lock, double cap, concave, thin point, short cap/long cap, bubble, dark spot , top star, scratches, fold, cut wire, etc |
Precision | 0.05mm
|
Maxmium inspection speed | 100000pcs/hour
|
Equipment parameters | |
Dimensions | 1920(L)×720(W) ×1200(H)mm
|
weight | 220Kg |
Power | 1.5KW
|
electric power supply | AC380V 3Phase,50/60Hz
|
Supply air pressure | ≥0.5MPa |
Environmental parameters | |
environment temperature | 5℃~ 35 ℃(42℉~ 95 ℉) |
Environment humidity | 10% ~ 80% |
Packaging & Shipping
Our Services
Company Information
FAQ
1, does this machine can inspect the transparent capsules?
Yes, it can inspect the transpraent capsules.
2, how many sizes of capsule does one of this machine can inspect?
Usually for this machine is one machine for one size of capsule, but if need, it can inspect two near size capsules.
3, what's the service and support can you provide?
If you are interested in this machine, welcome to contact us !
