Новый стиль автоматические машины для выдувания бутылок поставщик


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 0.23 $* 0.3 $*
Aug-16-2025 0.20 $* 0.30 $*
Jul-16-2025 0.73 $* 0.39 $*
Jun-16-2025 0.76 $* 0.37 $*
May-16-2025 0.2 $* 0.82 $*
Apr-16-2025 0.57 $* 0.7 $*
Mar-16-2025 0.90 $* 0.78 $*
Feb-16-2025 0.14 $* 0.44 $*
Jan-16-2025 0.16 $* 0.48 $*

Характеристики

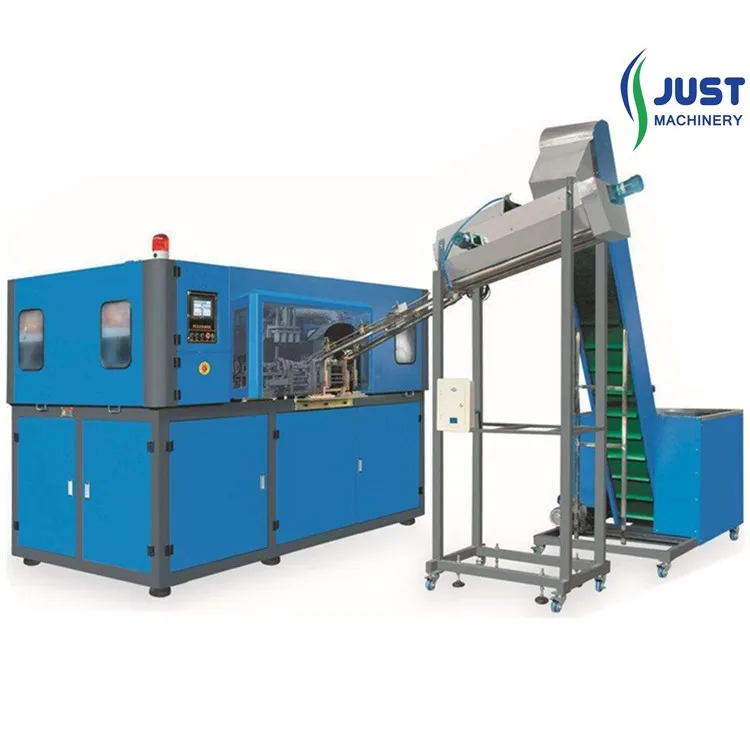

New Style automatic bottle blowing machines machinery supplier

New Style automatic bottle blowing machines machinery supplier

Features:

1.Utilization of automatic central lubrication.
2.Compact space design for convenience of mold-conversion, repairing, and maintenance.
3.Minimized transfer pitch for increasing heating efficiency and saving energy.
4.Swift exchange design for preform mandrels.
5.Optimized air flow in the oven for stable heating process.
6.Easy to adjust, exchange and access heating oven; Protection for preform thread against heating.
7.Intact rotating robot grip with linear guider for right access, rapid motion; reducing adjustment and maintenance time.
8.Electronic inspector for ejecting faulty preform and bottles.
9.Fast,safe,and accurate cam-controlled blowing wheel for providing the best bottles.
10.Precise control of blowing technique to produce less-weighted bottle.
11.Smart design for quick conversion of blow mold.
12.Through finite element analysis to optimize modular design for reducing machine wearing and moving inertia.
13.Operating machine through touch panel; program protected by code lock.

General information

BX-S6

BX-S4-A

BX-S4

Theoretical output(Pcs/hr)

5000-6000

3000-4000

3500-4000

Container volume(L)

0.6

2

0.65

Preform inner diameter(mm)

38

38

38

Max.bottle diameter(mm)

68

105

70

Max.bottke height(mm)

240

350

240

Cavity(Pc)

6

4

4

Main machine size(M)

4.05*2.2*2.3

3.6*2.1*2.3

3.05*1.95*2.25

Machine weight(T)

3.6

3.3

2.8

Feeding Machine dimension(M)

2.65*1.2*3.1

2.1*1.3*2.5

2.1*1.3*2.5

Feeding Machine weight(T)

0.4

0.25

0.25

Max.heating power(KW)

48

54

42

Installation power(KW)

50

56

45

Automatic PET bottle blowing machine flow chart:

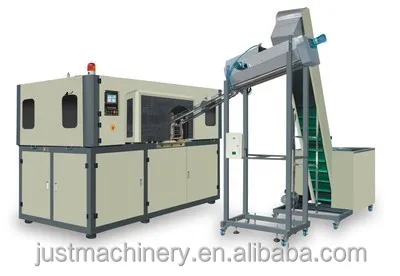

New Style automatic bottle blowing machines machinery supplier

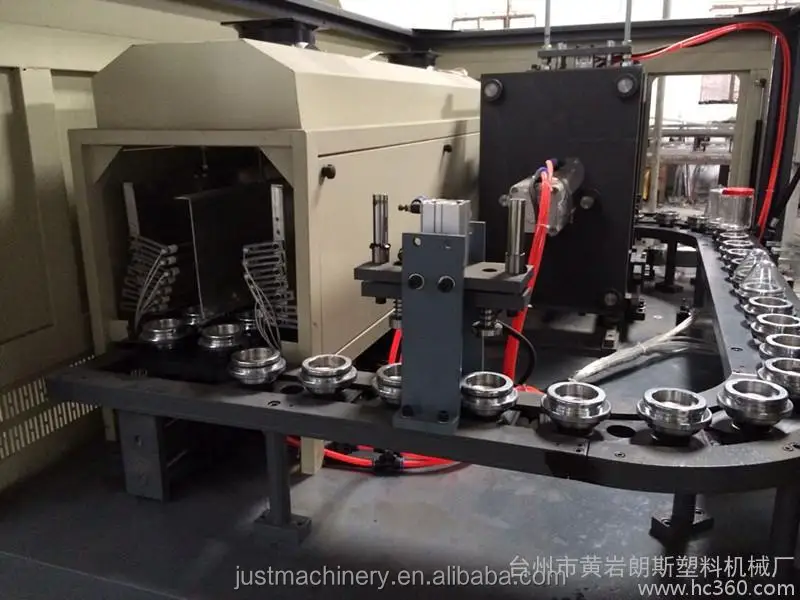

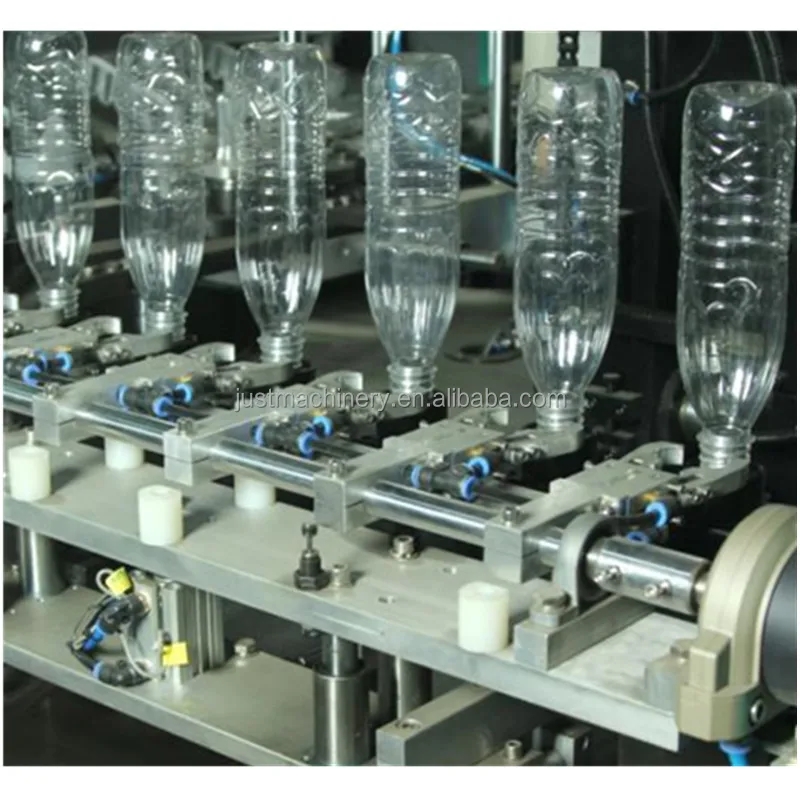

Blowing part

New Style automatic bottle blowing machines machinery supplier

New Style automatic bottle blowing machines machinery supplier

New Style automatic bottle blowing machines machinery supplier

Suitable bottle sample

New Style automatic bottle blowing machines machinery supplier

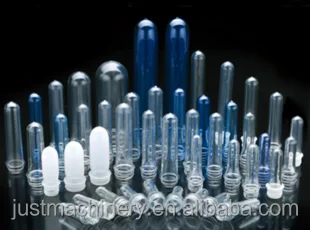

Bottle preform

New Style automatic bottle blowing machines machinery supplier

Company Information

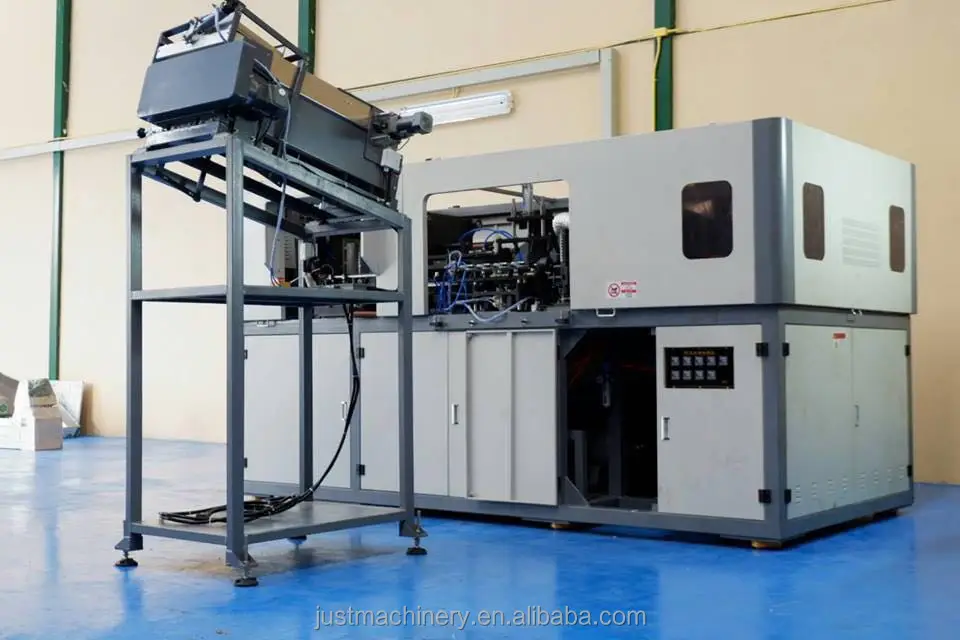

 Our WorkshopNew Style automatic bottle blowing machines machinery supplier

New Style automatic bottle blowing machines machinery supplier

New Style automatic bottle blowing machines machinery supplierNew Style automatic bottle blowing machines machinery supplier

Our Services

Proposal design and make budget

We are capable of providing specialized proposal design and make a general budget for you.

 Equipment production&commissioning

We will arrange the production for you as soon as the order confirmed, and make sure the quality of products, We have client cases in different countries , we can provide theirproduction working video for you .

Factory layout design

Machines and factory layout design is also available after the proposal confirmed.

Bottle shape design

We can also help to do the bottle shape design for you according to your needs.

Label Design

We can also help to design the label for you, and you can share with us your idea too.

Raw Material supply

We are capable of provide one-stop service, so the raw material supply is also available.

After-service

1, the guarantee of our machines is two years, life-long service, also we will supply spare parts along with the machines free of charge, the parts will be enough for at least 3 yearsfor the normal operation of machines.
2, we can train your engineers in our factory free of charge. IMeans you can send your engineers to our factory to study and training, we have rich experiences for the training, it is the good way to make sure that you can operate and maintain our machines successfully and for long time normal use.
3, we will supply you detail user manual for our machines, also we will make one Video CD to show you how to install and maintain the machines, it will help you to maintain the machines for the long time.
4,
We will send our engineers to your factory to install the machines and train your staff how to operate the machines., We have been doing the install jobs for our overseas customers for many years.

5.We will help to arrange the shipping of goods for you and keep you posted about the steps.

New Style automatic bottle blowing machines machinery supplier

FAQ

Q1: Are you manufacturer?

A1:Yes, welcome to visit us ! We can show you our machine running.

Q2: How long of your warranty?
A2: Regarding warranty, normally we offer 2 years warranty, and we offer lifetime maintenance.

Q3: Can you provide turnkey project service?
A3: Yes, of course, we can provide the full set of turnkey project service to you, from raw material, to equipments, installation nd training etc.

Q4. Do you accept OEM order?
A4: Yes, we have strong design team and technical team. Therefore we can also accept OEM and customized order with special requirements.

Q
5: What else need to be paid attention besides price?
A
5
: except for the price, we also need pay attention to quality, product construction, design principle, configuration of part list, reasonability, convenience of operation, professional, service and etc.
