Характеристики

Product Description

Automatic fish meal/power/oil making machine with CE approval
Total size	4m2m4.5m	Processing capacity	2000kg/day fresh fish
Process time	6times/24hours	Heating type	320#conduction oil,using tempreture is150-260°C
Total power	45.6kw	Shipping type	one 20 container
Recommend working area	20m2(4*5m),with height about 5m	Final products	400-500kg Defatted Fish MealMoisture≤12%

Description of Automatic fish meal/power/oil making machine with CE approval

Mini Integrated Fish Meal Machine is designed for small capacity fish meal plant like 500kg-5000kg per day. Machines could operate automatically and efficiently.By using conducting oil as thermal carrier, through the electric heating method, customers would save the investment of buying steam boiler which is usually needed for fish meal plant.
Our machines are very suitable for fish processing plant that would have fish offal like fish head, fish bone, fish skin, etc.
Besides, our machines are widely used in some islands, fishing piers when the fish capacity is not big.

Process of Automatic fish meal/power/oil making machine with CE approval

Raw material will be cooked by cooking machine first, and then it will be delivered to pressing machine where the liquid and solid will be separated.
The solid which we get from pressing machine will be sent to drying machine. After drying, we will get dry fish meal.
The liquid which we get from pressing machine will be sent to fish oil processing line. After processing, we will get fish oil.

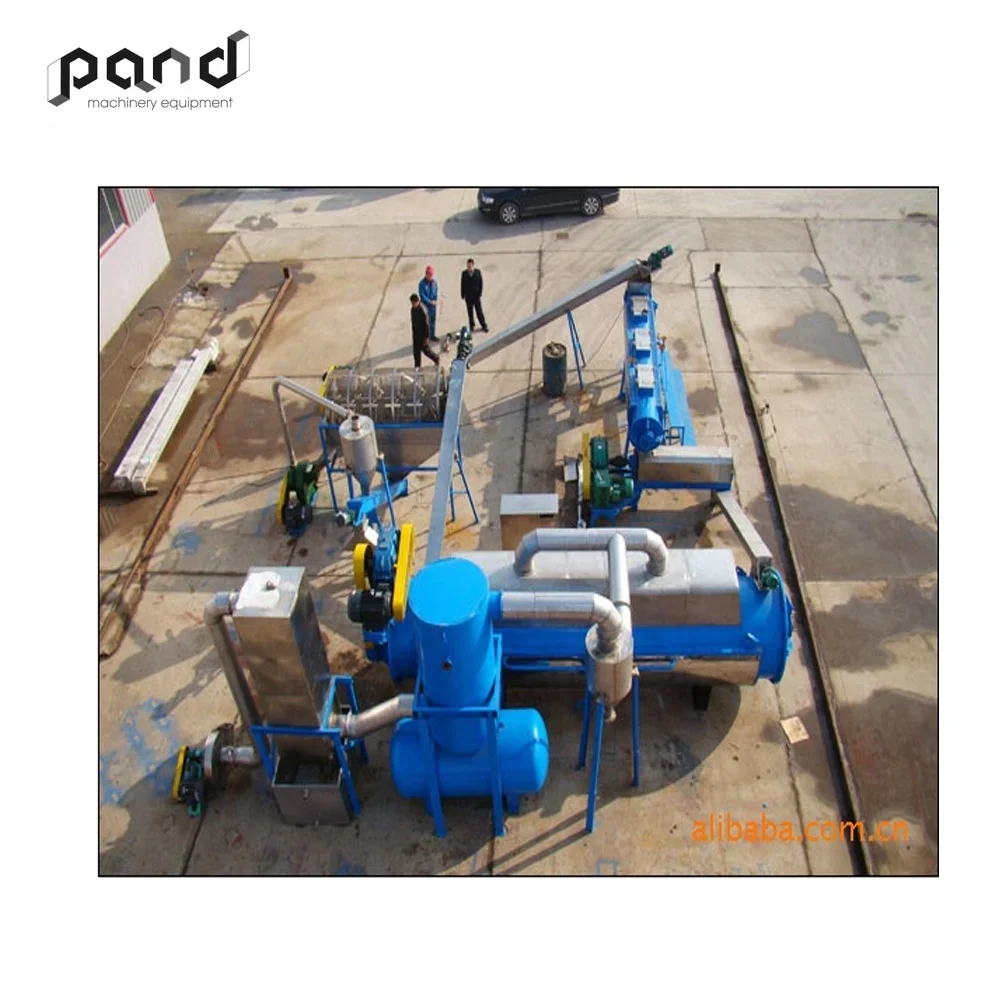

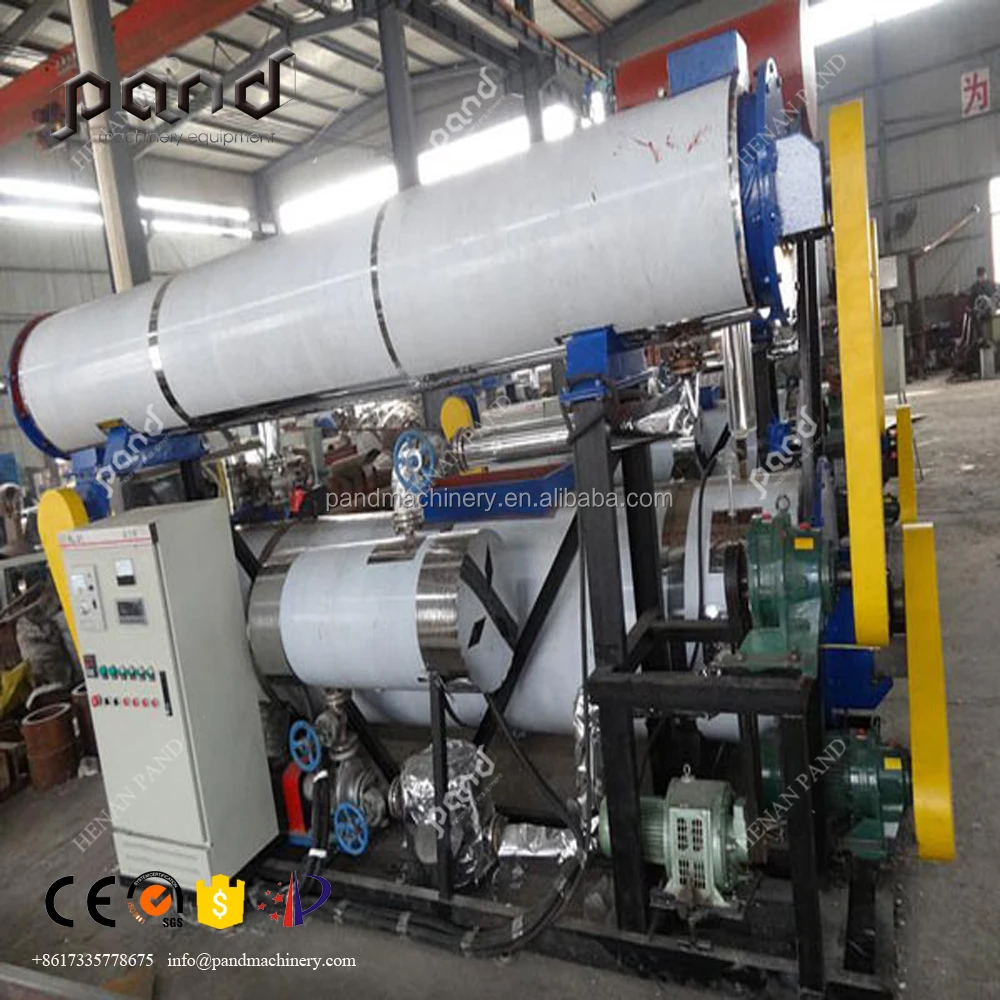

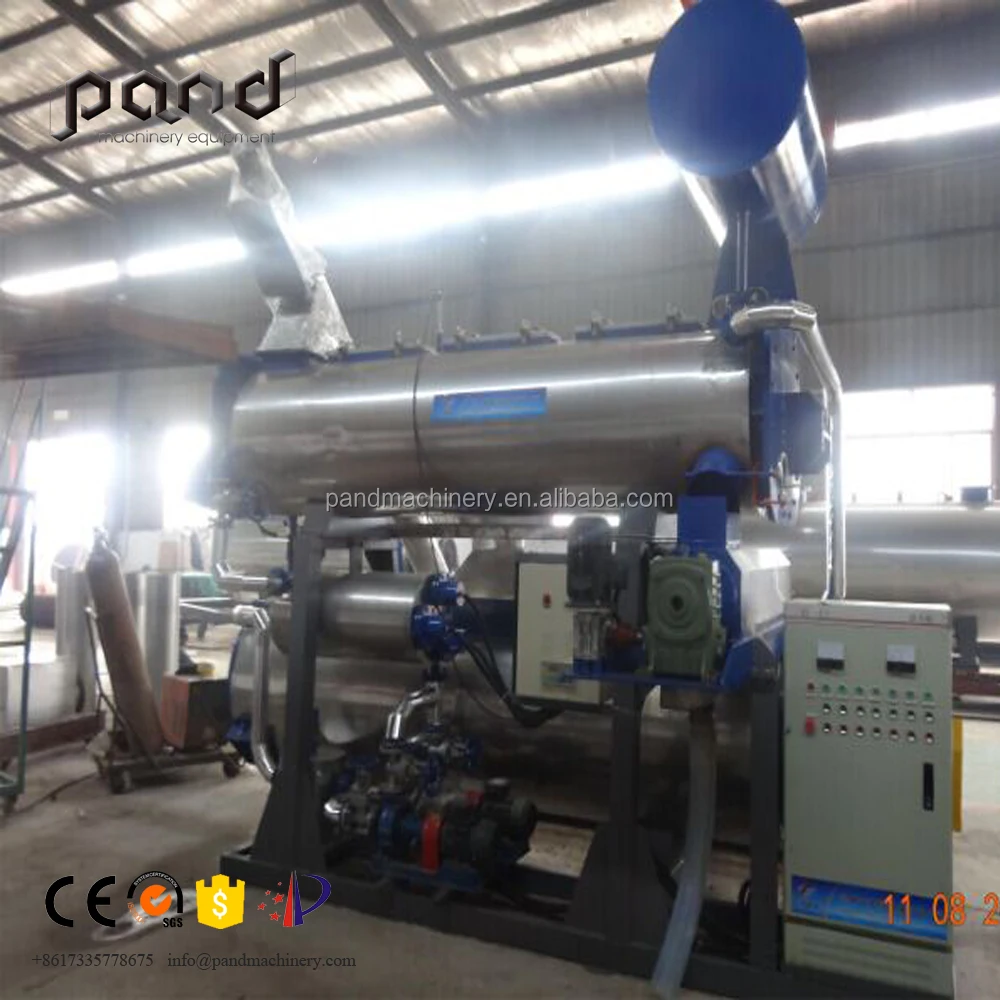

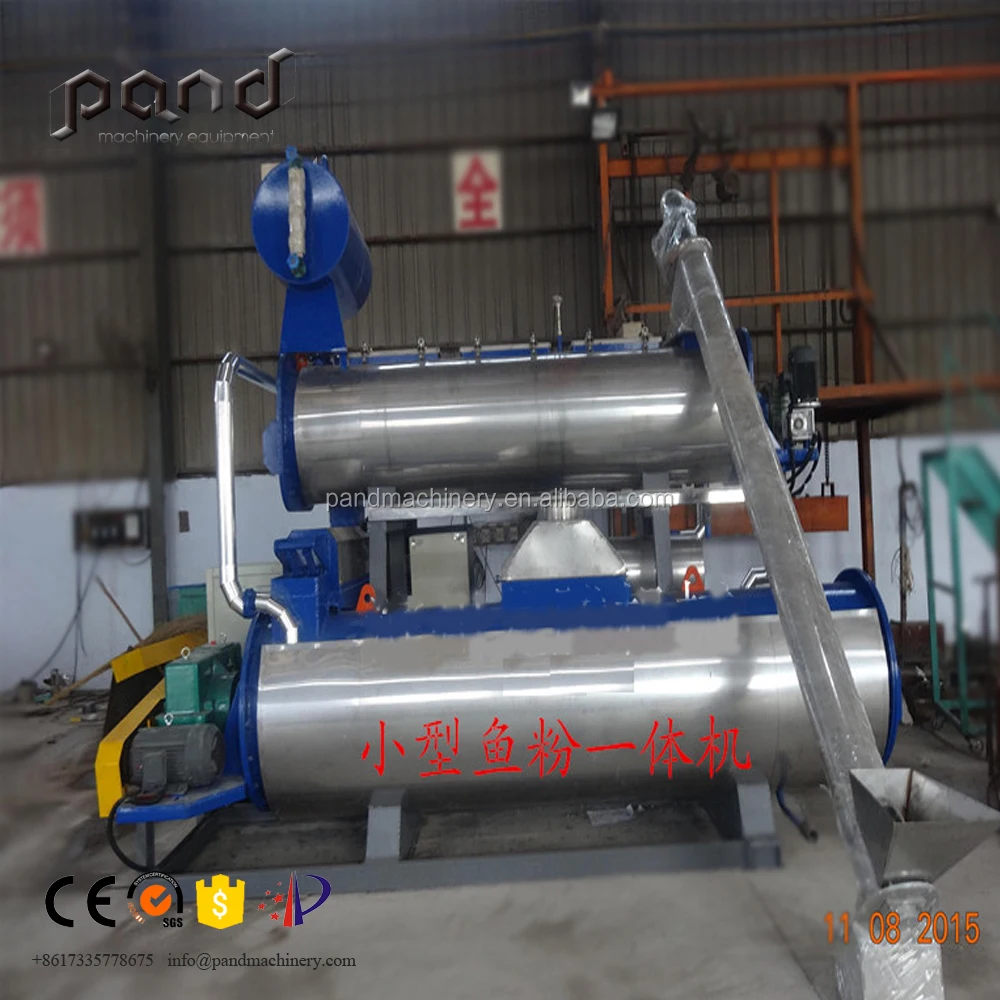

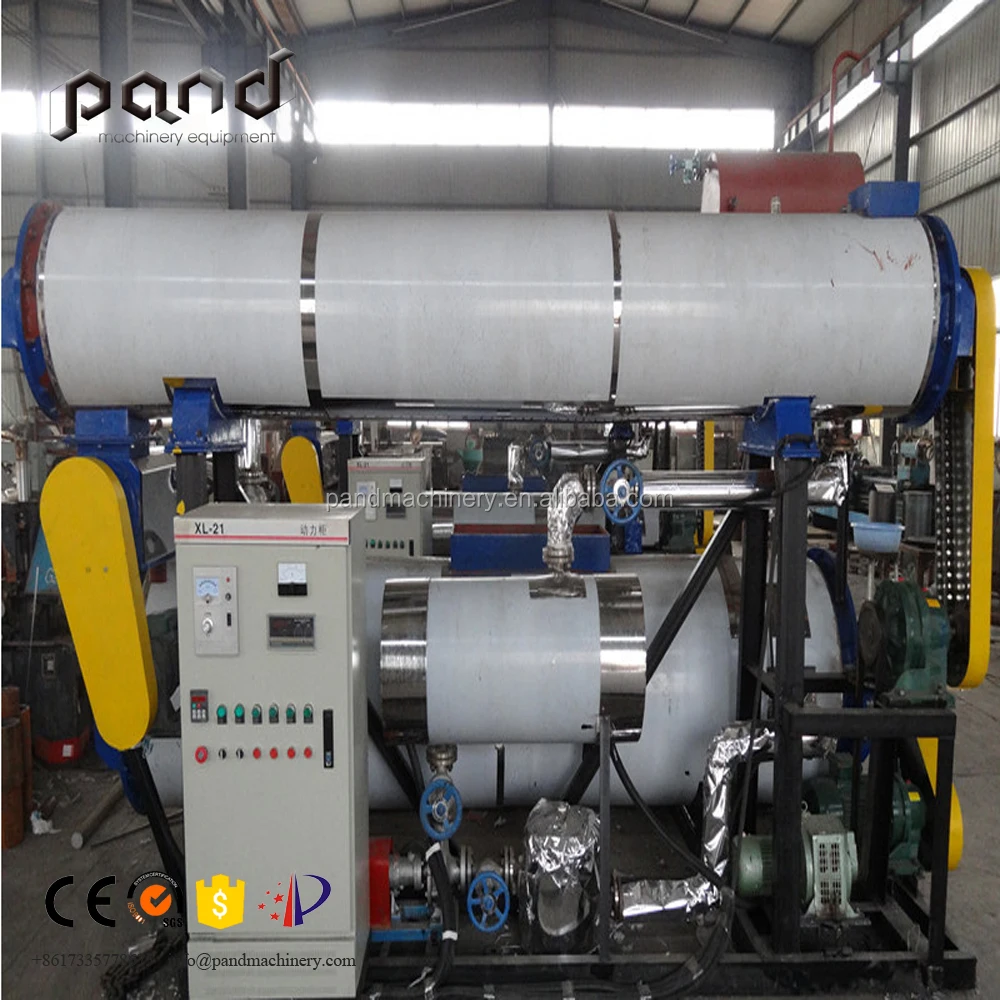

Detailed Images

Equipment list of Automatic fish meal/power/oil making machine with CE approval

1. Screw conveyor\tφ170×4000\tequipped with reducer 1 set, made of SUS304
2. Electrical cooker\tφ377×3500\t
material of outer heat preservation made of SUS430,thickness: 0.7mm;
inner and outer cylinder made of Q235B;
driving power: 1.5kw (speed adjusted by magnetization).
3. Screw press\tφ219×1000\t
outer cover made of SUS430,thickness 0.7mm;

seive mesh applied SUS304;
driving power: 1.5kw.
4. Dryer\tφ820×3500\t
inner and outer cylinder made of Q235B;
preservation made of SUS430, thickness 0.7mm;
driving power: 4kw, V=30r/min;
5. Thermal oil pump\t \tdriving power:1.5kw
6. Electric control box\t
