Полностью автоматический сепаратор костей рыбного
- Категория: >>>
- Поставщик: Shandong,Inchoi,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.52 $* | 0.76 $* |
| Aug-15-2025 | 0.47 $* | 0.36 $* |
| Jul-15-2025 | 0.92 $* | 0.55 $* |
| Jun-15-2025 | 0.51 $* | 0.82 $* |
| May-15-2025 | 0.92 $* | 0.65 $* |
| Apr-15-2025 | 0.1 $* | 0.43 $* |
| Mar-15-2025 | 0.11 $* | 0.23 $* |
| Feb-15-2025 | 0.80 $* | 0.96 $* |
| Jan-15-2025 | 0.79 $* | 0.58 $* |
Характеристики
Product Description
DESCRIPTION
1.Fish bone separator machine is suitable for separator fish meat from fish bone and fish skin ,also proper for crabs and shrimps.
2.Before picking fish meat, fresh fish must be removed its heads and viscera. Big fish need to be divided into sections, and small fish can be grind directly.
2.Before picking fish meat, fresh fish must be removed its heads and viscera. Big fish need to be divided into sections, and small fish can be grind directly.
3.Separate fish meat and fish bones by the principle of extrusion, which can separate fish meat from
fish bones, fish skin, and fish tendons in the fish body, so as to achieve the purpose of improving the utilization of raw
materials, saving labor costs, and improving economic value.
4.The fish meat produced by the fish meat separator can be used as food materials such as fish balls, fish paste, fish sauce, fish cakes, and fish dumplings and so on.
Remarks:
1. The smaller gap between the belt and drum, the cleaner the meat picking.
2. The fish meat separator cannot directly for frozen fish and must be unfreeze.
fish bones, fish skin, and fish tendons in the fish body, so as to achieve the purpose of improving the utilization of raw
materials, saving labor costs, and improving economic value.
4.The fish meat produced by the fish meat separator can be used as food materials such as fish balls, fish paste, fish sauce, fish cakes, and fish dumplings and so on.
Remarks:
1. The smaller gap between the belt and drum, the cleaner the meat picking.
2. The fish meat separator cannot directly for frozen fish and must be unfreeze.
Parameter and price
Fish meat bone separator technical parameters | ||||||||
Model | 150 | 200 | 300 | 350 | ||||
Material | SUS304 | |||||||
Capacity | 180kg/h | 280kg/h | 500kg/h | 1000kg/h | ||||
Voltage | 380v 50hz | |||||||
Power | 3kw/2.2kw | 3kw/2.2kw | 3kw | 4kw | ||||
Reduction gear ratio | 1:17 | |||||||
Reducer type number | Xw3-17 | |||||||
Belt thickness | 20mm | |||||||
Belt length | 1195mm | 1450mm | 1450mm | 1450mm | ||||
Belt width | 155mm | 205mm | 305mm | 355mm | ||||
Roller diameter | 159mm | 219mm | 219mm | 219mm | ||||
Roller thickness | 6mm | 8mm | 8mm | 8mm | ||||
Mesh diameter | 2.7mm(Others available) | |||||||
Weight | 180kg | 210kg | 360kg | 450kg | ||||
Size(mm) | 900*680*850 | 950*720*950 | 1050*750*970 | 1200*900*1100 | ||||

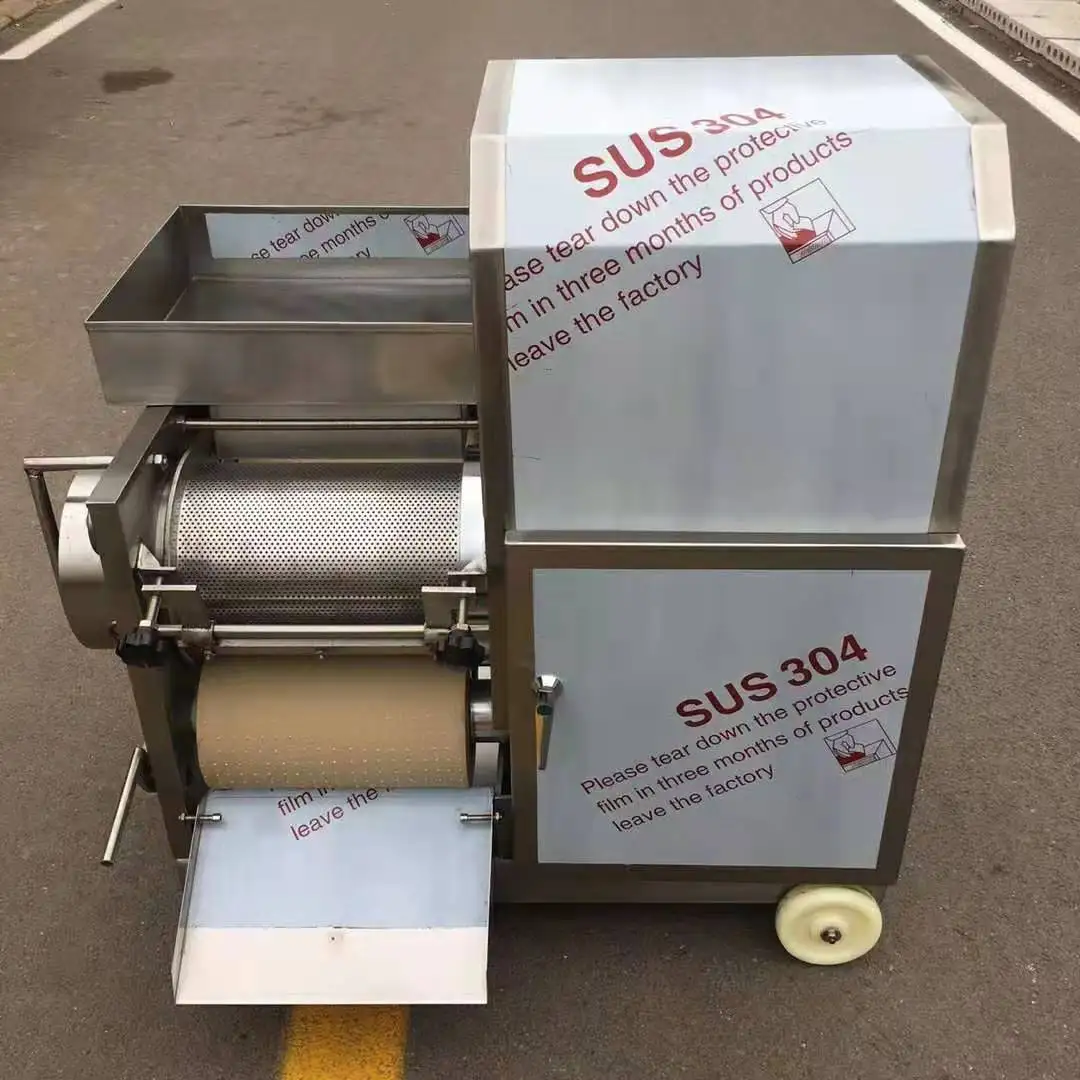

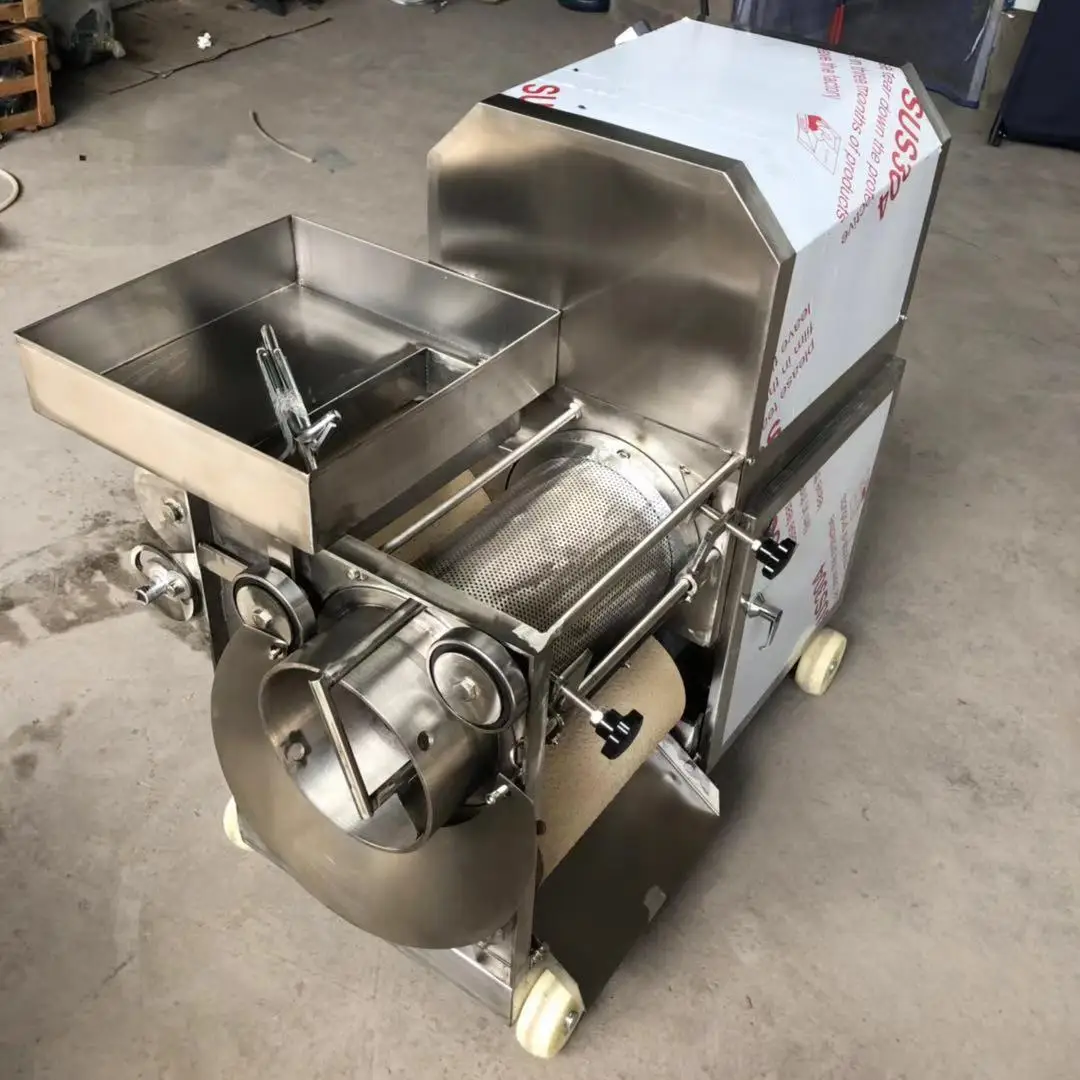

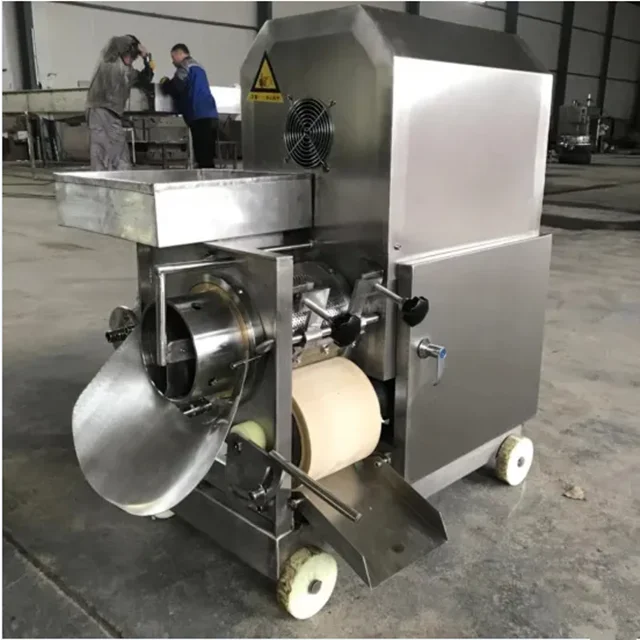

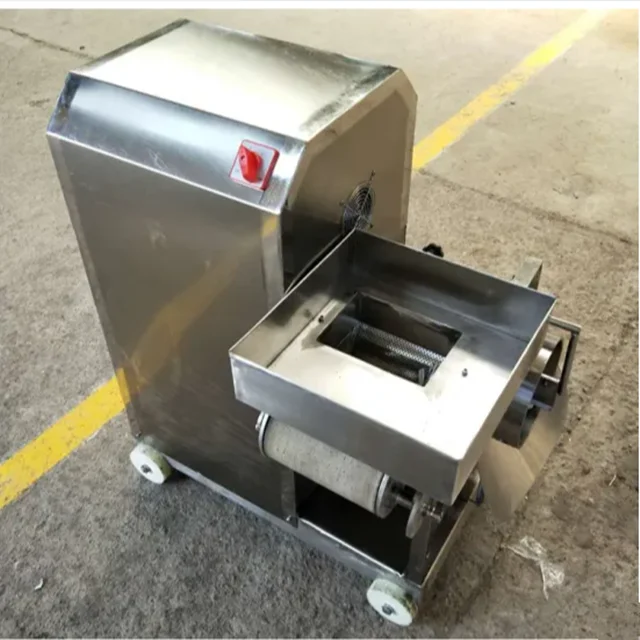

Machine details
Fish flesh machine is provided with a rubber strip mining pork barrel and press meat, use the scroll flesh barrel and a
transmission rubber belt press movement will squeeze each other fish flesh in the barrel, and the fishskin, fishbone in flesh of drum, take it out of the machine by a scraper.
transmission rubber belt press movement will squeeze each other fish flesh in the barrel, and the fishskin, fishbone in flesh of drum, take it out of the machine by a scraper.
Product Advantages
1, the drum scraper: used to separate out from a barrel of fish from the inner wall of the drum for scraping
2, flesh roller: used for collecting fish
3, automatic trimming device for automatic adjustment of flesh: pressure callback, gap reset function
4, a scraper fixed wheel: used for fixing the cylinder outer scraper
5, outside the roller scraper used for scraping: isolated bone and skin
6, flesh machine for conveying belt: fish and flesh machine drum forming vigorously squeeze fish separated
7, the gap adjusting handle: adjust the flesh machine belt and roller gap between meat production.
8, power line: 150 type, 200 type 220V, 380V can be used, more than 300 types need to use 380V
9, the power switch: used to control the start and stop of the machine
10,the belt tightness adjustment: used to adjust the flesh machine belt
3, automatic trimming device for automatic adjustment of flesh: pressure callback, gap reset function
4, a scraper fixed wheel: used for fixing the cylinder outer scraper
5, outside the roller scraper used for scraping: isolated bone and skin
6, flesh machine for conveying belt: fish and flesh machine drum forming vigorously squeeze fish separated
7, the gap adjusting handle: adjust the flesh machine belt and roller gap between meat production.
8, power line: 150 type, 200 type 220V, 380V can be used, more than 300 types need to use 380V
9, the power switch: used to control the start and stop of the machine
10,the belt tightness adjustment: used to adjust the flesh machine belt
