12-24 в красный зелёный синий светодиодный радиочастотный контроллер Сенсорная панель дистанционное управление СВЕТОДИОДНЫЙ цветной 3 года
- Категория: Dimmers >>>
- Поставщик: Shenzhen,Hoion,Lighting,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 11.55 $* | 11.24 $* |
| Jul-20-2025 | 9.0 $* | 9.59 $* |
| Jun-20-2025 | 11.62 $* | 11.99 $* |
| May-20-2025 | 11.55 $* | 11.91 $* |
| Apr-20-2025 | 9.30 $* | 9.48 $* |
| Mar-20-2025 | 11.73 $* | 11.96 $* |
| Feb-20-2025 | 11.4 $* | 11.33 $* |
| Jan-20-2025 | 11.28 $* | 11.20 $* |
Характеристики

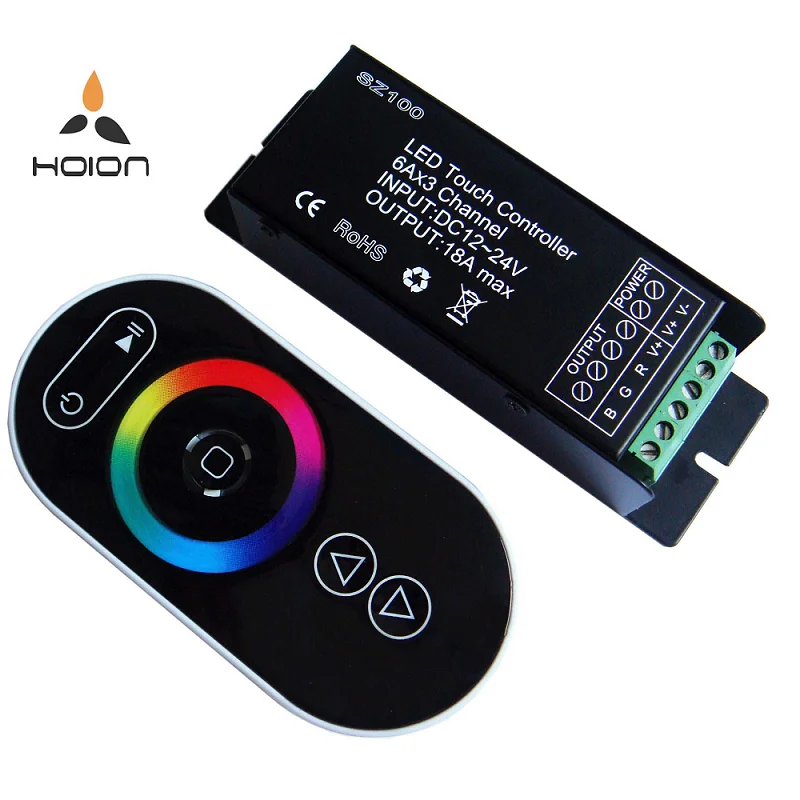

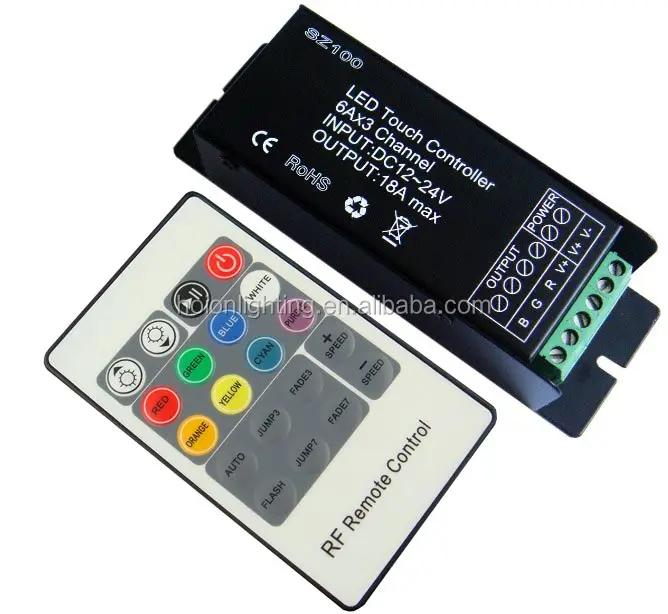

Original Manufacturer RF led sz100 rgb led touch controller 12v 24v 3*6A 3 years warranty CE RoHS
We are manufacturer and specialized in led control field from 2010 years.
Our main products include:
Constant voltage controllers for DIM/CCT/RGB/RGBW/RGBWW:
RGB controller Wireless RF controller IR remote controller LED dimmer,
RGB amplifier SPI controller LED Audio Controller DMX512 decoder
Constant current RF dimming driver for DIM/CCT:
RF 2.4G SYNC dimming driver (DIM) RF 2.4G SYNC dimming driver(CCT)
RF 2.4G remote control RF 2.4G multiple-zone remote control
Our advantage:
1.Stable quality---3 years warranty
2.Reliable cooperation based on ISO9001 quality control system and delivery time control.
3.Experienced on the OEM/ODM work.
Product Description
RF Touch Controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; it has many advantages such as touch remote control, easy connection and simplicity to use. Meanwhile, you can adjust brightness, static color choices and various dynamic changes in lighting effects through wireless touch remote control. And according to the actual need of customers, it can carry out jumpy changing, gradual changing, stroboflash and other effects of change.
Product Feature
l HX-SZ100-Touch is constant voltage, suit for all kinds of the constant voltage LED lamps.
l There is a RF remote touch control 5 functions, 1 color ring and 1 color sense lamp in the center, all buttons are in the touch form, the color ring have 128 levels in different colors.
l There is a sense light ring in the remote control’s center. It shows the color when different colors been touched, as the LED lamps is the same color.
l There are 9 modes in total, including 2 white static colors and 7 dynamic modes. The brightness of all static color and the speed of the dynamic modes are adjustable.
l In order to achieve the synchronization of more lamps, RGB Amplifier can be used.
l 3-year warranty
External Dimension
Technical Parameters
Working temperature | -20-60℃ |
Supply voltage | DC5V,12V~24V |
0utput | 3 channels |
Connecting mode | common anode |
External dimension | L127*W41*H32 (mm) |
Packing size | L147*W85*H73 (mm) |
Net weight | 280g |
Gross weight | 340g |
Output gray | 256 levels (RGB each) |
Output current | <6A(each channel) |
Output power | 12V:<216W, 24V:<432W |
Frequency of RF remote control | 433.9MHz |
Interface Specifications
Product Function
The function of each button as below:
Name of key | Instruction | Remarks |
ON/OFF | ON or OFF in any time |
|
Pause | Pause or Continue |
|
Mode | The mode will go to next, when you touch the key each time | 9 modes in total. |
Speed/Brightness + | The Speed/Brightness will add, when you touch the key each time | Speed for dynamic modes, Brightness for static modes. |
Speed/Brightness - | The Speed/Brightness will subtract, when you touch the key each time | Speed for dynamic modes, Brightness for static modes. |
Color Ring | Touch any color which you want |
|
9 modes as below:
No | Patterns | Remarks |
1 | Static worm white | Brightness is adjustable, speed is unadjustable |
2 | Static cool white | |
3 | White breath | Speed is adjustable, brightness is unadjustable |
4 | Seven-color jumpy changing | |
5 | Seven-color smooth | |
6 | Seven-color fade | |
7 | R/B cross fade | |
8 | B/G cross fade | |
9 | G/R cross fade |
Typical Applications
Product information for placing order
Product name | Item number |
RF Touch Controller | HX-SZ100-Touch |
Packaging & Shipping
Our Services
Company Information
