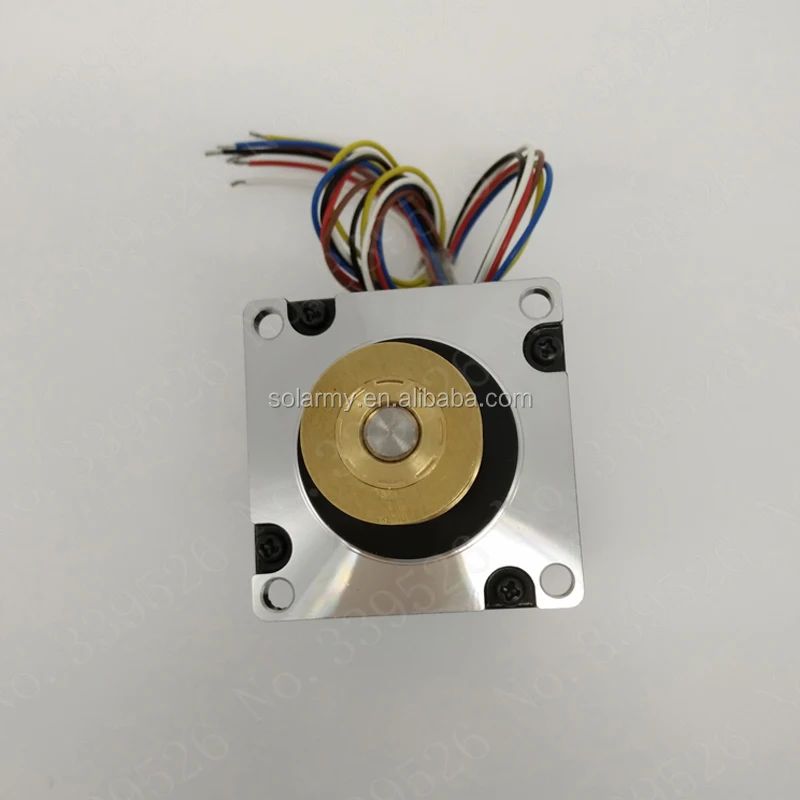

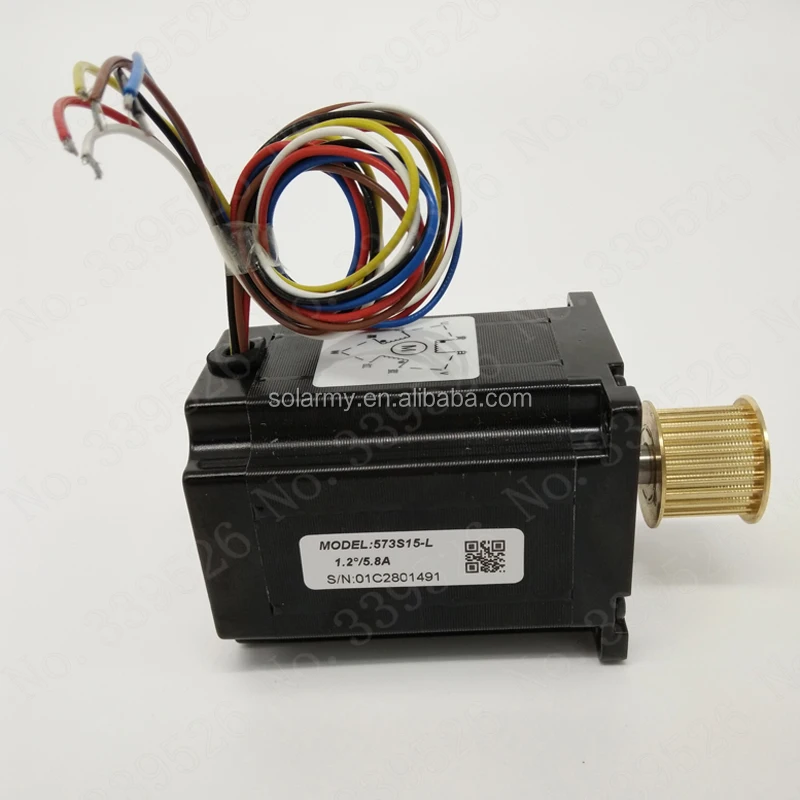

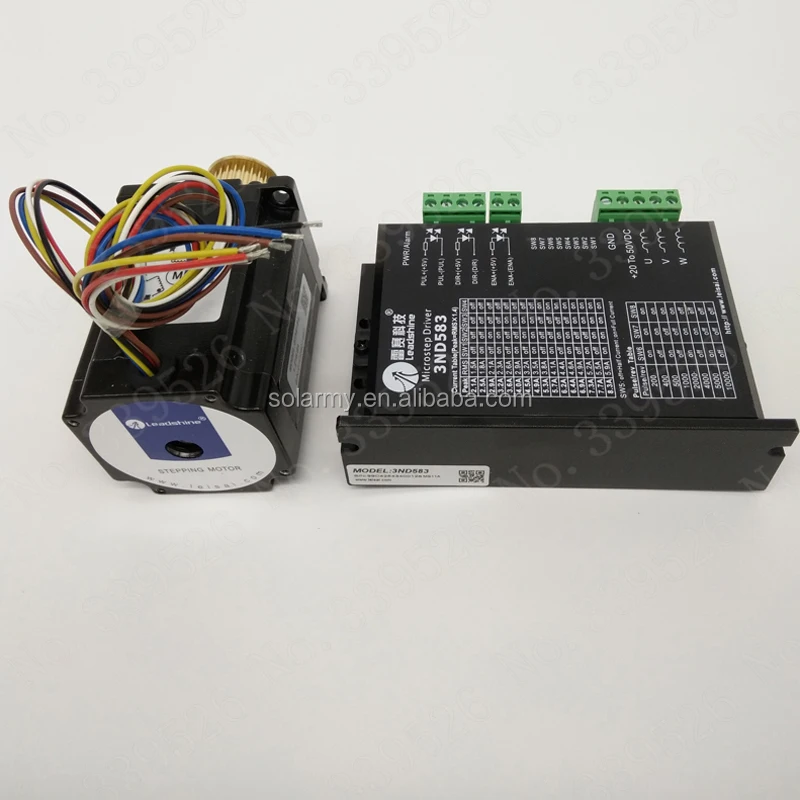

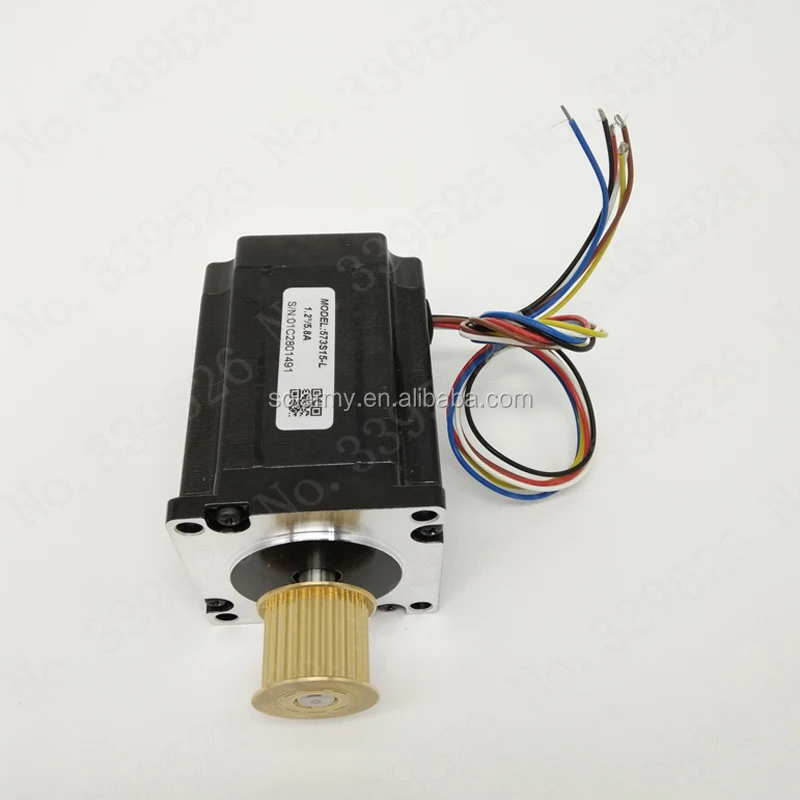

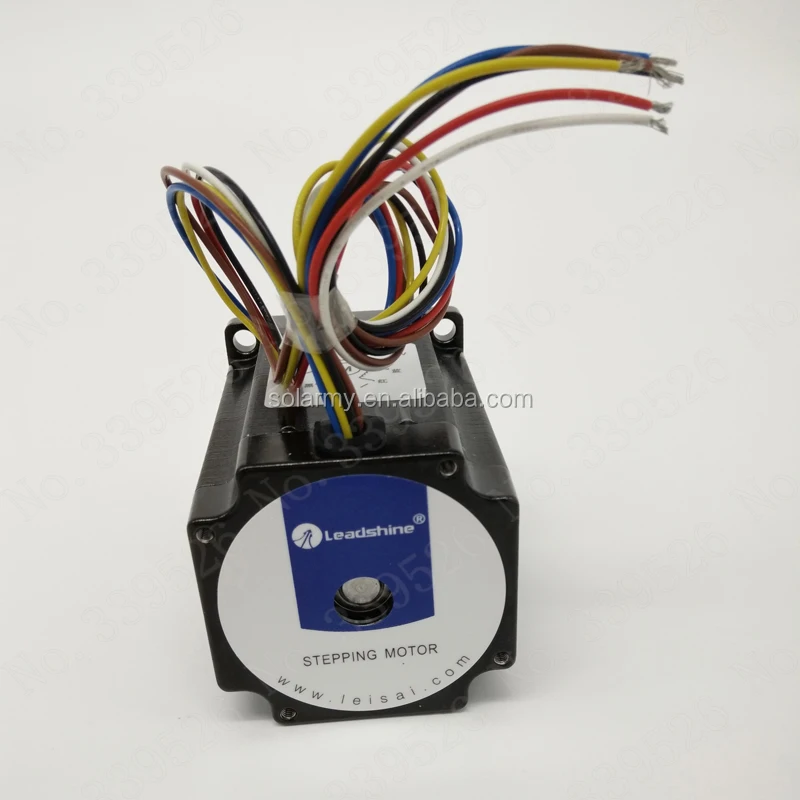

573S09L Stepper motor with gear & 3ND583 3DM583 cnc stepper motor driver kit
Product Description
Common specifications
Stepaccuracy
+5%
Temperature rise
80°CMax
Ambient temperature
-10°C -- +50°C
Insulation resistance
100MΩmin.500VDC
Withstand
500VAC for one minute
Runout
0.06 Max.(450g-load)
Axial runout
0.08 max.(450g-load)
Model No.
573s09
Phase
3
Step angle (°)
1.2
Hold torque (N.M)
0.9
Rated current (A)
3.5
Phase inductance (mH)
1.7
Phase resistance (Ohm)
0.8
Lead number
6
Rotor inertia (g.cm2)
300
Positioning torque (Kg.cm)
0.4
Weight (kg)
0.75
Body length (mm)
56

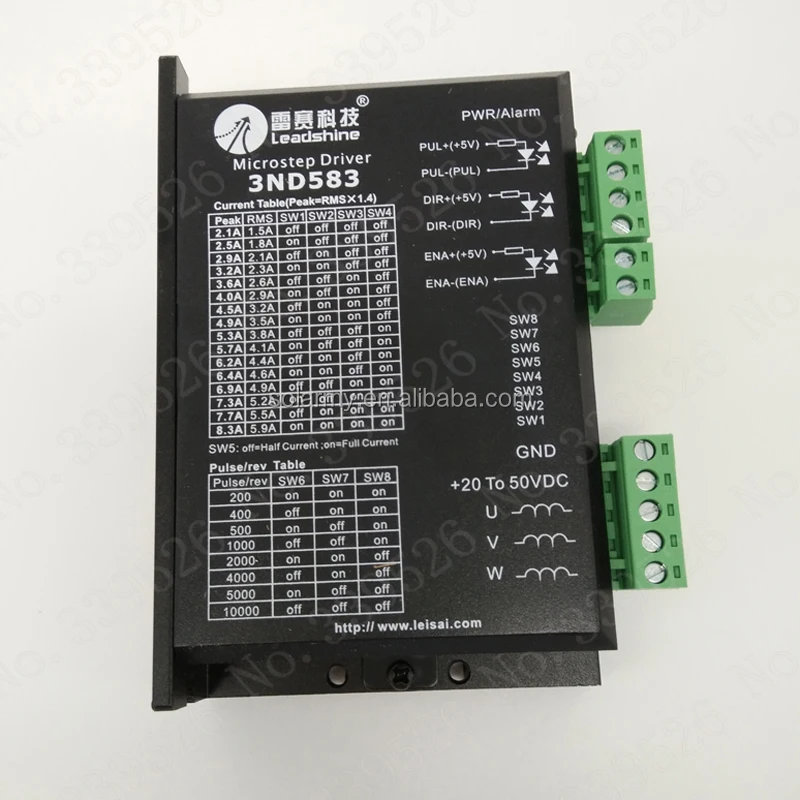

Driver 3ND583
Electrical Specifications
instructions
unit
min
Typ
max
Output Current
A
2.1
-
8.3
Input supply voltage
VDC
18
36
50
Control signal input current
mA
7
-
16
Step pulse frequency
KHz
0
-
400
Pulse low time
μs
1.2
Insulation resistance
MΩ
500
Mechanical specification
Wiring diagrams
Speed torque Characteristics
Speed-torque curves show the maximum torques that can be output at a given speed , when selecting a motor ,make sure the required torque falls within the particular curve
