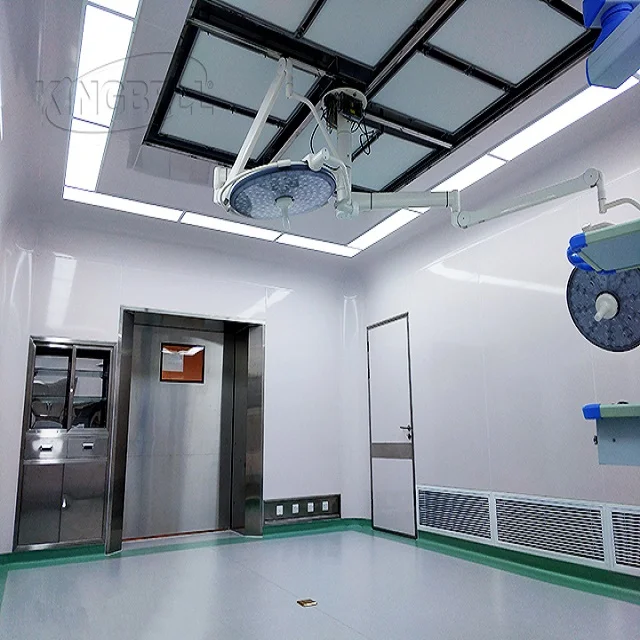

Modular Operation Theatre Room Class 10000







• 10 years' experience;


• 200 cases both abroad and at home;


• Turnkey service: covring 3major fields: pharmaceutical, hospital, laboratory;


• ISO standard;


• customized;


• Short period.



Technical Requirements For Different Air-cleaning Area

Name	Grade of Air cleaning	Air changes (times/h)	Self-cleaning time(min)	Temperature (℃)	Humidity (%)	Mininum Fresh air		Noise dB(A)	Minimum illumination (lx)
						(m3/h·person)	(Times/h)
Special OT and Lab	100	-	≤15	22-25	40-60	60	6	≤52	≥350
Standard OT	1,000	30-36	≤25	22-25	40-60	60	6	≤50	≥350
Normal OT	10,000	18-22	≤30	22-25	35-60	60	4	≤50	≥350
Primary OT	100,000	12-15	≤40	22-25	35-60	60	4	≤50	≥350
Perfusion preparation room	1,000	17-20	-	21-27	≤60	none	3	≤60	≥150
Storage room	10,000	10-13		21-27	≤60		3	≤60	≥150
Nurse Station	10,000	10-13		21-27	≤60	60	3	≤60	≥150
Prepare Room (disinfection)	10,000	10-13		21-27	≤60	30	3	≤60	≥200
Pre-anesthesia room	10,000	10-13		22-25	30-60	60	4	≤55	≥150
Washing basin room	10,000	10-13		21-27	≤65	-	3	≤55	≥150
Cleaning corridor	100,000	10-13		21-27	≤65		3	≤52	≥150
Change cloth	100,000	8-10		21-27	30-60		3	≤60	≥200
Recovery room	100,000	8-10		22-25	30-60		4	≤50	≥200
Normal corridor	300,000	8-10		21-27	≤65		3	≤55	≥150



Types Of Modular OT

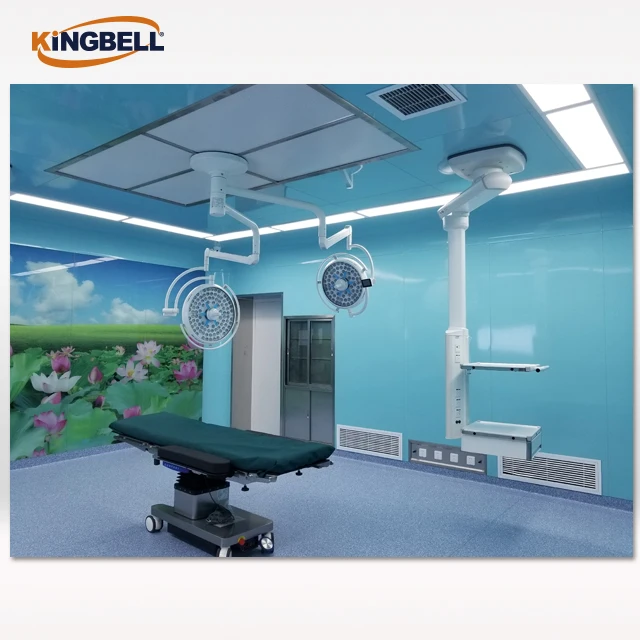

G-series:

• Glass wall plate and acrylic celling plate.


• Can be painted with beautiful photos.


• With Keel structure at the back of glass.


• Can be painted with different colors.


• Easy to clean, prevent bacteria growing.


• Strong enough to resist damaged(8mm).


• Can keep color and photos for many years.


• Relax for doctors and nurses.


• Most Beautiful ,most expensive



E-series:

• Special galvanized steel plate for wall plate and ceiling plate( Electrolytic steel plate).


• Resistant to corrosion.


• Resistance to deformation(1.2mm).


• Easy to clean, prevent bacteria growing.


• Can be painted with different colors.


• Manufactured and painted in factory.


• With Keel structure at the back of steel plate.


• Most popular, a little expensive.



C-series:

• Wall and ceiling plate with color steel plate.


• Only little colors can be chosen.


• Easy to install with aluminum alloy profile.


• Easy to deformation when impact(0.6mm).


• No need Keel structure when installation.


• Comparatively cheap.


• Difficult to make the circular angle between the wall and the ceiling.



A-series:

• Wall and ceiling plate with Aluminum plastic plate.


• Many colors is selectable


• Pasted with plasterboard by special glue.


• If the technological process is not so good, the aluminum plastic plate will be easy to come unglued.


• Need Keel structure when installation.


• Comparatively cheap.



Wall And Ceiling Plate For Corridor

• Inorganic board for corridor. Need keel to install.


• Color Steel Plate for corridor. Need No Keel, easy to install.


• Inorganic board for Secondary Room.


• Color Steel Plate for Secondary Room.

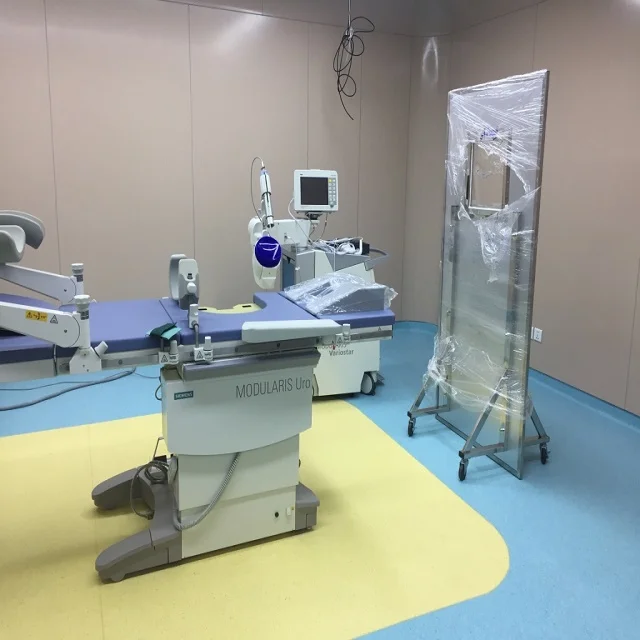

PVC Flooring and Rubber Flooring

PVC floor in corridor and secondary room	PVC and Rubber floor in OT
