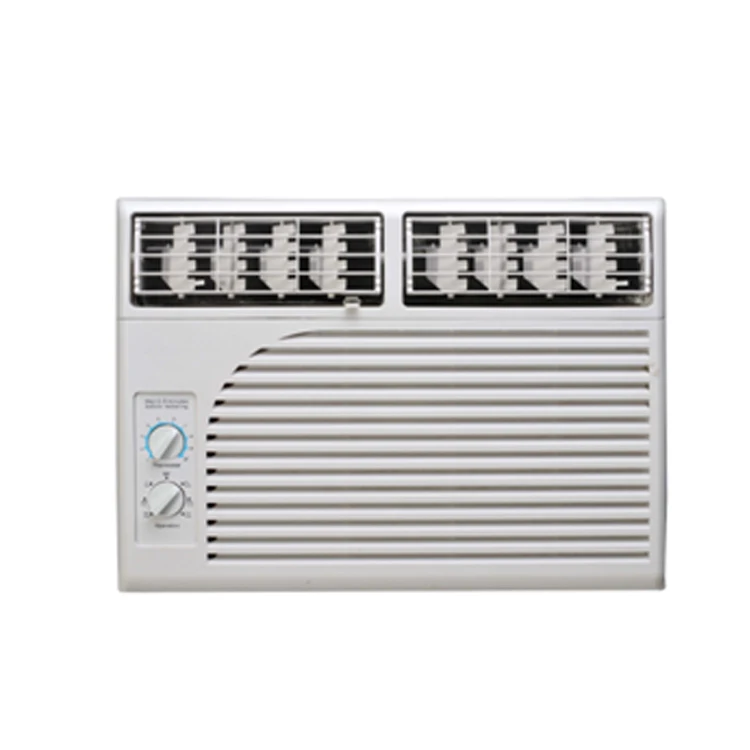

Заводской новый стиль Оконный Кондиционер

Описание и отзывы

Трекер стоимости

Характеристики



Project NO.			0.7HP
Code			mechanical
New code			22020320000823
Factory model			PH-KC21/N1-F1F(C2)
Sale model			MWF1-07CMN1-NC2
Power supply		Ph-V-Hz	1Ph,220-230V~ 60Hz,
Cooling	Capacity	Btu/h	7080
	Input	W	680
	Current	A	3.2
	EER	W/W	3.05
Moisture Removal		L/h	0.8
Rated input consumption		W	1100
Rated current		A	5.5
Starting current		A	18
Compressor	Model		ASN68N1UDZ
	Type		Hermetic Motor
	Brand		GMCC
	Capacity	Btu/h	6943/7029
	Input	W	674/683
	Rated current(RLA)	A	3.33/3.08
	Locked rotor Amp(LRA)	A	18
	Thermal protector		BF635-MA
	Thermal protector position		EXTERNAL
	Capacitor	uF	20
	Refrigerant oil/oil charge	ml	ESTER OIL VG74.300.ml
Fan motor	Model		YKT-32-6-2/YSK32-6BC
	Input	W	77/72/68
	Capacitor	uF	2
	Speed(Hi/Mi/Lo)	r/min	1030/940/780
Evaporator	a.Number of rows		3
	b.Tube pitch(a)x row pitch(b)	mm	21×13.37
	c.Fin spacing	mm	1.2
	d.Fin type (code)		Hydrophilic aluminium
	e.Tube outside dia.and type	mm	Φ7,innergroove tube
	f.Coil length x height x width	mm	255x294x40.11
	g.Number of circuits		2
Condenser	a.Number of rows		2
	b.Tube pitch(a)x row pitch(b)	mm	19.5x11.6
	c.Fin spacing	mm	1.2
	d.Fin type (code)		UnHydrophilic aluminium
	e.Tube outside dia.and type	mm	Φ5,innergroove tube
	f.Coil length x height x width	mm	480x332x23.2
	g.Number of circuits		2
Refrigerant type		kg	R410A/0.34
Design pressure		MPa	4.2/1.5
Plug type			18#x3  / SP008
Control type			Mechanical Control
Operation temp	indoor(cooling/heating)	℃	17-32/---
	outdoor(cooling/heating)	℃	18-43/---
Application area (Cooling Standard)		m2	9-14
Dimension(W*D*H)		mm	445x415x320
Packing   (W*D*H)		mm	495x580x435
Net/Gross weight		Kg	32/34.6
Loading quantity 20’ /40’ /40'HQ		Pieces	220/480/576
