Производство глубокой вытяжки пресс тачки лоток делая

Производство глубокой вытяжки пресс тачки лоток делая

Категория: Штамповочные машины >>>
Поставщик: Zhongyou,Heavy,Industry,Machinery,Equipment,Co.,Ltd.

Цена:9 800,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	11662.16 $*	12245.24 $*
Aug-17-2025	11564.49 $*	12142.38 $*
Jul-17-2025	9702.9 $*	10187.68 $*
Jun-17-2025	11368.72 $*	11936.52 $*
May-17-2025	9898.21 $*	10393.6 $*
Apr-17-2025	11172.97 $*	11731.79 $*
Mar-17-2025	11074.21 $*	11628.19 $*
Feb-17-2025	10976.1 $*	11525.62 $*
Jan-17-2025	10878.30 $*	11422.73 $*

Характеристики

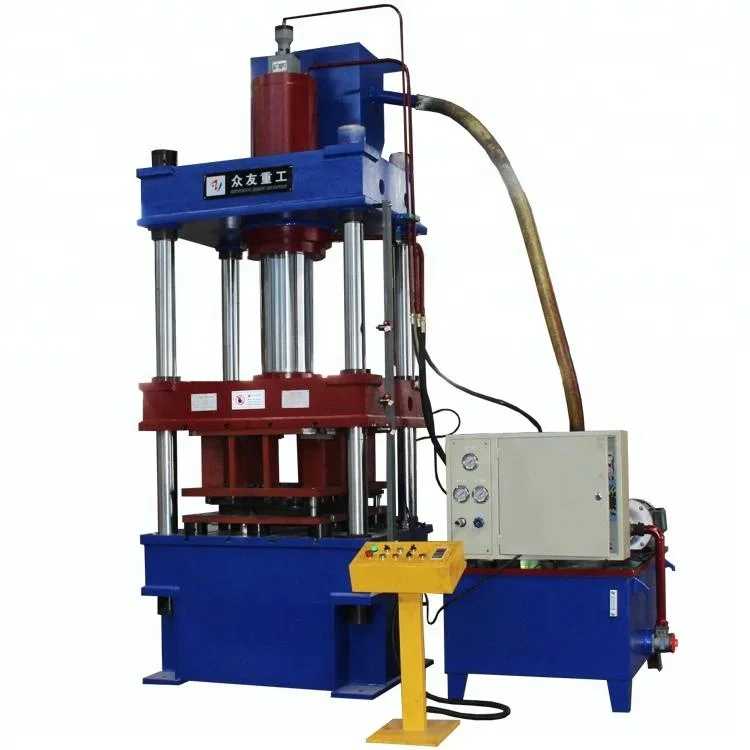

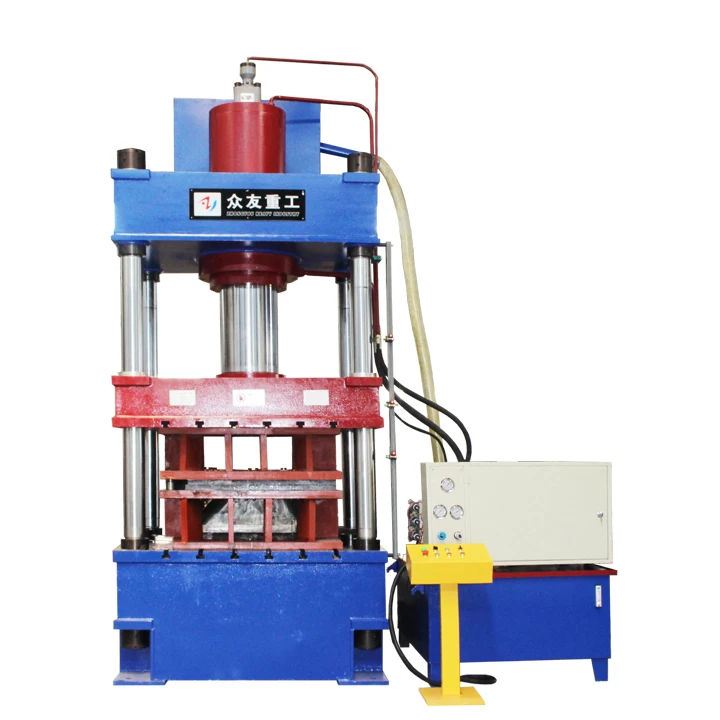

Four Column Hydraulic press Wheelbarrow making machine

Product Description

The Wheelbarrow making machine is not only used for producing hand truck and wheelbarrow ,actually Wheelbarrow making machine belongs to " deep drawing press machine ".This series of presses are for metal materials, deep drawing, bending, flanging, cold extrusion, stamping and other craft, also applies to the correction, press-fit, powder products, abrasive products, as well as the suppression of molding plastic products, insulation materials, repression of molding.

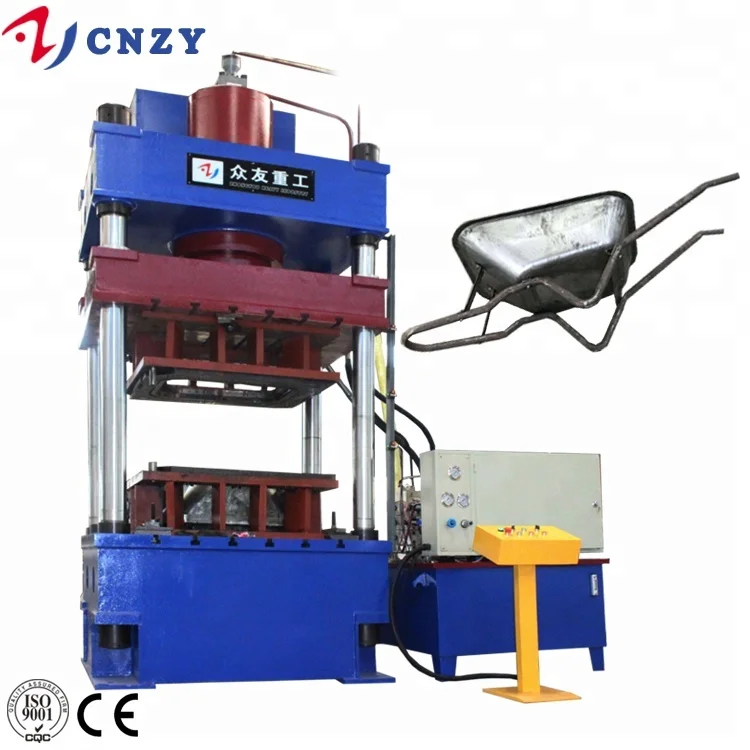

wheelbarrow press machine

Technical Parameters

For Deep drawing press Wheelbarrow making machine:Color, Motor power, Workbench size, Opening height , Effective stroke can all be customized, Size of mould included.

Parameter Iterm	Unit	YQ32-315A	YQ32-315B
Nominal Force	Kn	3150	3150
Max Pressure of Hydraulic systerm	Mpa	25	25
Effective stroke	mm	1250	1250
Max opening distance	mm	800	800
Workbench size(L-R)	mm	1260	1000
Workbench Size(F-B)	mm	1160	1100
Ejection cylinder nominal force	Kn	630	630
Stroke of Ejection Cylinder	mm	300	300
Velocity of Freeload	mm/s	120	120
Velocity of loading	mm/s	8-15	8-15
Velocity of retrn	mm/s	90	90

Detailed Images

Beam upper limited is protected by the light curter
With “PAUSE” & “EMERGENCY STOP” button.
With Second supporting loop for the main cylinder

Security valve for hydraulic loop

Main components of Wheelbarrow tray making machine:
Transformer: Simens
Middle relay: Simens
Time relay: Simens
Breaker: Simens
Thermal relay: Simens
Oil pump: 25YCY14-1B Chinese famous brand
Main motor: Simens
Valves: TAIFENG
Seals: PARKER
Buttons: Simens
PLC: Mistsubushi

Samples & Applications of Deep drawing press Wheelbarrow making machine:

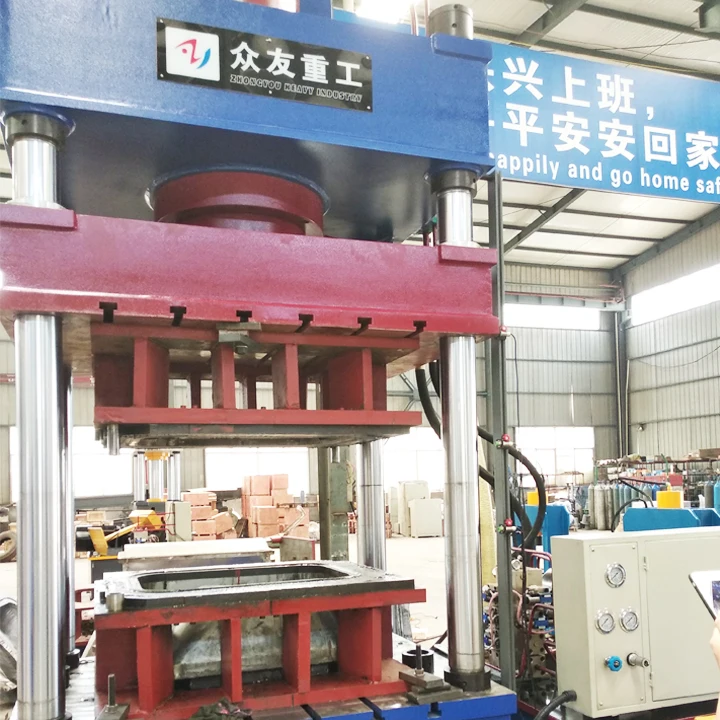

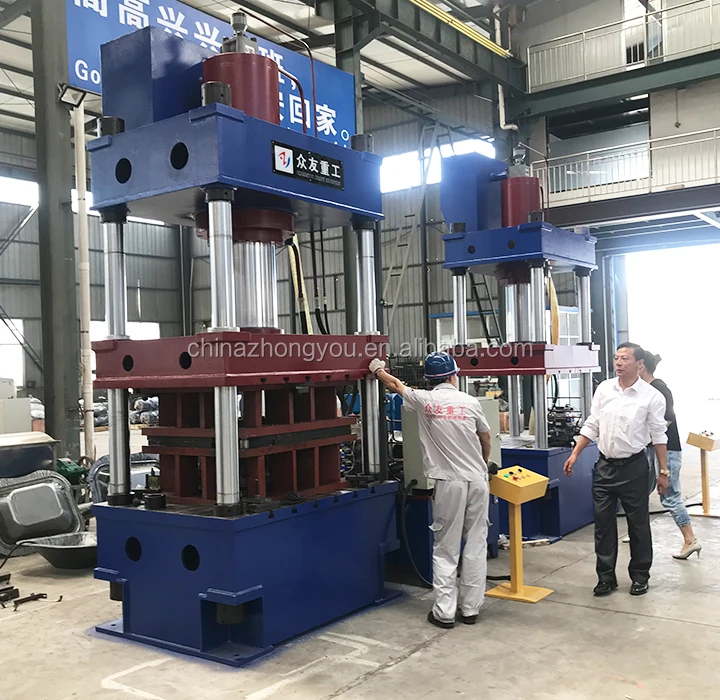

Customers testing wheelbarrow making machine spot:
